Dismantling interior components
Removing fuse box
How to remove fuse box from a Volkswagen Polo 6R Remove fuse box cover Pull cover -1- out from fasteners in lower area -arrow A- and remove from dash panel. Remove left footwell vent Remove footwell light Use removal wedge -VAS 3409- or screwdriver to prise footwell l ight out of trimbeneath dash panel. Release … Czytaj dalej „Removing fuse box”

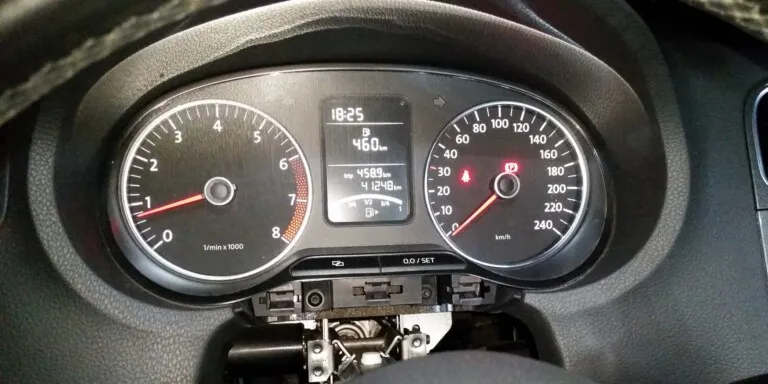

Removing dash panel insert
How to remove instrument cluster from a Polo 6R Remove securing bolts -arrows- from dash panel insert (TORX T20 socket) Pull dash panel insert out of dash panel taking wiring harness length into consideration. Disconnect connector. Photos Videos

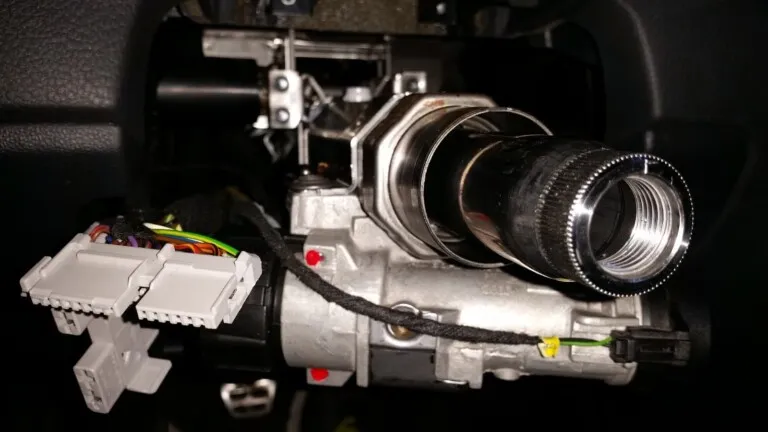

Removing steering column switch
How to remove steering column switch from a Polo 6R Release securing bolt -arrow- of steering column switch -1-. Release connector -1- by first pressing catch -2- »from underneath« in direction of -arrow A- and then pulling »from above« in direction of -arrow B-. Detach steering column switch -3- from connector -1- and steering column.

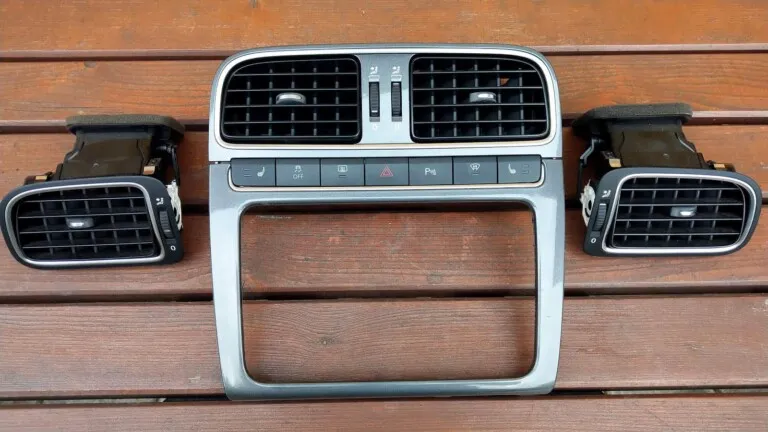

Removing vents
How to remove vents from a Polo 6R Removing driver or front passenger vent If you have strong nails, you don’t need to use trim removal tools 😉 Removing centre vents Video
Removing dash panel middle trims
How to remove dash panel middle trims from a Volkswagen Polo 6R Removing dash panel middle trims Vehicles with no Climatronic Release upper trim -1- from fasteners with removal wedge -3409-. Release lower trim -2- from fasteners with removal wedge -3409-. Vehicles with Climatronic Release upper trim -1- from fasteners with removal wedge -3409-. Release lower trim -2- from fasteners with removal wedge … Czytaj dalej „Removing dash panel middle trims”

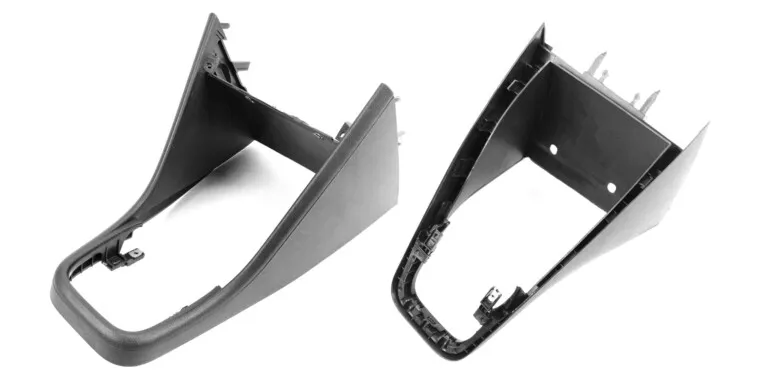

Removing centre console cover
How to remove cover for centre console from a Polo 6R Remove gearstick sleeve or gear selector cover from mountings Remove dash panel middle trims Remove bolts -1- and -2- (1.5 Nm). Push down tabs -3-. Detach cover from centre console by moving in direction of rear bench seat.
Removing rear cup holder
VW Polo 6R rear cup holder removal – I’ll show you how to remove the drinks holder in 3 simple steps. Learn how to do it without damaging any parts.

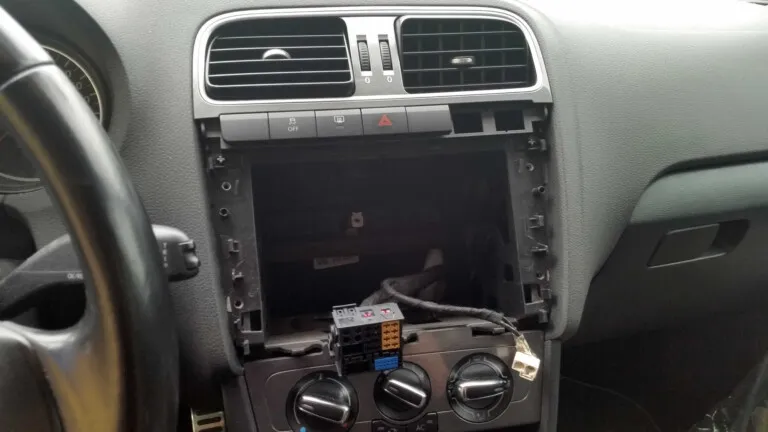

Removing radio units/radio navigation systems
How to remove radio unit from a Volkswagen Polo 6R Removing radio units and radio navigation systems Firstly you need to remove dash panel iddle trims. Using removal wedge -3409-, carefully lever out centre console cover in area of -arrows- and remove cover. Remove bolts -arrows- from radio or radio navigation system. Pull radio or … Czytaj dalej „Removing radio units/radio navigation systems”
