List of parts required to upgrade rear brakes on VW Polo 6R and 6C
| Part number | Part name | Quantity | PR-Code | Price |
|---|---|---|---|---|
| 6R0615423B | Brake caliper housing, left | 1 | PR-1KD | 285,84 EUR |
| 6R0615424B | Brake caliper housing, right | 1 | PR-1KD | 285,84 EUR |
| 6R0615425D | brake carrier with pad retaining pin, left | 1 | PR-1KD | 451,34 EUR |
| 6R0615426D | brake carrier with pad retaining pin, right | 1 | PR-1KD | 451,34 EUR |
| 6R0615601A | brake disc 254×22 | 2 | PR-1KD | 85 EUR |
| 6R0698451 | 1 set of brake pads for disk brake | 1 | PR-1KD | 90 EUR |
| 6R0615611A | cover plate for brake disc, left | 1 | 17,85 EUR | |
| 6R0615612A | cover plate for brake disc, right | 17,85 EUR | ||
| 6R0609721K | brake cable 1659 | 2 | PR-1KD | 22,30 EUR |
| 6Q0609639B | bracket for brake cable, left | 1 | PR-1KD | 8,90 EUR |
| 6Q0609640B | bracket for brake cable, right | 1 | PR-1KD | 8,90 EUR |
| 1K0615295 | spring left (Audi TTS) | 1 | ||
| 1K0615296 | spring right (Audi TTS) | 1 | ||
| N90740302 | socket head bolt with hexagon socket head (combination) | 4 | ||
| 6R0609651 | bracket for brake cable | 0,60 EUR | ||
| 1H0609734F | clip | 1,95 EUR | ||
| 1J0609741B | bush | 0,60 EUR | ||
| N90937002 | hex socket head locating bolt, D >> – | 2 | ||
| 6R0611763F/ 6R0611763K/ 6C0614749 | brake pipe/hose from brake hose to brake caliper housing left rear | 1 | PR-1KT PR-1KK PR-1KV | 16,50 EUR |
| 6R0611764F/ 6R0611764M/ 6C0614750 | brake pipe/hose from brake hose to brake caliper housing right rear | 1 | PR-1KP PR-1KD | 16,50 EUR |
If in your local VW shop needs a VIN to order parts, you can use one of this:
WVWZZZ6RZEY065858WVWZZZ6RZEY087538

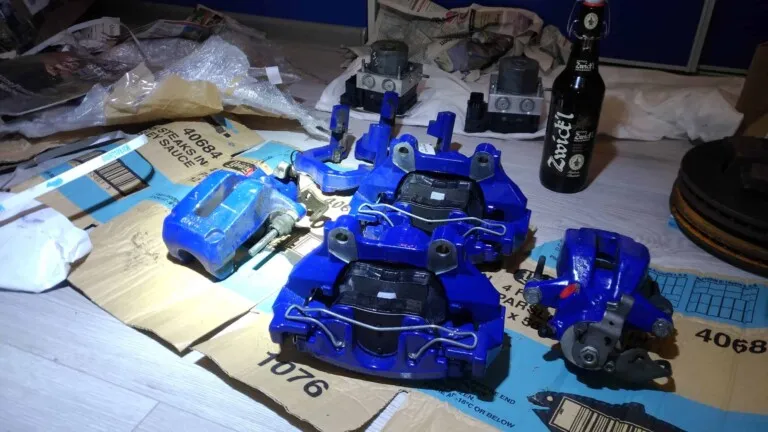

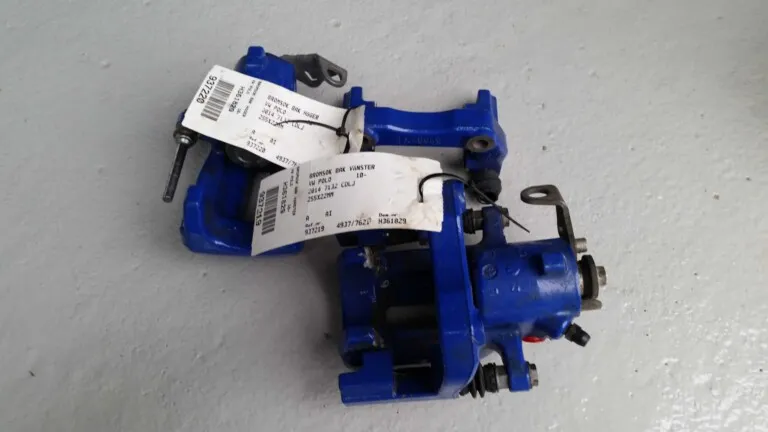

You can find photos of above parts in this post.
Locations, details etc.

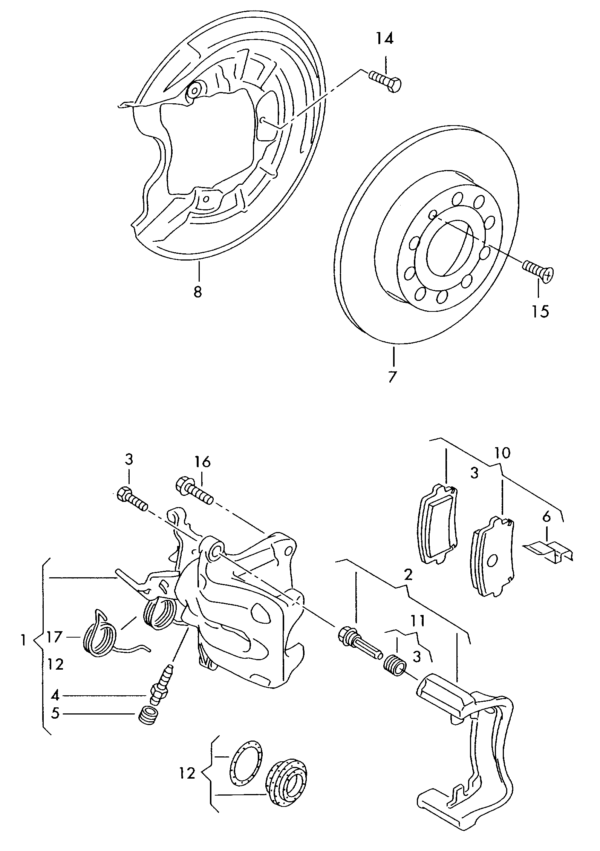

disc brake, version rear blue, PR-1KD (Polo WRC Street)
| № | part code | title | qty. |
|---|---|---|---|
| 1 | 6R0615423B | brake caliper housing, left | 1 |
| 1 | 6R0615424B | brake caliper housing, right | 1 |
| 2 | 6R0615425D | brake carrier with pad retaining pin, left | 1 |
| 2 | 6R0615426D | brake carrier with pad retaining pin, right | 1 |
| 7 | 6R0615601A | brake disc, 254×22 | 2 |
| 8 | 6R0615611A | cover plate for brake disc, left | 1 |
| 8 | 6R0615612A | cover plate for brake disc, right | 1 |
| 10 | 6R0698451 | 1 set of brake pads for disk brake | 1 |
| 16 | N90740302 | socket head bolt with hexagon socket head (combination), M10X1,25X30 | 4 |
| 17 | 1K0615295 | spring left (Audi TTS) | 1 |
| 17 | 1K0615296 | spring right (Audi TTS) | 1 |

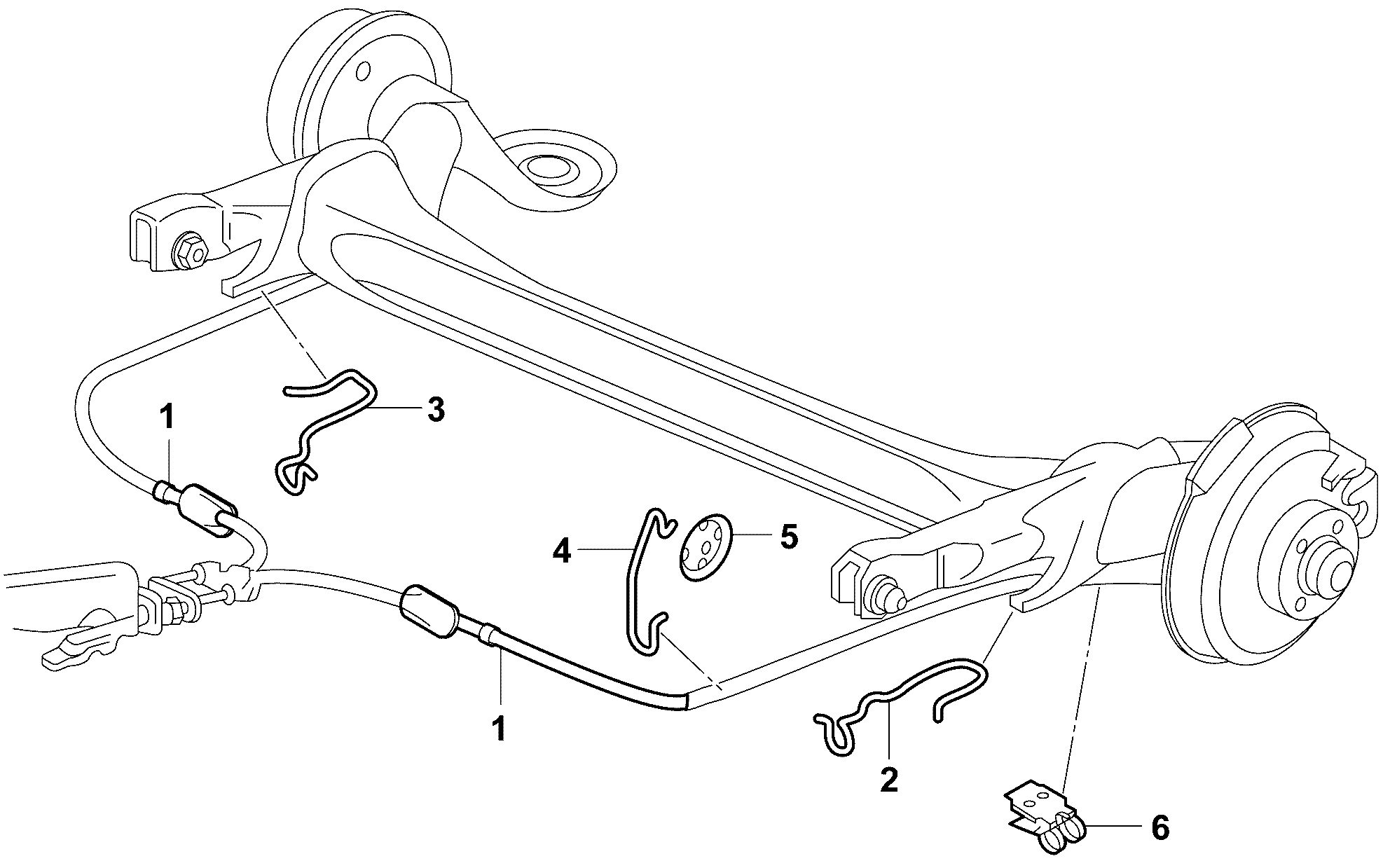

brake cable; for models with disc brakes, PR-1KD (Polo WRC Street)
| № | part code | title | qty. |
|---|---|---|---|
| 1 | 6R0609721K | brake cable, 1659MM | 2 |
| 2 | 6Q0609639B | bracket for brake cable, left | 1 |
| 3 | 6Q0609640B | bracket for brake cable, right | 1 |
| 4 | 6R0609651 | bracket for brake cable | 2 |
| 5 | 1J0609741B | bush | 2 |
| 6 | 1H0609734F | clip | 2 |

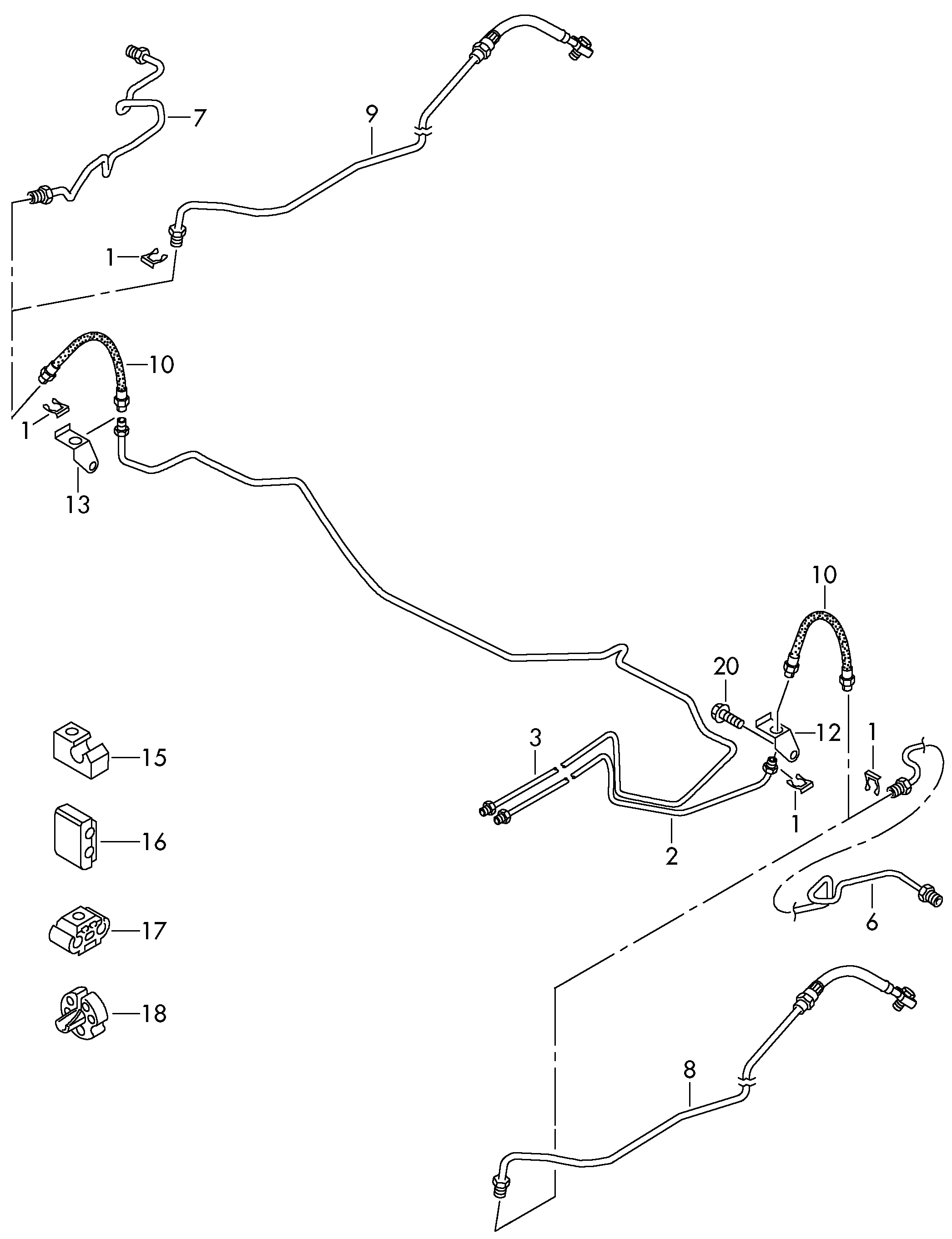

brake pipe; brake hose, PR-1KD (Polo WRC Street)
| № | part code | title | qty |
|---|---|---|---|
| 8 | 6R0611763F/ 6R0611763K/ 6C0614749/ | brake pipe/hose from brake hose to brake caliper housing, left rear | 1 |
| 9 | 6R0611764F/ 6R0611764M/ 6C0614750 | brake pipe/hose from brake hose to brake caliper housing, right rear | 1 |
