Blue brakes OEM — Polo WRC Street

Short info about part numbers + some photos.

Here is my list of part numbers needed for the brake swap to those from the VW Polo 6R WRC Street 2.0 TSI.

Part numbers to front brakes

6R0615123 — brake caliper housing, left, version blue
6R0615124 — brake caliper housing, right, version blue
6R0615125C — calliper carrier (2 pc.)

6R0615311B — cover plate for brake disc, left
6R0615312B — cover plate for brake disc, right

8X0698151 — 1 set of brake pads for disk brake 310×25

6R0615301B — brake disc, vented, 310×25 5/100 (2 pc.) — I bought Zimmermann Standard Coatz 100.1240.20

6Q0407255S / 6C0407255A — wheel bearing housing, left
6Q0407256S / 6C0407256A — wheel bearing housing, right
6R0407621A / 6C0407621 — wheelhub with bearing, 72 mm (I used SKF products — there were no more expensive ones, so they should be good)

Bolts

wheel bearing housing

N90954802 – oval hexagon socket head bolt M12x1,5×80 – 2 pieces (no. 20)

N10106402 – Hexagon collar nut self-locking M12x1,5 – 2 pieces (no. 21)

6Q0407396B – double hexagon nut M16X1,5 – 2 pieces (no. 10)

N10332002 – Hexagon collar nut M10 – 6 pieces (no. 12)

N90942902 – hexagon nut, self-locking, M12X1,5 – 2 pieces (no. 23)

You can see the end result here.

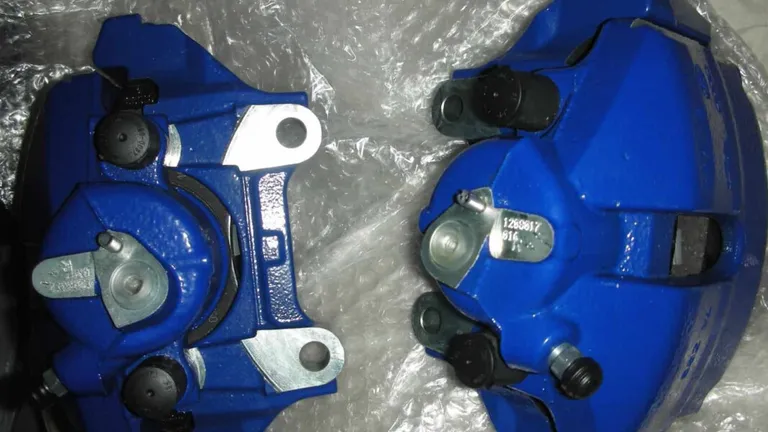

Thanks to Michel (iichel) I was able to buy brand new front brakes from Germany (ebay.de).
It was not cheap, but for blue I can always pay extra 🙂

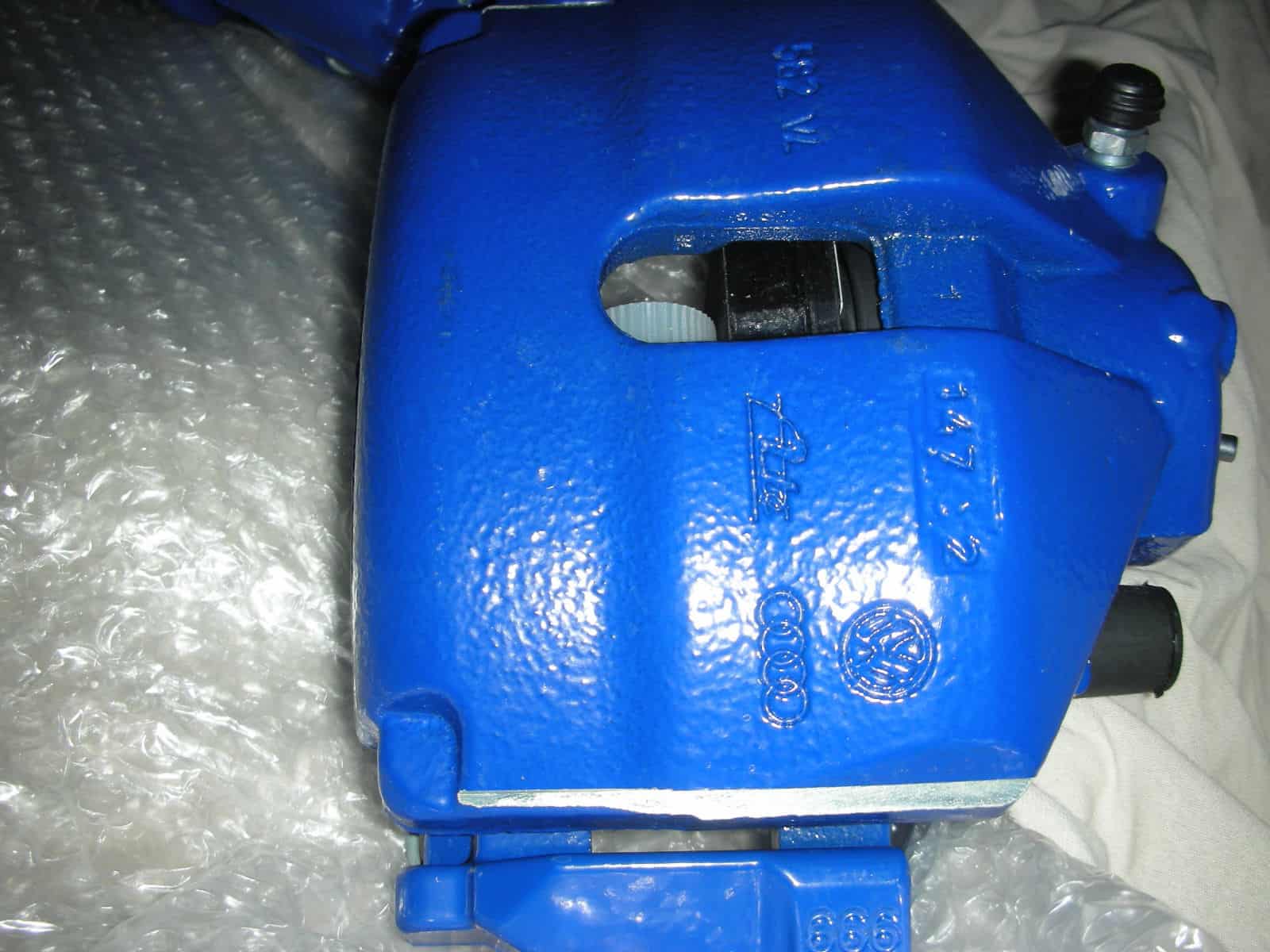

In addition, brakes are OEM, unused, in the original BLUE color.
