New front ABS sensors

Since I put all my old steering knuckles into my other Polo 9n3, for the new wheel bearing housings I needed speed sensors together with a bolt in addition to the hubs with bearings.

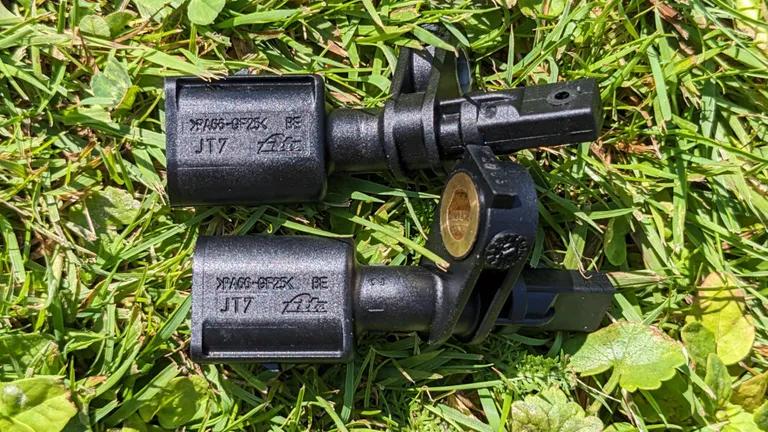

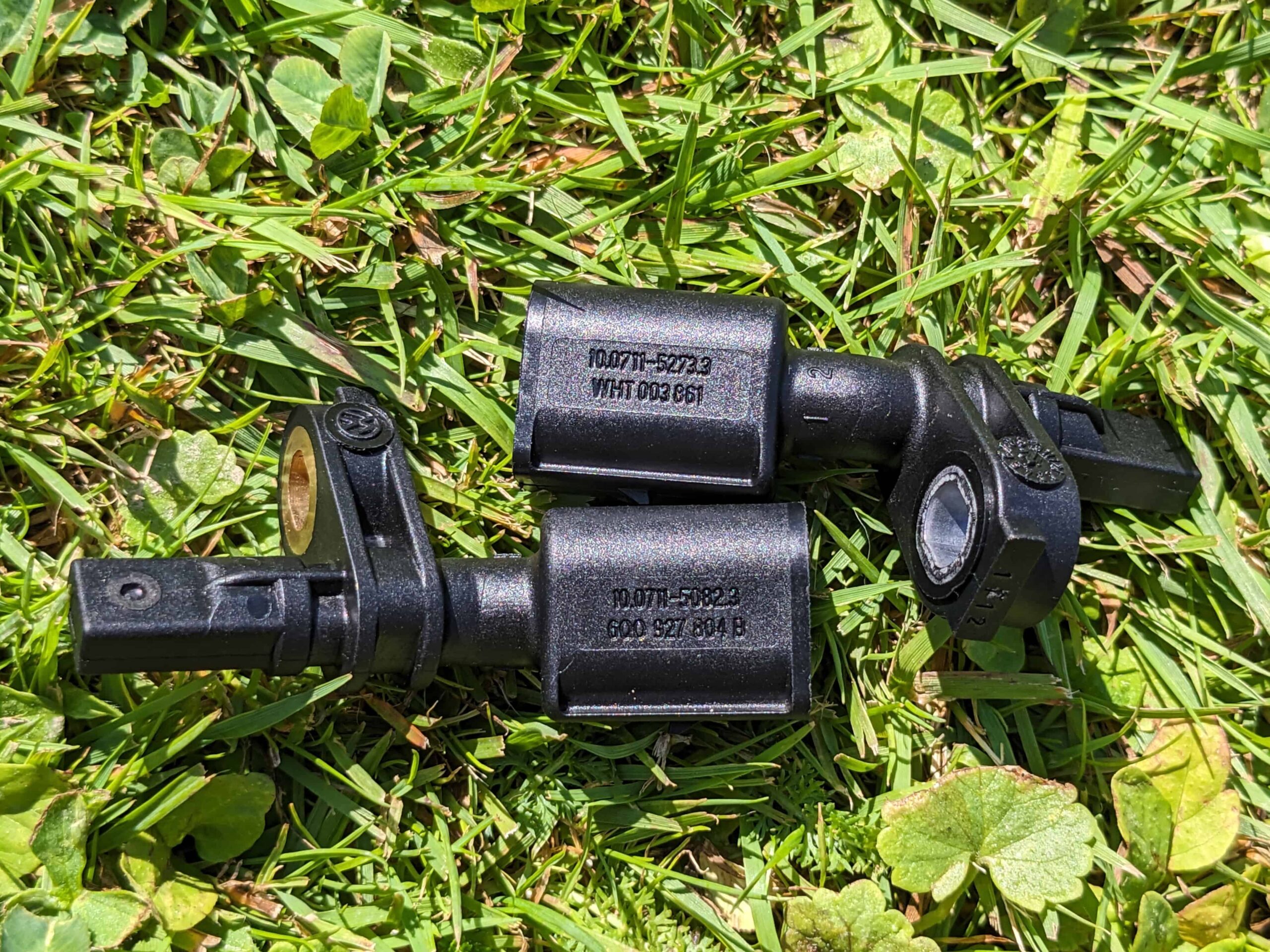

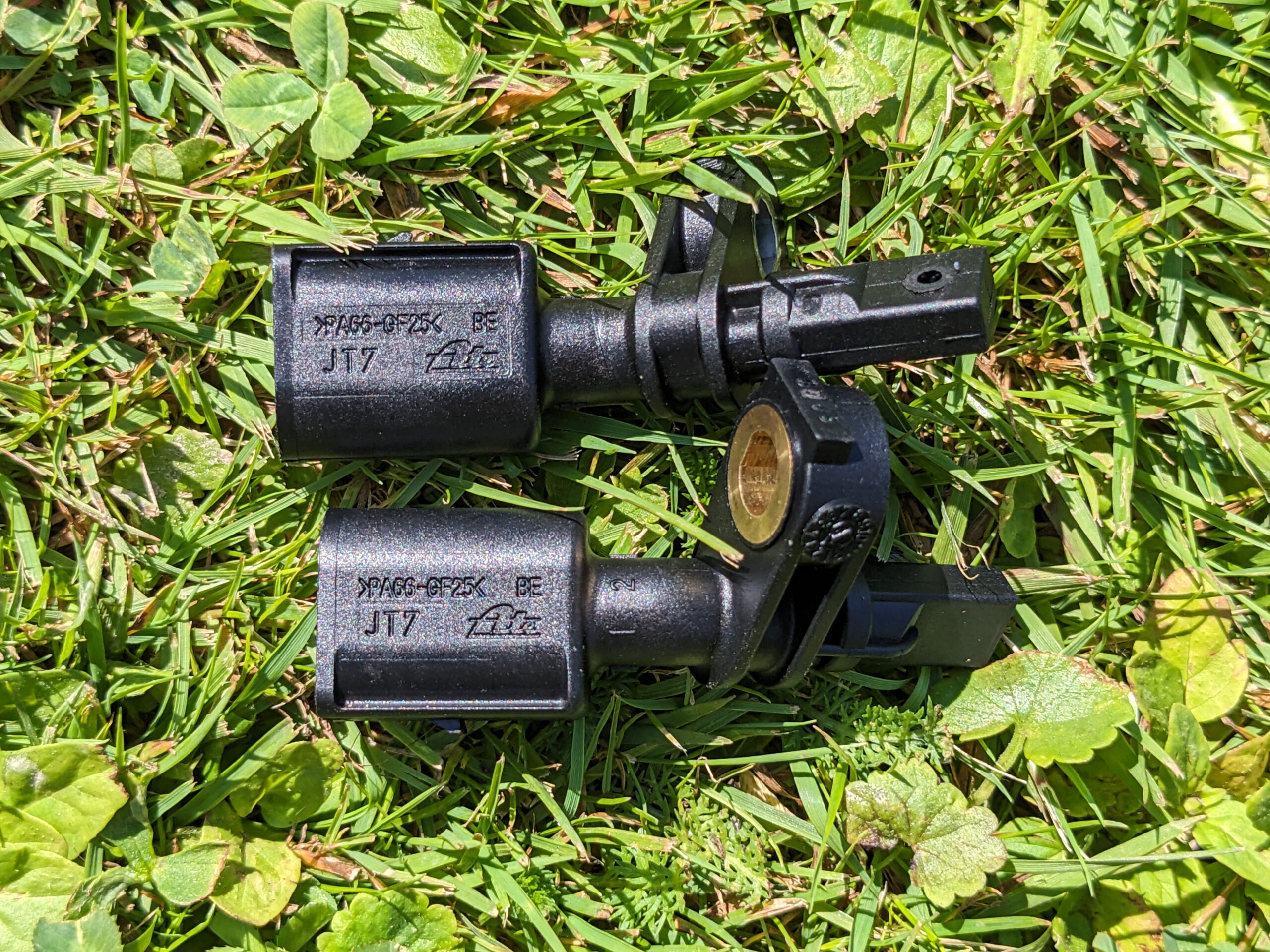

WHT003860B & WHT003861B – front speed sensors

Front ABS sensors for Polo 6R:

  • WHT003860B WHT 003 860 B – speed sensor, front left
    other part numbers:

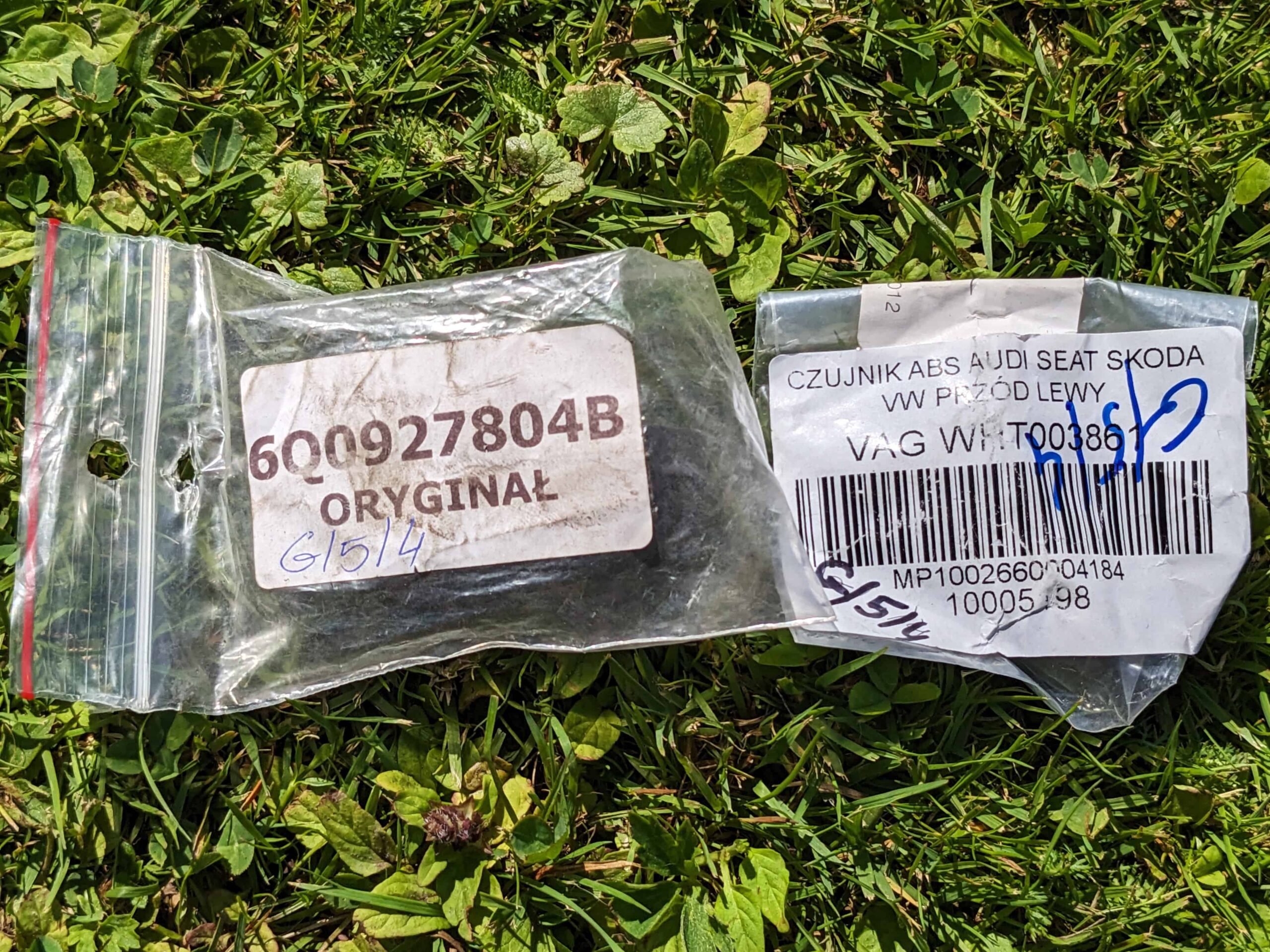

    • 6Q0927804B 6Q0 927 804 B
    • WHT003860 WHT 003 860
  • WHT003861B WHT 003 861 B -speed sensor, front right
    other part numbers:
    • 6Q0927803B 6Q0 927 803 B
    • WHT003861 WHT 003 861

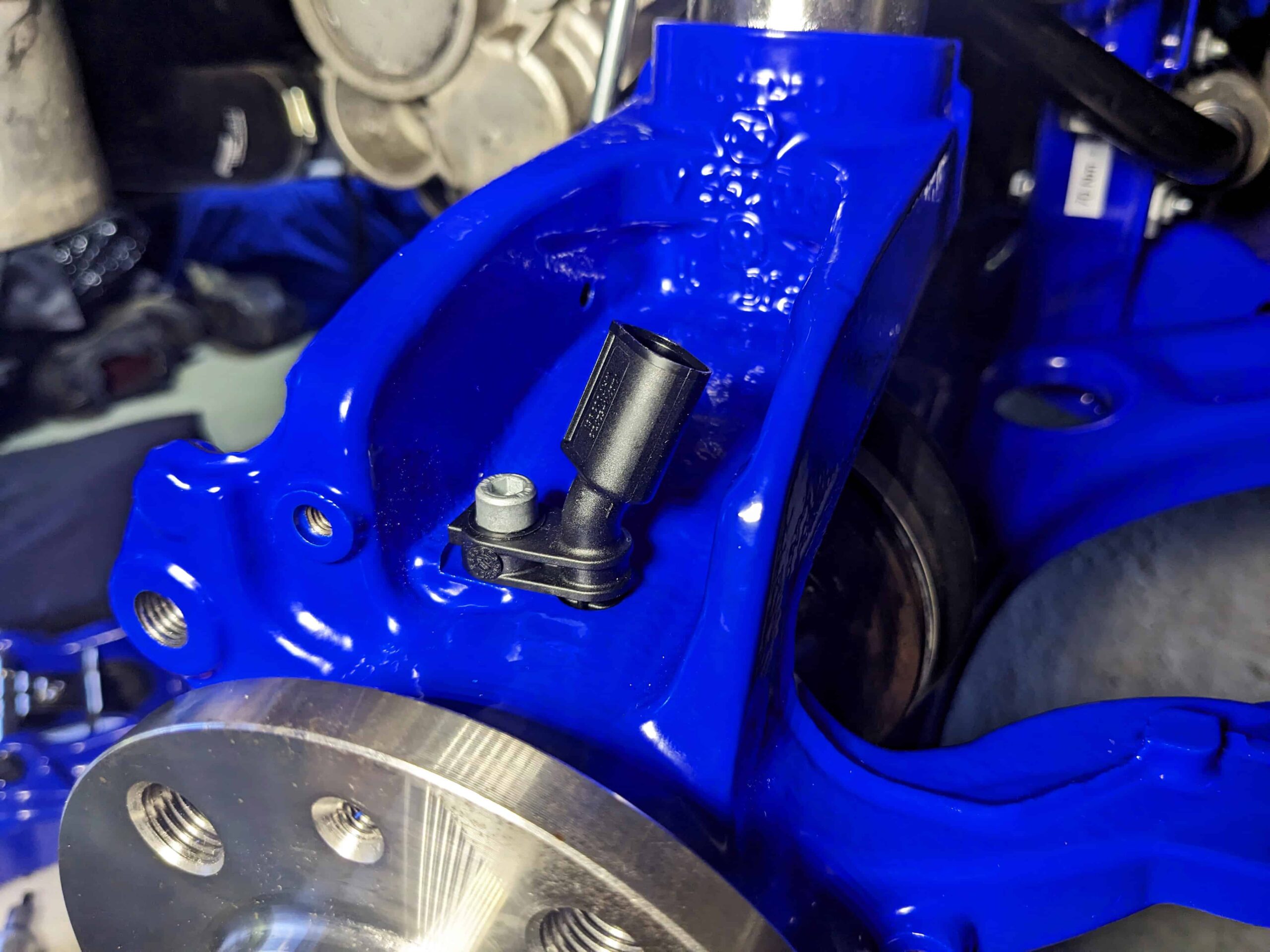

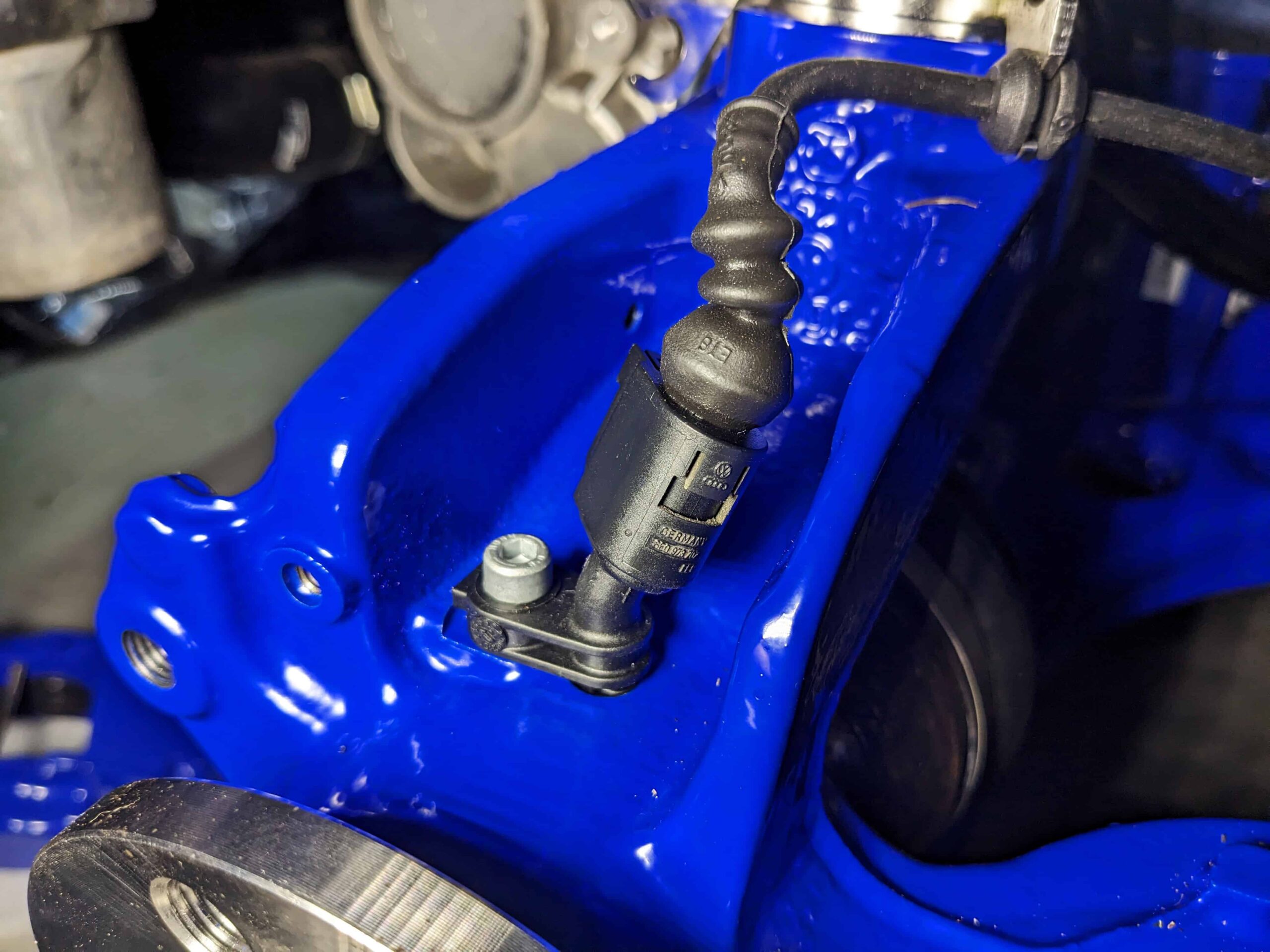

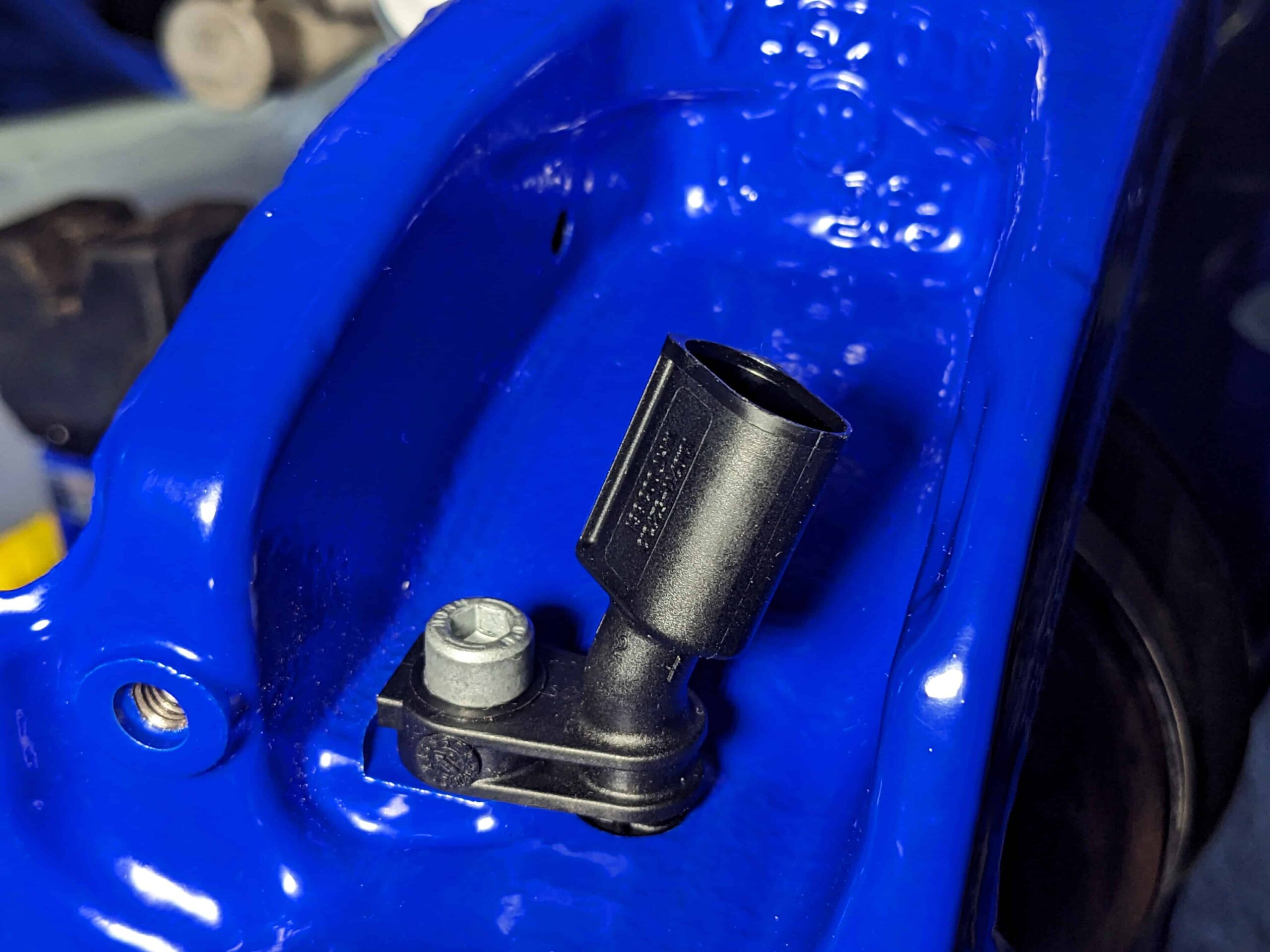

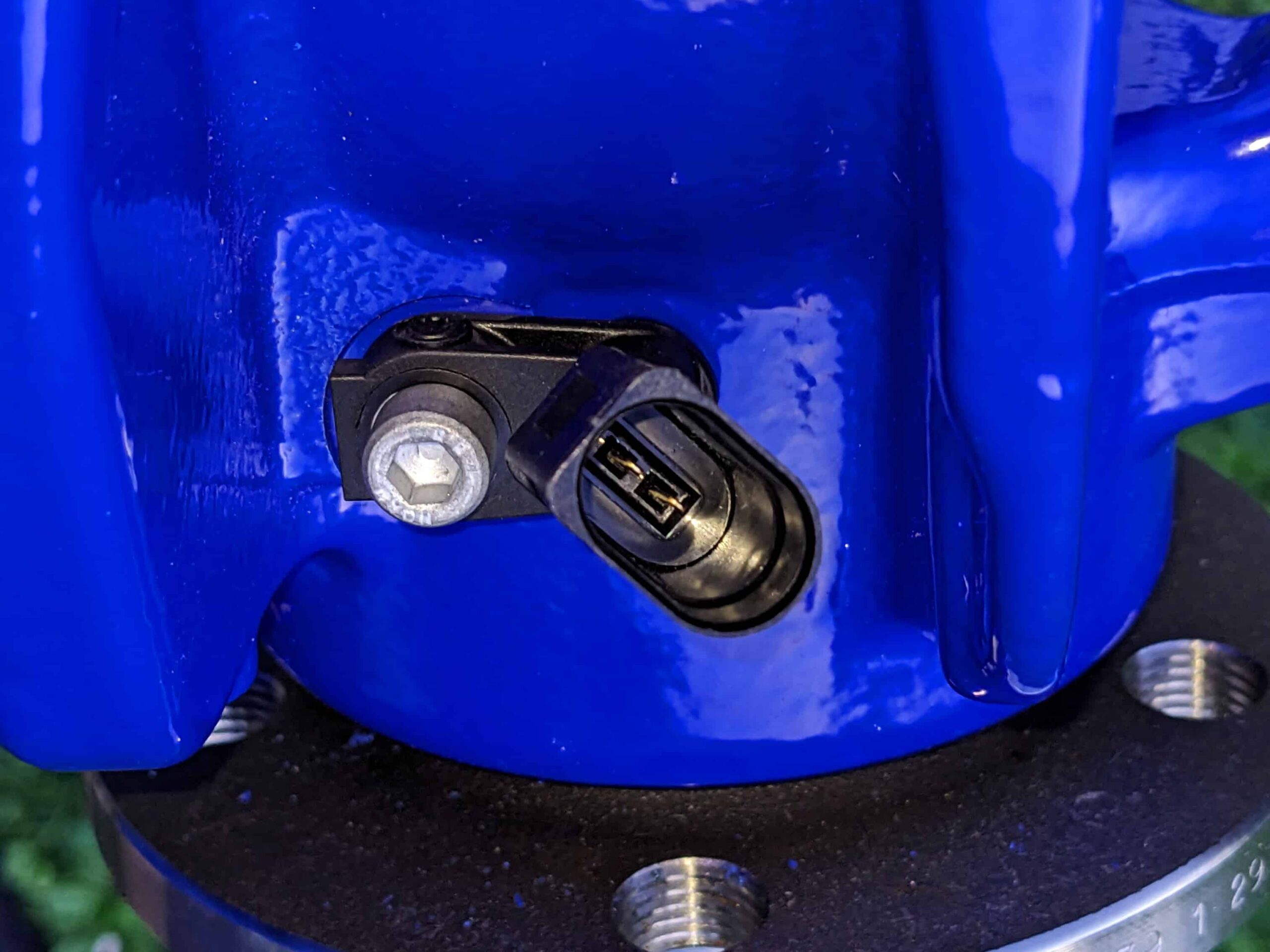

N01474011 socket head bolt with hexagon socket head M6x16

Socket: HEX H5
Tightening torque: 8 Nm

2 * N01474011 – bolt for speed sensors (ABS)

|
