Instruction to make adapters for VW Polo 6R for retrofitting the taillights of the VW Polo 6C Facelift.

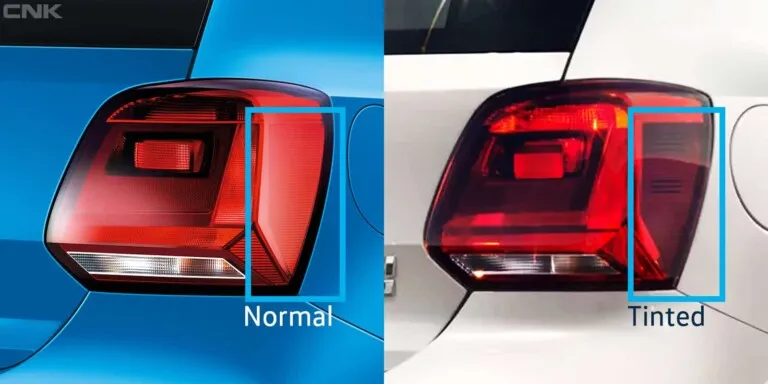

The difference between the Polo 6R and Polo 6C tail lights

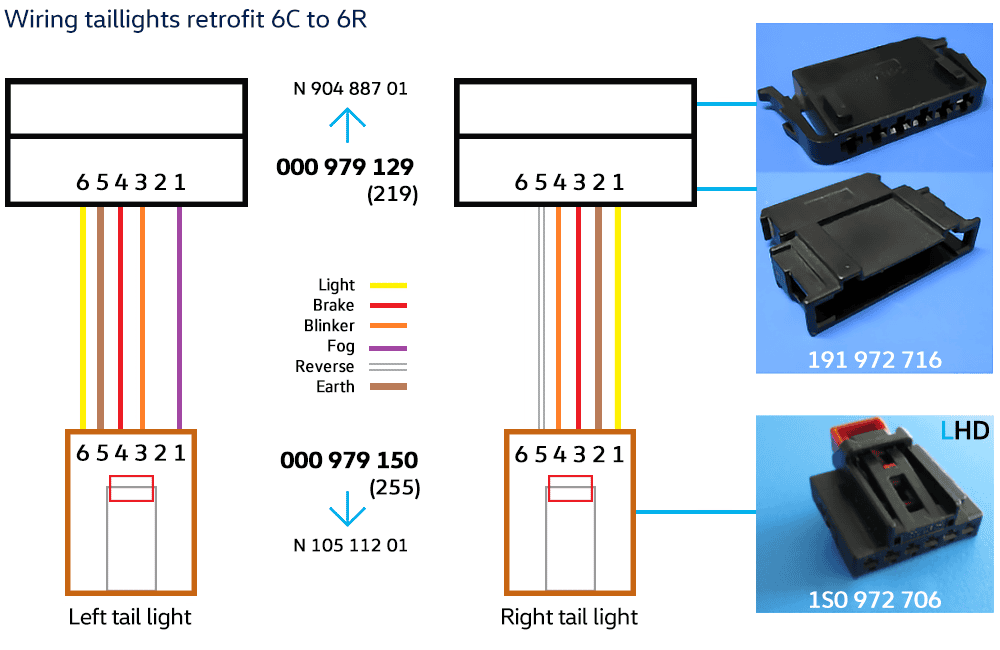

Diagram of taillights in Polo 6R

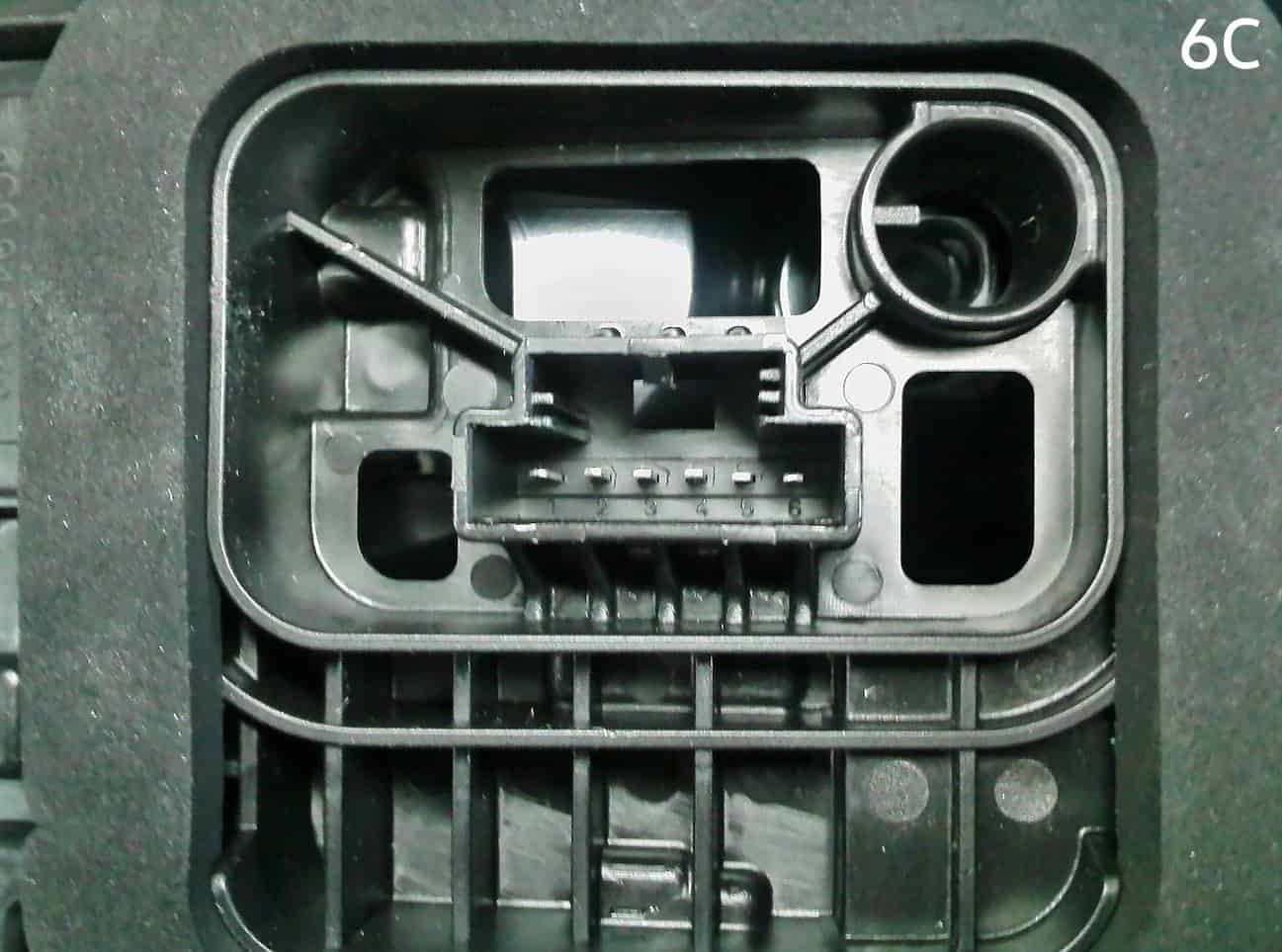

Wires position
LHD
RHD
Necessary parts
- SN-48B crimping tool
- HQ automotive wire 1.5mm2 thickness for all positions – about 10 centimeters or 4 inches +/- each (10 pieces)
- Pin-contacts:
191 972 716(2 pcs.)1S0 972 706(2 pcs.)N 904 887 01(10 pcs.)N 105 112 01(10 pcs.)

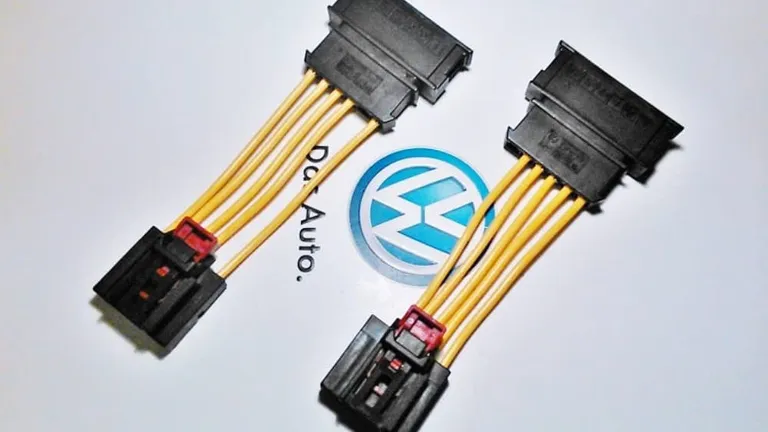

DIY
The difference in connectors for LHD and RHD versions
RHD conenctor: 6C0972706

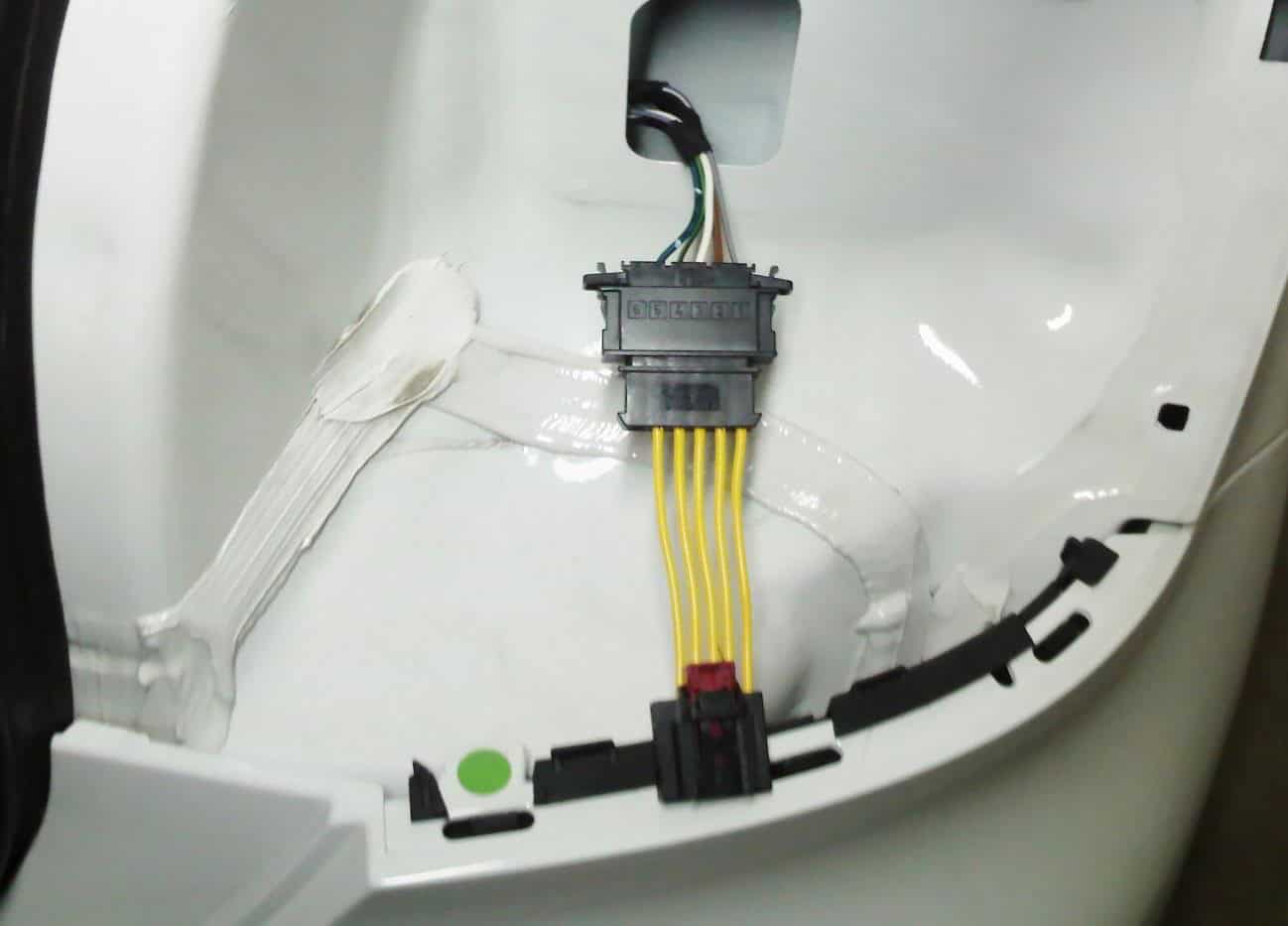

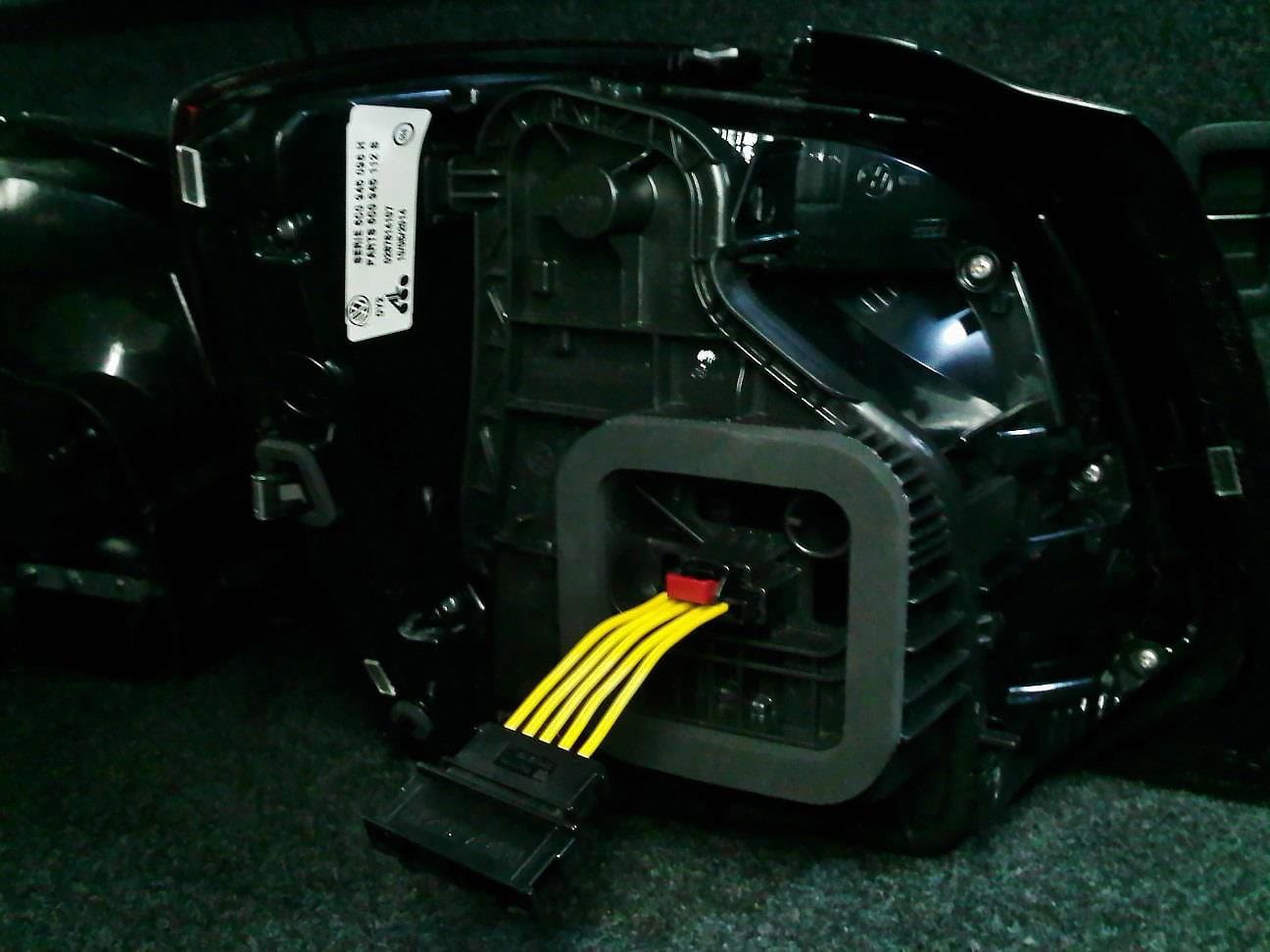

Installation
Available items
if you don’t like diy, you can buy it here:
- https://www.dejavucars.eu/en/9481.html
- https://www.x2car.de/Adapter-fuer-VW-Polo-6R-zum-Nachruesten-der-Rueckleuchten-vom-VW-Polo-6C-Facelift-LHD
Source: https://www.uk-polos.net/viewtopic.php?p=482495#p482495
All credits goes to Fernando (ciclo)
