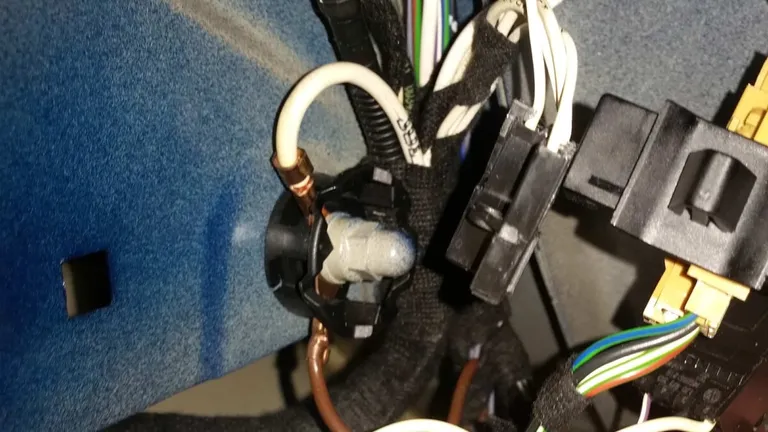

Overview of earth points
Grounding points of VW Polo 6R
- 61 – Earth point on left C-pillar -1-
- 50 – Earth point on left in luggage compartment -1-
- 671 – Earth point 1 on front of left longitudinal member -2-
- 624 – Earth point next to starter battery -3-
- 640 – Earth point 2 on left in engine compartment -4-
- 641 – Earth point 3 on left in engine compartment -4-
- 685 – Earth point 1 on front of right longitudinal member -5-
- 13 – Earth point on right in engine compartment -6-
- 606 – Earth point under centre console near gearstick -7-
- 687 – Earth point 1 on centre tunnel -7-
- 688 – Earth point 2 on centre tunnel -7-
- 701 – Earth point in luggage compartment -8-
- 605 – Earth point on top end of steering column
- behind connector for steering column switch
- 61 – Earth point on left C-pillar -1-
- Torque: 6 Nm
- Torque: 6 Nm
- 50 – Earth point on left in luggage compartment -2-
- Torque: 2 Nm
- 671 – Earth point 1 on front of left longitudinal member -1-
- Torque: 16 Nm

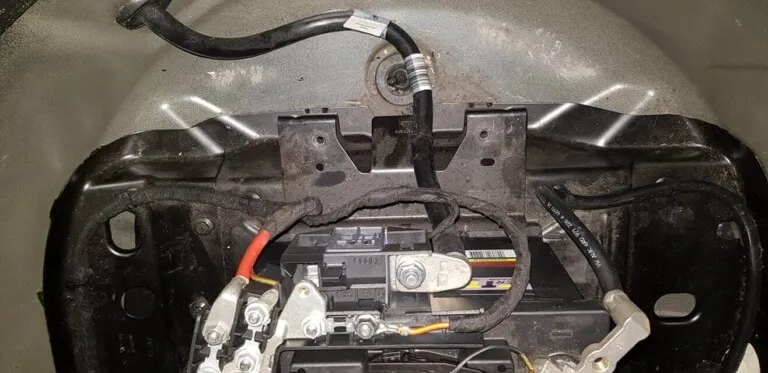

- 624 – Earth point next to starter battery -1-
- Torque: 16 ± 2 Nm
- 640 – Earth point 2 on left in engine compartment -1-
- Torque: 16 Nm
- Torque: 16 Nm
- 641 – Earth point 3 on left in engine compartment -2-
- Torque: 16 Nm
- 685 – Earth point 1 on front of right longitudinal member -1-
- Torque: 9 ± 1 Nm
- 13 – Earth point on right in engine compartment -1-
- Torque: 16 Nm
- 606 – Earth point under centre console near gearstick -1-
- Torque: 9 Nm
- 687 – Earth point 1 on centre tunnel -2-
- Torque: 9 Nm
- 688 – Earth point 2 on centre tunnel -3-
- Torque: 9 Nm
- 701 – Earth point in luggage compartment -1-
- Torque: 20 Nm
