Note

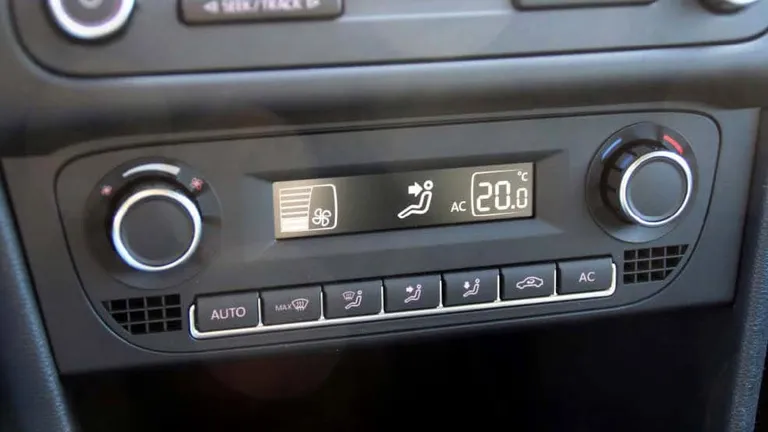

The operating and display unit for Climatronic air conditioning system -E87- and the Climatronic control unit -J255- cannot be dismantled.
1 – Blower control rotary knob
2 – Display for blower speed
3 – Display for operating condition in „automatic mode“
4 – Display for windscreen defrosting
5 – Display for air flow direction
6 – Display for air recirculation
7 – Display for operating condition when „air conditioning system is switched on“
- The warning lamp lights up when the air conditioner compressor is switched on.
8 – Display for selected interior temperature
- Switching between Celsius and Fahrenheit:
- Press and hold down „AC“ button and then press „Auto“ button.
- The corresponding temperature unit appears in the display.
9 – Rotary knob for interior temperature
10 – Dash panel temperature sensor -G56- and temperature sensor blower -V42-
Note:
If the dash panel temperature sensor -G56- or the temperature sensor blower -V42- fails, the operating and display unit for Climatronic air conditioning system -E87- must be renewed.
11 – „AUTO“ button
- In automatic mode, the Climatronic maintains the selected interior temperature automatically. With this setting, the vent air temperature, the blower speed and the air distribution are controlled automatically.
12 – Windscreen defrosting button
13 – Button for „air flow to head“
14 – Button for „air flow to upper body“
15 – Button for „air flow to footwell“
16 – Button for fresh air and air recirculation mode
17 – AC button
- Press AC button to switch cooling on and off.
- Symbol -7- lights up when the air conditioner compressor is switched on.
