Theory

Some theory:

Very basically, your car’s air conditioning system is made up of three major components: the compressor, the evaporator and the condenser. There are lots of hoses, tubes, valves and sensors connecting them all. As it turned out, there were many different versions of individual parts in Polo 6R/6C 🙂

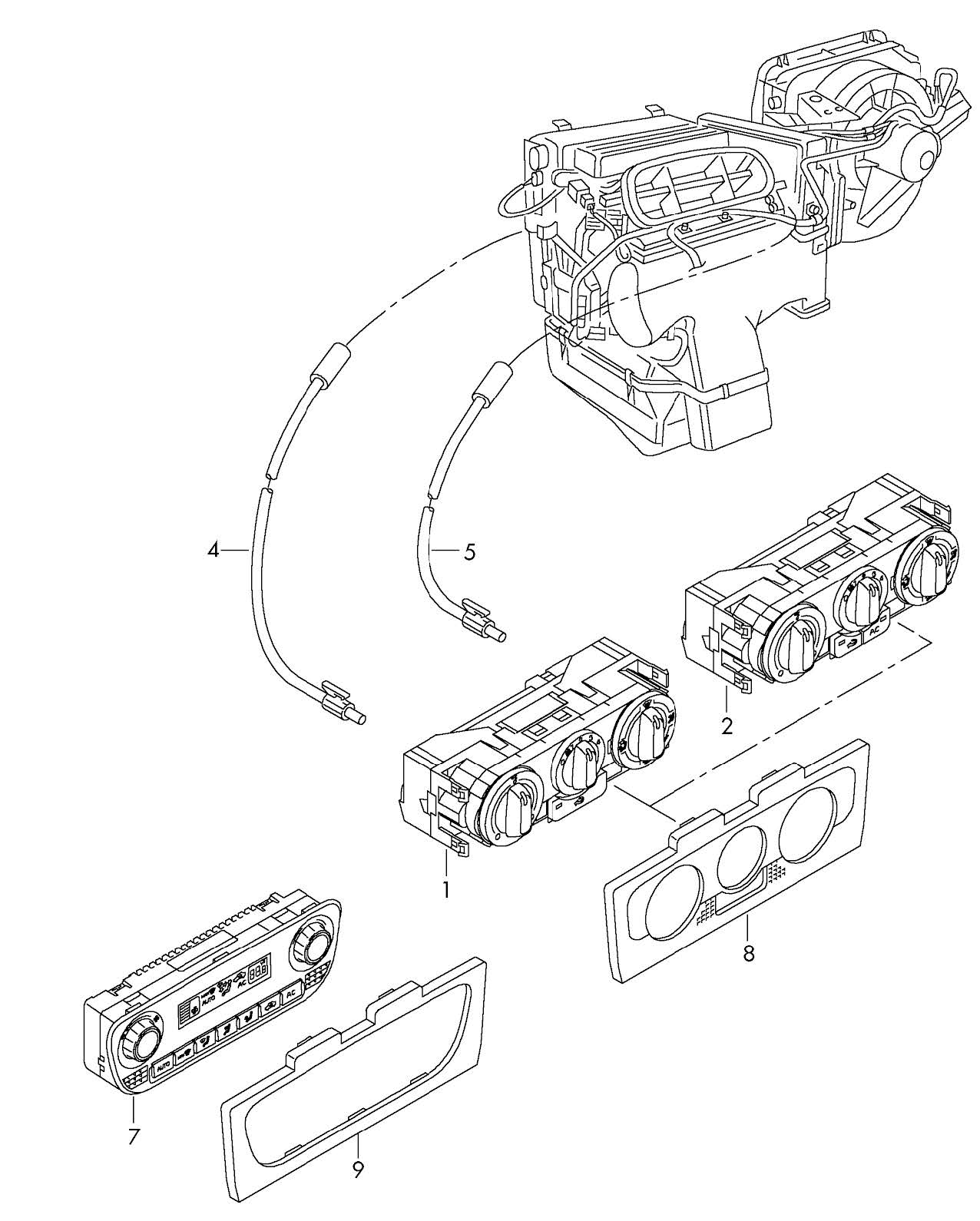

24 – sun sensor (climatronic)

7 – control and display panel for air-conditioning system (climatronic)
1 – fresh air and heater controls (manual AC)
2 – fresh air and heater controls (semi-automatic AC)

Climatronic / Semi-manual Climatic / Manual Climatic

  • Climatronic AC = automatic AC
  • Climatic AC in cars to November 7, 2010 = semi-automatic AC
  • Climatic AC in cars from November 8, 2010 = manual AC

“All VW’s/Skoda’s/Seat’s “Climatic” from 2011 are full manual, no semi-automatic as before. I don’t know about this earlier. My brother in law ordered Polo before me (in 2010), and he has a semi-automatic air conditioning.. 🙄”

https://translate.google.pl/translate?sl=pl&tl=en&js=y&prev=_t&hl=pl&ie=UTF-8&u=http%3A%2F%2Fwww.autowcentrum.pl%2Fblog%2Fpost%2Fjak-volkswagen-wprowadza-w-blad-nieswiadomych%2C4605%2F&edit-text=&act=url
https://www.boards.ie/b/thread/2056354471

“Climatic” air conditioning since 2011 means fully manual air conditioning in Volkswagen passenger models, while “Climatronic” is automatic climate control.

“What is installed in all new Golfs now (as far as I can tell) is fully manual temperature control. The biggest problem is that VW is still calling this Climatic on their website and even on the window sticker of my car.”

https://www.golfmk6.com/forums/showpost.php?s=0f760da92c6d812e398a6cf684792d88&p=159823&postcount=9

Polo 6R – Climatic

Air conditioning system with semi-automatic regulation up to week 44/10
Air conditioning system with manual regulation from week 45/10

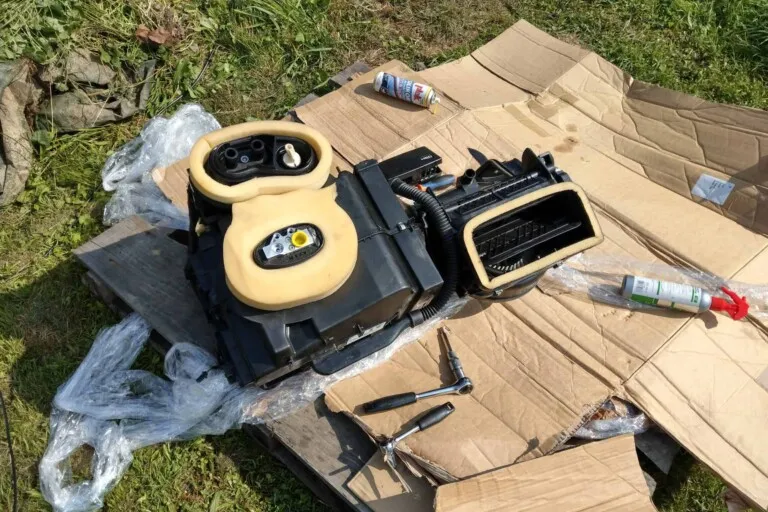

if you want to upgrade to Climatronic, this is how to do it:

  • remove centre console
  • remove steering wheel and everything on the steering column
  • remove all dashboard fittings (vents, buttons, radio, switches, tacho)
  • remove dashboard
  • remove wipers, parafan, ECU, airbox etc
  • disconnect drained aircon hoses and coolant hoses
  • remove cross carrier underneath dash
  • remove heater housing
  • install climatronic heater housing
  • adjust wiring for climatronic
  • build in everything in opposite order
  • code engine ECU
  • fill up aircon and top up coolant

– iichel


Air conditioning: control unit comparison Manual Climatic J301 vs Climatronic J255

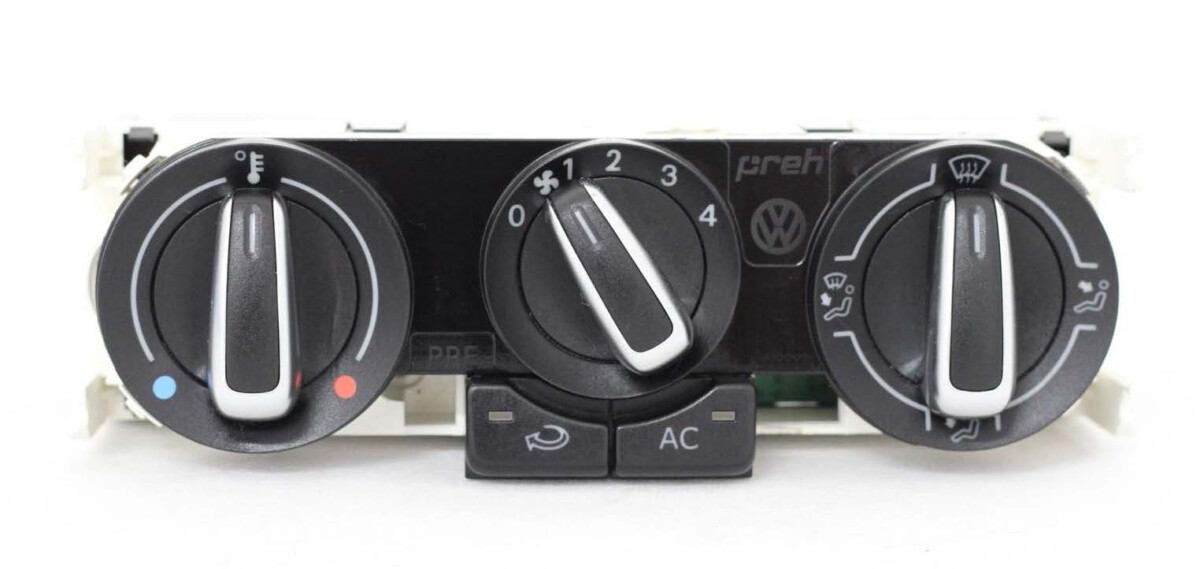

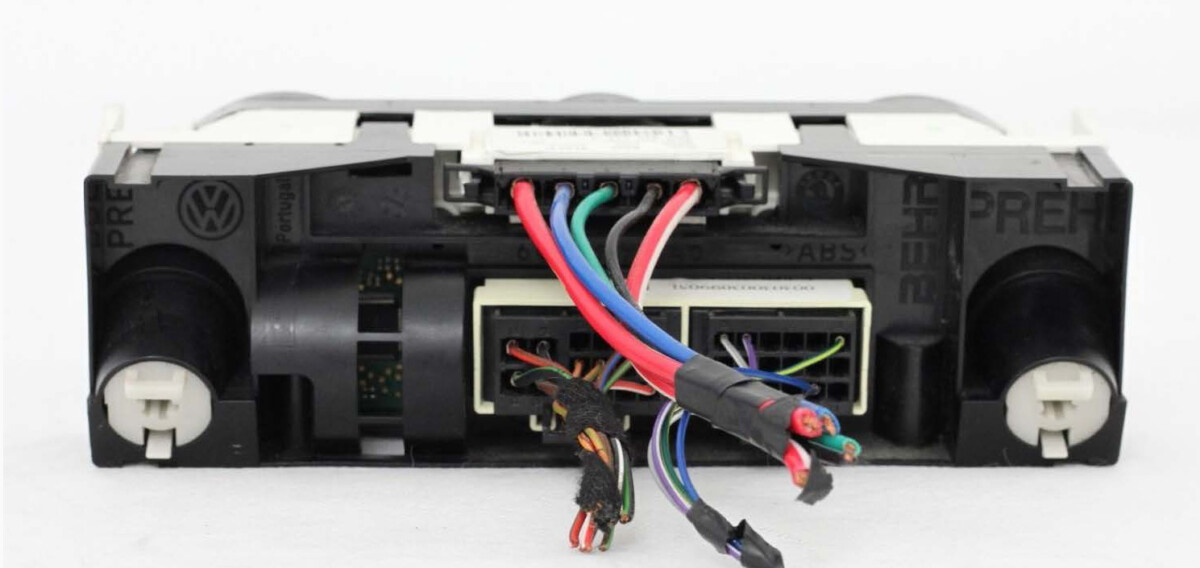

Manual Climatic

control unit: J301

6R0820045F, 6R0820045M, 6R0820045N

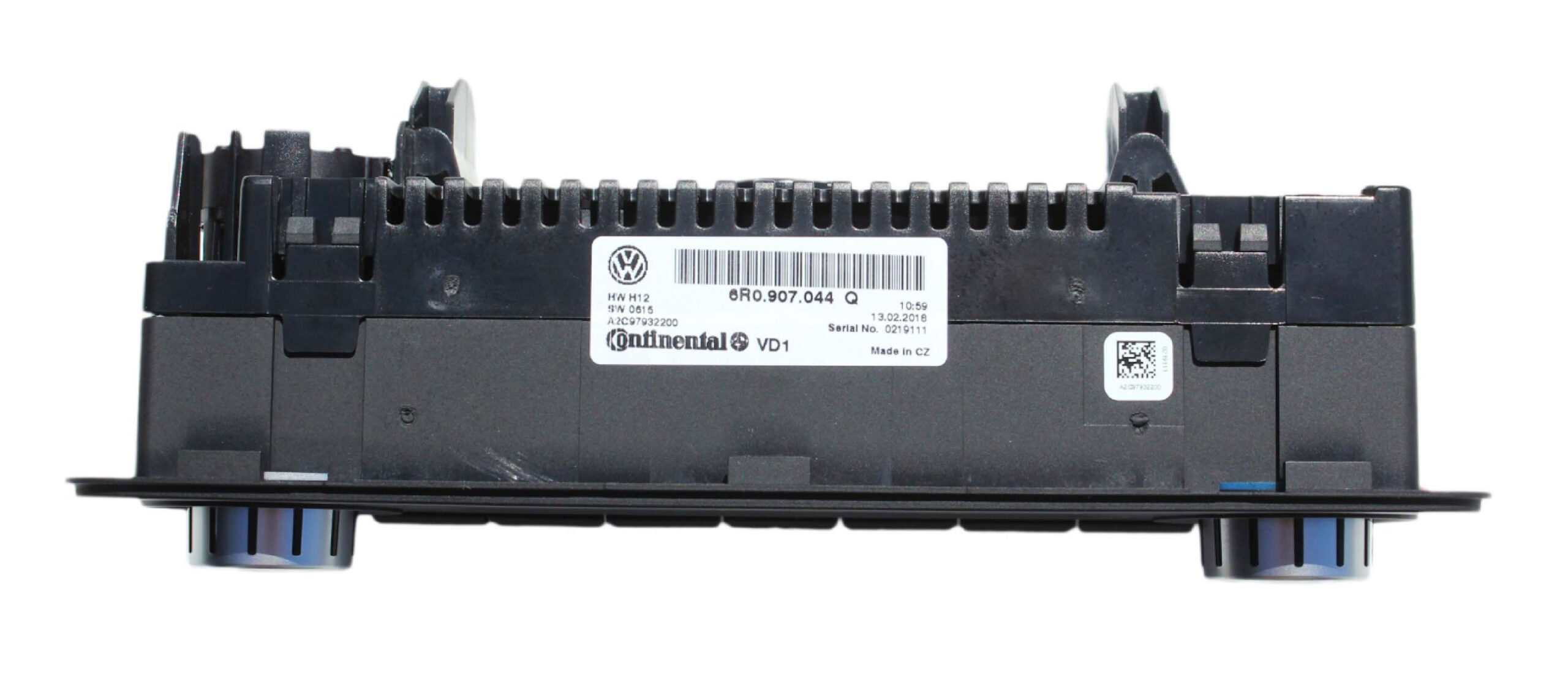

Climatronic

control unit: J255

6R0907044H, 6R0907044L, 6R0907044Q

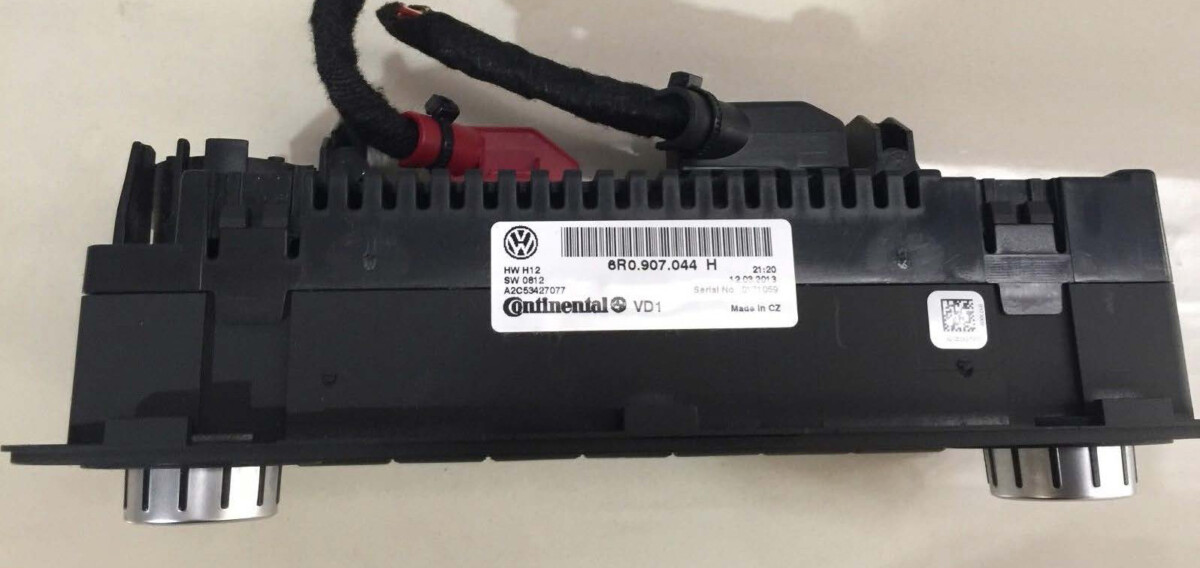

(H or higher = black/white display, older = blue backlight)

Pin assignment

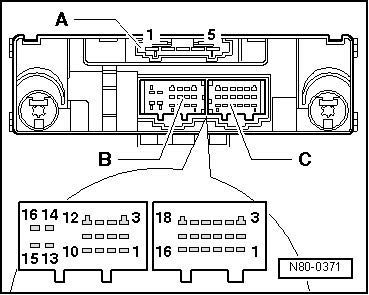

Pin assignment of multi-pin connectors for operating and display unit for front air conditioning system -E87- with air conditioning control unit -J301-

5-pin connector housing -A-, T5i i n current flow diagram

1 – Blower 4th speed
2 – Blower 3rd speed
3 – Blower 2nd speed
4 – Blower 1st speed
5 – Terminal -X- contact


16-pin connector housing -B-, T16h in current flow diagram

1 – High-pressure sender -G65-
3 – Radiator fan V7 and V35 relay – 1st speed -J279-
4 – Optional
6 – Radiator fan V7 and V35 relay – 2nd speed -J513-
8 – High-speed CAN bus (optional)
11 – Low-speed CAN bus (optional)
12 – Fresh air and air recirculation flap control motor -V154-
13 – Terminal 31
14 – Terminal 15
15 – Air conditioner compressor regulating valve -N280-
16 – Terminal 30 (optional)


18-pin connector housing -C-, T18 in current flow diagram

3 – Evaporator output temperature sender -G263-
4 – Signal earth for evaporator output temperature sender -G263-
15 – Fresh air and air recirculation flap control motor -V154-
18 – Fresh air and air recirculation flap control motor -V154-

Climatronic air conditioning with automatic regulation

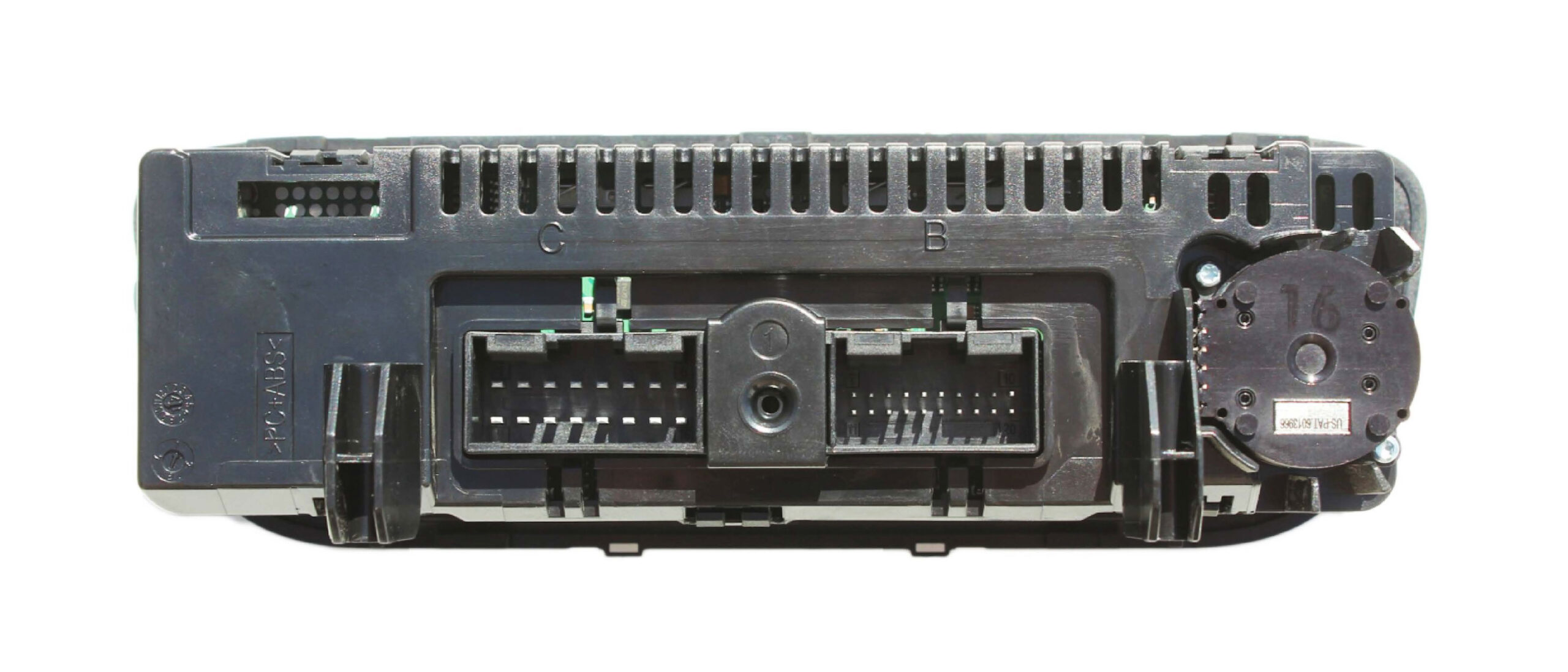

Pin assignment of multi-pin connectors on rear of Climatronic control unit -J255-

Connector housing -A- is vacant.

20-pin connector housing -B-, T20 in current flow diagram

1 – Temperature flap control motor -V68-
2 – Temperature flap control motor -V68-
3 – Defroster flap control motor -V107-
4 – Defroster flap control motor -V107-
5 – Signal earth, control motors
6 – Central flap control motor -V70-
7 – Central flap control motor -V70-
8 – Air flow flap control motor -V71-
9 – Air flow flap control motor -V71-
11 – Centre vent temperature sender -G191-
12 – Centre vent temperature sender -G191-
14 – + 5V 10 mA for control motors
15 – Evaporator output temperature sender -G263-
16 – Temperature flap control motor potentiometer -G92-
17 – Potentiometer for defroster flap control motor -G135-
18 – Potentiometer for centre flap control motor -G112-
19 – Potentiometer for air flow flap control motor -G113-
N87-0669

16-pin connector housing -C-, T16i in current flow diagram

2 – Sunlight penetration photosensor -G107-
4 – Air conditioner compressor regulating valve -N280-
7 – High-pressure sender -G65-
8 – 1st blower speed, radiator fan control unit -J293-
9 – 2nd blower speed, radiator fan control unit -J293-
12 – Terminal 30 (optional)
13 – Terminal 31
14 – Terminal 31
15 – Terminal 15

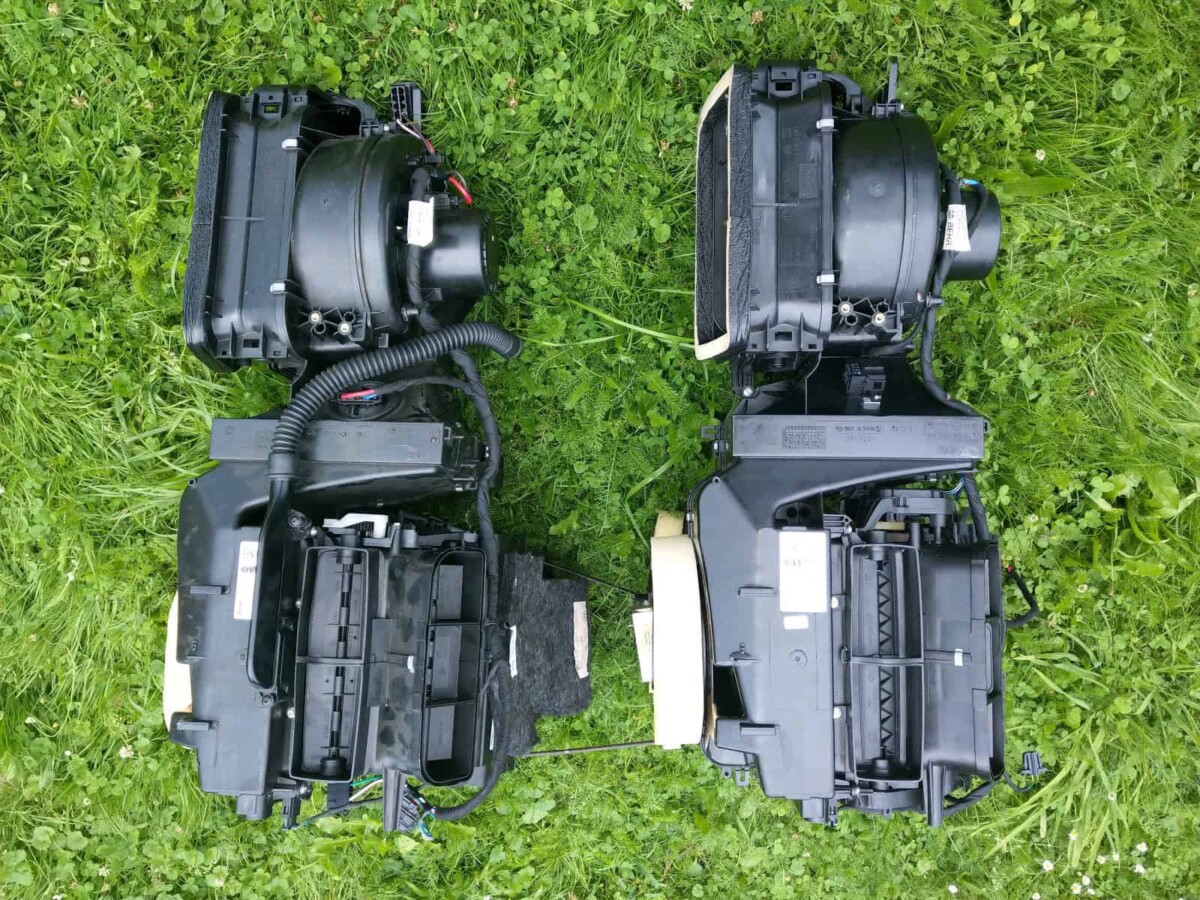

Heater unit: Manual vs Climatronic

1 – Air duct
2 – Operating and display unit for front air conditioning system -E87-
3 – Left and right side vents
4 – Dash panel vents in centre trim
5 – Dash panel cross member
6 – Heater and air conditioning unit
7 – Fresh air blower series resistor with overheating fuse -N24-
8 – Fresh air blower -V2-
9 – Fresh air and air recirculation flap control motor -V154-
10 – Right footwell vent
11 – Dust and pollen filter
12 – Connecting piece
13 – Rear duct
14 – Rear duct vent
15 – Flexible shafts
16 – Left footwell vent
17 – Gasket between heat exchanger and plenum chamber bulkhead
18 – Dash panel

1 – Air duct
2 – Climatronic control unit -J255-
3 – Left and right side vents
4 – Centre vent
5 – Dash panel cross member
6 – Heater and air conditioning unit
7 – Fresh air blower control unit -J126-
8 – Air flow flap control motor -V71-
9 – Fresh air blower -V2-
10 – Centre flap control motor -V70-
11 – Footwell vent, right
12 – Dust and pollen filter
13 – Connecting piece
14 – Rear duct
15 – Rear duct vent
16 – Temperature flap control motor -V68-
17 – Footwell vent temperature sender -G192-
18 – Footwell vent, left
19 – Defroster flap control motor -V107-

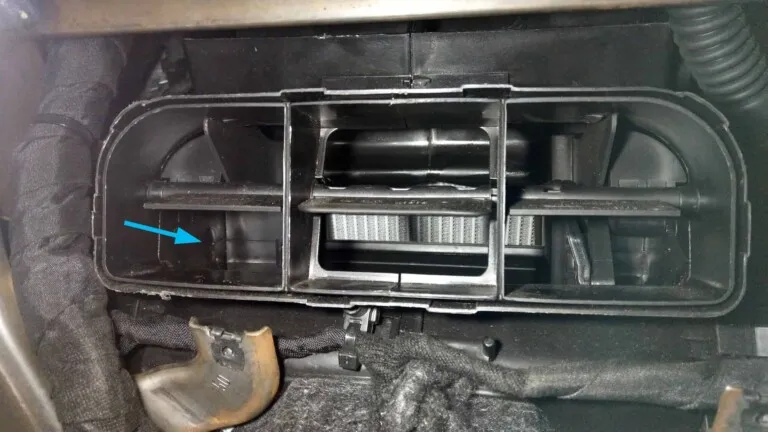

20 – Centre vent temperature sender -G191-
21 – Evaporator output temperature sender -G263-
22 – Gasket between heat exchanger and plenum chamber bulkhead
23 – Gasket between evaporator housing and plenum chamber bulkhead
24 – Dash panel
25 – Sunlight penetration photosensor -G107-

Fan resistor – Manual vs Climatronic

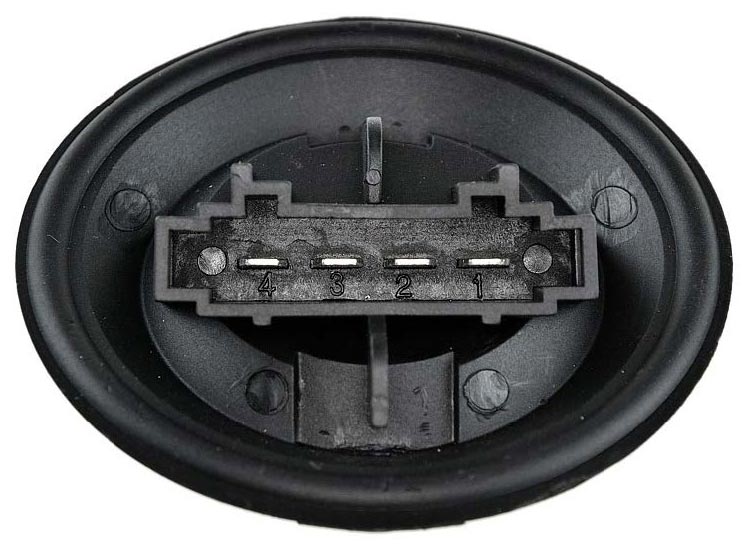

Manual AC

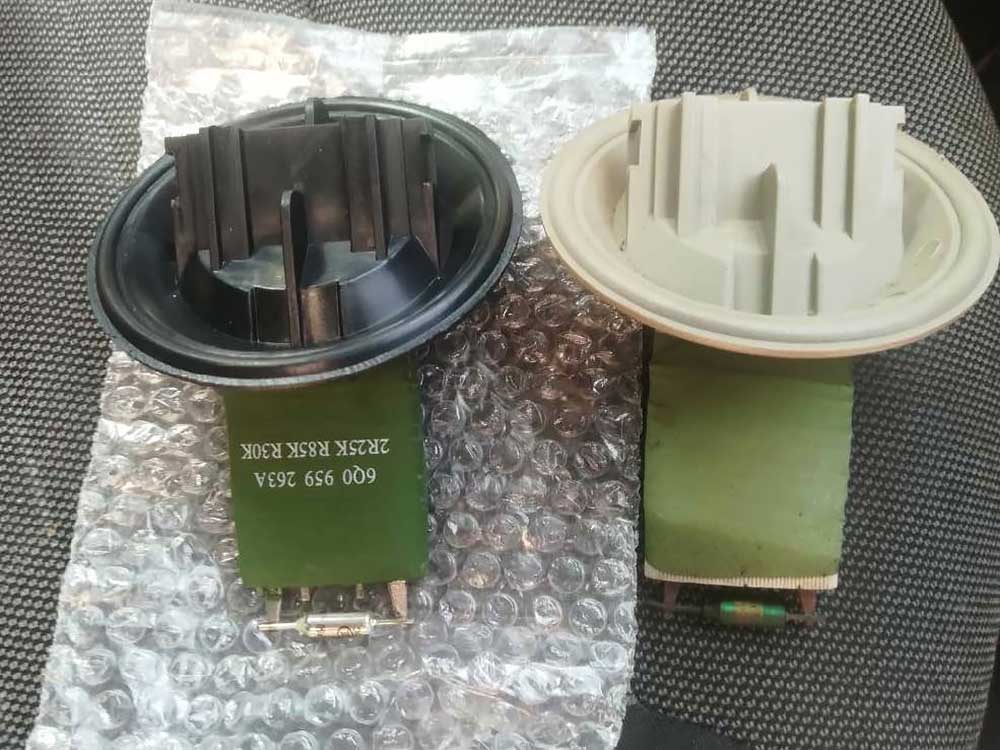

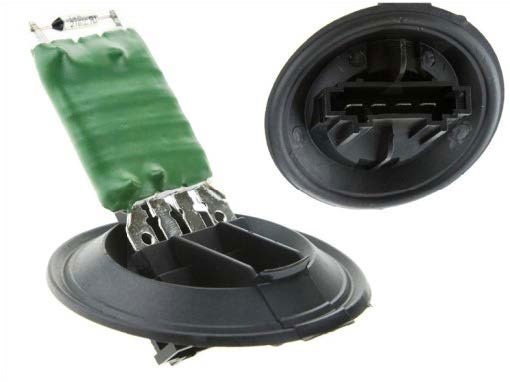

series resistor 6Q0959263A (6Q0 959 263 A)

Climatronic AC

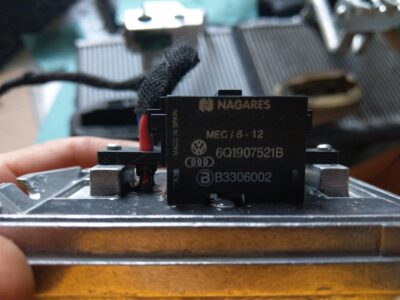

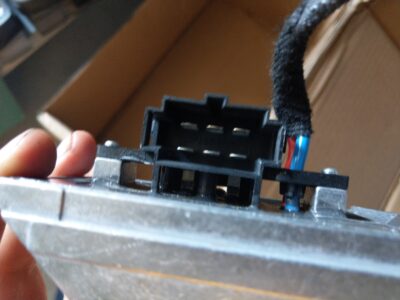

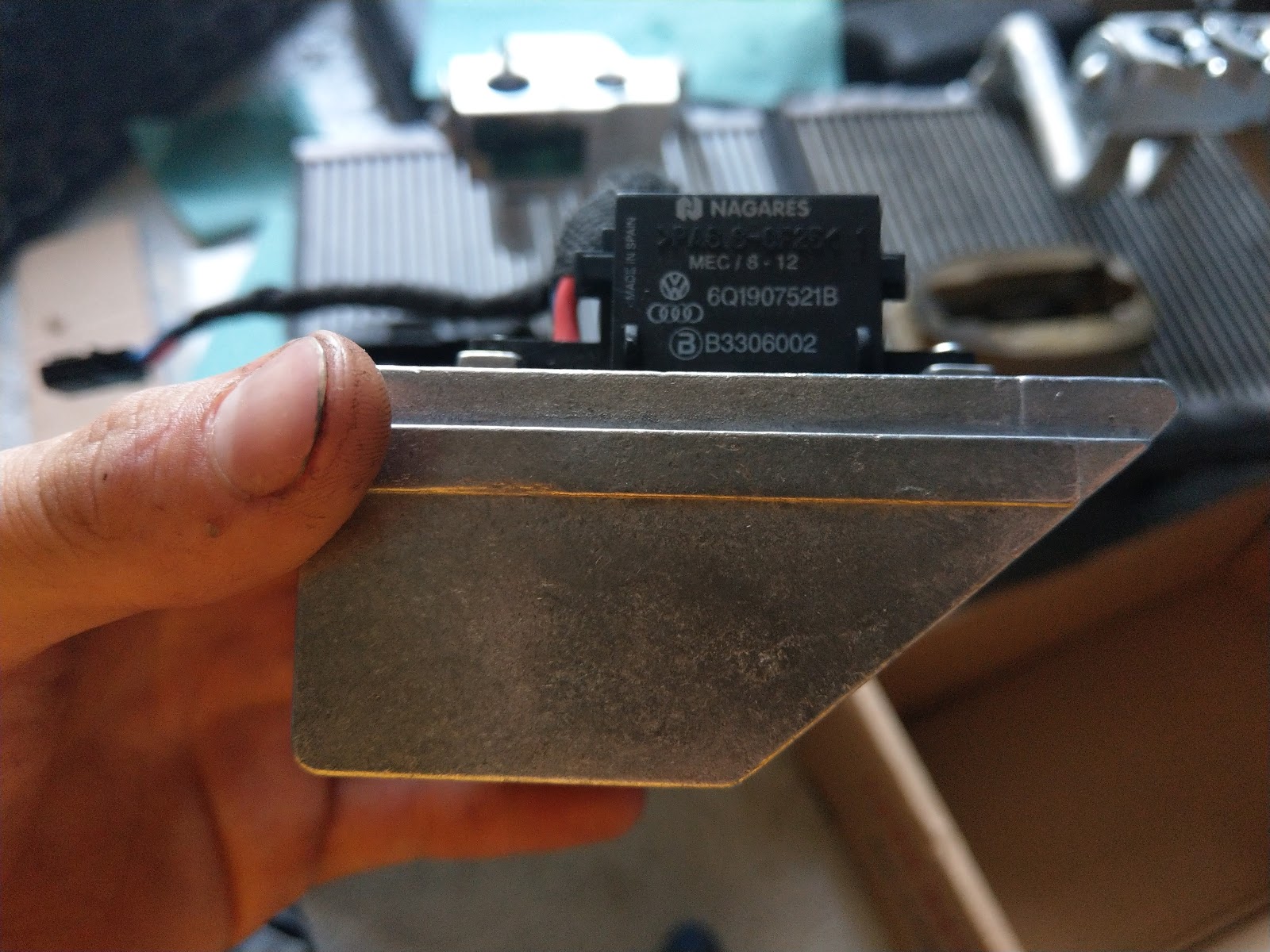

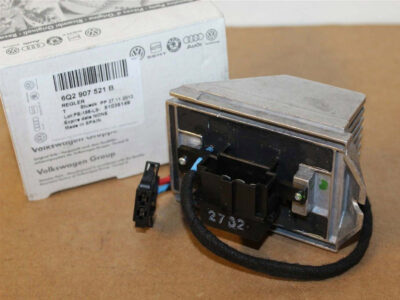

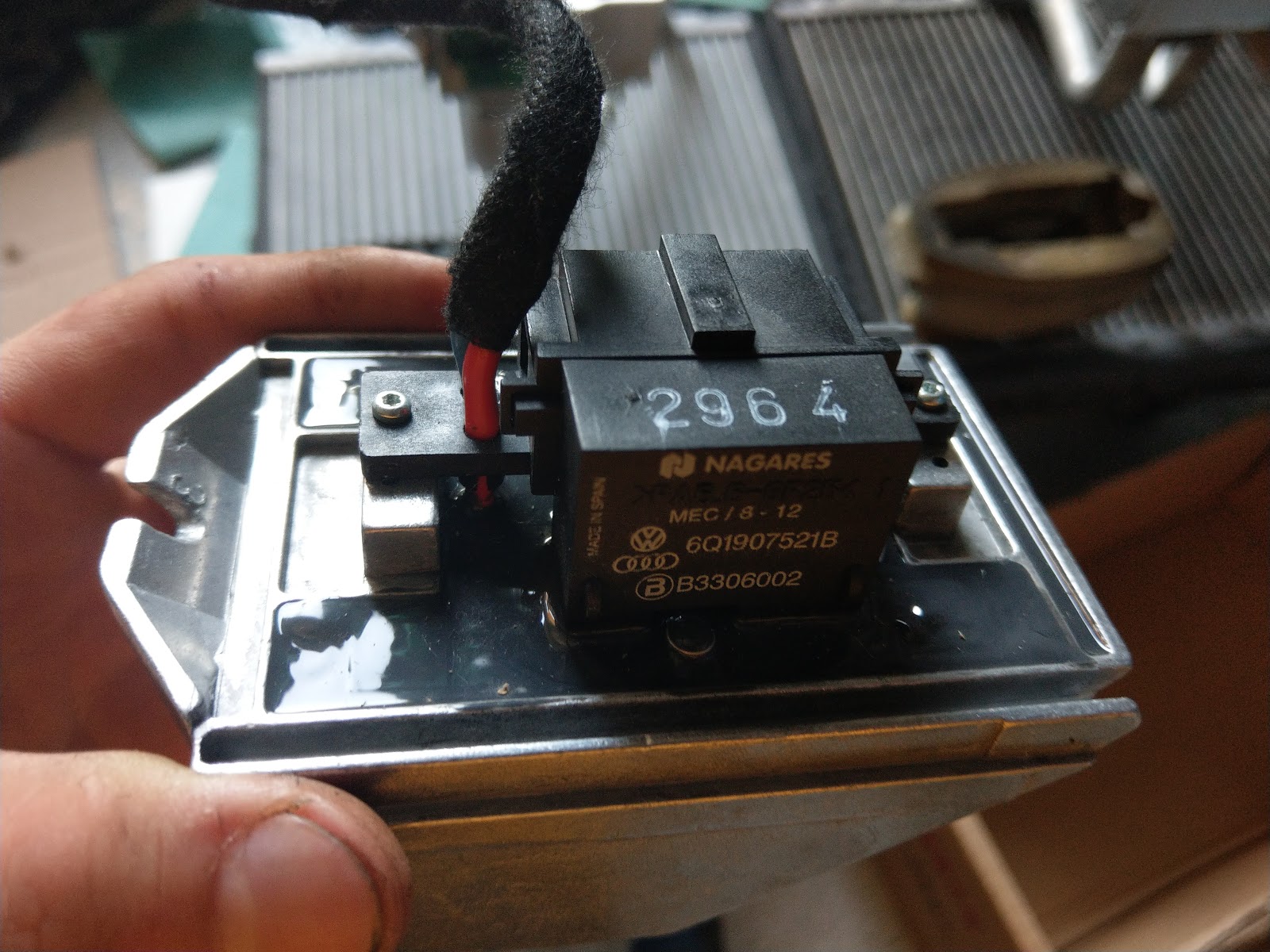

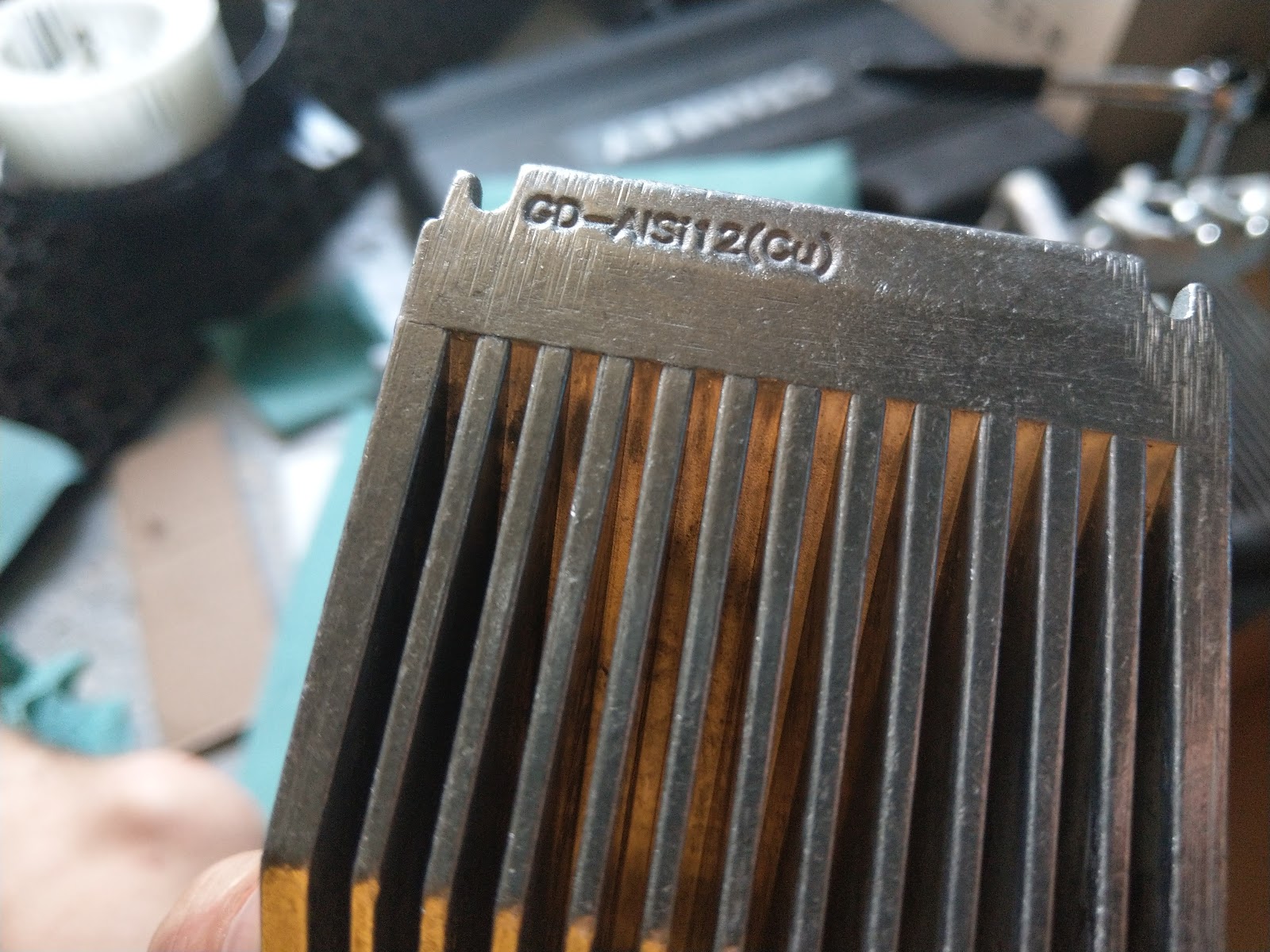

fan control J126 6Q1907521B (6Q1 907 521 B) or 6Q1907521A (6Q1 907 521 A)

Manual Climatic

ELSA diagrams

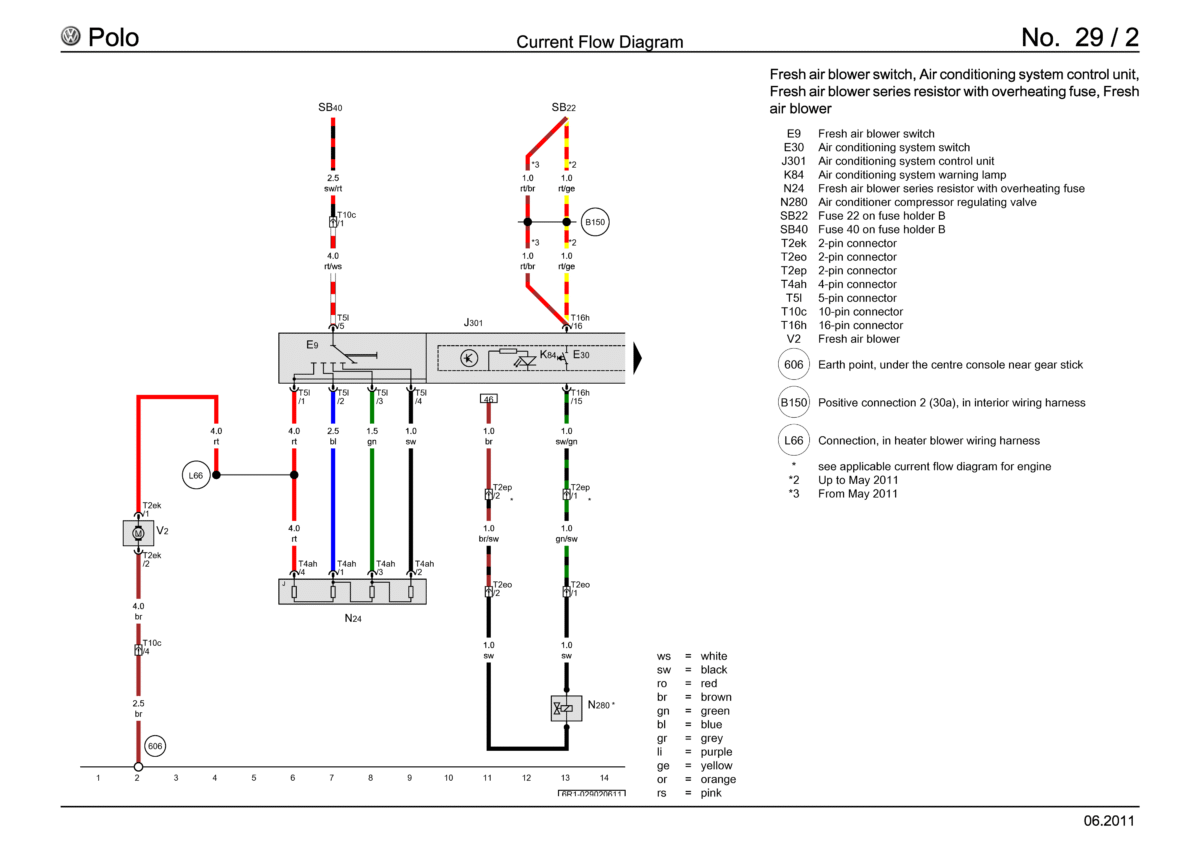

Manual Climatic – scheme 1 (J301, T2ek, T2eo, T2ep, T4ah, T5l, T10c, T16h)

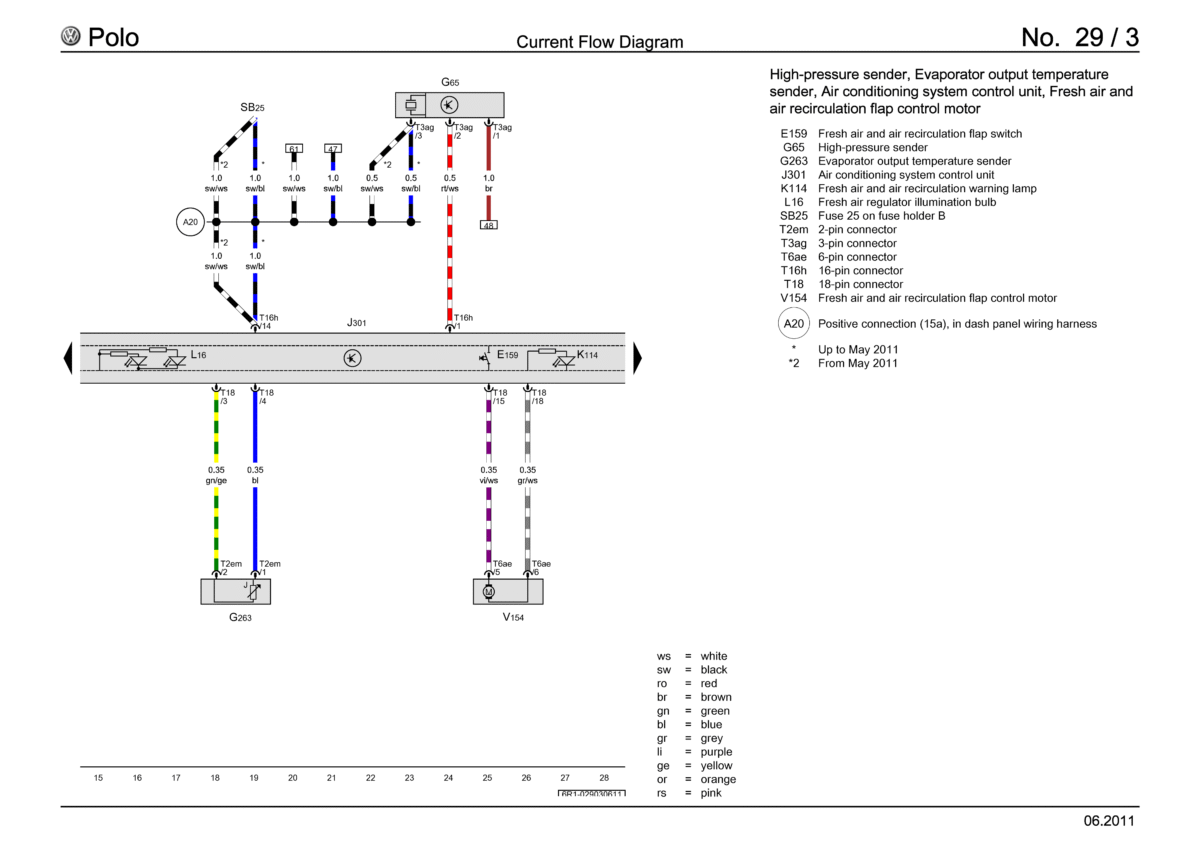

Manual Climatic – scheme 2 (J301, T16h, T18 → G263)

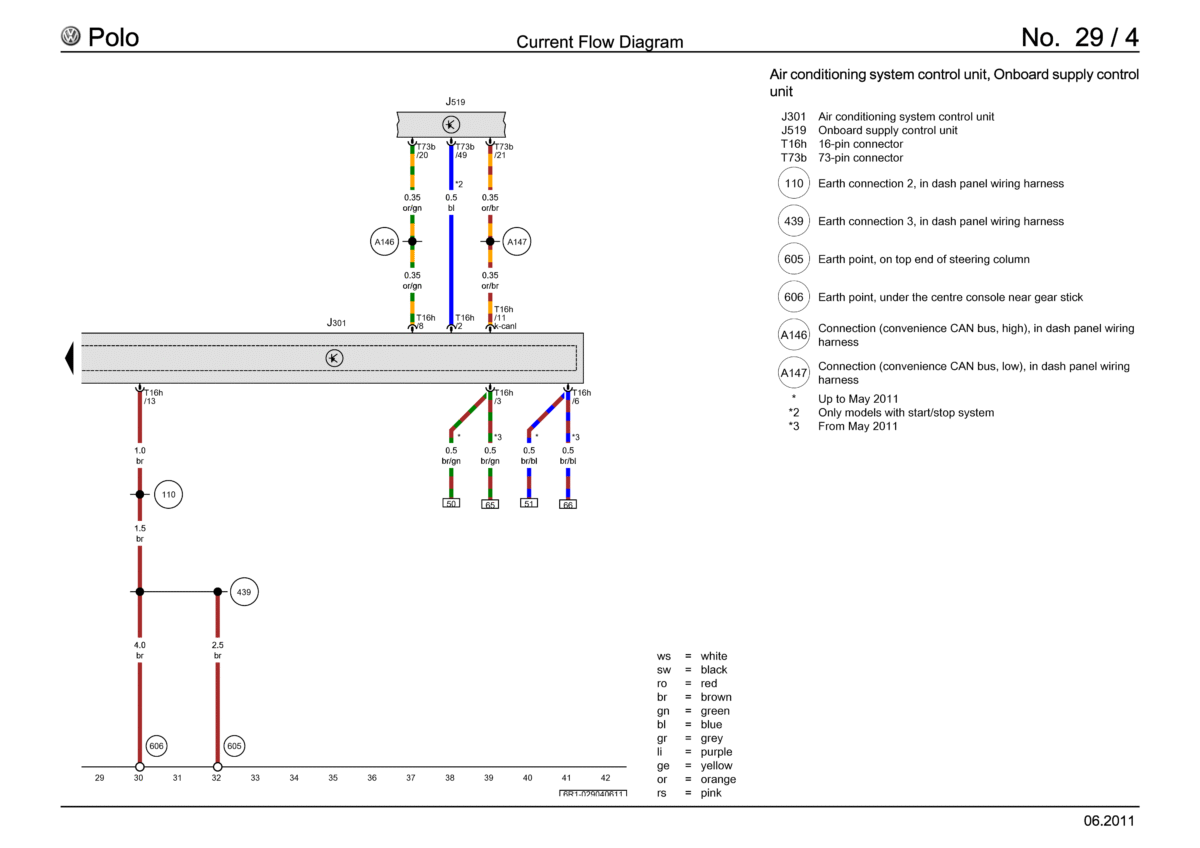

Manual Climatic – scheme 3 (J301, T16h)

Manual Climatic – scheme 4 (J293, T3ae, T3af, T4ab, T6ab)

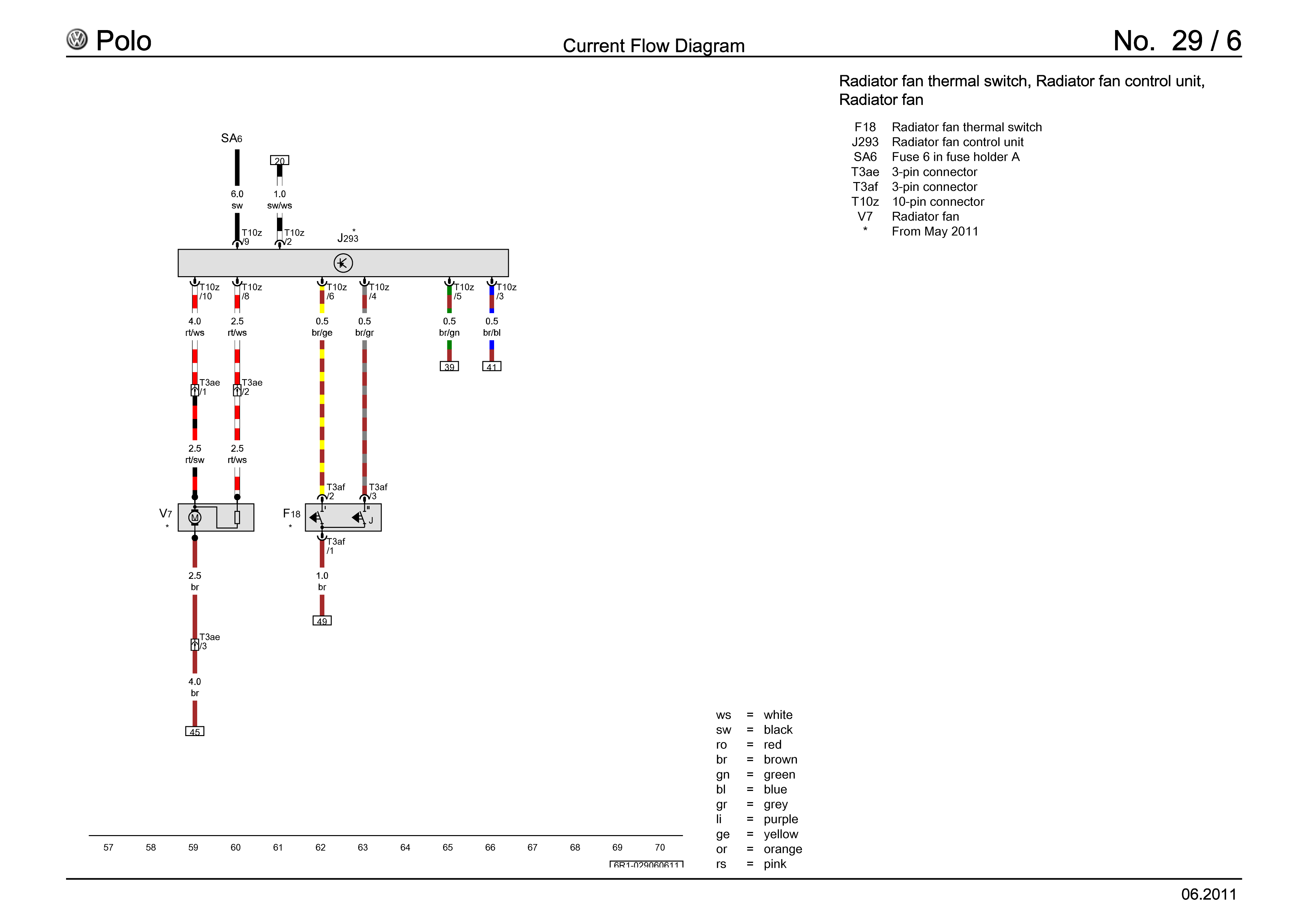

Manual Climatic – scheme 5 (J293, T3ae, T3af, T10z)


Climatronic

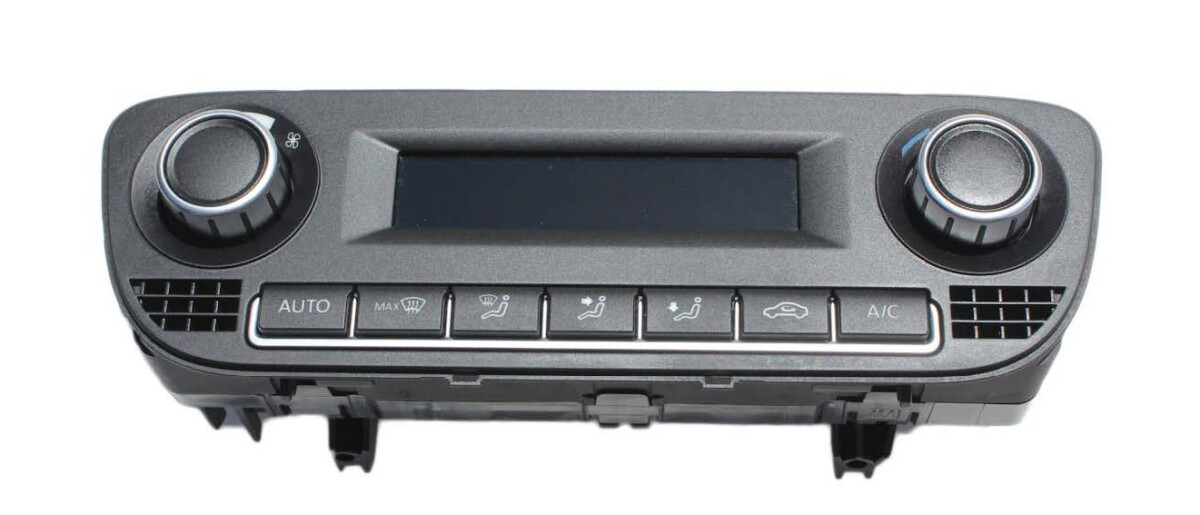

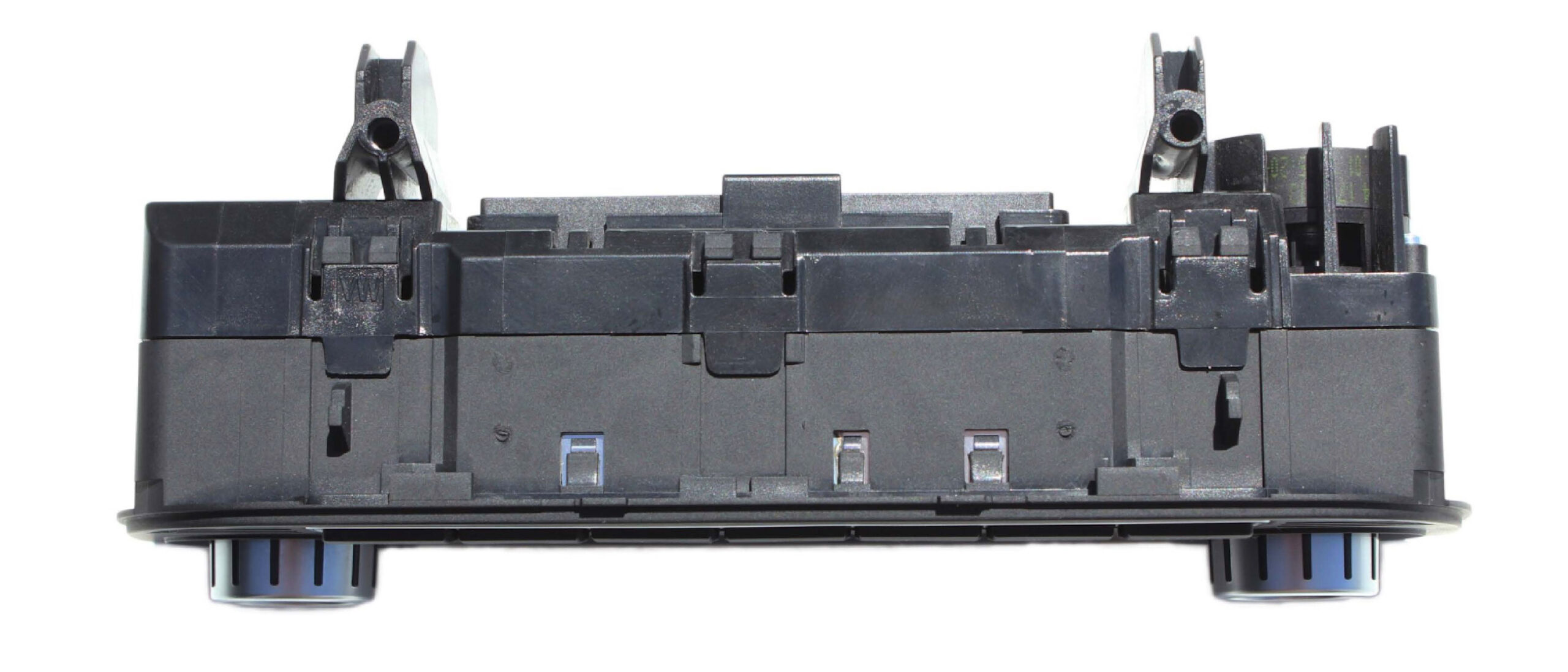

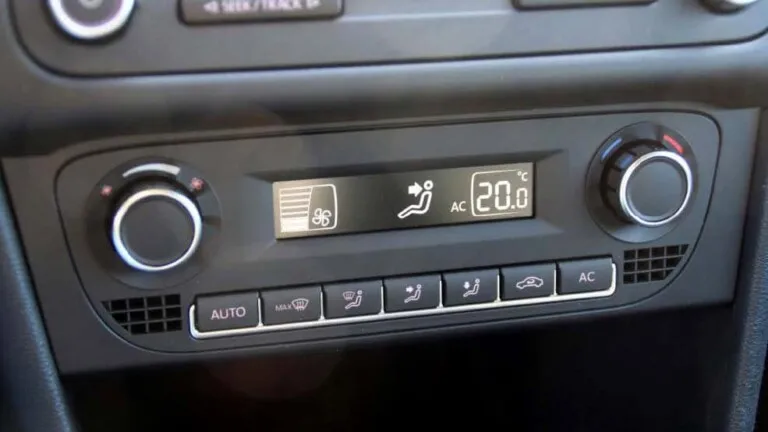

Photos of panel

ELSA diagrams

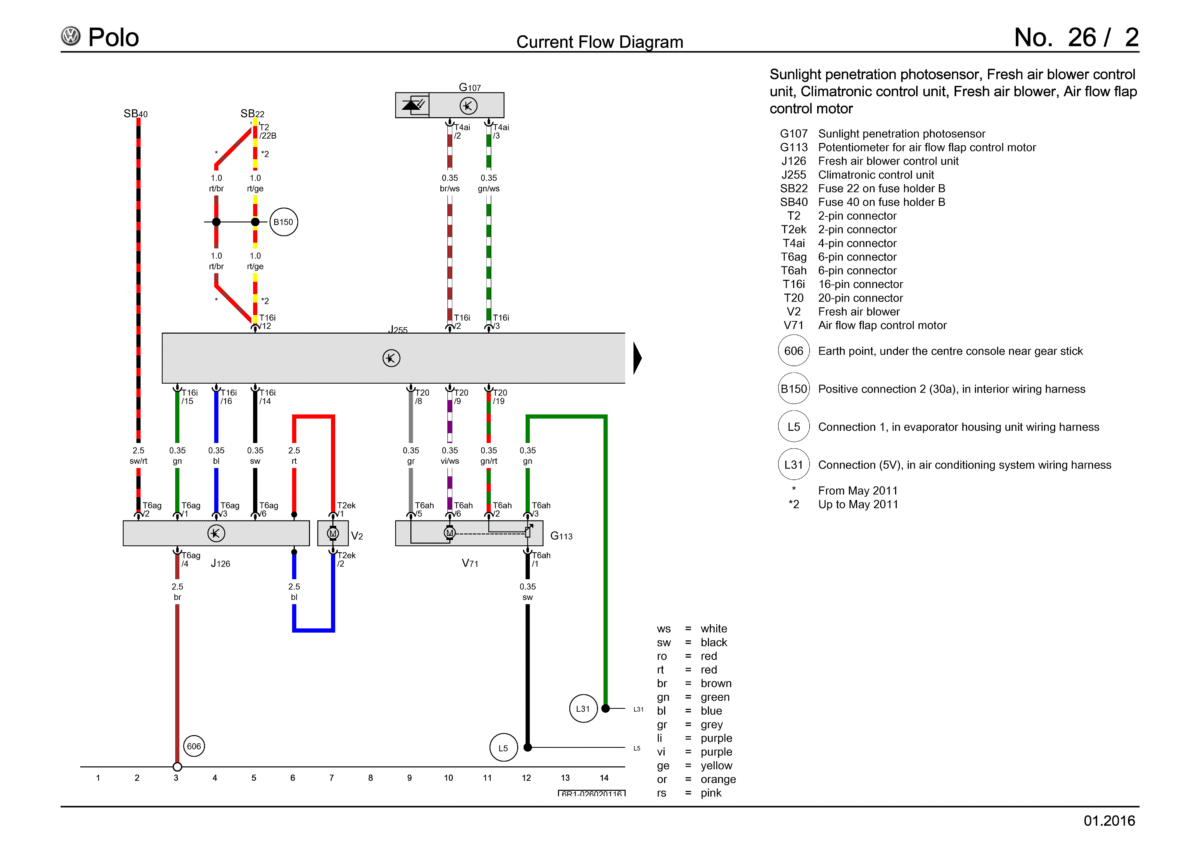

Climatronic – scheme 1 (G107, G113, J126, J255, SB22, SB40, T2, T2ek, T4ai, T6ag, T6ah, T16i, T20, V71)

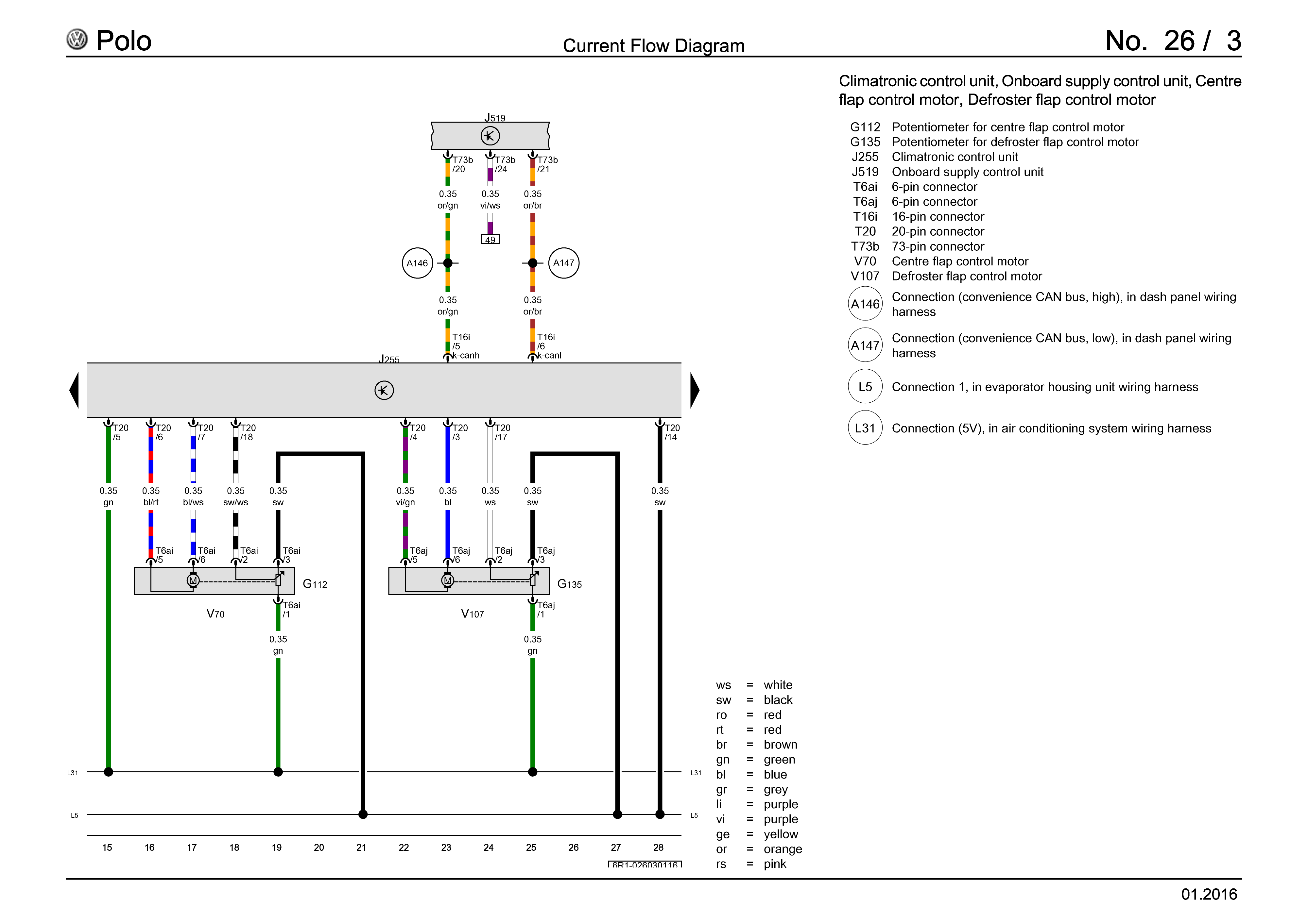

Climatronic – scheme 2 (G112, G135, J255, J519, T6ai, T6aj, T 16i, T20, T73b, T70, T107)

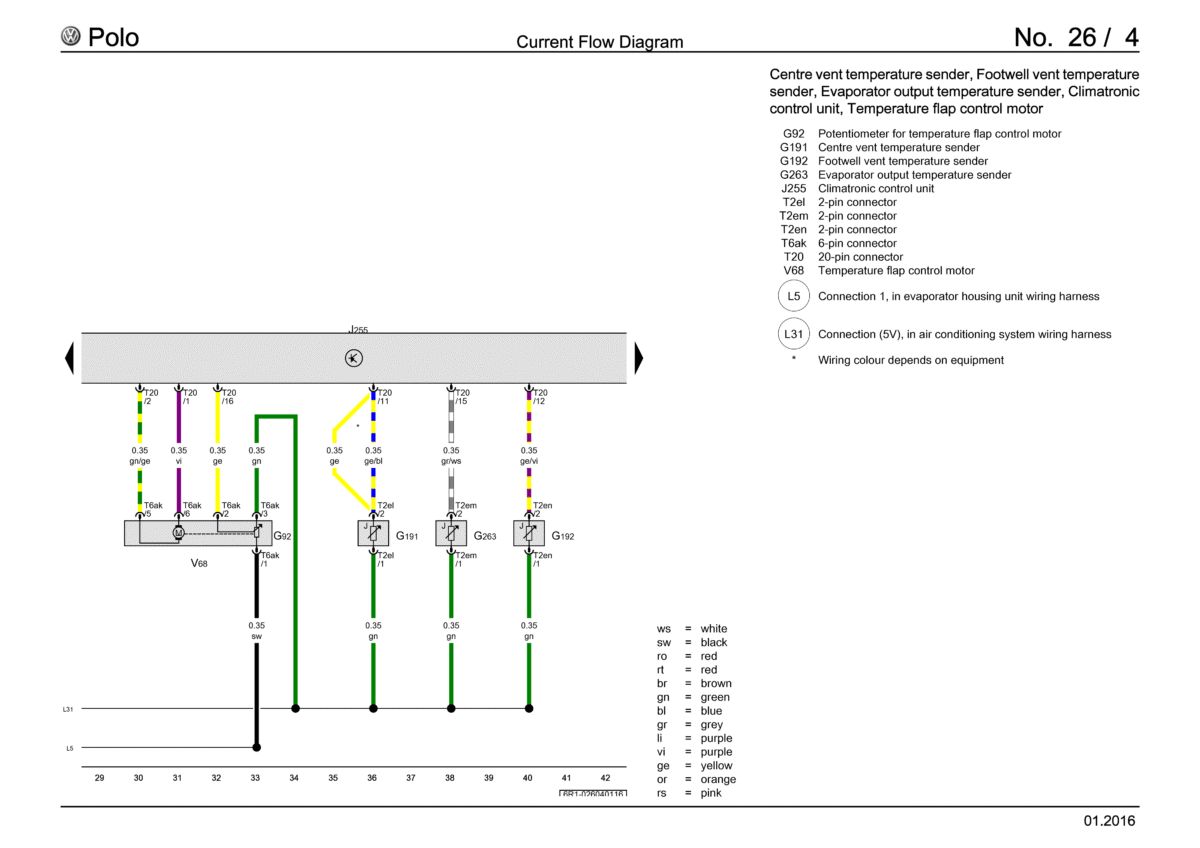

Climatronic – scheme 3 (G92, G191, G192, G263, J255, T2el. T2em, T2en, T6ak, T20, V68)

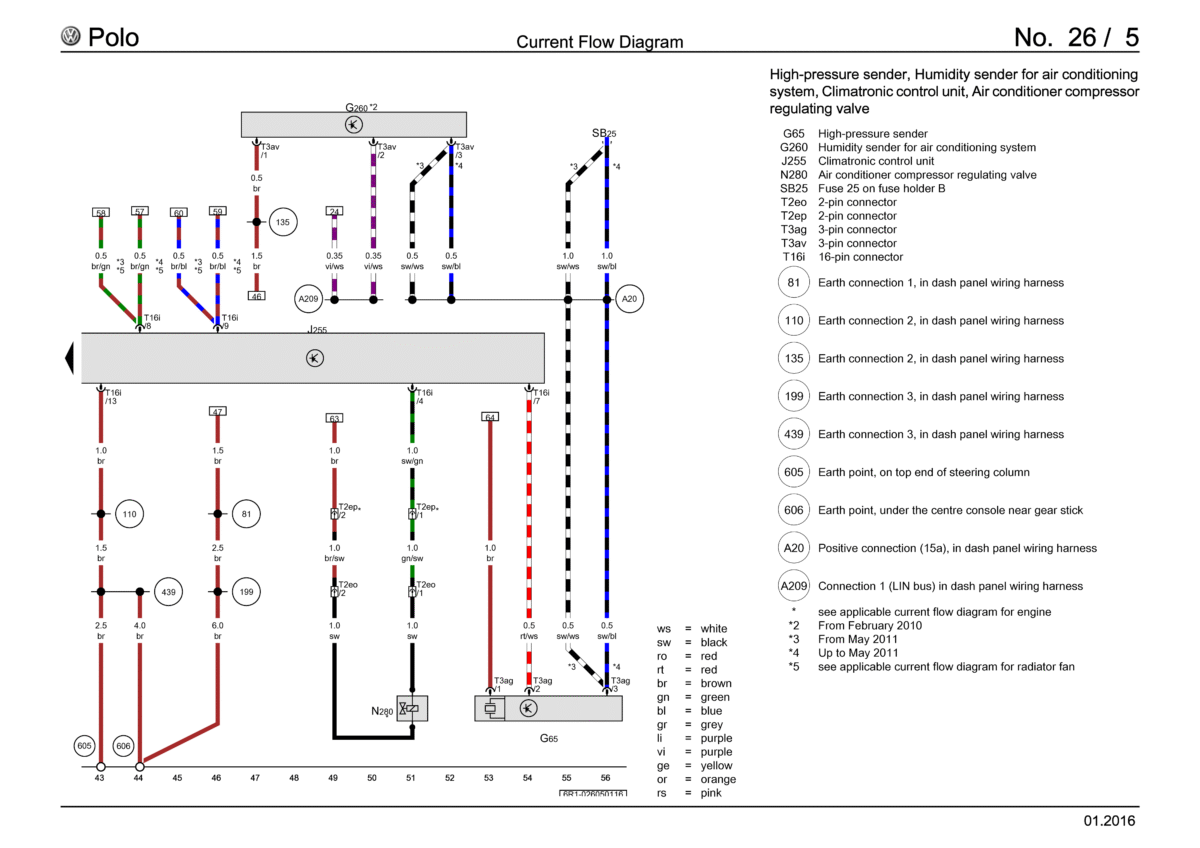

Climatronic – scheme 4 (G65, G260, J255, N280, Sb25, T2eo, T2ep, T3ag, T3av, T16i)

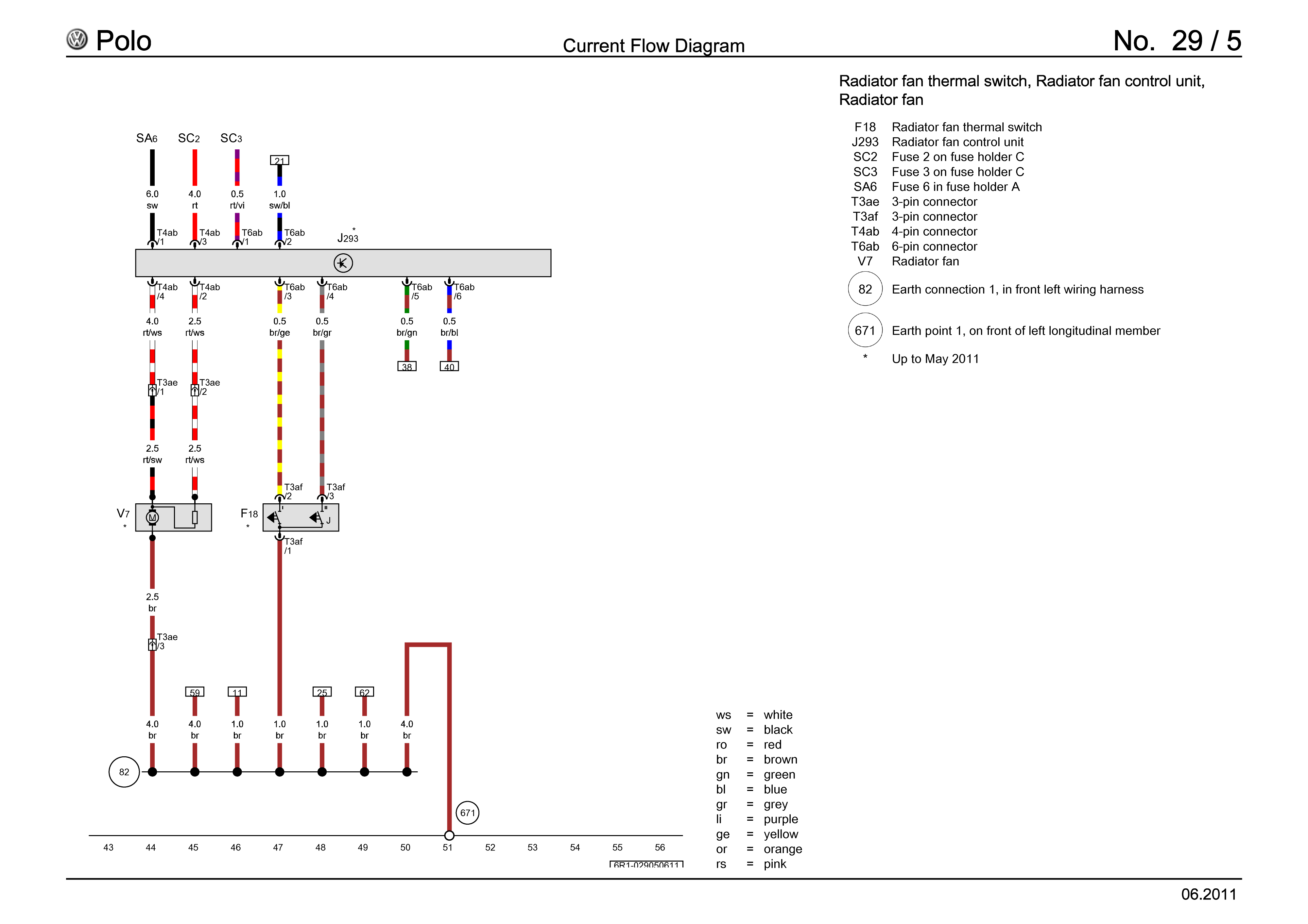

Climatronic – scheme 5 (F18, J293, SC2, SC3, SA6, T2, T3ae, T3af, T4ab, T6ab, V7)

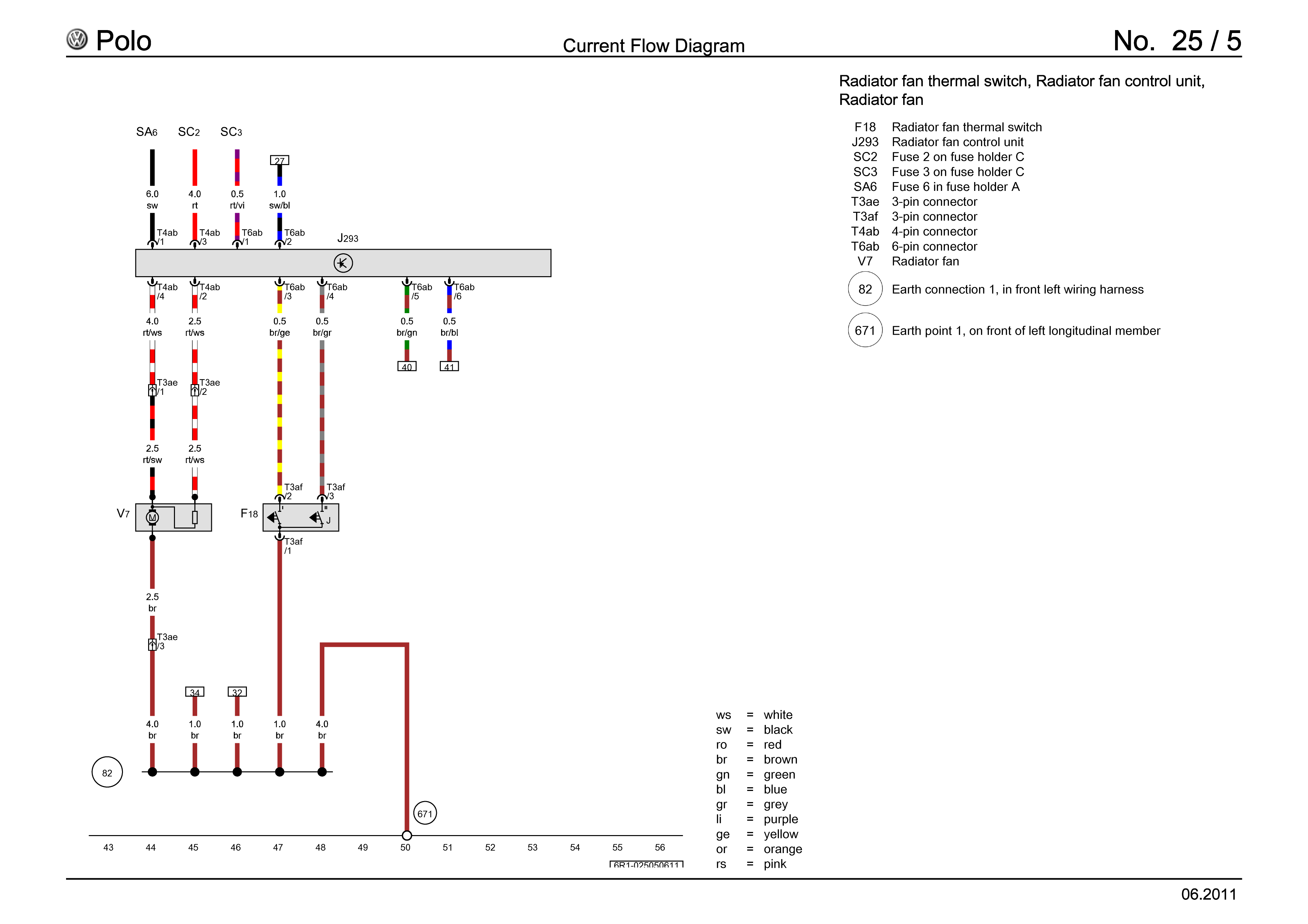

Climatronic – scheme 6 (F18, J293, SA6, T2, T3ae, T3af, V10z, V7)

Climatronic retrofit

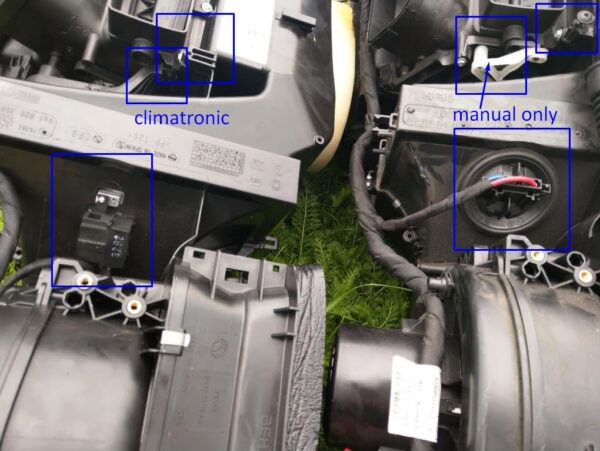

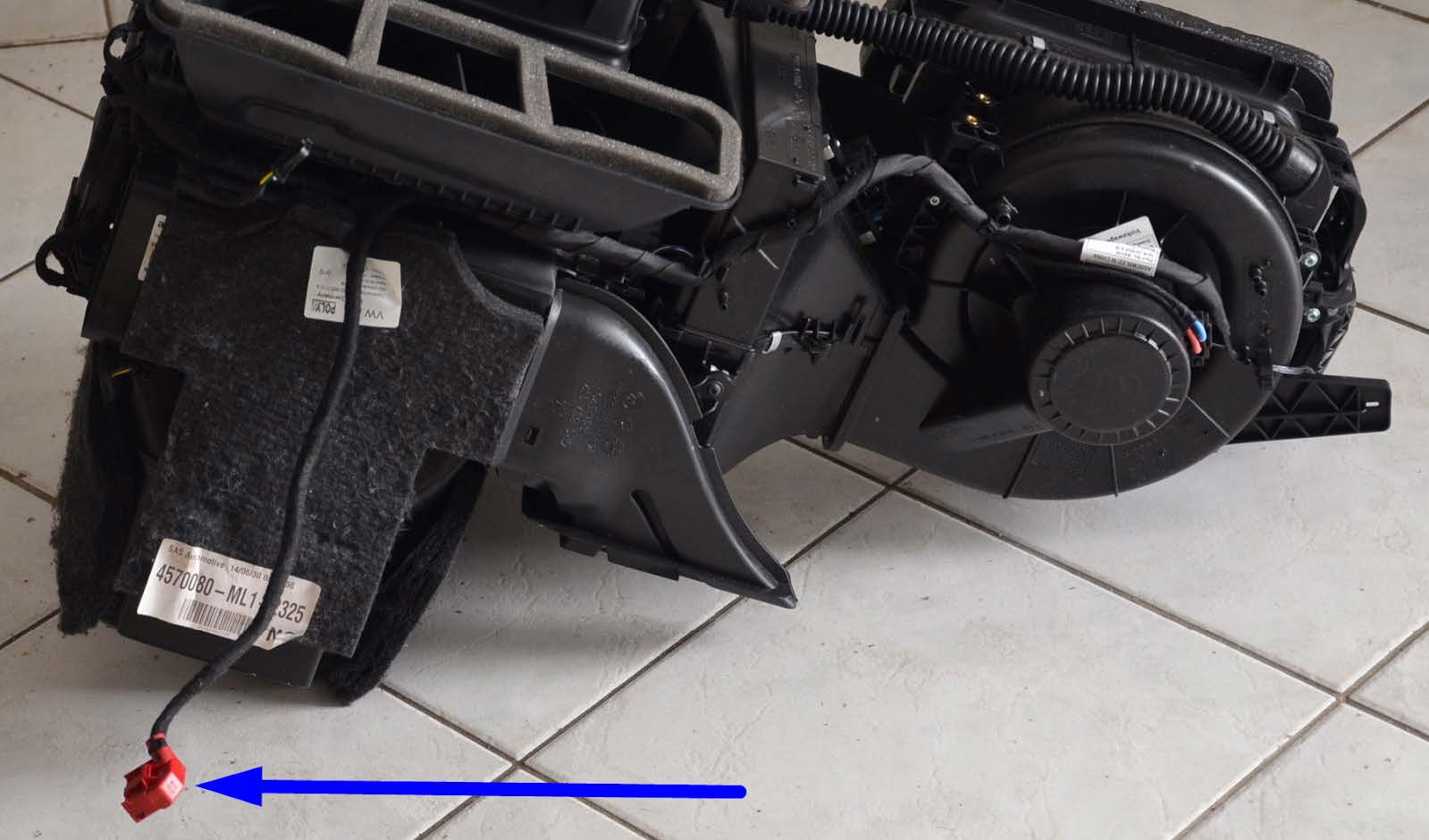

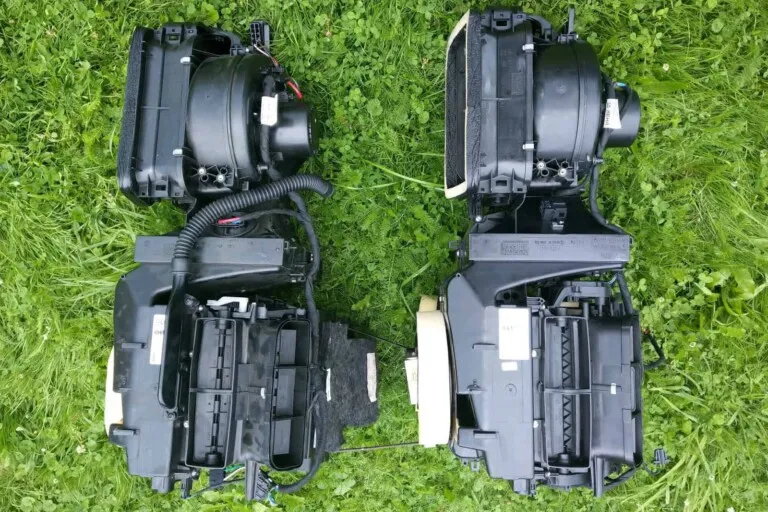

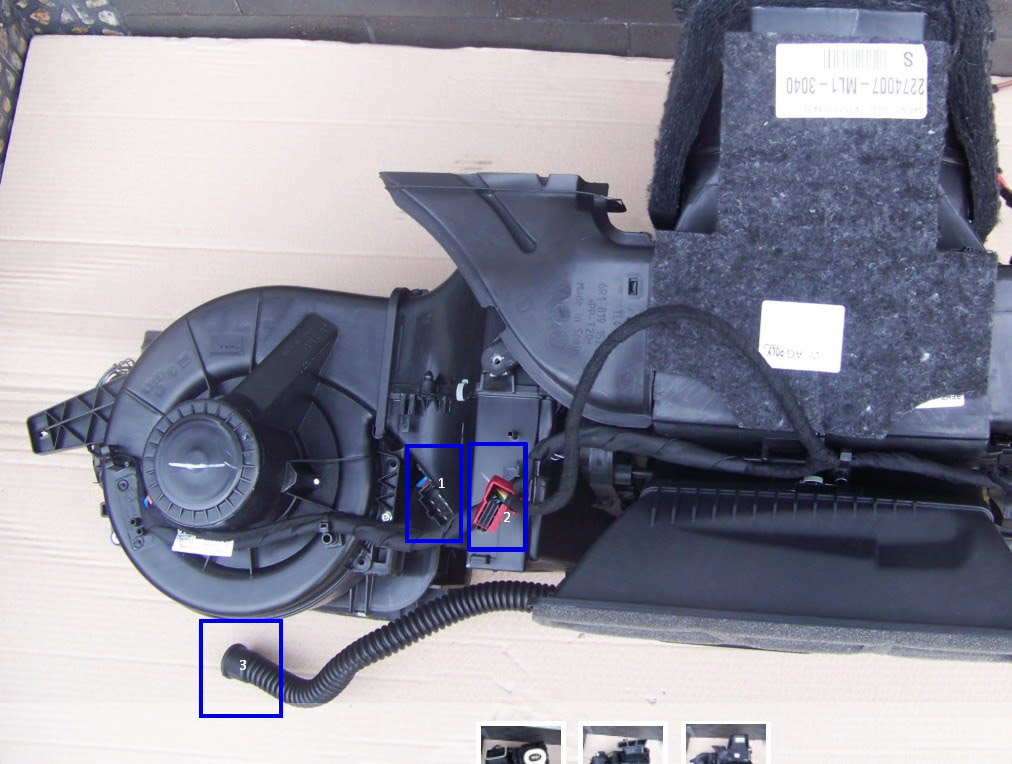

Differences in the heater housing
