Polo V (6R & 6C)
- Common Problems

1. Damaged Wiring Harness in Trunk Lid Grommet

A classic VAG group issue. Frequent opening of the trunk lid causes the wire insulation to tear at the hinge point. The harness wires are neither sufficiently protected nor flexible enough, which leads to their damage.

Symptoms

• Short-circuited wires: Usually causes trunk lock failure, which can result in damage to the locking mechanism’s microswitch
• Short circuit effect: After hitting a pothole, the trunk lid starts bouncing upward
• Broken wires: Complete inability to open the trunk using the handle (VW logo)

Location

Left trunk lid hinge:

Repair

Repair of the Polo V trunk lid wiring harness depends on the extent of damage.

Repair stages:

• Initial damage: Insulating the damaged insulation
• Broken wires: Repair harness or replacement of damaged cables (do not solder/crimp at the bend point!)
• Complete replacement: Complete trunk harness (6R6971145F) or aftermarket repair kits

Important:

When the lock has been damaged – it must also be replaced (see below).

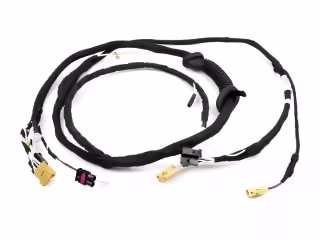

Cable set for tailgate

6R6971145F

6R6.971.145.F

6R6-971-145-F

6R6 971 145 F

2. Damaged Trunk Lock

The trunk lock most commonly suffers from microswitch damage. The issues are usually caused by short circuits within the broken trunk lid wiring harness. Sometimes, the problem is a damaged harness at the trunk handle.

Symptoms

• closing problems
• automatic opening
• trunk lid lifting when driving over bumps (lock doesn’t secure the lid)

Causes

• Damaged wire insulation in the harness at the left trunk lid hinge leading to short circuit
• Broken harness wires in the trunk lid grommet or at the trunk handle connector

Repair

• microswitch replacement
• complete handle replacement

Emergency trunk opening is well described in the Polo 6R owner’s manual.

Part Number

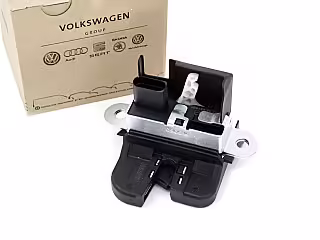

Lid lock

6R0827505E9B9

6R0.827.505.E.9B9

6R0-827-505-E-9B9

6R0 827 505 E 9B9

3. Faulty power steering pump

This problem affects the Polo 6R models equipped with electro-hydraulic power steering. Over time, the pump develops leaks, causing fluid to spill and flood the integrated pump controller. A significant leak typically leads to destroyed electronics.

Symptoms

• No power steering assistance
• DTC errors: 01288, 00566

Causes

• Blown plate fuse at battery or terminal 15
• Flooded BCP board

Repair

• Refurbishment: Quick disassembly and ultrasonic cleaning can remove corrosion
• Practical solution: Pump replacement (faster and simpler)

Expand power steering pump photos

Upgrade

Newer Polo 6C and later models already had normal fully electric power steering, which is simpler, cheaper and doesn’t have these types of problems. To install electric power steering in Polo 6R, you need to replace the steering column with 6C1423510AE, replace the intermediate shaft with 6R1423961, change the dashboard cross member to 6C1857017B and install a new crash support 6C1721913. After these changes, you also need to change the stalks etc., so it’s not a quick or simple mod.

Part number

Part number and price for new original hydraulic pump with electric motor (J500), PR code: 1N2, 1N4, 1AC/1AT):

4. Faulty Window Regulator

The front driver or passenger window regulator is the most common point of failure. The window motor rarely fails; it’s usually the window mechanism itself that breaks. This typically involves damage to the steel cable or one of the gears that moves the window.

Symptoms

• Loud clicking when pressing the window down button
• Window drops but is difficult to raise
• On subsequent attempts, only grinding noise is heard, window doesn’t move
• Usually caused by a broken steel cable in the mechanism

Repair

Remove the door panel (trim). In most cases, the steel cable is broken.

Repair options

• Refurbishment: making a new cable (requires patience for proper installation)
• Original mechanism from ASO: fastest and most reliable repair
• Aftermarket parts: cheaper option for those who like taking risks

Part Numbers

5. Faulty Blower Motor

The heater fan is a component that simply wears out over time. Its failure is often caused by excessive dust buildup and worn motor brushes.

When the electric motor has worn brushes or commutator, it creates too much resistance on the rotor. This causes an increased current draw, which can consequently blow the resistor.

Symptoms

• loud or uneven fan operation
• fan spontaneously stops working despite being turned on
• motor only works after hitting/tapping the heater housing, stopping the car, or driving over road bumps

Prevention

• regular cabin filter replacement,
• using an additional air filter (from the engine compartment side) – the so-called “Chinese version” instead of the standard grille 6R0815479A,
• fan verification (checking how it rotates) – when the fan has too much resistance when rotating, it will burn out every subsequent resistor
• cleaning excessive dust – this should be done at least once every few years 😉
• some people, besides cleaning, recommend lubricating the bearing

Repair

• glove box removal and cleaning or fan replacement

Part Number

Show full parts list

Part Name	OE Number	Dealer Price
Heater motor (LHD)	6R1819015A	$278 / €237
Heater motor (LHD)	6Q1820015H	$334 / €284

Heater motor

6R1819015A

6R1.819.015.A

6R1-819-015-A

6R1 819 015 A

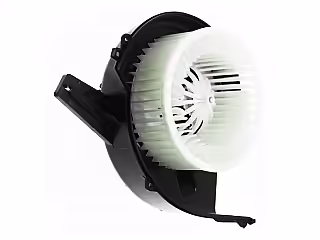

Heater motor

6Q1820015H

6Q1.820.015.H

6Q1-820-015-H

6Q1 820 015 H

6. Blown blower resistor

The blower resistor acts as a power regulator. When it burns out (most often due to excessive motor resistance), the fan will not work in any airflow position except for the highest setting.

Symptoms

• operation only on highest speed: airflow works only at full speed, doesn’t work on speeds 1-3, or works sporadically
• blower doesn’t work, air conditioning activates (cold air can be felt)
• with manual air conditioning:
  • speed “1” on the airflow dial doesn’t work, the rest (2,3,4) work
• with semi-automatic air conditioning:
  • temperature dial works only in extreme positions, setting the middle position (around 22 degrees) changes nothing
• with automatic air conditioning (Climatronic):
  • when adjusting fan speed on the Climatronic panel, relay clicking can be heard from the left side of the steering wheel, but the fan doesn’t start
  • after setting specific speeds, it switches itself while driving, goes to max, or turns off, then turns back on – in a word, the airflow goes crazy

Repair

• Remove glove box and replace resistor.
• Check fan condition – often after replacing just the resistor, when the fan is already worn out, the new resistor burns out again.

Part Numbers

Show full parts list

Part Name	OE Number	Dealer Price
Series resistor (for manual/semi-automatic A/C)	6Q0959263A	$75 / €64
Series resistor (LHD, for automatic A/C)	6Q1907521B	$195 / €167
Blower resistor (RHD, for automatic A/C)	6Q2907521B	$195 / €167

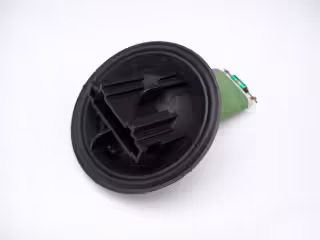

Series resistor; N24

6Q0959263A

6Q0.959.263.A

6Q0-959-263-A

6Q0 959 263 A

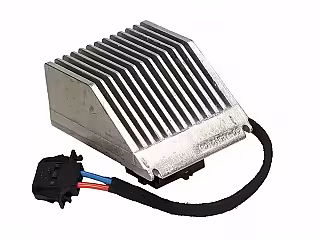

Blower resistor J126; Climatronic

6Q1907521B

6Q1.907.521.B

6Q1-907-521-B

6Q1 907 521 B

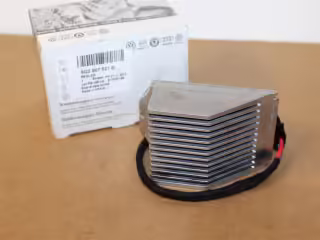

Blower resistor J126; Climatronic

6Q2907521B

6Q2.907.521.B

6Q2-907-521-B

6Q2 907 521 B

7. Non-functioning Mirror Indicators

Mirror indicator LEDs don’t work. The cause is water ingress and flooded electronics – most often due to impact, sometimes simply from age.

Symptoms

• mirror indicators don’t work
• visible signs of moisture inside the housing

Repair

Replace the complete indicator with a new OE or cheaper aftermarket replacement (e.g., “dynamic”).

Part Numbers

Show full parts list

Part Name	OE Number	Dealer Price
Left indicator	6R0949101F	$43 / €37
Right indicator	6R0949102F	$45 / €39

Replacing with an aftermarket mirror from AliExpress is much cheaper.

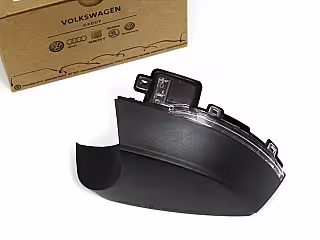

Turn signal indicator; left

6R0949101F

6R0.949.101.F

6R0-949-101-F

6R0 949 101 F

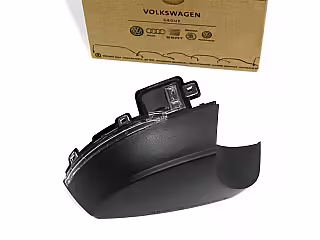

Turn signal indicator; right

6R0949102F

6R0.949.102.F

6R0-949-102-F

6R0 949 102 F

8. Passenger Airbag Deactivation Switch Failure

A damaged or faulty passenger airbag deactivation switch can cause a malfunction within the airbag system.

Symptoms

• Airbag warning light illuminated on dashboard
• Periodic airbag error lights
• Flashing passenger airbag disabled indicator
• DTC error in airbag module: 9445417
• After the airbag error is cleared, it reappears after a few minutes, and when the key in the glove compartment is turned to the OFF position, the airbag light turns off.

Address 15: Airbags (J234)
1 Fault Found:
9445417 - Key switch for deactivation of passenger-side airbag
B1020 29 [136] - Signal Implausible

9445417 - Stacyjka do dezaktywacji poduszki powietrznej po stronie pasażera
B1020 29 [136] - Nieprawdopodobny sygnał

9445417 - Commande à clé pr désactivation d'airbag; côté passager
B1020 29 [136] - Signal invalide

9445417 - Nøglekontakt til frakobling af forsædepassagerens frontairbag
B1020 29 [136] - Signal ugyldig

9445417 - Schlüsselschalter für Abschaltung Airbag Beifahrerseite
B1020 29 [136] - unplausibles Signal

Repair

Replace the AIRBAG OFF switch in the passenger compartment. Note that a significant portion of used switches may also be damaged – for peace of mind, it’s best to buy new.

In an emergency, you can also try cleaning the button or checking for cold solder joints. Cleaning usually only works for a few months at most, so improving the soldering or replacing the switch is recommended.

source: community.dieselschrauber.org, motor-talk.de, drive2.ru

If you feel up to the task, you can start by fixing the cold solder joints in the area marked in red:

Part Number

Passenger Air Bag Disable Switch

1K8919237WGI

1K8.919.237.WGI

1K8-919-237-WGI

1K8 919 237 WGI

• Color: satin black

10. Heated Seat Failure

Seat heating system failure is a common problem. Heating mats contain thin resistance wires that can break from repeated flexing and stress. Additionally, objects in back pockets (keys, wallets, tools) contribute to this by creating pressure points when sitting.

The seat heating mats for Polo 6R/6C hatchback are manufactured by IGB (I.G. Bauerhin), while Sedan (6RU) models use mats from Kongsberg Automotive.

Symptoms

• Driver’s seat heating doesn’t work – pressing the button causes both LED indicators to light up briefly then turn off
• On first attempt, both bars illuminate momentarily; subsequent attempts produce no response
• Seat heating button deactivates immediately upon activation
• Complete heating failure on one or both seats

Common Failure Points

• Driver’s seat cushion (bottom part) – due to most frequent use
• Area between seat cushion and backrest where flexing occurs
• Passenger seat less commonly affected but follows the same failure pattern

Diagnostic Methods

• Resistance measurement
  Check the heating mat resistance (Ω) using a multimeter. Values around 1.1-2.1 Ω indicate a functioning mat, higher resistance indicates a damaged mat.
• Thermal imaging diagnosis
  A thermal camera (including smartphone attachments) allows non-invasive fault localization through heat distribution visualization. On the thermogram, damaged mat areas appear as cold, unheated spots, while circuit break points may show localized overheating. This method enables precise repair location identification without upholstery disassembly.

Prevention

• Remove objects from back pockets before sitting (keys, wallets, phones, tools)
• Avoid jumping onto seats with knees when entering the vehicle
• Minimize unnecessary flexing of seat materials

Repair

• Heating mat replacement
  seat removal, upholstery disassembly, heating element replacement
• Localized repair
  damaged heating mats can usually be repaired by fixing broken wire connections at the identified fault location
• Seat replacement
  Often, especially with common upholstery types, purchasing a used seat is cheaper than buying a new mat

Part Numbers

11. Broken Window Switch Panel

The most common cause is water damage from leaving the window open during rain. Due to moisture, the traces on the circuit board at the micro-switch location corrode, which causes problems with the window raise/lower buttons. Sometimes the fault appears long after the flooding has occurred. When the switches are broken but the window mechanism is not, you can still control the windows using the key or, for example, the driver’s door switches if the passenger door switch is damaged.

Symptoms

• Unresponsive window raise/lower buttons
• Intermittent operation problems, appearing long after flooding.

Causes

Moisture and water causing corrosion of the traces on the control panel circuit board.

Prevention

• Closing doors and windows before rain
• Installing window deflectors

Repair

Immediately after flooding, it’s best to disassemble the panel and clean with products like Contact Cleaner. After drying, reassemble.

When already damaged, the simplest and fastest solution is to replace the switch or switch panel.

Part Numbers

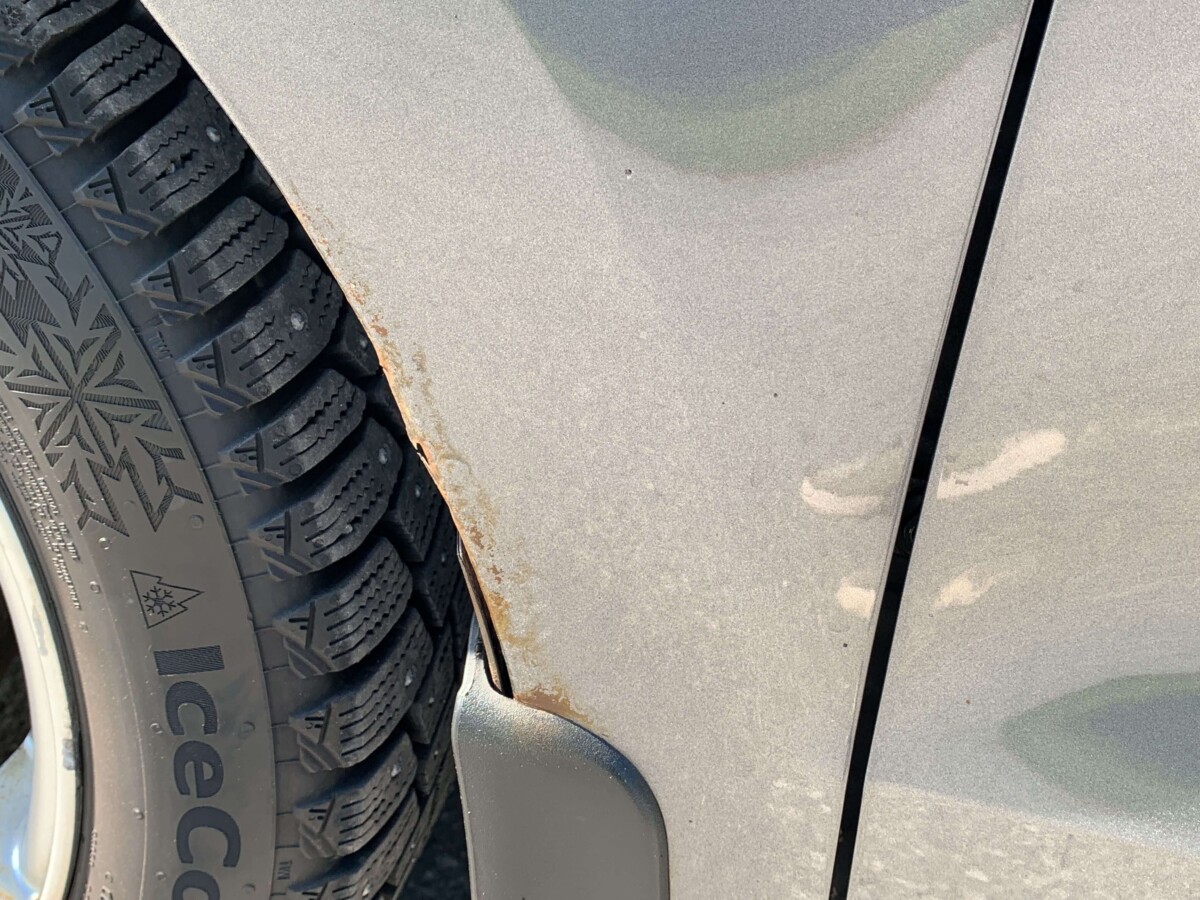

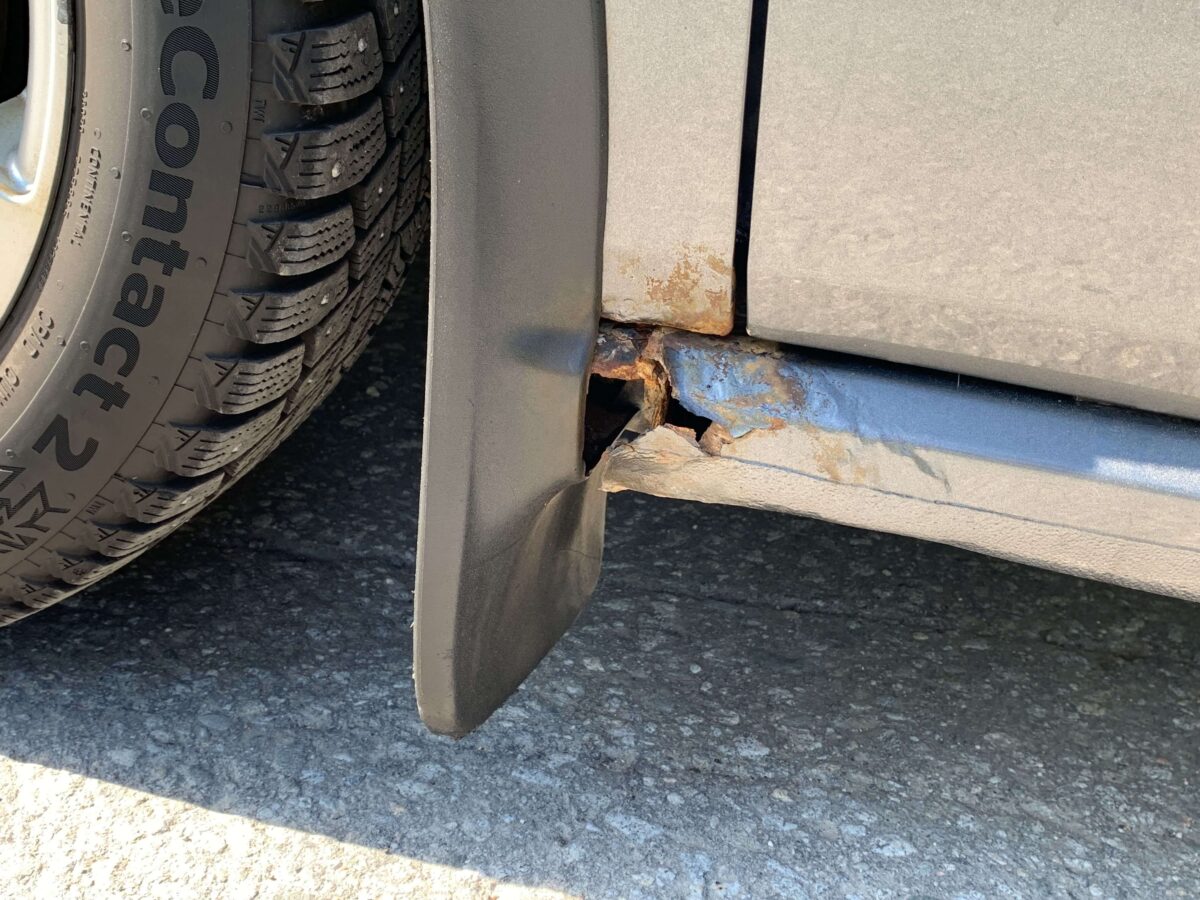

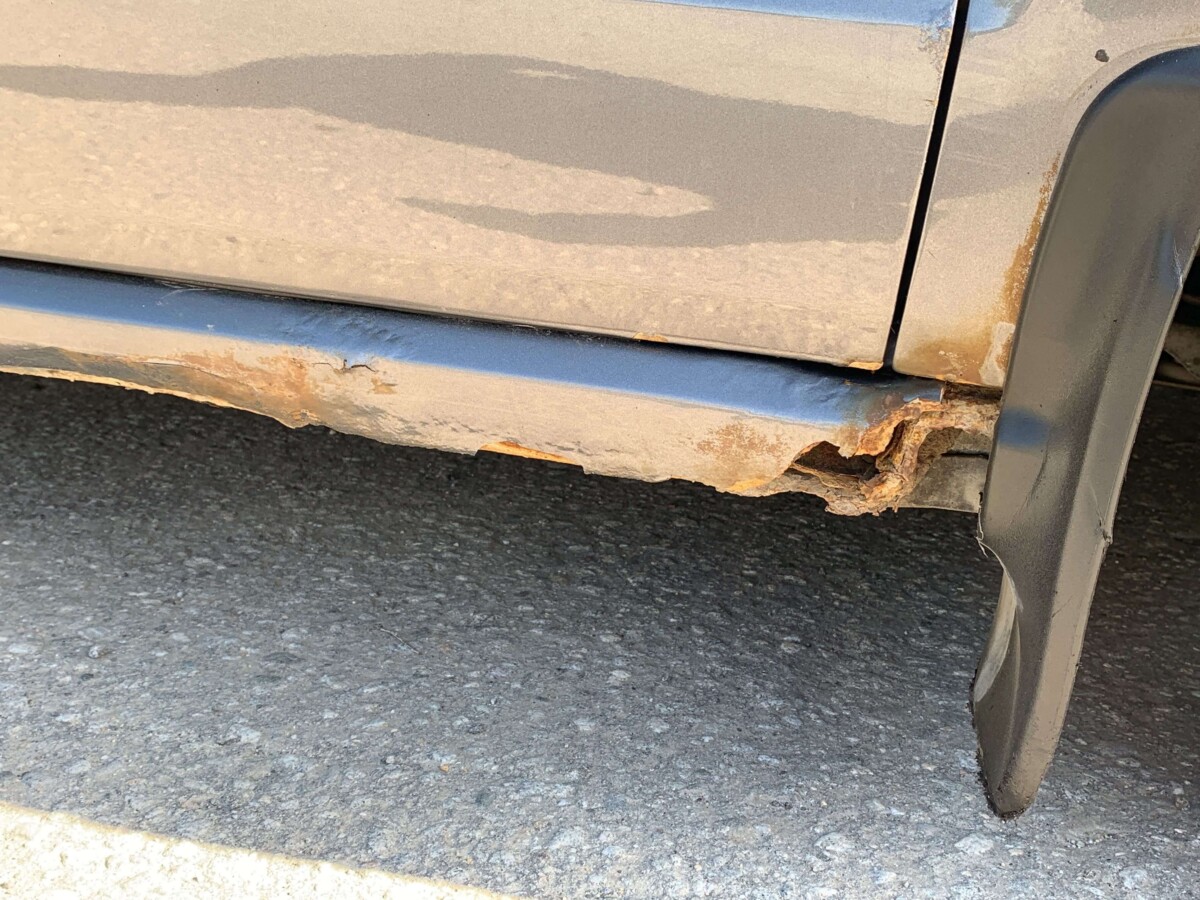

14. Sill Rust

Rusting sills are a common problem for many cars, not just those from the VAG group. The issue is particularly severe in Europe due to harsh winter conditions and the intensive use of road salt, which significantly accelerates the corrosion process.

Main Causes

• driving with mud flaps – original VW Polo V mud flaps are quite long, often catching on speed bumps when driving over them
• under the mud flaps, a lot of dirt and sand accumulates, causing paint wear
• blocked water drainage channels
• poor factory corrosion protection
• road salt accumulation in winter
• improper past repairs

Repair and Prevention

Usually, complete sill replacement is necessary due to internal channel corrosion. After replacement, thorough painting and protection from the inside is essential.

Most important advice: Avoid installing mud flaps! Dirt and sand accumulate underneath them, leading to paint wear.

Part Numbers

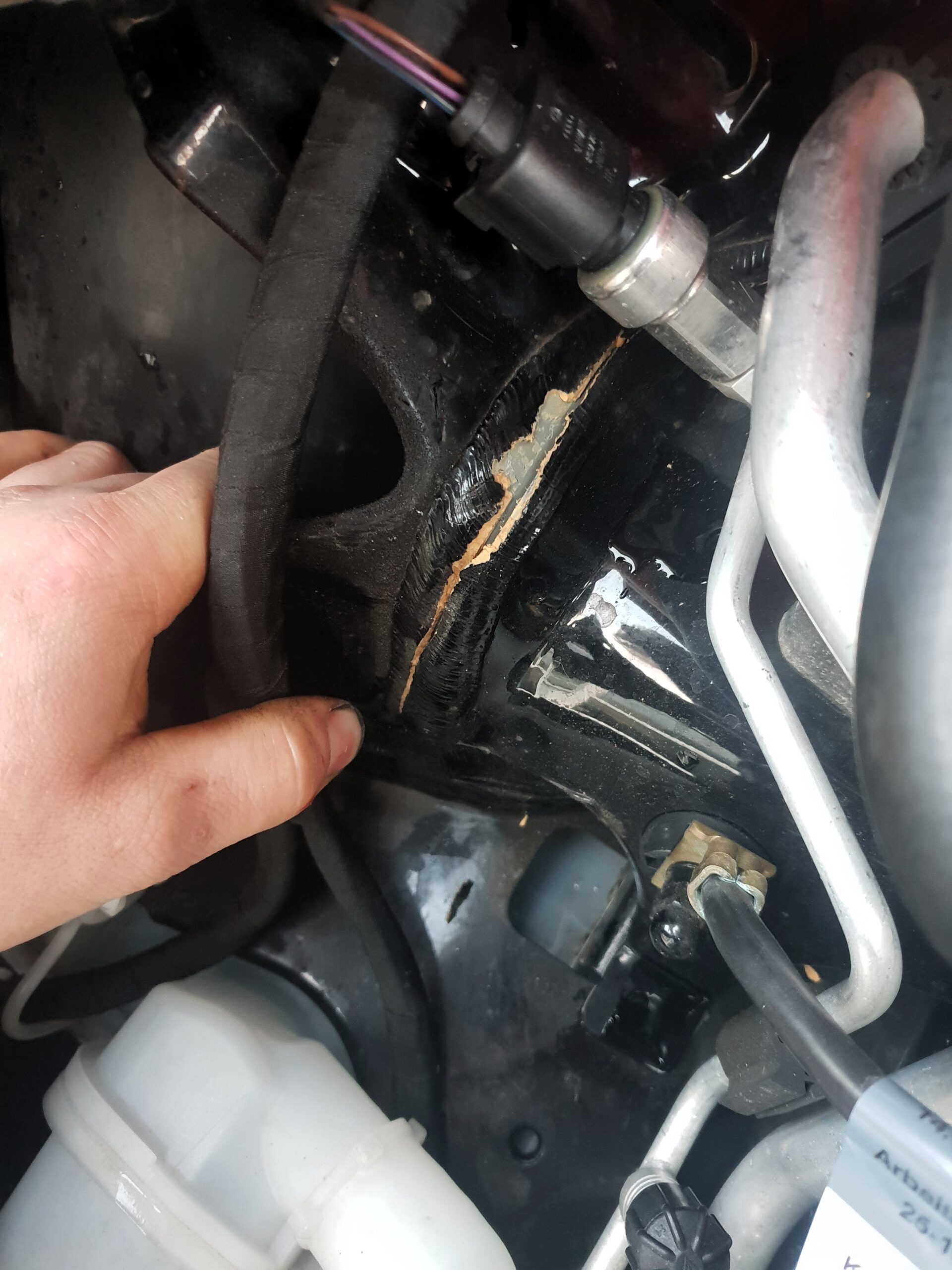

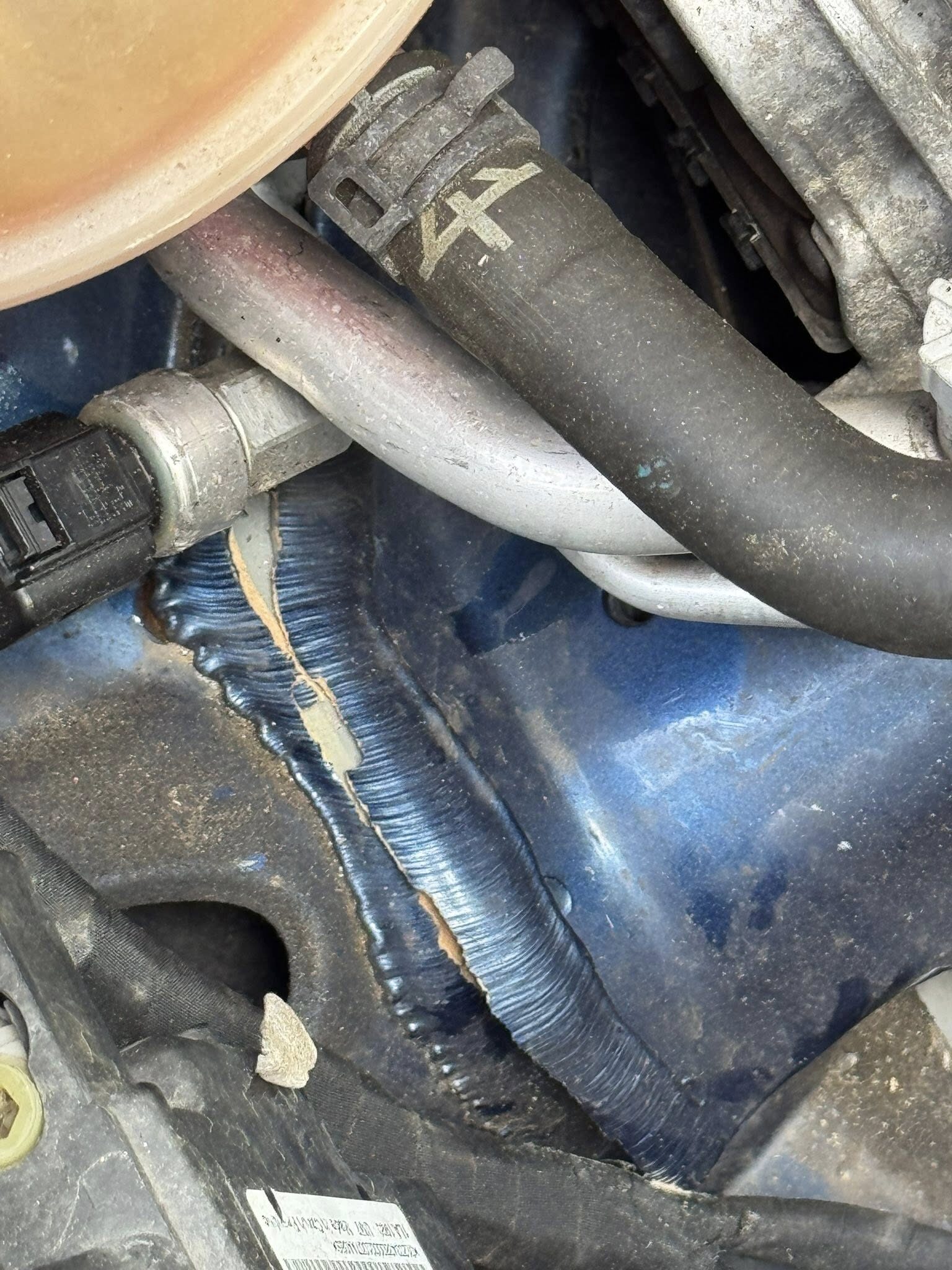

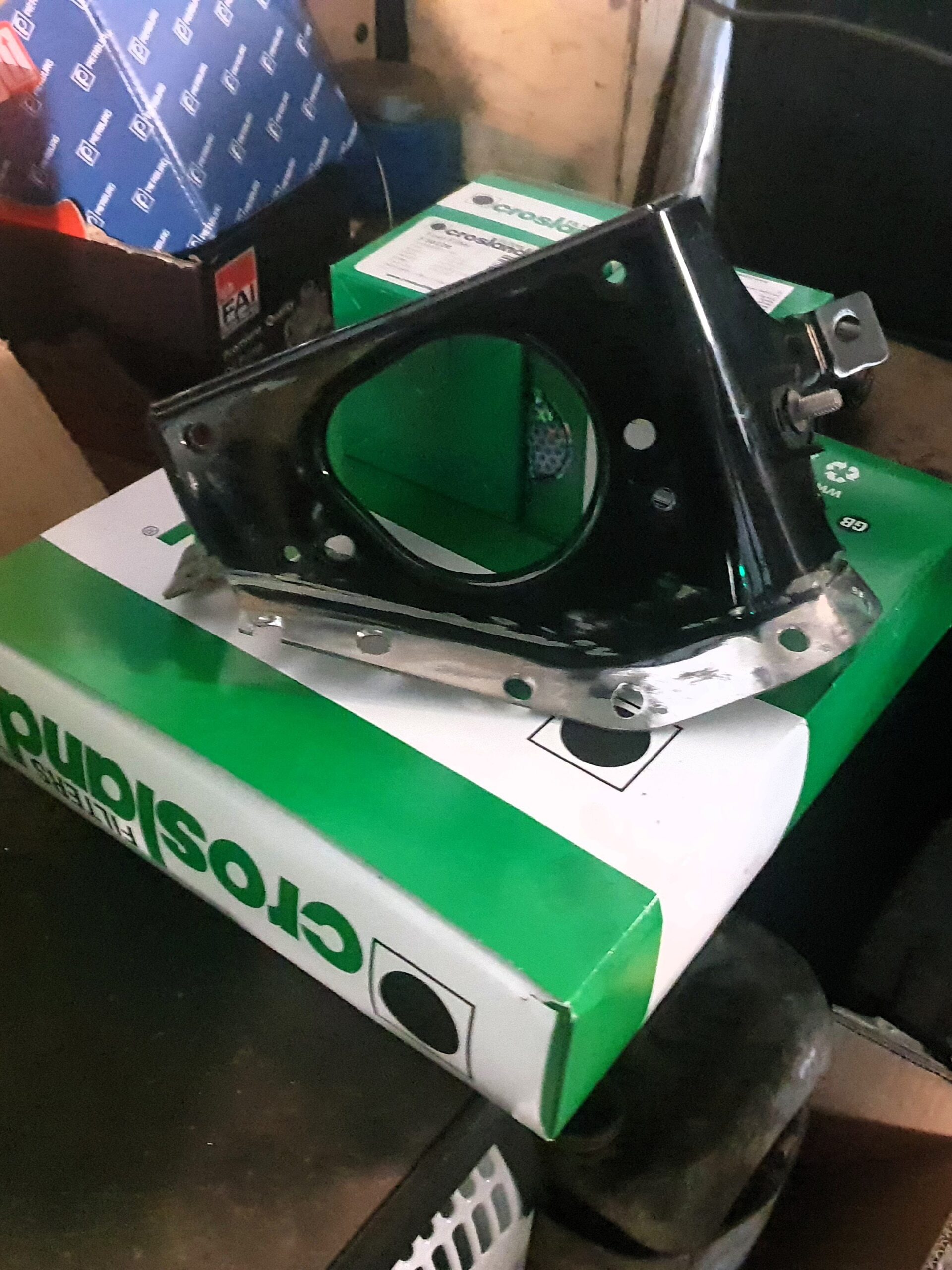

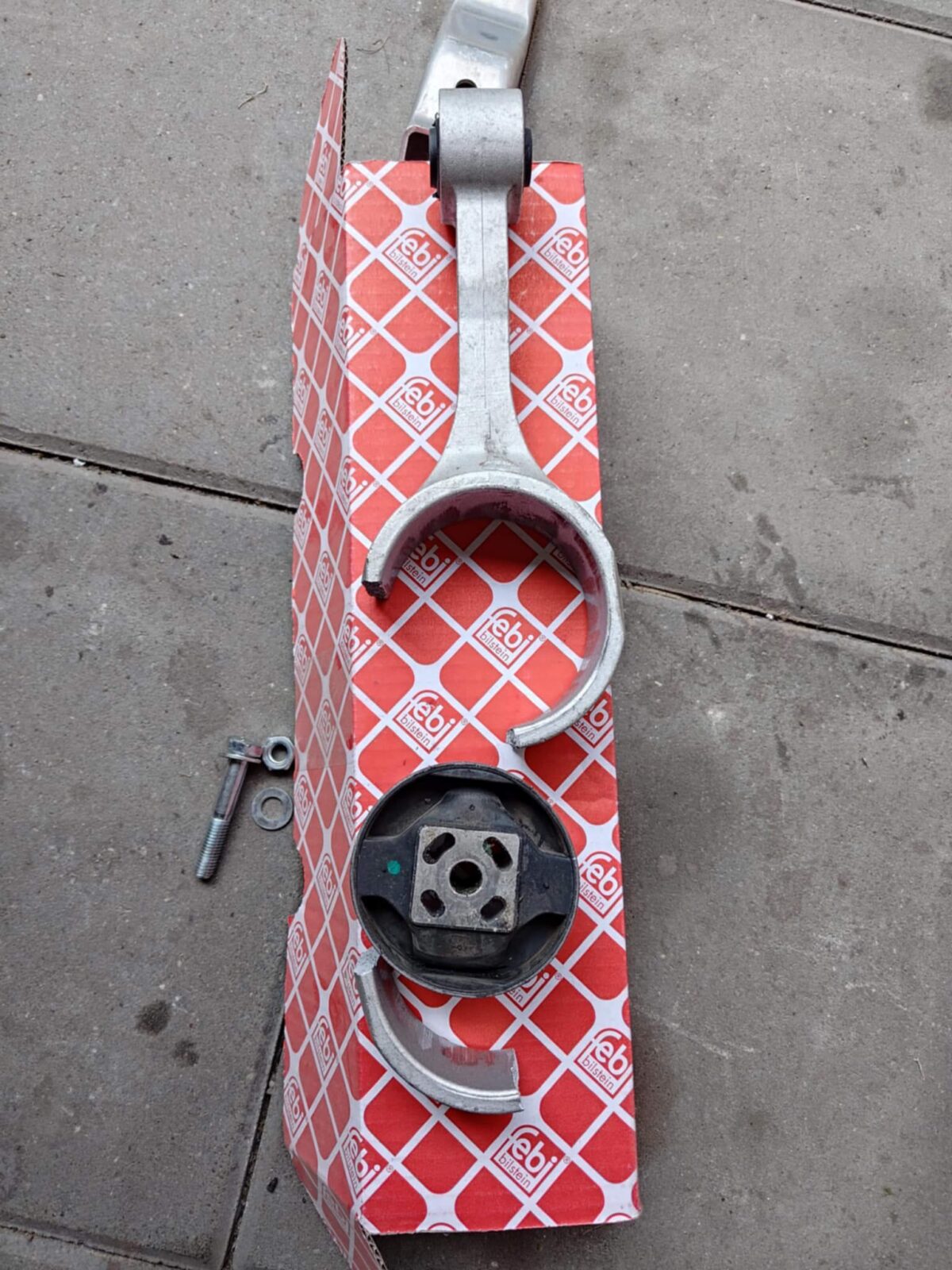

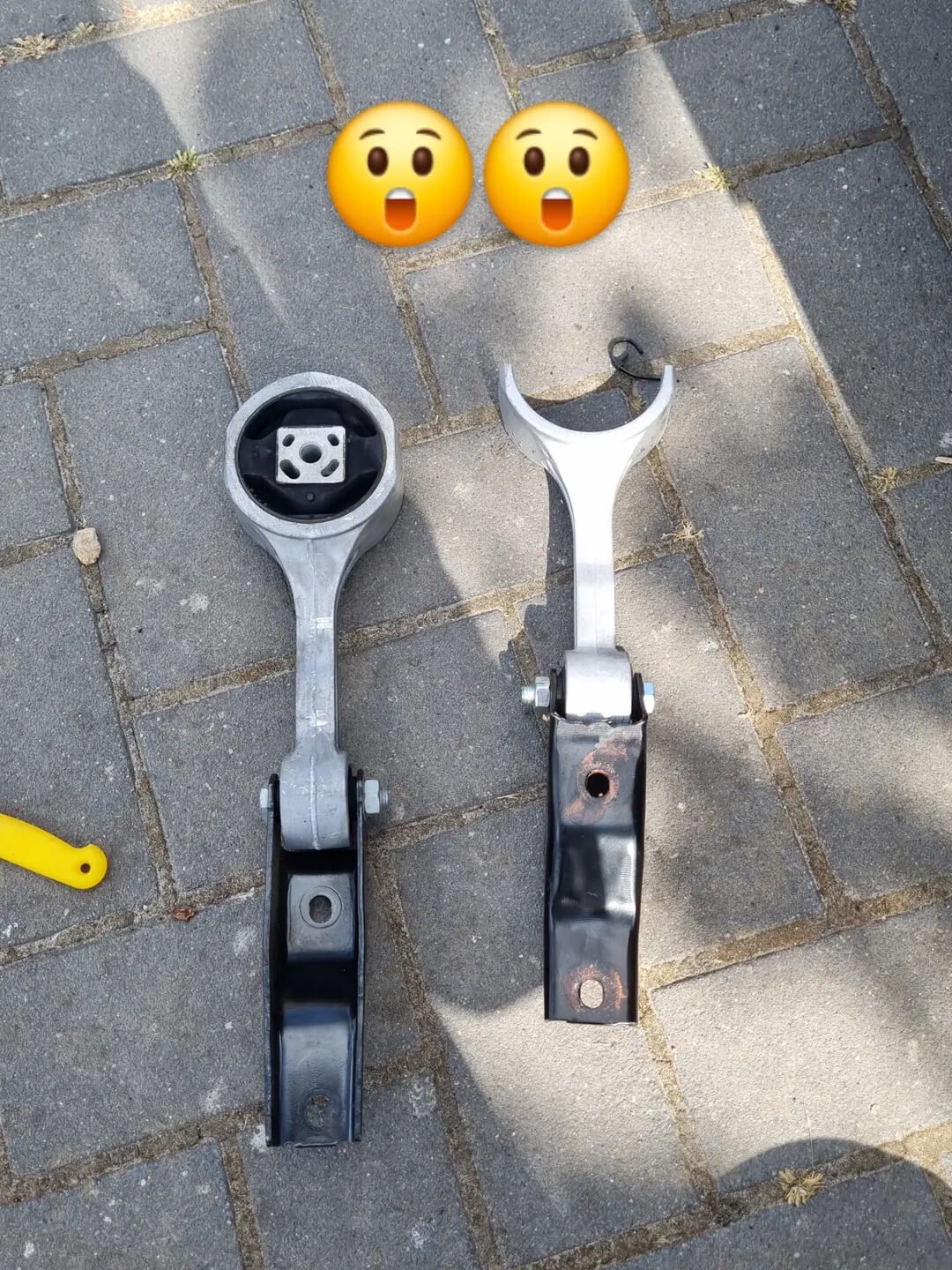

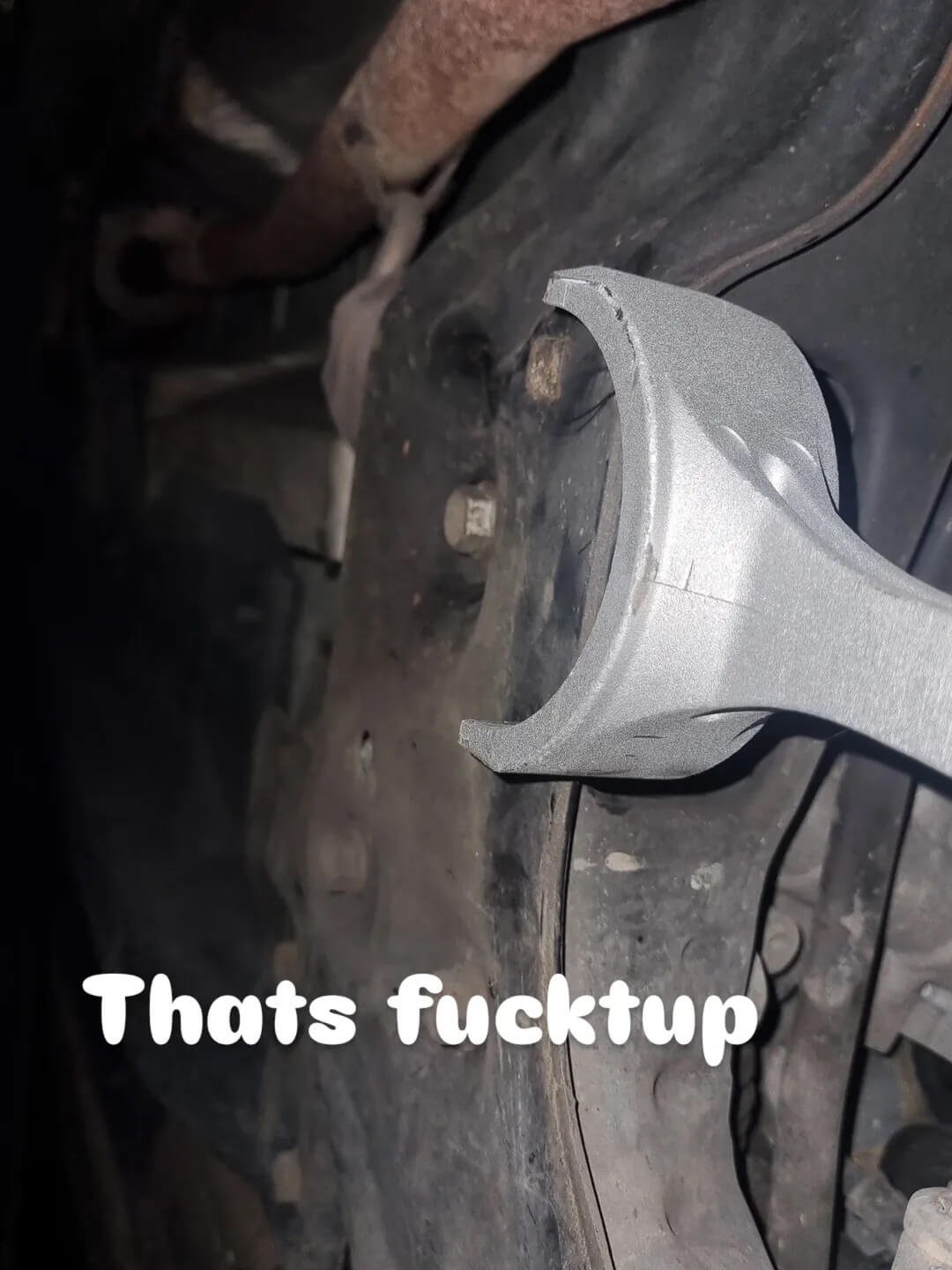

15. Broken Engine Mount Bolt

This problem mainly occurs in more powerful versions, including the Polo 6R GTI 1.4 TSI EA111 (bearing 6R0199167P), as well as in the 1.6 TDI EA189 (6R0199167S) after a power increase. During dynamic launches, the engine moves quite strongly, which contributes to the bolt breaking at the right-side engine mount (near the coolant reservoir).

Repair

The best solution is to replace with a mount from Polo 6R WRC Street (6R0199262C), Polo 6C GTI (6C0199262D) or from an older Skoda Fabia/Rapid with TDI.

For more demanding users, custom mounts are available – with filled rubber, polyurethane, and for sports driving enthusiasts, redesigned aluminum-rubber mount from Vibra-Technics (VAG230M).

Part Numbers

16. Faulty EVAP Valve (N80)

A typical problem for Polo with 1.4 MPI engine (CGGB), especially in models produced before 2012. On warm days, the engine stalls after the first start after a long idle period, and when the engine is warm, the problem disappears. Also affects other petrol engines.

Symptoms

• engine stalls after first start on warm days
• problem occurs only after long idle periods
• after warming up the engine, the problem disappears
• VCDS logs show DTC error codes P0441 or P0499

Repair

Replace the EVAP valve (N80) located under the air filter housing.
Remove the air filter housing to provide access to the N80 valve.

Most commonly the problem occurs with naturally aspirated petrol engines:

1.2 MPI CGPA/CGPB, 1.4 FSI CLPA, 1.4 MPI CGGB, 1.6 MPI CLSA, 1.6 MPI BiFuel CNKA

Part Numbers

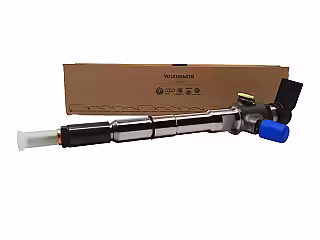

17. Piezoelectric Injector Problems (1.6 TDI)

One of the most common problems with 1.6 TDI CR CAY engines (variants CAYA, CAYB, CAYC) is damage to piezoelectric injectors. These precision components are particularly sensitive to operation at low revs and low fuel pressure, which means failures affect a significant portion of vehicles with this engine.

The problem often doesn’t generate DTC errors, and the first symptoms are increased fuel consumption and uneven cold running.

Symptoms of Damaged Injectors

Engine operation problems:

• Uneven idle with fluctuating revs
• Characteristic injector knocking/clattering, particularly audible below 2000 rpm
• Engine stalling at idle or immediately after applying throttle
• Starting problems when engine is warm

Increased fuel consumption:

• Consumption increases to 6-7 liters per 100 km (normal ~5 liters)
• Deterioration of acceleration dynamics

Visual and odor symptoms:

• “Wet injectors” – visible oil leaks from under injector coils
• Unpleasant exhaust smell entering the cabin
• Often no errors in standard computer diagnostics

Repair Options and Costs

Injector calibration (first attempt): The “minimum injection quantity deviation” procedure in VCDS system can help with minor damage. Cost: around €43. This is the best option to start with before deciding on more expensive repairs.

Comprehensive solutions:

1. Replacement with new
   • Dealer Price:around $3,860 / €3,290 for the set ($965 / €823 per piece)
   • Online stores: around $1,544-$2,481 / €1,316-€2,115 for the set ($386-$620 / €329-€529 per piece)
2. Refurbishment
   • Around $55-$152 / €47-€129 per piece (all should be refurbished at once)
   • Reputable refurbishment services often offer 24-month warranty
   • 1.6 TDI CAY users advise against services offering suspiciously low prices
   • Sometimes problems return after a few months
   • Even if only one injector causes problems, refurbishing/replacing all ensures even engine operation
3. Coil replacement – if the problem only concerns electronics

Part Numbers

Show full parts list

Nazwa	OE Number	Dealer Price
Injector for 1.6 TDI	03L130277S (newer, improved version)	$973 / €829
Injector for 1.6 TDI	03L130277B (older version)	$835 / €712

Original injector manufacturers: Siemens VDO, Continental, VDO.

Injector unit 1.6 TDI; piezoelectric

03L130277S

03L.130.277.S

03L-130-277-S

03L 130 277 S

18. EGR Valve Failure in TDI Engines (1.2 CFWA / 1.6 CAYA/CAYB/CAYC)

The EGR valve (Exhaust Gas Recirculation) in 1.2 TDI and 1.6 TDI engines is a component particularly prone to failures. Due to the specifics of diesel operation and the presence of the DPF filter, the EGR system often becomes clogged or suffers electrical failures.

Symptoms

• Uneven idle, jerking at low revs.
• Power loss and entering limp mode.
• Increased exhaust smoke (black or gray smoke).
• Illuminated engine light (MIL), flashing glow plug light and stored errors like P0401, P0402, P0403, P0407.

Causes

• Carbon and oil buildup in the valve → blocking its operation.
• Wear or damage to the electric actuator controlling the flap.
• Leaks in the intake system.
• High exhaust backpressure with clogged DPF, which overloads the EGR.

Repair

• Cleaning the EGR valve and recirculation pipes (often effective, but short-term).
• EGR replacement (common practice in workshops).
• Controller software update (VW introduced EGR control map corrections).
• Check DPF flow – clogged filter accelerates EGR failure.
• Blanking and disabling EGR
  • Mechanical blanking (plate in the pipe) without software modification causes errors and limp mode, because the controller monitors exhaust flow.
  • Software disabling (EGR OFF) is an effective method, as the computer stops requiring recirculation. Then it doesn’t need to be physically removed, but leaving the valve in the system can lead to further carbon buildup and flap seizure,
  • the best solution is software disabling + physical blanking or removal of the valve.

Part Numbers

19. DPF Filter Failure in TDI Engines (1.2 CFWA / 1.6 CAYA/CAYB/CAYC)

DPF (Diesel Particulate Filter) is a particulate filter that in 1.2 and 1.6 TDI engines is prone to problems, especially with urban driving and short distances.

Symptoms

• Frequent entering of limp mode.
• Power loss, engine “sluggishness”.
• High fuel consumption, elevated idle speed during regeneration.
• Particulate filter clogged message on dashboard.
• Controller errors:
  • P2002 (DPF efficiency),
  • P242F (excessive soot accumulation).

Causes

• Short trips preventing regeneration completion.
• Excessive soot due to faulty EGR or injectors.
• Engine oil consumption → ash accumulates in filter.
• Damaged differential pressure sensor or exhaust temperature sensor.

Repair

• Forced regeneration (VCDS, KTS, ODIS) – if filter is not yet completely clogged.
• Regeneration drive – longer distance with higher revs (e.g., 15-20 minutes on highway).
• Chemical cleaning or filter washing (sometimes effective, but doesn’t remove ash).
• DPF replacement – with high mileage and ash overfill, this is the only permanent solution.

DPF Removal and Disabling

• Physical filter removal without software changes causes immediate errors and limp mode.
• Software disabling (DPF OFF) deactivates filter monitoring procedures, allowing driving without DPF.
• In practice, a dual solution is used:
  • physical removal of DPF core (empty center in original housing),
  • controller map modification (DPF OFF).
• Just “DPF OFF” without core removal can cause excessive exhaust backpressure, so both steps are recommended.

Part Numbers

20. Carbon Buildup in TSI Engines

The problem affects all engines with direct fuel injection, but is particularly severe in stressed units. Carbon deposits on intake valves and in intake ports because they are not washed by fuel.

Engines Prone to the Problem

• 1.2 TSI EA111 (CBZC/CBZB)
• 1.4 TSI EA111 (CAVE/CTHE) – Polo 6R GTI
• 1.4 TSI EA211 (CPTA)
• 2.0 TSI EA113 (CDLJ) – Polo 6R R WRC Street

Symptoms

• Power and elasticity loss.
• Uneven idle.
• Increased fuel consumption.
• Misfires.

Repair

Using chemical cleaners has limited effectiveness, so it’s not worth bothering with them.

The most effective method is mechanical cleaning of intake ports and valves, e.g., dry ice blasting or walnut blasting.

21. Timing Issues in 1.2 TSI Engines EA111

The 1.2 TSI engines from the EA111 family (codes CBZC, CBZB) fitted in Polo 6R suffered from a recurring timing chain failure. Until the end of 2013, models with this engine frequently had timing problems, even with low mileage of just 20-30 thousand km. Users repeatedly reported that the problem returned even after warranty replacement.

Causes and Symptoms

• Stretching chain: a defective chain was used that stretches over time.
• Faulty tensioner: in older versions, the hydraulic tensioner didn’t maintain oil pressure after engine shutdown.
• Noisy operation after startup: for a few seconds after starting a cold engine, metallic rattling or “chattering” can be heard.
• Uneven engine operation: in advanced stages of wear.

Consequences and Repair

Ignoring symptoms can lead to the chain jumping a tooth, resulting in valve-to-piston collision and engine destruction. Repair involves replacing the complete timing kit (chain, tensioner, guides, sprockets) with a factory-improved set. This is an expensive operation, though it’s worth doing preventively.

Service Action TPI 15D8

In response to numerous complaints, Volkswagen introduced an internal service action designated TPI 15D8 (Technical Product Information), aimed at resolving the problem. The action involved installing a new chain with thoroughly modified construction, which was to be more durable and stable. The key element was also replacing the camshaft (intake), which in first versions had a press-fitted sprocket. The new, improved camshaft has an integrated sprocket, eliminating the problem of the sprocket shifting relative to the shaft. Additionally, the timing chain cover was modified so the chain couldn’t skip.

Ignoring symptoms can lead to the chain jumping a tooth, resulting in valve-to-piston collision and engine destruction. Repair involves replacing the complete timing kit (chain, tensioner, guides, sprockets) with a factory-improved set. This is an expensive operation, so it’s worth doing preventively.

Source: Timing service action 1.2 TSI – VWPolo Klub, Steuerkette 1.2 TSI 105PS (Werkstattaktion!!!), [6r] 1.2 TSI – timing noise on startup, [6R] Service action for 1.2 TSI, [6R] 1.2 TSI Engine sound – Service actions?

Part Numbers

22. Excessive Oil Consumption (6R GTI)

This problem is the most troublesome issue of the Polo 6R GTI with the 1.4 TSI EA111 Twincharger engine. It occurs in both older CAVE units (produced until 09/2012) and improved CTHE versions, though to a lesser degree. The main cause is the use of faulty, too-thin oil rings that cannot properly scrape oil from cylinder walls. Accumulating carbon bakes the rings, which further exacerbates the problem.

Causes

• Faulty ring design: use of too-thin, defective oil rings that cannot properly scrape oil from cylinder walls. Accumulating carbon bakes the rings, which further exacerbates the problem.
• Cracked piston rings (ringland failure): in advanced stages, rings can crack, drastically increasing oil consumption.
• Faulty crankcase ventilation system (PCV): malfunctioning PCV valve can cause excessive vacuum in the engine, drawing oil into the combustion chamber.
• Turbocharger leak: damaged turbocharger rotor seals can lead to oil entering the intake system.
• Spark plug damage: Excessive oil burning leads to black, oily carbon deposits on spark plugs. This insulates the electrodes, causing misfires and uneven engine operation.

Symptoms

• oil warning light illumination
• very high oil consumption: often exceeding 1 liter per 1000 km,
• blue smoke from exhaust: especially at startup or during hard acceleration,
• excessive carbon on valves and in combustion chamber: can lead to more serious failures, such as piston cracks

Source: Why Your VW Polo 6R 1.4 TSI Burns So Much Oil | AUTODOC BLOG, General maintenance – 1.4Tsi Twin-charged fundamental problems | SEATCUPRA.NET

Repair

Requires comprehensive diagnostics to confirm ring damage.
Complete rebuild with piston and ring replacement.

Photo source: EA111 -1.4TSI Twincharged

Part Numbers

23. Burned or Cracked Piston (6R GTI)

This is a serious failure that directly results from excessive oil consumption. Carbon accumulation and high engine pressure lead to low-speed pre-ignition (LSPI), which destroys pistons, causing them to crack.

Symptoms

• Sudden engine deterioration: flashing check engine, EPC light
• Running on 3 cylinders: clearly audible uneven engine operation
• Intense exhaust smoke: thick, dark smoke indicating oil burning
• Complete power loss: car practically unable to drive
• Metallic noises from engine: knocking, grinding
• Possible oil pressure warning light illumination

Causes

• Long-term high-speed driving: maintaining speeds above 170 km/h for extended periods
• Excessive exhaust gas temperature (EGT): exceeding critical value of 1100°C.
• Neglecting oil consumption problem: existing cracks in piston rings lead to damage escalation.
• Oil dilution with fuel: often caused by leaking high-pressure fuel pump (HPFP).
• Local piston overheating: cracked ring land (area between rings) starts acting like a burner, directing flame to one spot.

Repair

Complete engine rebuild or replacement.
Requires complete engine overhaul with piston replacement to improved, reinforced versions (e.g., Kolbenschmidt brand). Often cylinder honing or boring and head refurbishment are also necessary. Usually this is quite an expensive operation.

Scope of work:

• Replace all pistons, rings, bearings
• Refurbish or replace cylinder head
• Replace valves, guides, seals
• Check and possibly refurbish engine block
• Replace timing chain and tensioner
• Replace accessories

Photos of the 1.4 TSI CAVE EA111 engine rebuild

source: https://uk-polos.net/viewtopic.php?t=74118

Prevention

• Avoid long-term driving at speeds above 170 km/h
• Regularly check oil level
• Immediately address excessive oil consumption (point 22)
• Use high-quality 98-octane fuel.
• Don’t ignore warning lights

The design flaws of the 1.4 EA111 cannot be completely prevented, but risk can be minimized through proper maintenance.

The 1.4 TSI EA111 engines are structurally unsuited for sustained high highway speeds.

Part Numbers

24. Ignition System and Injector Failures (6R GTI)

Misfires in 1.4 TSI EA111 engines are a common symptom that can result from several causes, often interconnected, with injectors and faulty software being the main culprits.

Injector Problems

• Early versions (late 2009/early 2010): injectors had a tendency to drip after engine shutdown. This caused washing of the oil film from cylinder walls, increasing piston wear.
• Narrow spray pattern: injectors had a narrow fuel stream, resulting in incomplete combustion under high load. Fuel residue accumulated on pistons could ignite from heat, and carbon collecting on exhaust valves led to misfires.
• Improved versions (from mid-2010): newer injectors had a wider spray pattern. It turned out that under full load, the fuel stream could extinguish the spark plug spark, because the injector and spark plug are almost in line, which is a consequence of the old 1.4 16V engine design.

Software Problems

Faulty ECU software, created to meet emission standards, caused the engine to run on too lean a mixture, which exacerbated problems. In some cases, the computer, instead of correcting errors, increased fuel dose, leading to cylinder flooding. This in turn led to oil dilution in the oil pan, which was another cause of engine wear. Revo Technik discovered these errors and released improved software that solved the problem.

Ignition Coil Problems

A faulty batch of ignition coils (from 2010) was a problem, but often their failures were just a consequence, not the cause of misfires, which were the result of injector and software problems.

Repair

It’s recommended to replace coils with a newer, improved variant and adjust software that eliminates errors related to lean mixture. Replacing spark plugs with colder and shorter ones (e.g., NGK Iridium) also helps combat ignition problems (replacement is recommended only in combination with map changes).

Part Numbers

25. DSG7 DQ200 Automatic Gearbox Failures

The 7-speed DSG7 DQ200 in Polo 6R/6C is a dual-clutch design with dry clutches, known for quick operation but also above-average failure rate. The most common problems result from clutch wear and mechatronic unit failures, leading to characteristic symptoms and often involving high repair costs.

Symptoms

• jerking when starting and changing gears,
• slipping or dragging shifts (particularly on odd gears),
• sudden loss of drive or emergency mode,
• flashing gearbox / EPC warning lights,
• delayed gear engagement, shuddering.

Causes

• wear of “dry” clutch set (natural in city driving),
• mechatronic module failures (electronics, solenoids, pressure drop),
• hydraulic pump failures or electrical installation problems.

Repair

• computer diagnostics (VCDS, codes P17xx, P177x),
• clutch adaptation and software version check,
• worn clutch replacement (K1 set – odd gears/K2 – even gears) with proper shim adjustment and gearbox adaptation,
• mechatronic/pump repair or replacement,
• TCU software update, preventive operation (e.g., in traffic jams holding brake in “stop-start” mode, avoiding long idling in gear, aggressive starts, towing),
• conversion to MQ350 manual or DQ250 automatic gearbox.

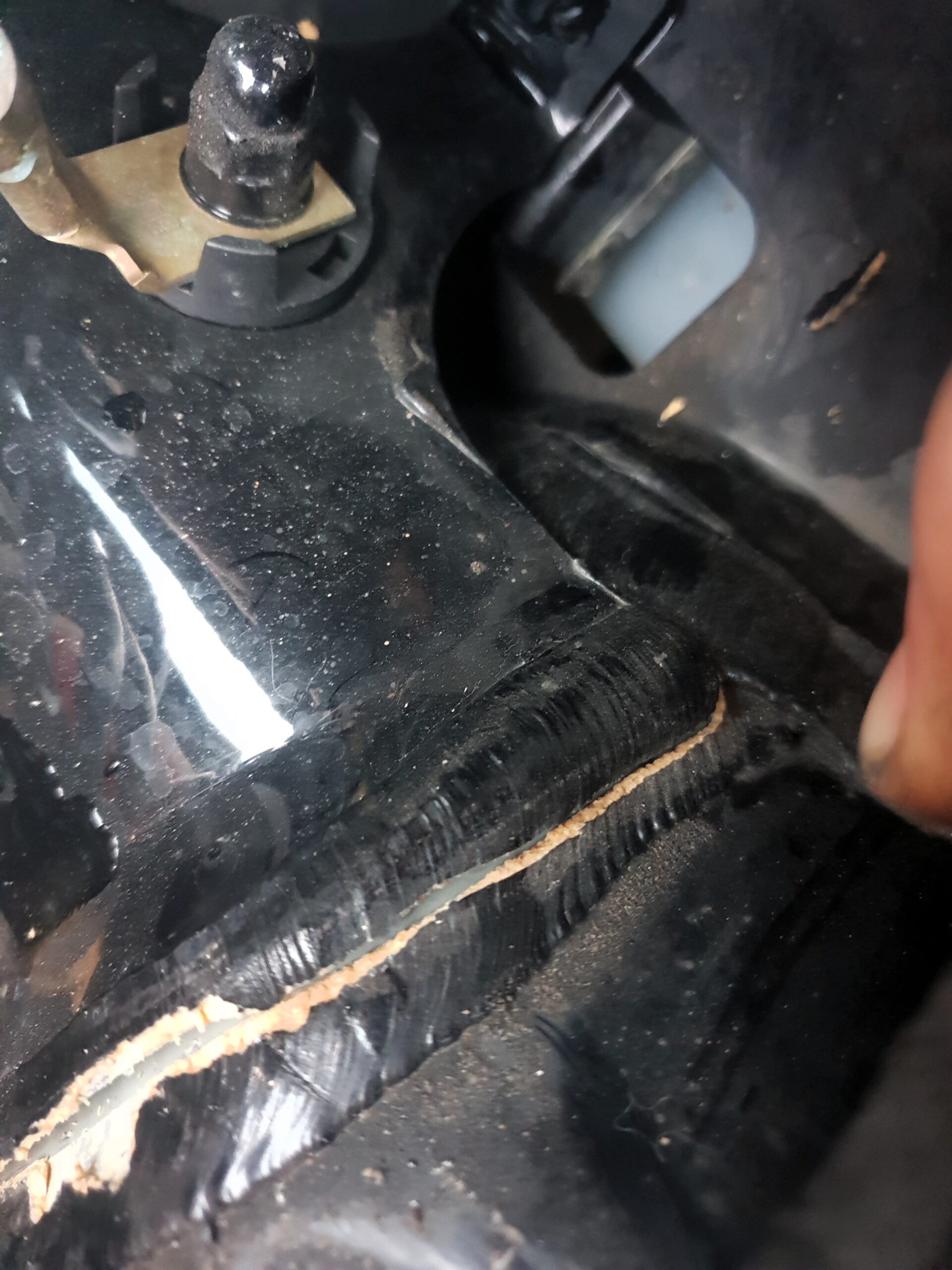

26. Poorly Welded Engine Mount Frame (6C)

After moving Polo production from Spain to South Africa etc., many people reported problems with poorly welded right engine mount bracket. The problem usually affects Polo 6C GTI 1.8 TSI.

Since this is a factory defect, currently when buying a used 6C GTI even if it had this defect, it’s 99% likely it has already been fixed by the previous owner – it’s hard not to notice 🙂

Symptoms

Engine movement, knocking from engine compartment, loud banging sounds.

Repair

Clean the metal, re-weld the joint properly.

Summary – Pre-Purchase Checklist

Although the list of common issues in VW Polo V (6R/6C) is quite long, this doesn’t mean it’s a car to avoid. On the contrary, most of these problems are well known and can be relatively easily diagnosed and repaired.

What to Check First When Buying a Used Polo 6R/6C

Priority Inspection (expensive or dangerous issues):

• TSI Engines (1.2, 1.4) – listen to timing operation on cold engine (metallic sounds at startup = chain replacement)
• 1.6 TDI Engines – check idle smoothness, ask about injector history
• DSG7 DQ200 – test all gears, watch for jerking when starting and shifting
• Power Steering – check if it works smoothly when stationary and while driving
• Sills and Wheel Arches – thoroughly inspect under plastic covers, especially at mud flap mounting points

Standard Inspection (common but cheaper repairs):

• Trunk Lid – check lock operation and whether the lid “bounces” on bumps
• Windows – test all electric windows (especially driver’s)
• Blower – check all fan speeds (1-4), not just maximum
• Window Switch Panel – all buttons should respond immediately
• Mirrors – check mirror indicator operation

Computer Diagnostics (mandatory):

• Connect VCDS/OBD and check errors in all modules
• Pay special attention to codes: P0441/P0499 (EVAP), P17xx (DSG), P0401-P0403 (EGR), P2002/P242F (DPF)

Test Drive:

• City driving: DSG jerking, power steering operation, strange suspension noises
• Highway: vibrations at higher speeds (engine/gearbox mounts), stability
• Braking: check if it doesn’t pull to either side

Documentation:

• Service history – look for information about timing replacement, DSG clutches, injector refurbishment
• Invoices – note recurring repairs (may indicate an unresolved problem)

Models Requiring Special Attention:

• Polo GTI 6R (1.4 TSI) – absolutely check oil consumption, piston condition and service history
• Polo 6C GTI (1.8 TSI) – inspect welds of right engine mount frame
• All 1.6 TDI – injector history is crucial

Volkswagen Polo 6R/6C, despite its problems, remains a solid and economical city car. Moreover, it’s also often chosen as an excellent tuning base, especially in TSI versions, which easily accept modifications increasing power and torque.

Properly serviced and consciously used, Polo V can serve trouble-free for many years.

Have you encountered other issues with your Polo? Share your experiences and solutions in the comments!
