Rear ventilation in the armrest – Polo 6R IND&MY / Skoda Rapid / Vento

The Indian and Malaysian version of the Polo/Vento/Skoda Rapid 2015+ has a rather unusual air-conditioning system. Apart from minor details such as a slightly different folding armrest, the biggest difference is the air ducts, which are routed through the armrest and onto the feet/footrest.

I wanted to do this in my Polo 6R, but the main problem is the lack of availability of parts – you can’t order parts from an Indian VW at the official Volkswagen service. Just buying the plastic air ducts, armrest and the rest of the necessary parts directly from India is also problematic – but maybe someone can do it 😉

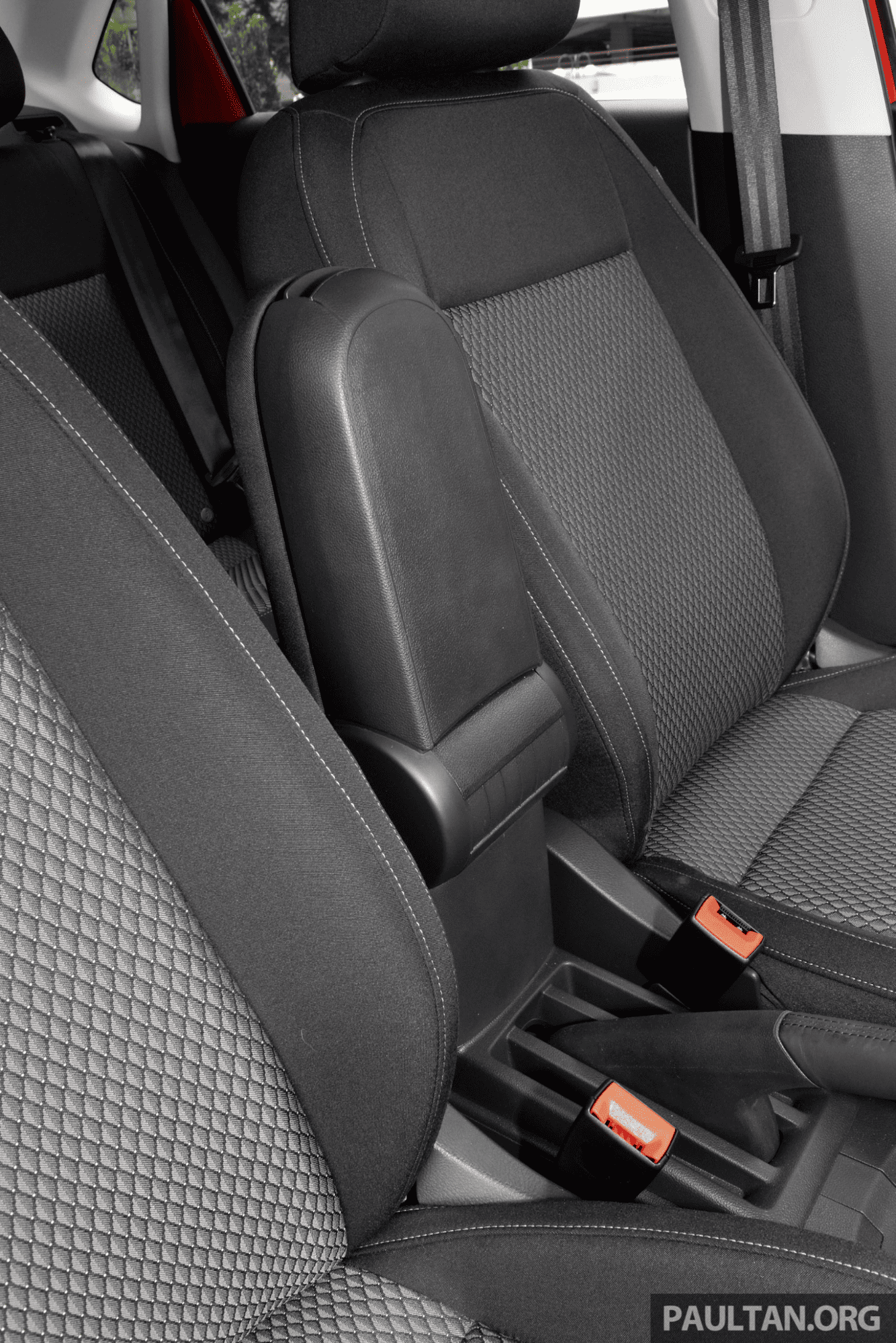

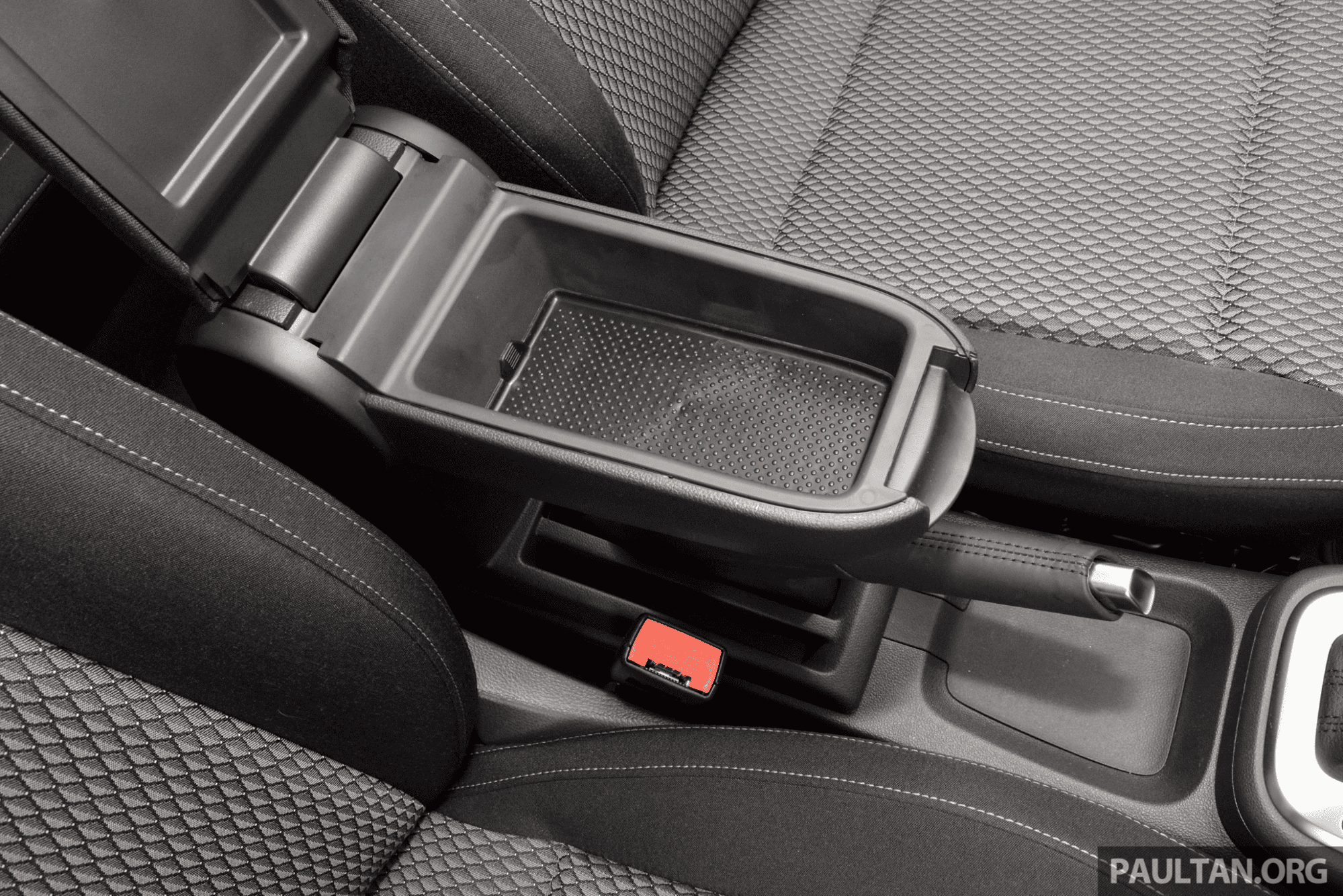

I have seen pictures of the rear armrest on both the Indian and Malaysian reviews of the new Vento.

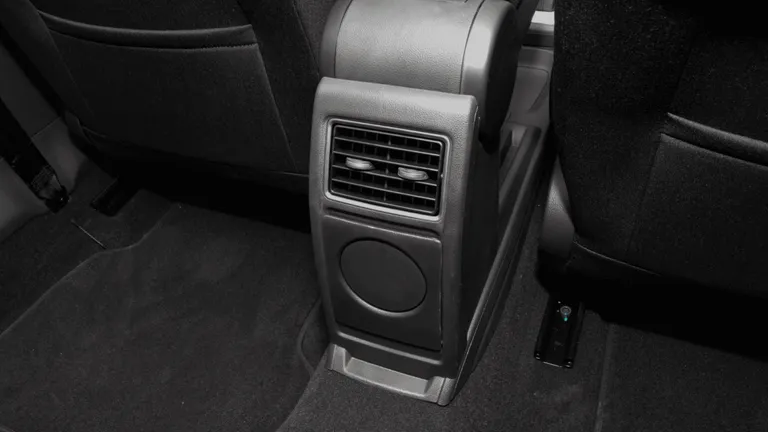

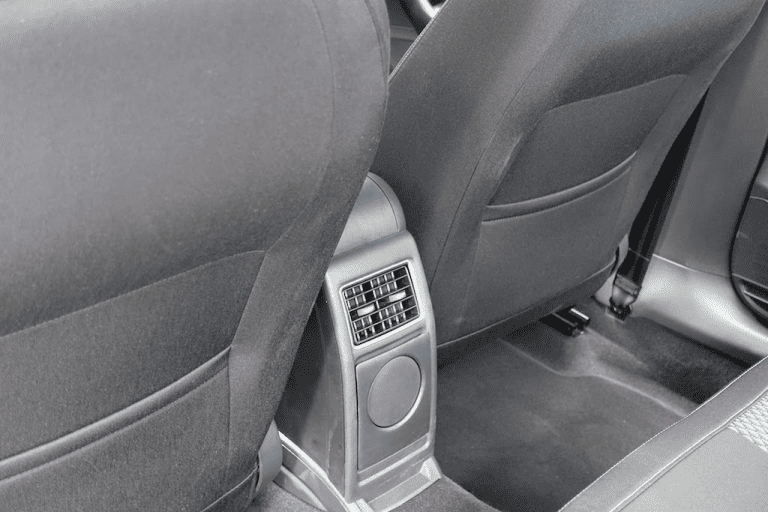

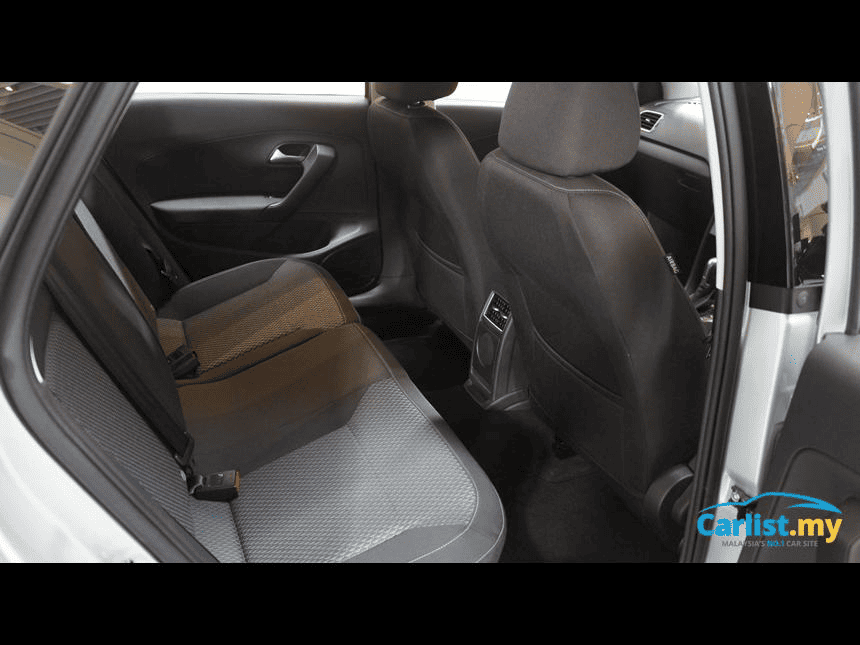

Polo 6R / Polo IND aka Vento – Climatronic vents in rear armrest

source: https://www.rushlane.com/2015-volkswagen-vento-review-12154875.html

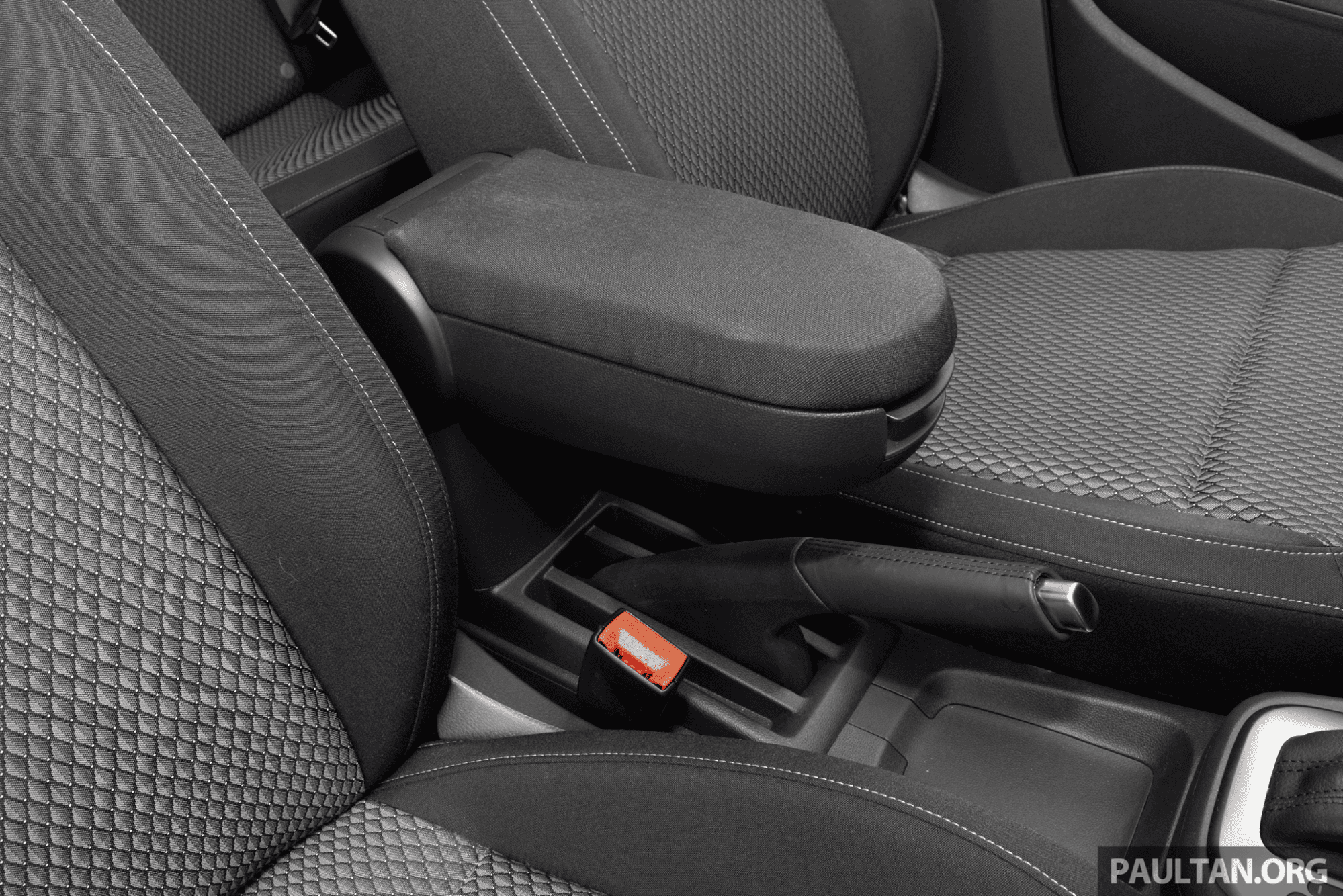

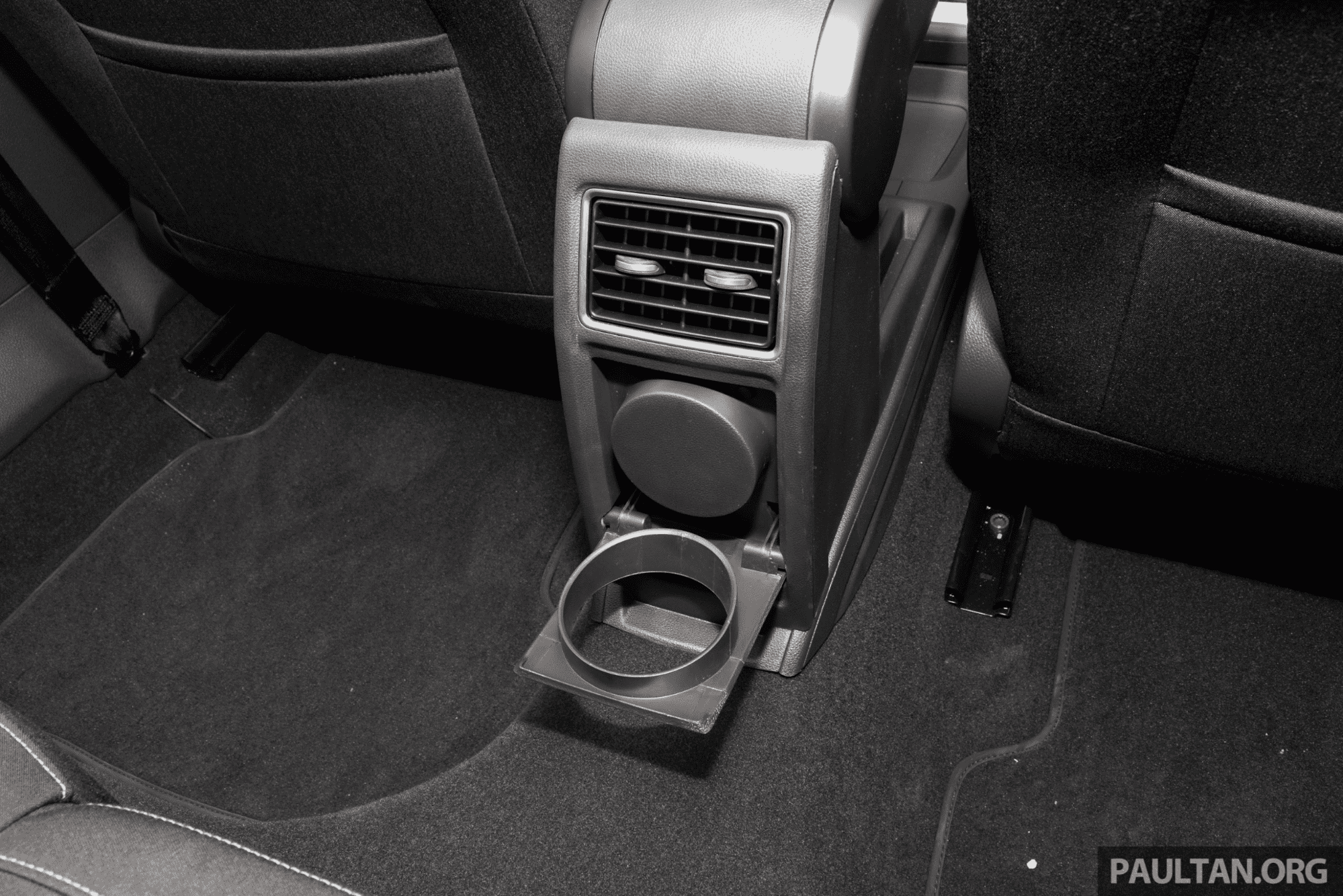

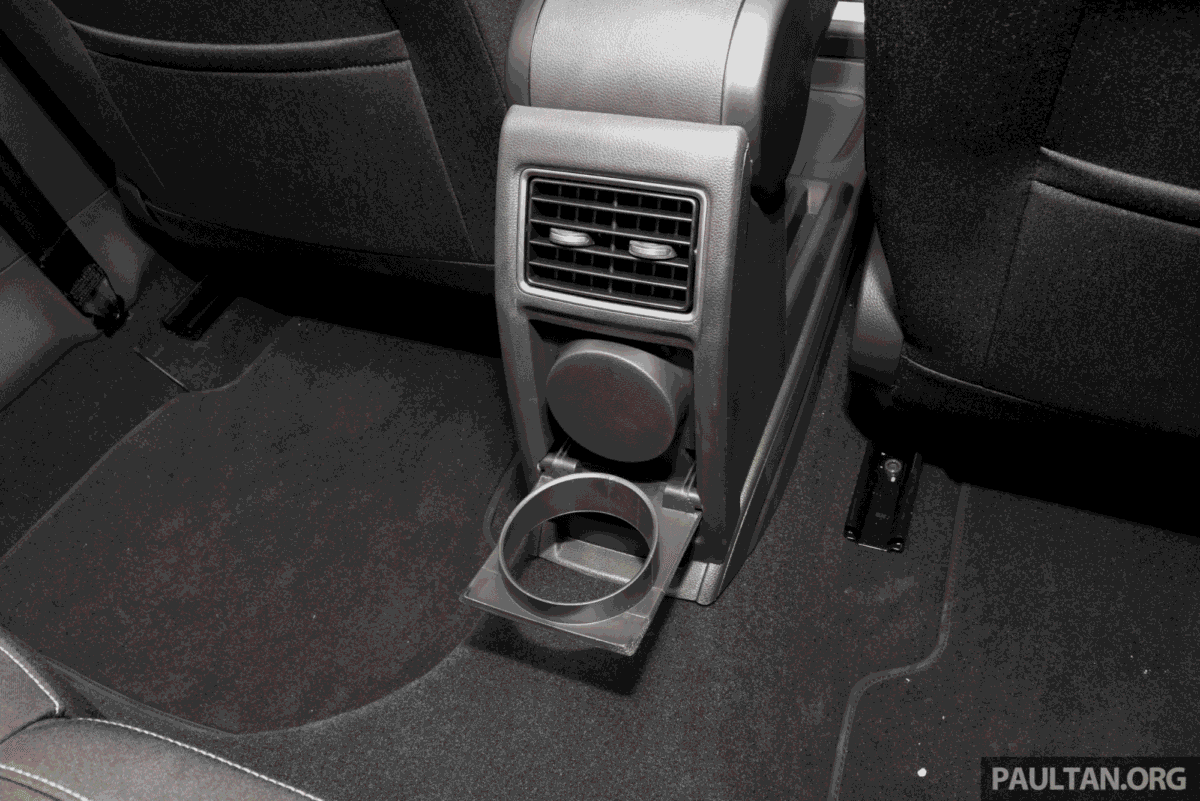

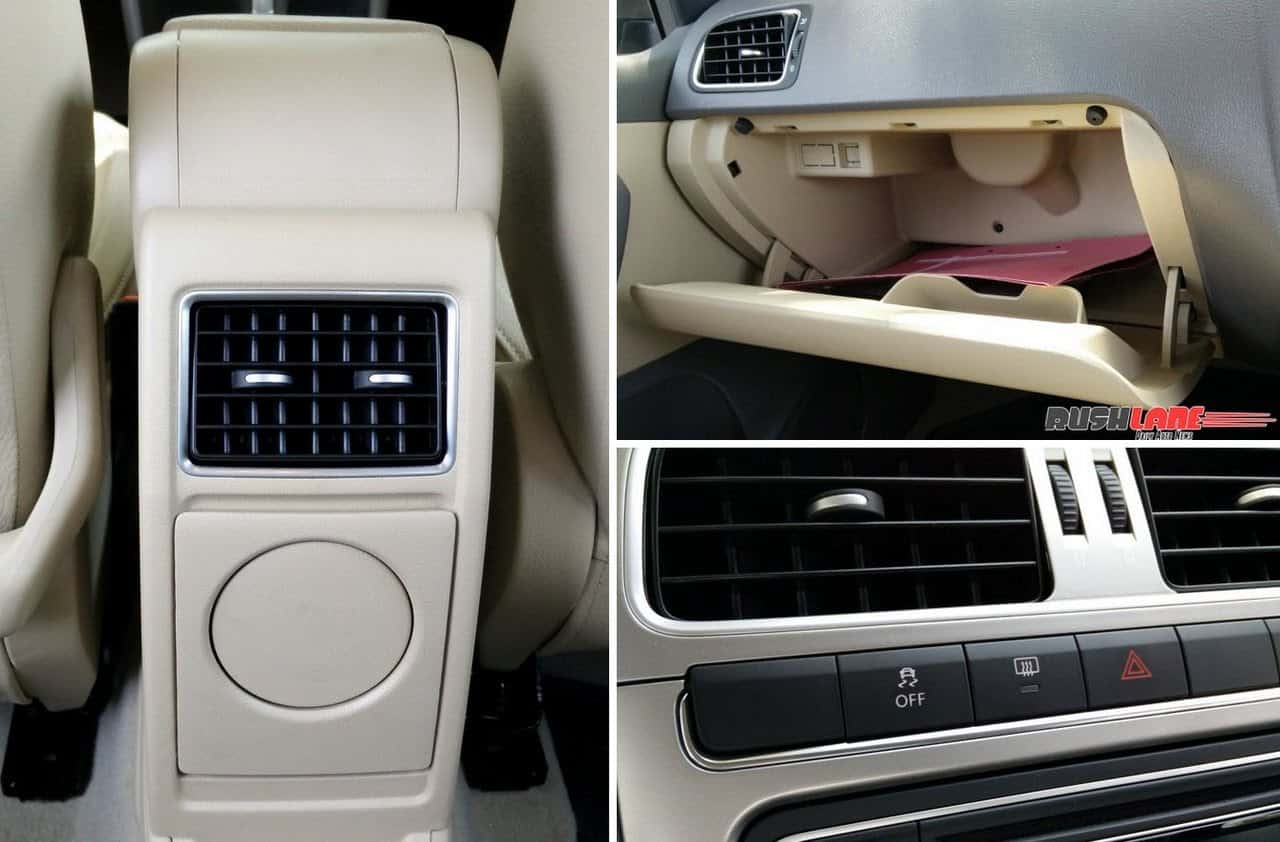

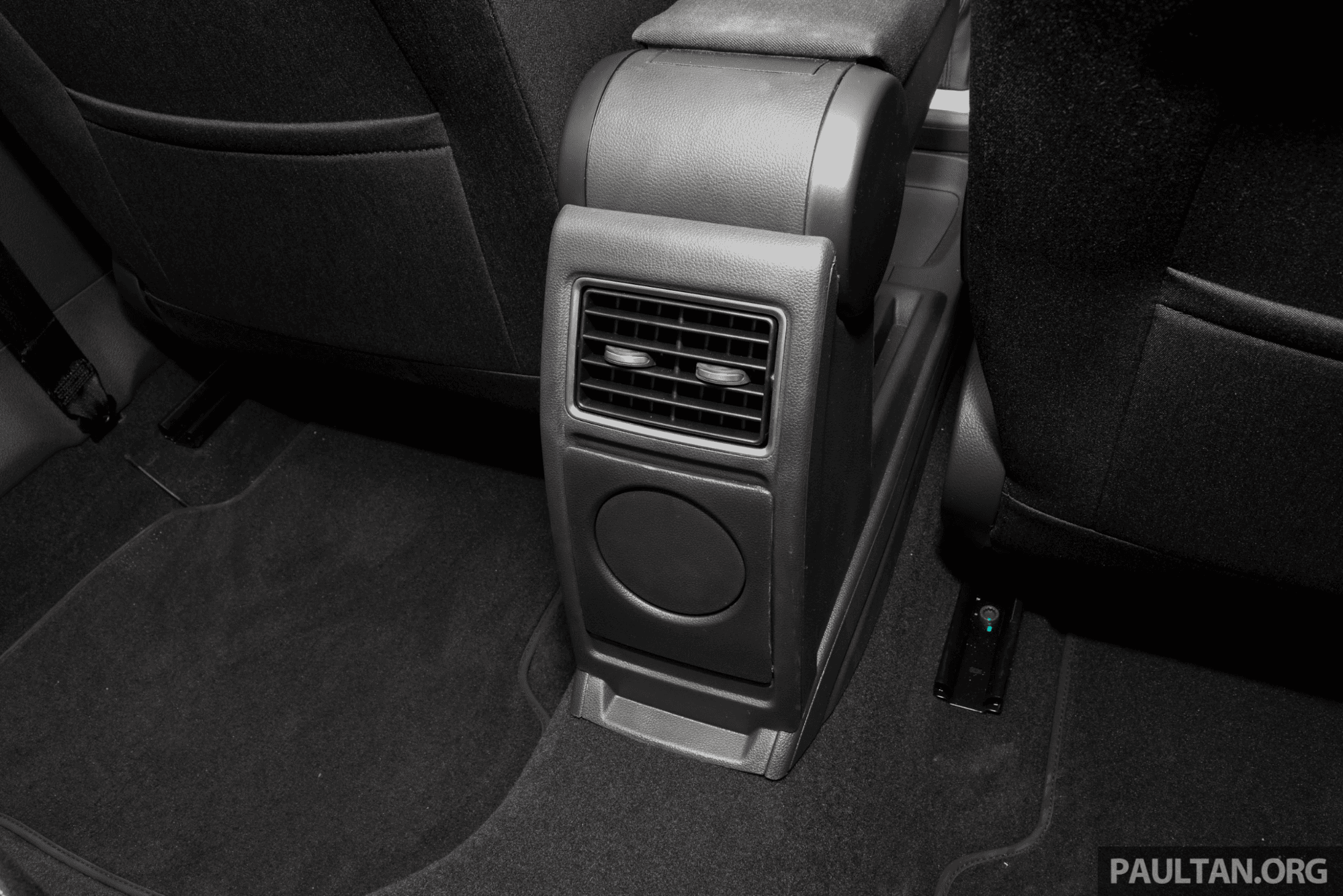

Armrest with ventilation grille

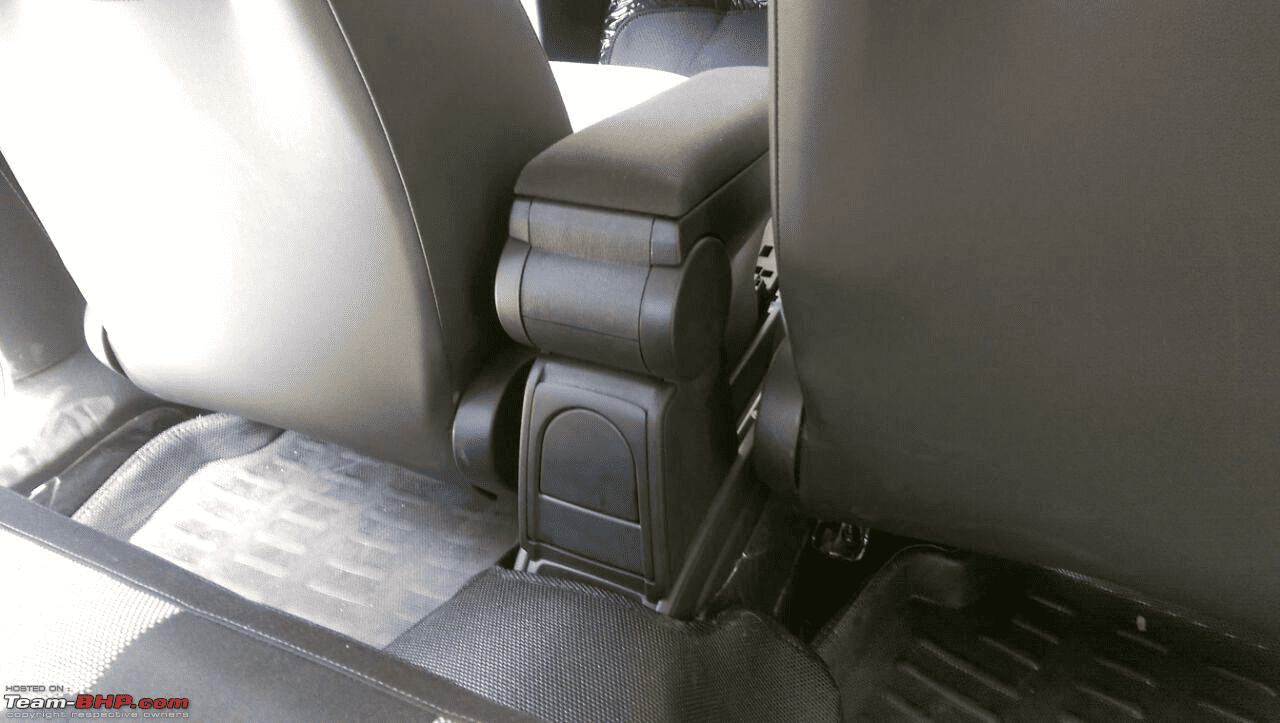

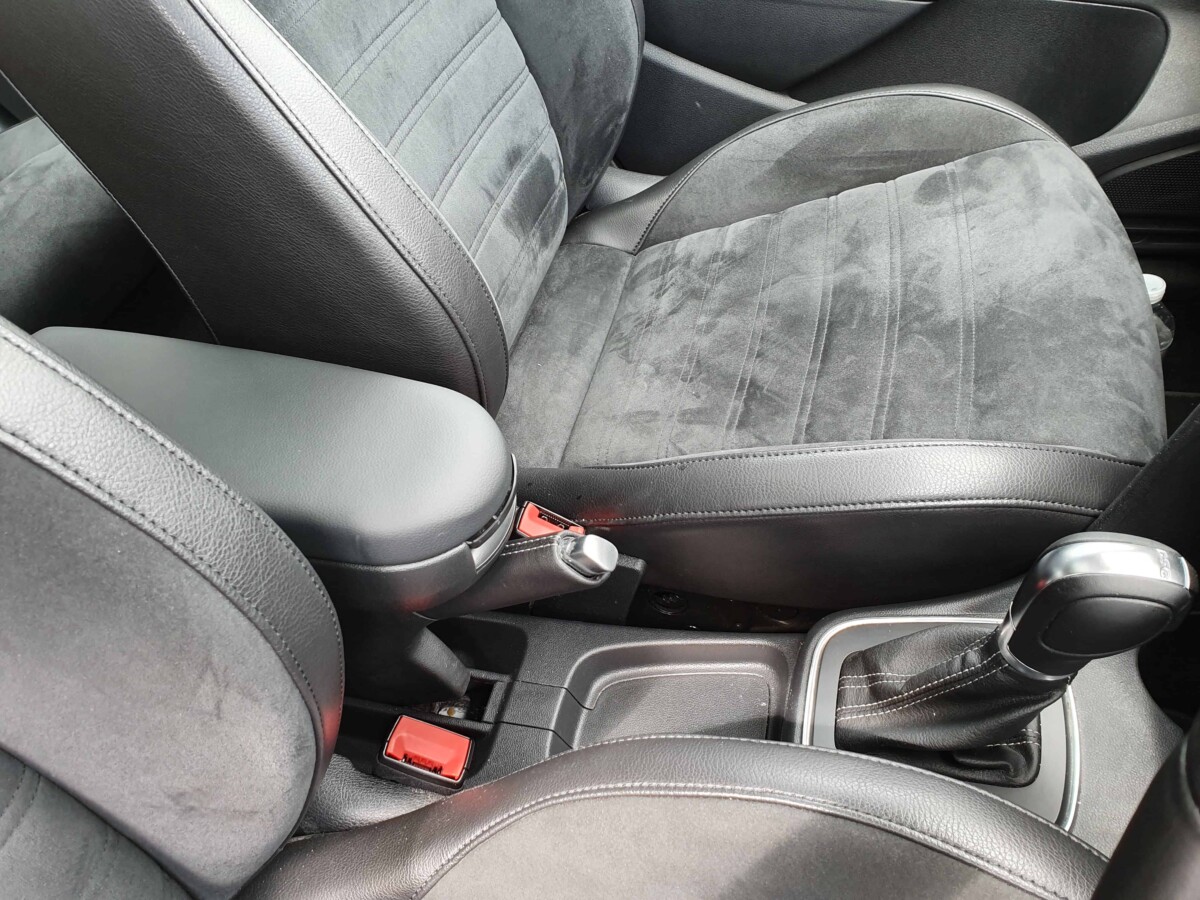

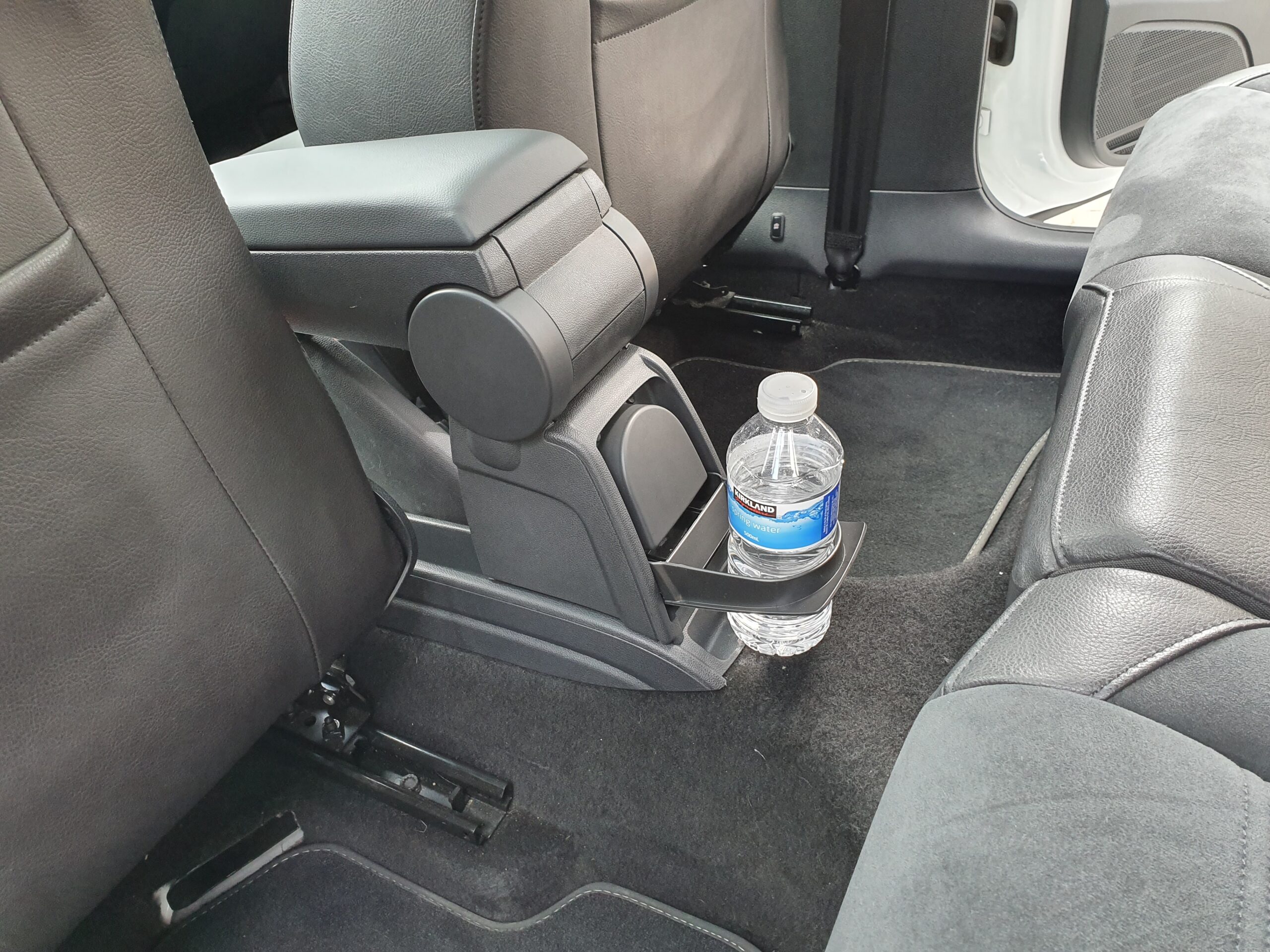

For comparison, the European interior of the Polo 6R hatchback:

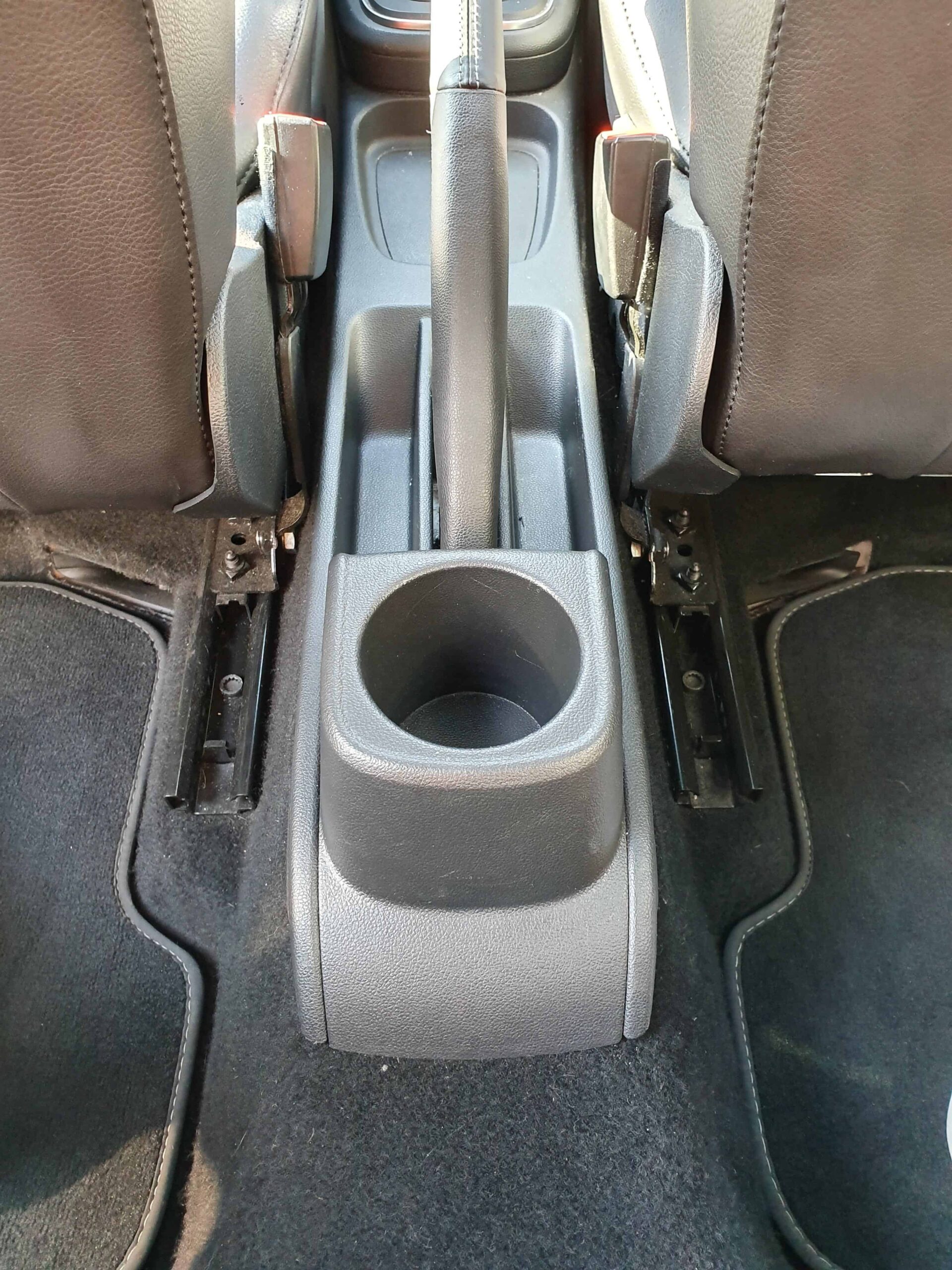

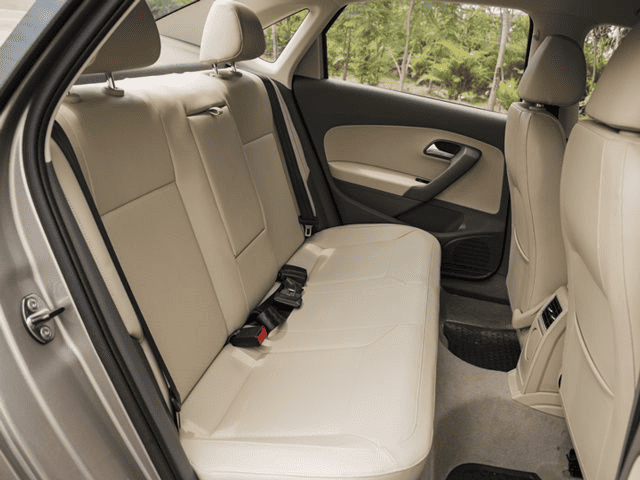

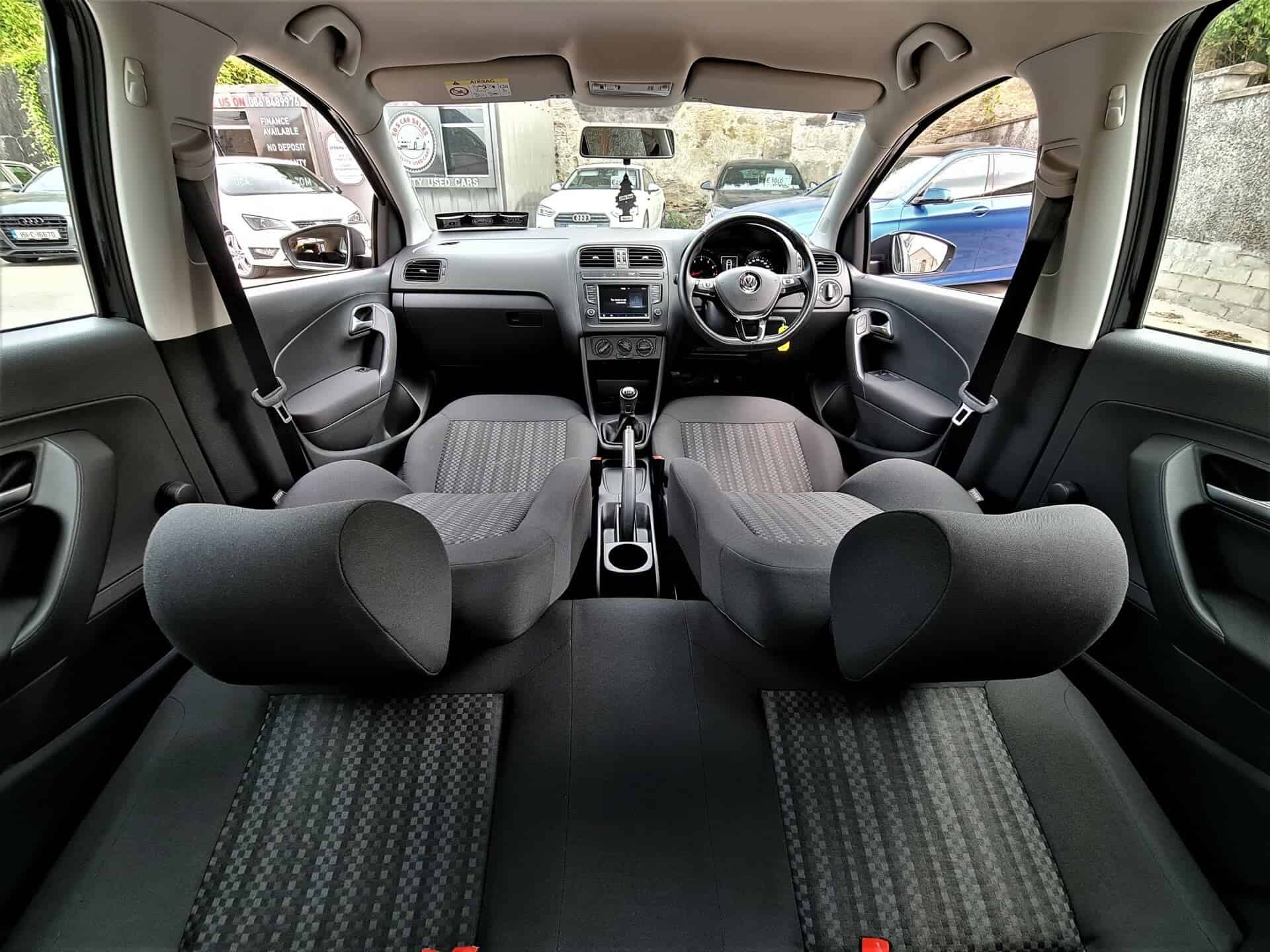

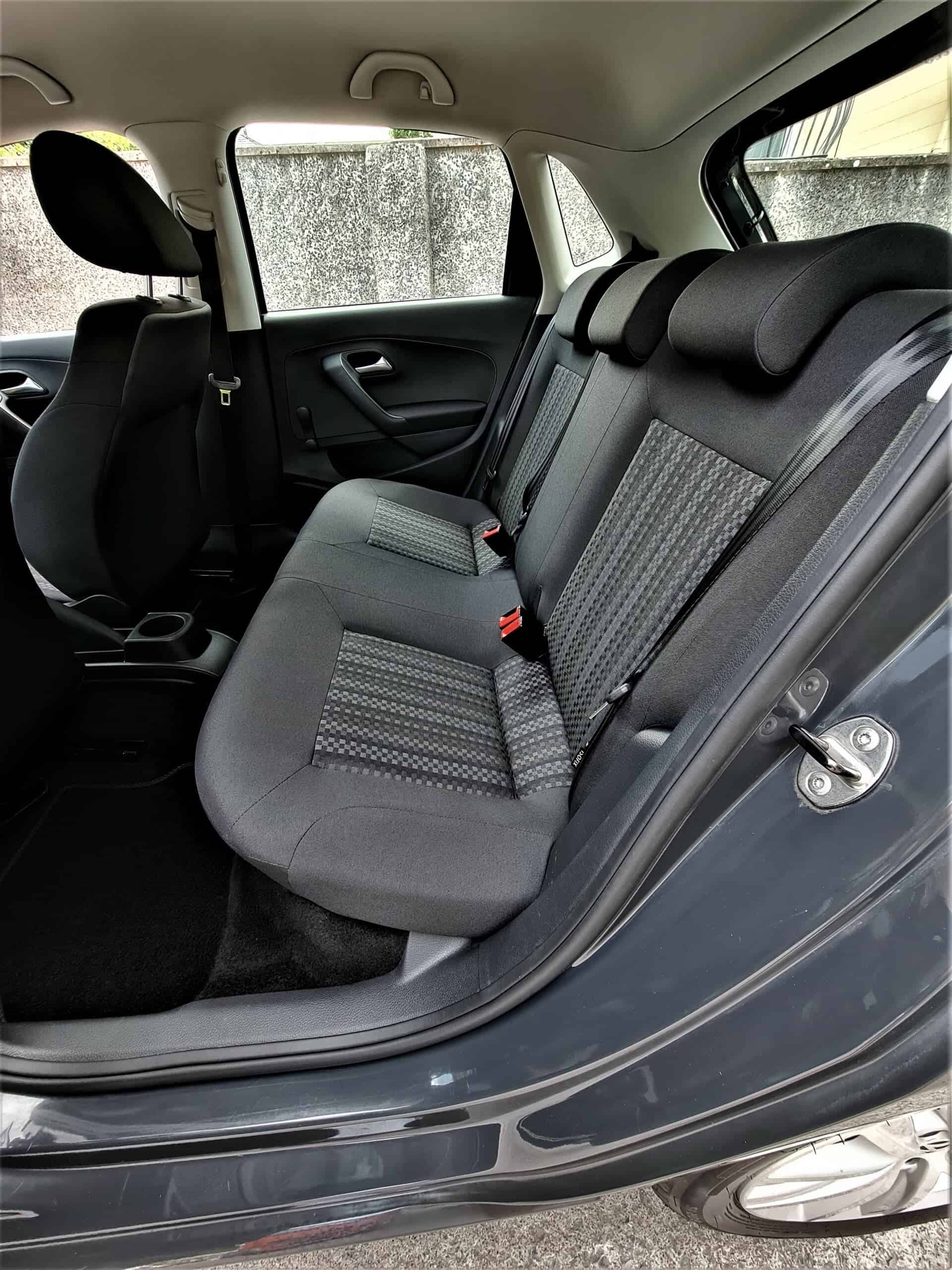

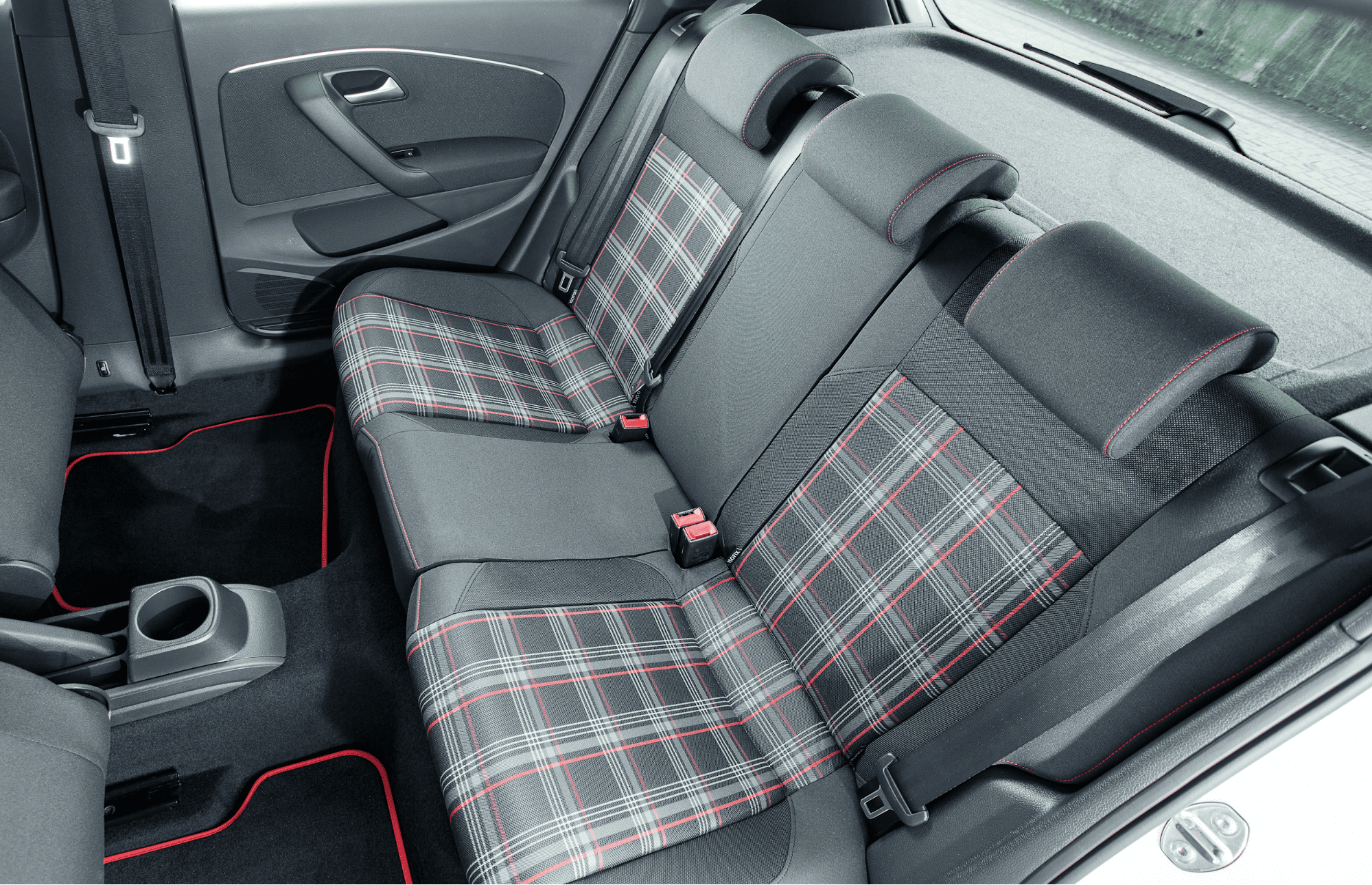

Versions without armrest (only cupholer):

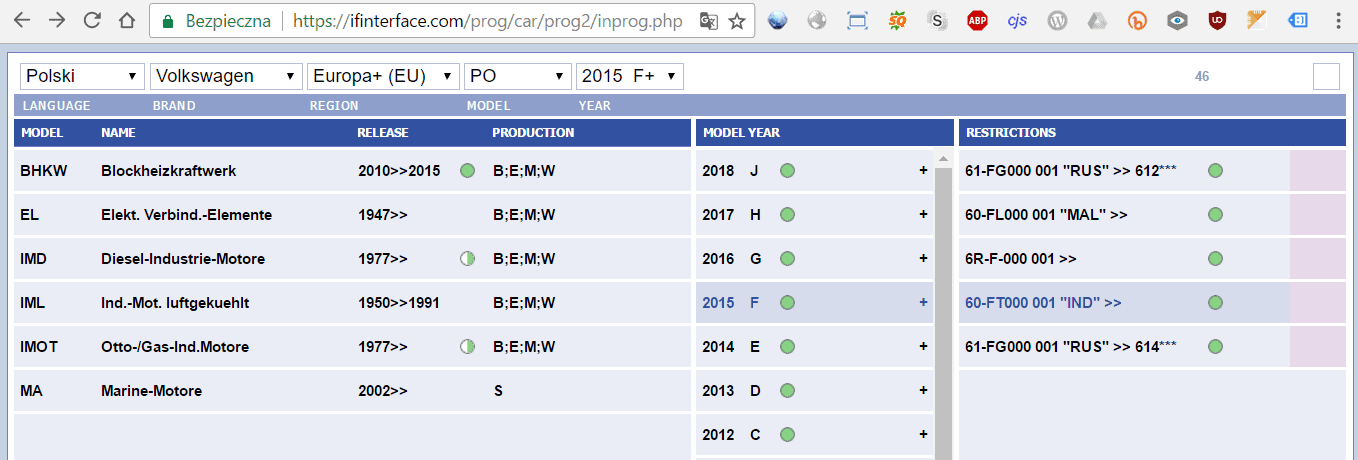

The armrest with ventilation is from the polift version, to find it in Etka use the parts view for Polo IND 2015+:

Comparison

Comparison between the version with foot ventilation and the version with centre ventilation in the middle tunnel/armrest.

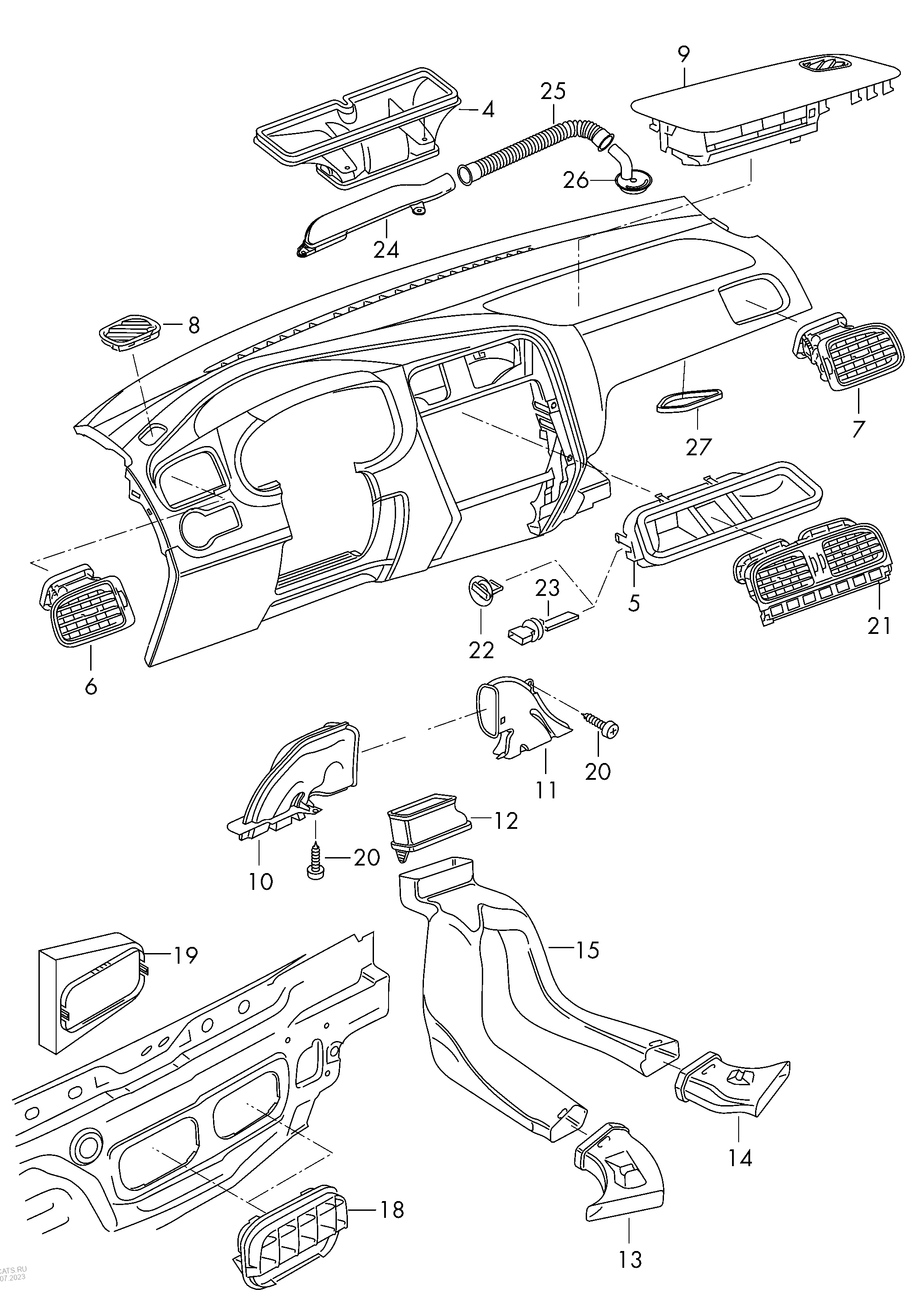

IND without rear middle vents

same as European hatchback

• 15 – 6Q0819803C 6Q0 819 803 C

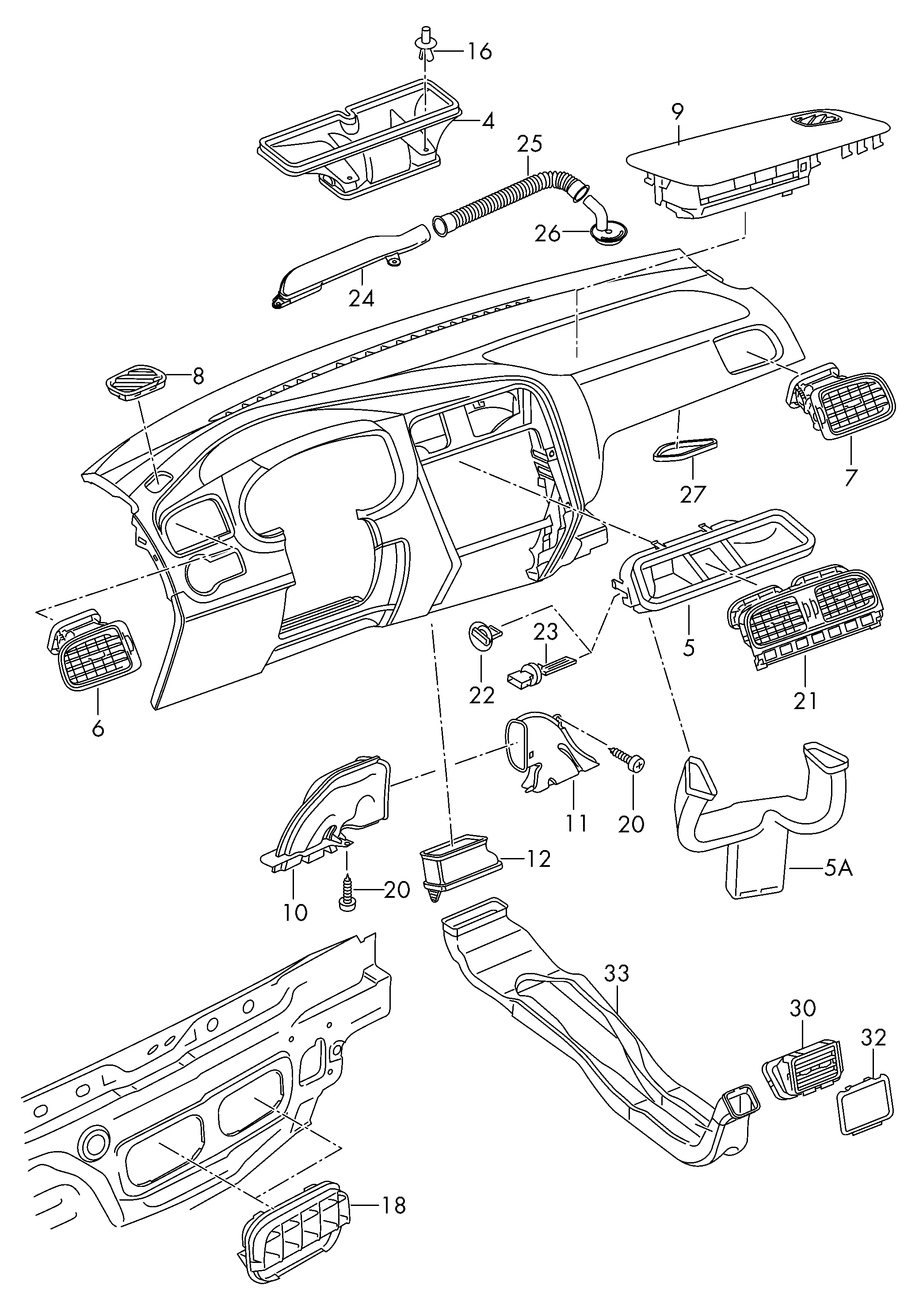

IND with rear middle vents

only in ‘sedan’ models

• 5A – 6RF857509A 6RF 857 509 A
• 33 – 6RF864255 6RF 864 255

Parts that are the same in both version

As I’ve noticed, many of the plastic parts in a car with armrest ventilation are the same as typical hatchbacks. The heater itself and the initial air tunnels are the same:

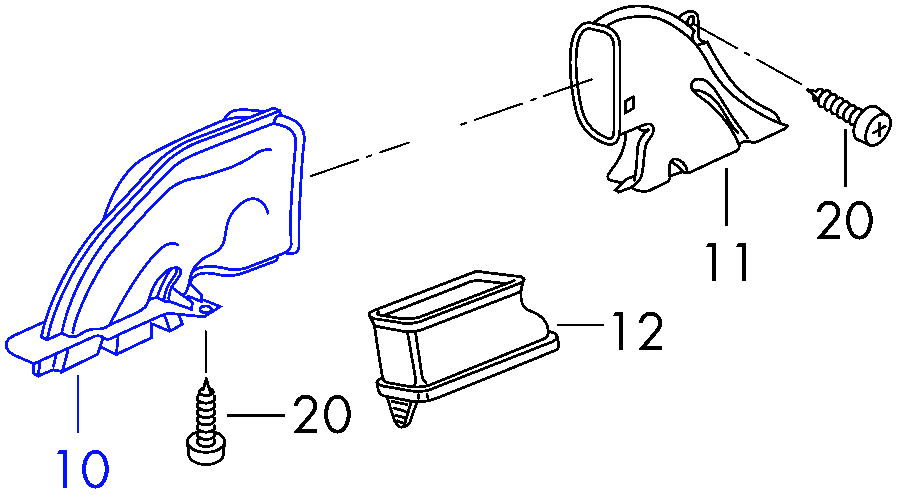

Footwell vent – left

• 6R2819151 – left – RHD
• 6C1819151 – left – LHD

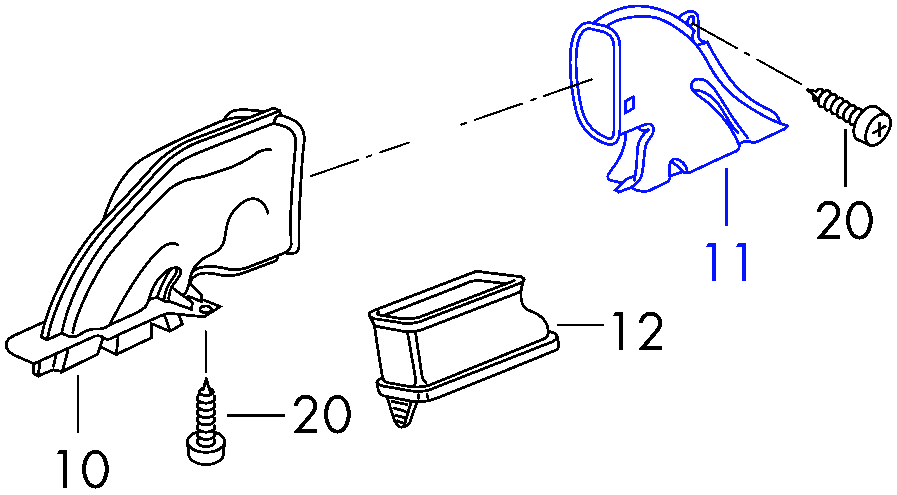

Footwell vent – right

• 6RF819152 – right – RHD
• 6C2819152 – right – RHD IND
• 6R1819152 – right – LHD

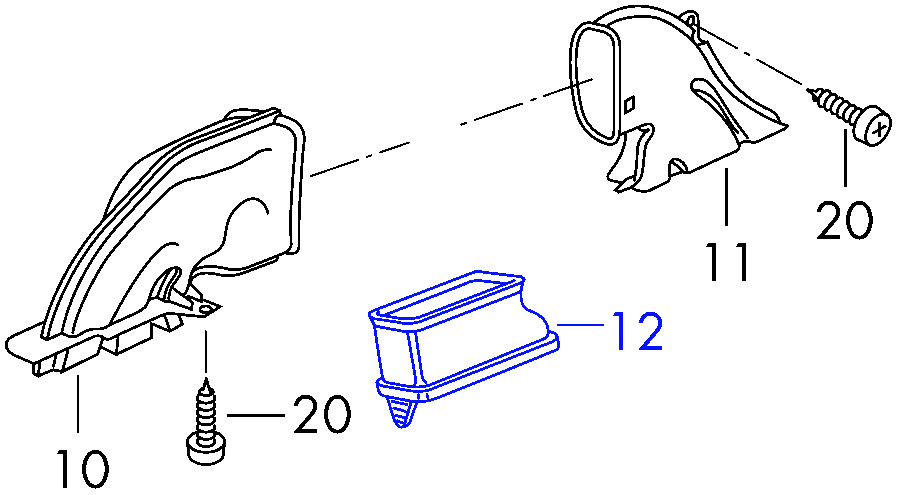

Connecting piece

• 6Q0819159C

Hexagon socket head panel bolt

• N90698606 4,2×16 – 2 pieces

The parts you need to buy to install the centre armrest vents

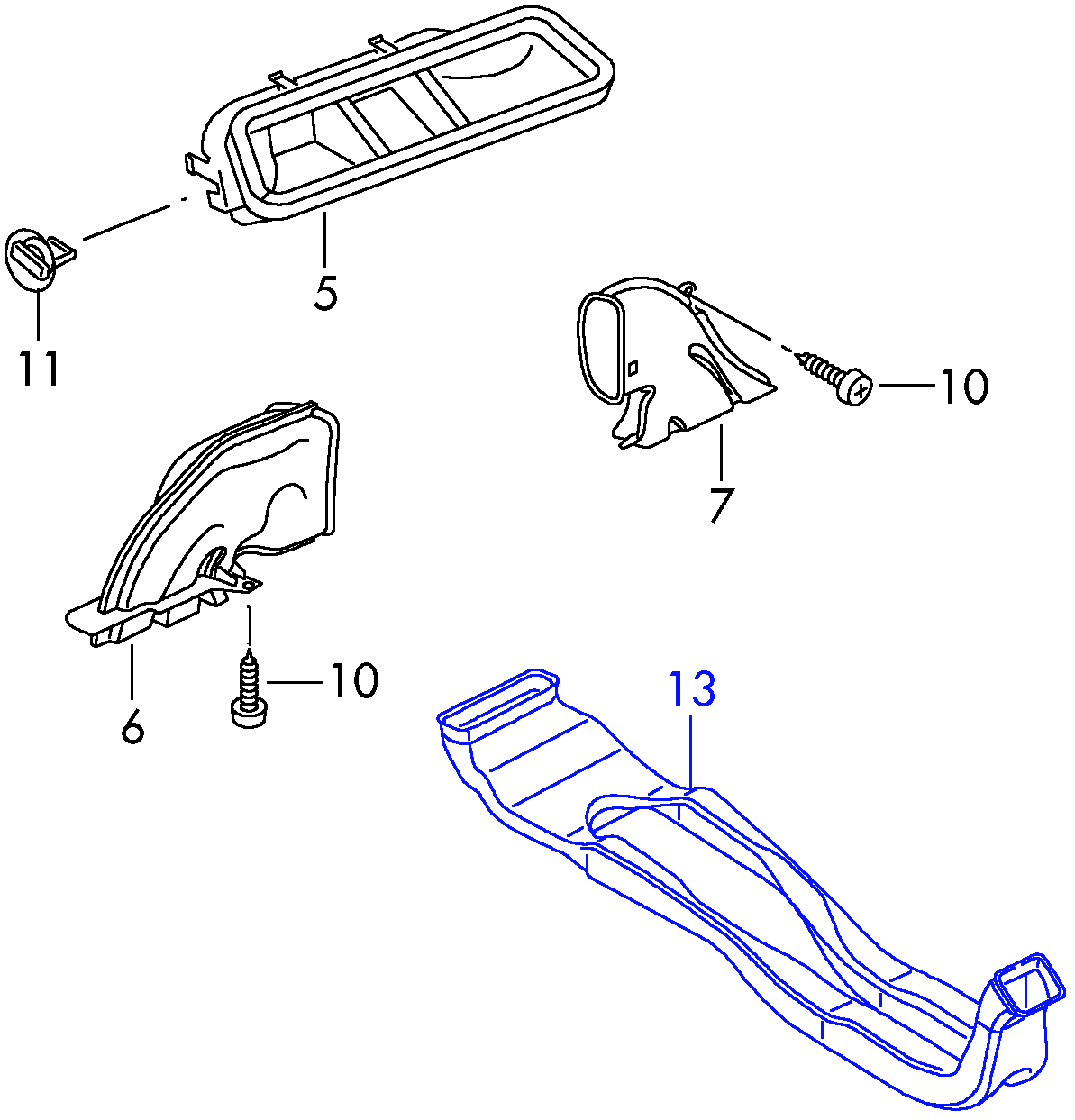

Air guide channel

• 6RF864255

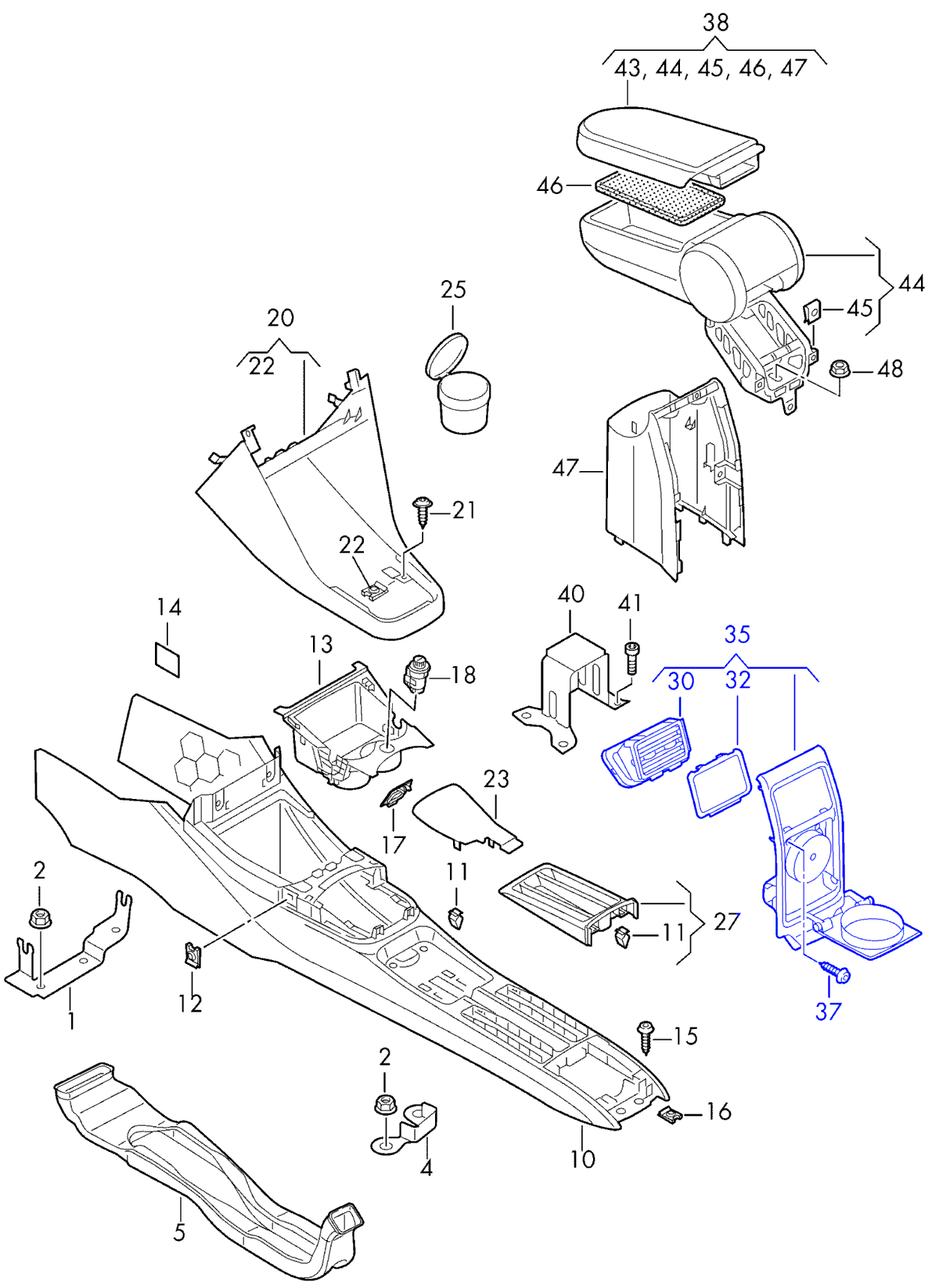

Drinks holder

• 6RF862531HADO 6RF 862 531 H ADO 6RF 862 531 H ADO – titan black
  PR-6E1, PR-6E2
• 6RF862531K82V 6RF 862 531 K 82V – titan black (-08,48,67,CH)
  PR-6E1
• 6RF862531HOLS 6RF 862 531 H OLS – satin black/cornsilk beige
• 6RF862531KQ70 6RF 862 531 K Q70 – light beige/desert beige (-MN)
  PR-6E1

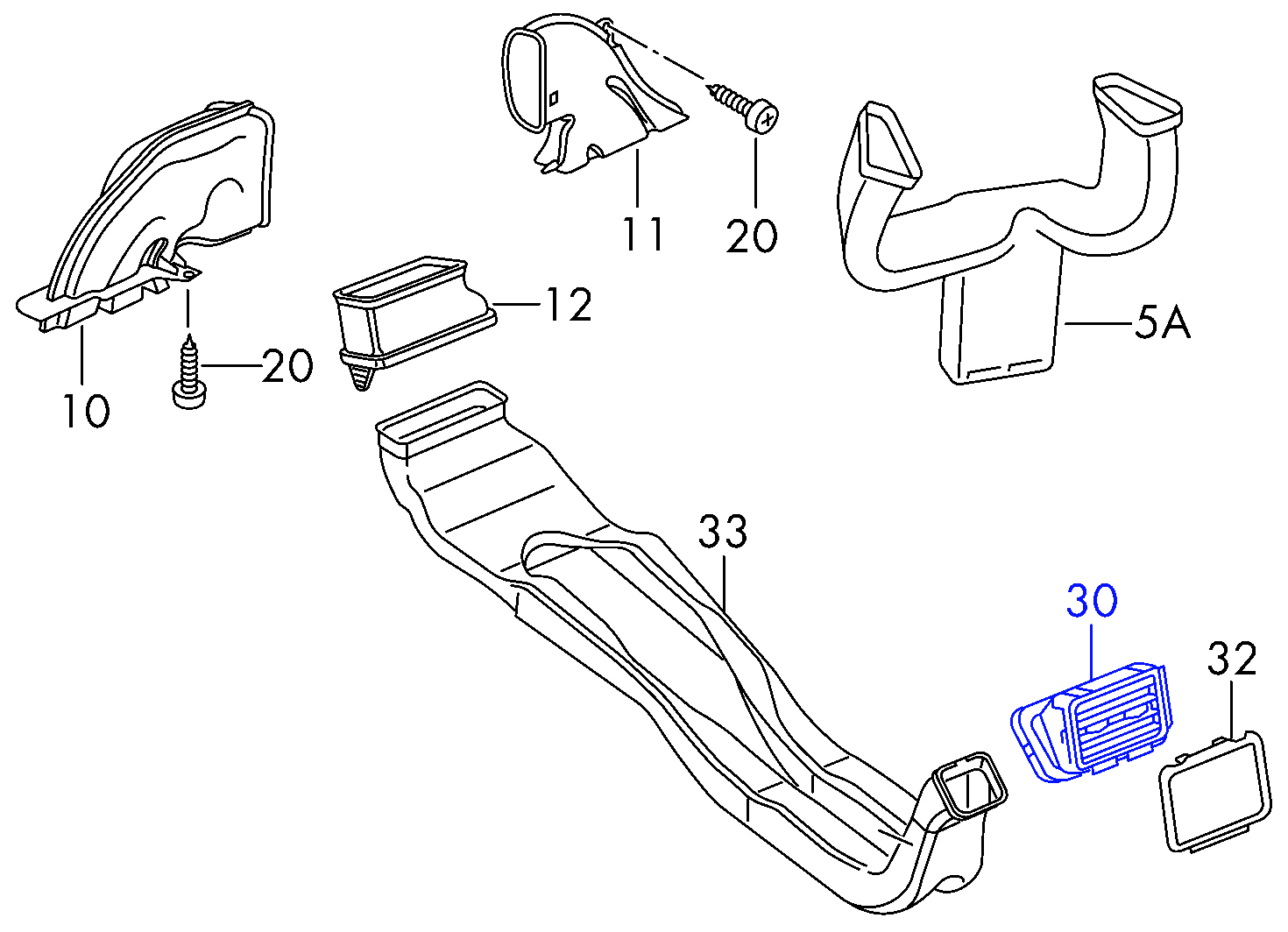

Vent

• 6RF819203

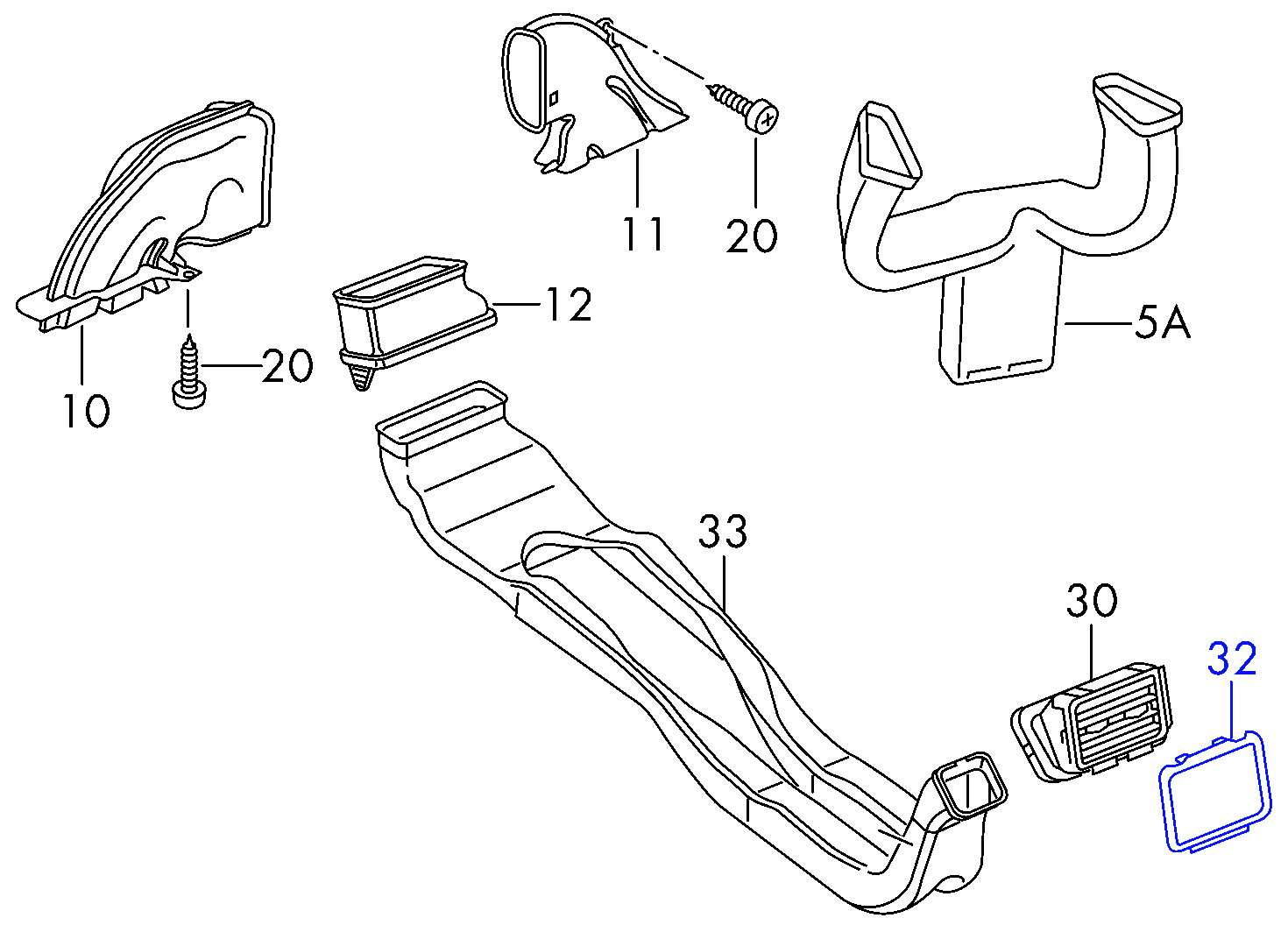

Trim for air vent

• 6RF819577 – PR-QJ0,QJ3
• 6RF819577A – PR-QJ1

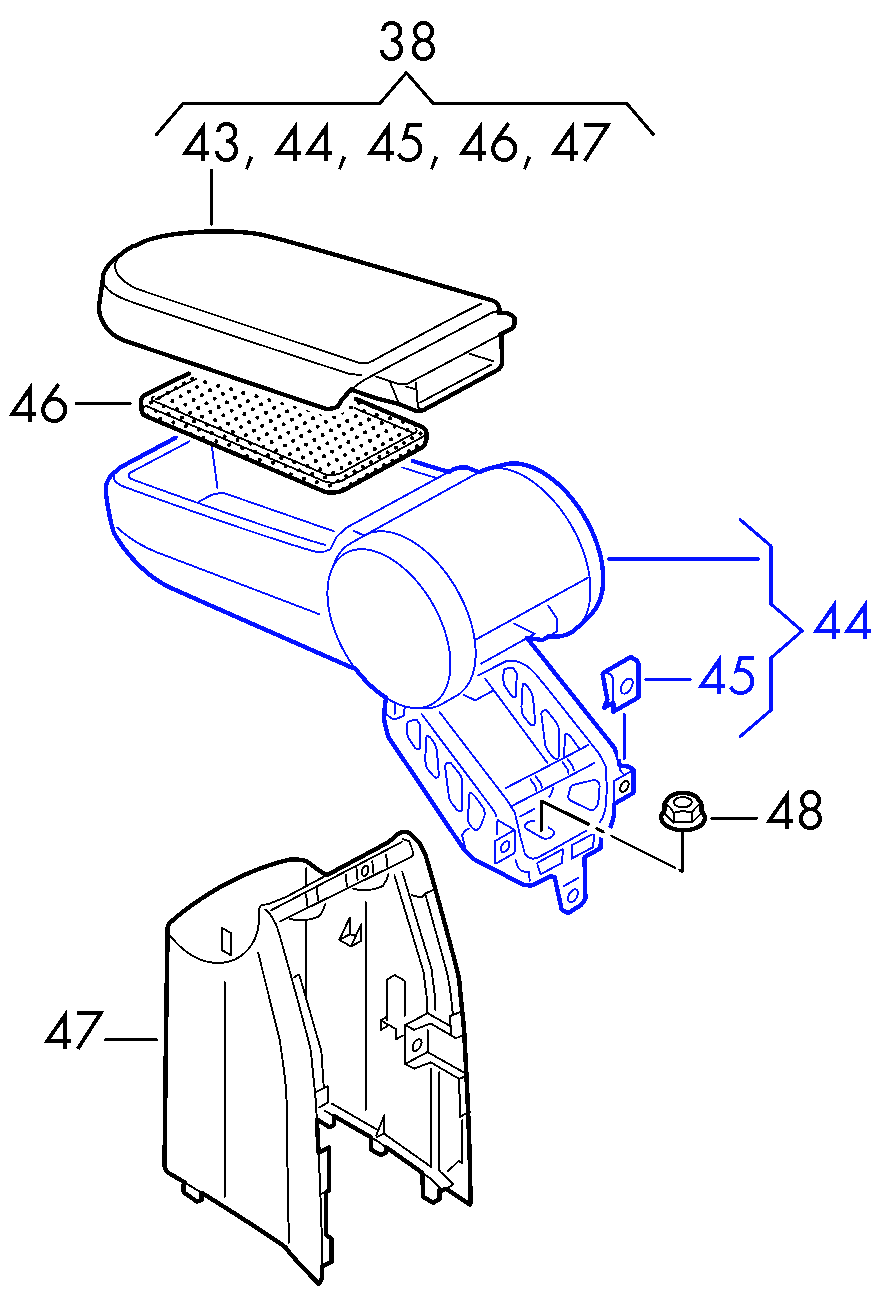

Armrest (upper part)

• 6RF867173CXPA 6RF 867 173 C XPA – titan black
• 6RF867173COQF 6RF 867 173 C OQF – light beige/desert beige

PR-6E1

Armrest (lower part)

• 6RF867174C82V
6RF 867 174 C 82V – titan black
• 6RF867174C95T
6RF 867 174 C 95T – corn silk beige

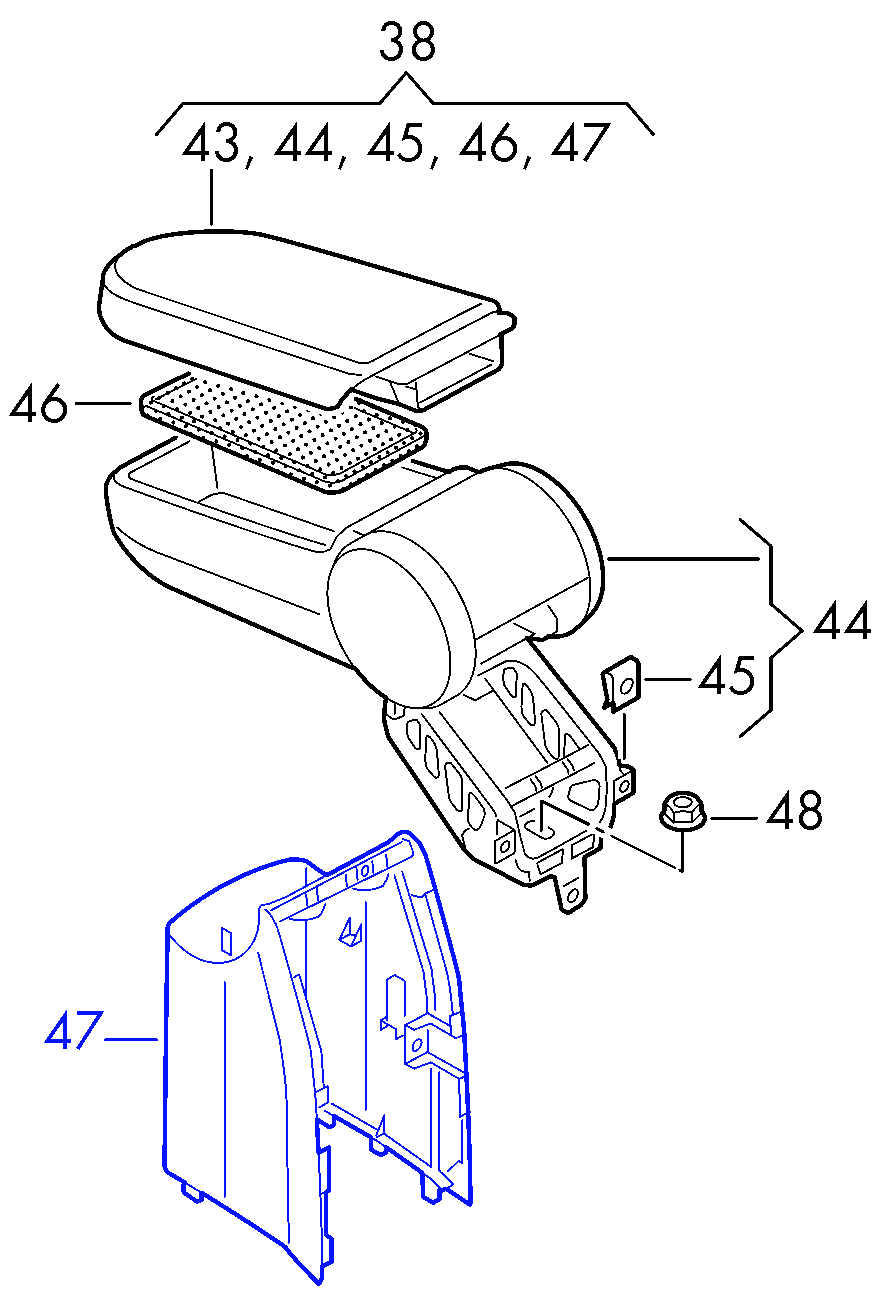

Trim for armrest

• 6RF864279B82V – titan black (-08,48,67,BY,CH)
• 6RF864279B95T – corn silk beige (-GN)
• 6RF864279BQ70 – light beige/desert beige (-MN)

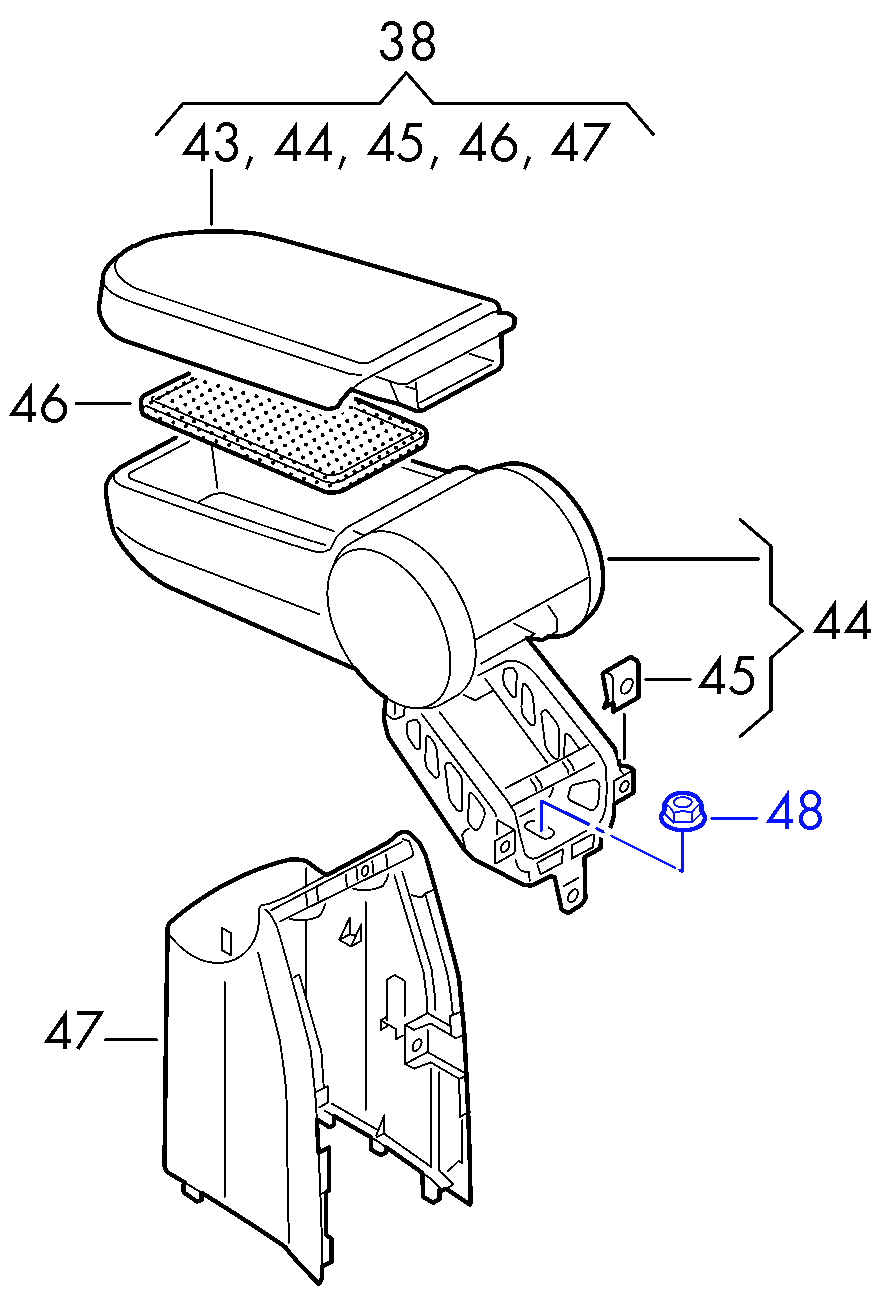

Hexagon collar nut

• N10261310 – M10

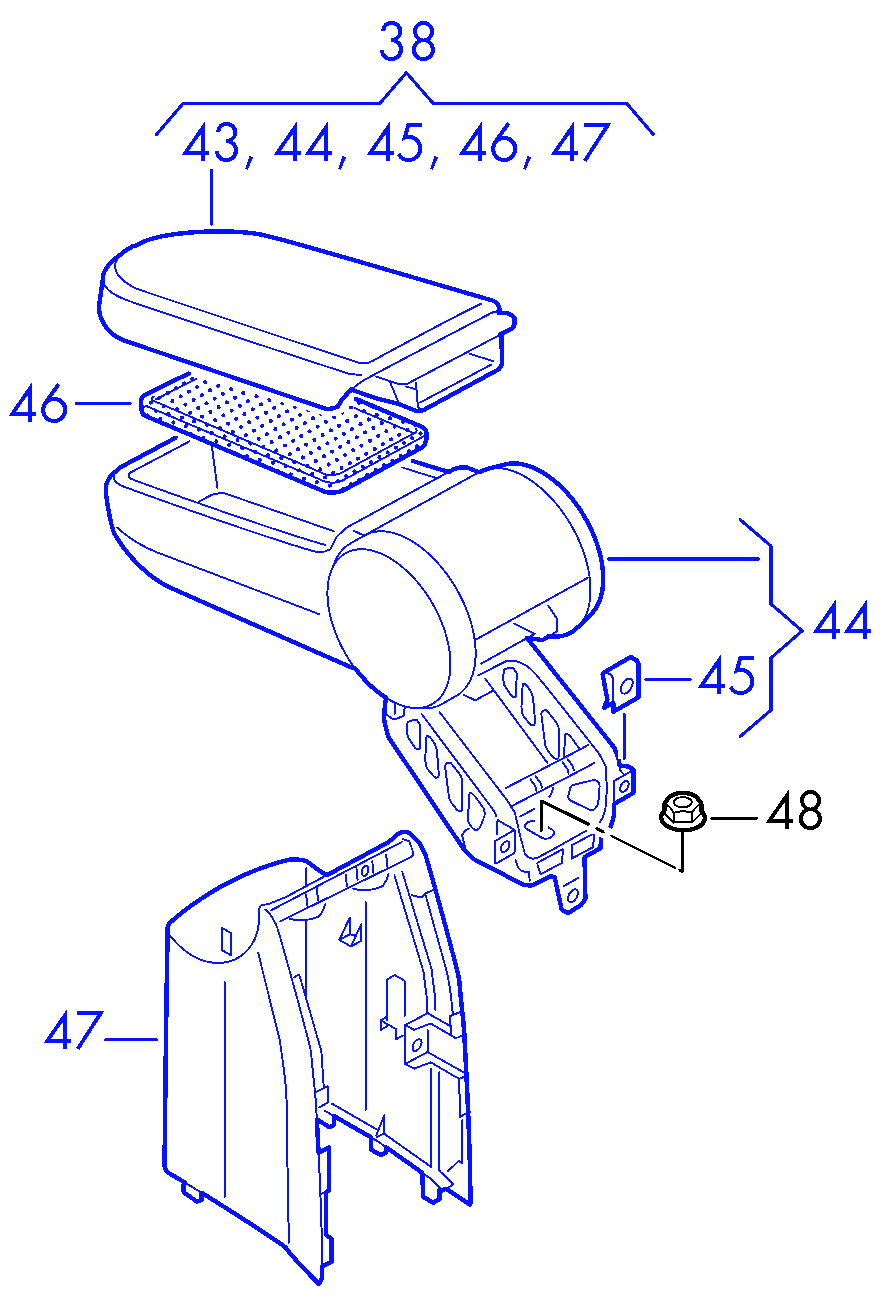

Complete armrest set

Complete armrest set Polo 6R IND:

• 6RF864207KXPA 6RF 864 207 K XPA – titan black
• 6RF864207KOQF 6RF 864 207 K OQF – light beige/desert beige

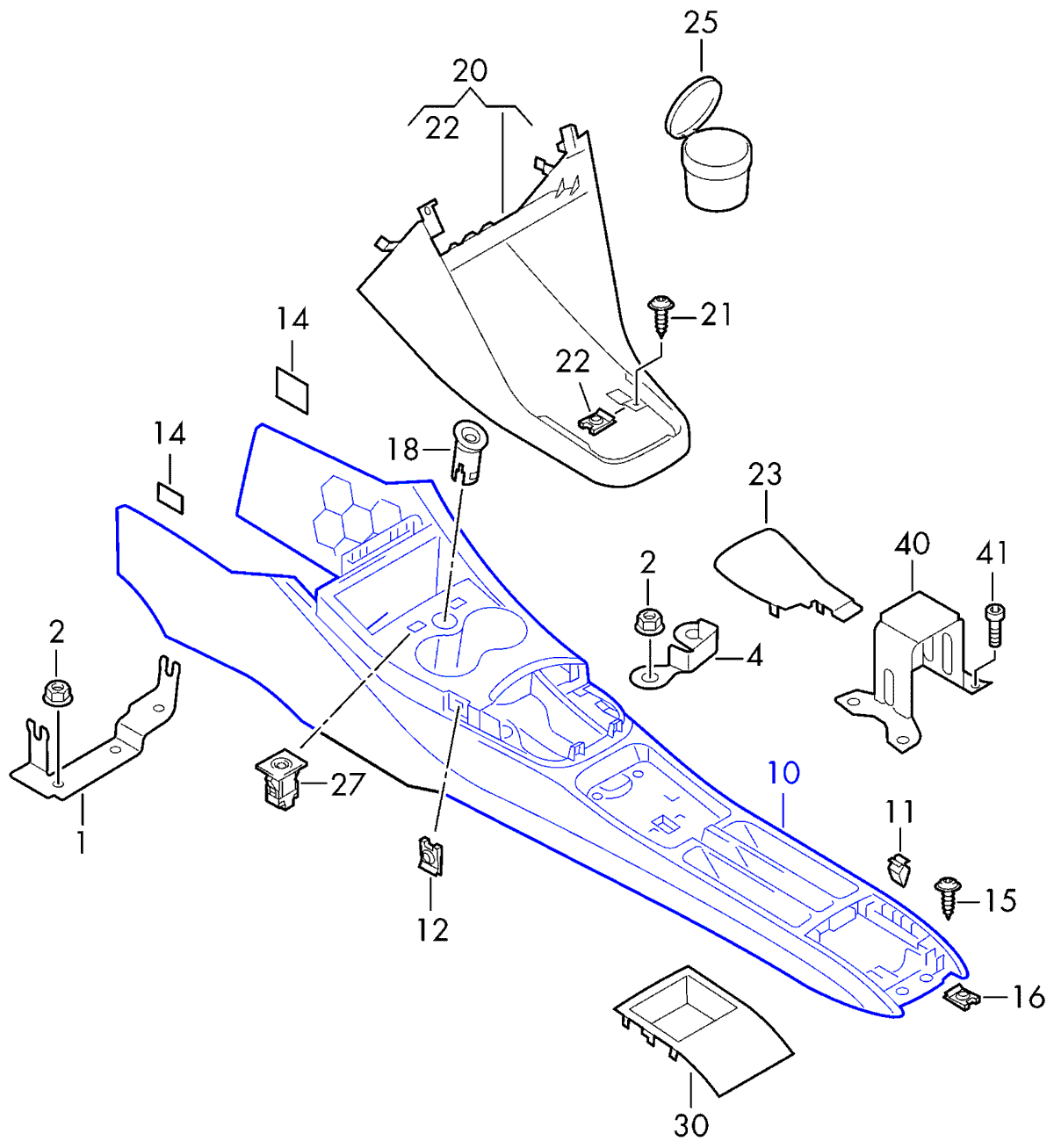

Centre console

Due to the fact that in the armrest with vents version the air tunnels are routed through the centre tunnel, in addition to the completely different design of the armrest, the tunnel cover is also different.

• 6RF863243G82V 6RF 863 243 G 82V – titan black
• 6RF863243GQ70 6RF 863 243 G Q70 – light beige/desert beige
