I was annoyed by the constant lack of internet in the garage due to poor coverage, so to improve this I bought a 2x ATK504 antenna kit for 5G, LTE, LTE Advanced:
The antennas will be connected with a ZTE MF980 mobile router and an Aero2 a2mobile Orange card.
According to the description, the antenna set works in all frequencies used in Poland for:
5G
- 2100 MHz.- Orange/T-mobile/Play
- 2600 MHz – Plus
LTE
- 800 MHz
- 900 MHz
- 1800 MHz
- 2100 MHz
- 2600 MHz
HSPA+ i 3G
- 900, 2100 MHz
Dimensions of a single antenna: 445 x 210 x 65 mm.
Attachment to the pillar. Mast diameter 30 – 50 mm.
The composition of the antenna set is:
- two type ATK-504 directional antennas
- Mounting brackets with clips for attaching antennas to the pole
- Two low loss MR240 cables, 5 m length, N – connector – SMA – connector
- Two connectors (adapters) with TS-9 connector.
LTE Advanced (LTE Ultra) allows you to increase speed without setting up additional BTSs. It is based on the aggregation (combination) of several frequencies on which the operators transmit and the transmission of data over several ”channels” at the same time. Two antennas are required to use this technology (so-called MIMO).
Broadband antennas are used for LTE Advanced (LTE Ultra), single frequency antennas are not suitable for this transmission.

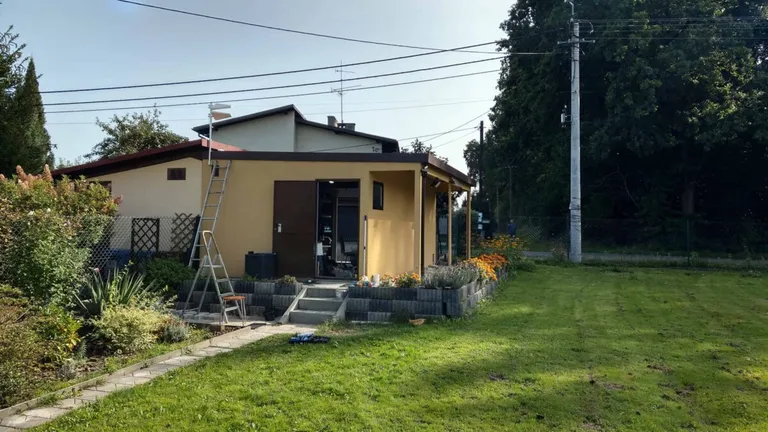

For this I still needed a mast – I chose a 125 cm balcony mast:
Time for installations…
