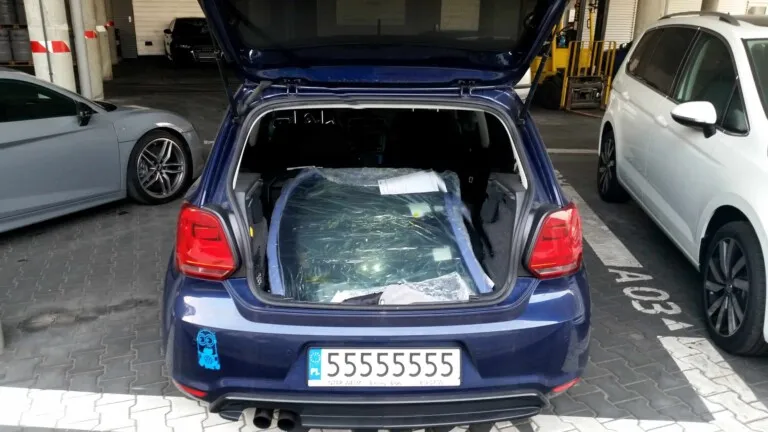

Heated Windscreen — necessary parts

Photos of windscreen are in my previous post.

Necessary parts to this mod

1. 6RU 845 011 JNVB (6RU845011JNVB) — Heated windscreen (for RLS mirror)
2. 071 973 751 (071973751) * 2 — Flat contact housing with contact locking mechanism
3. 1J0 972 761 (1J0972761) — Round connector housing with contact locking mechanism

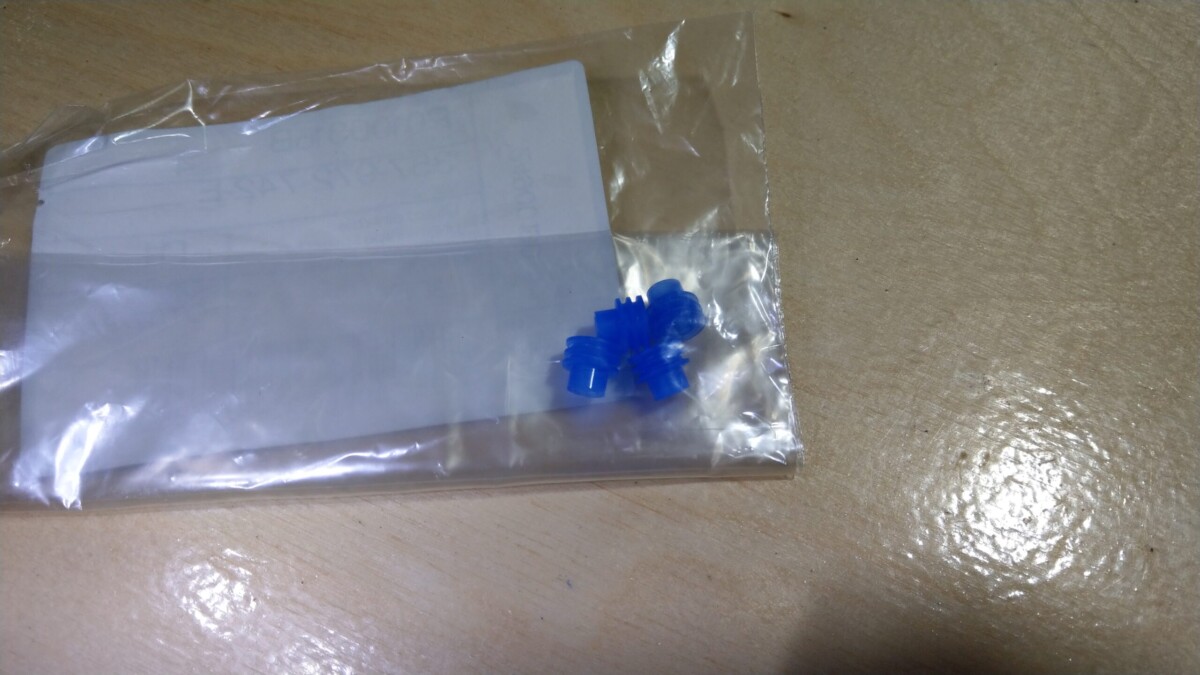

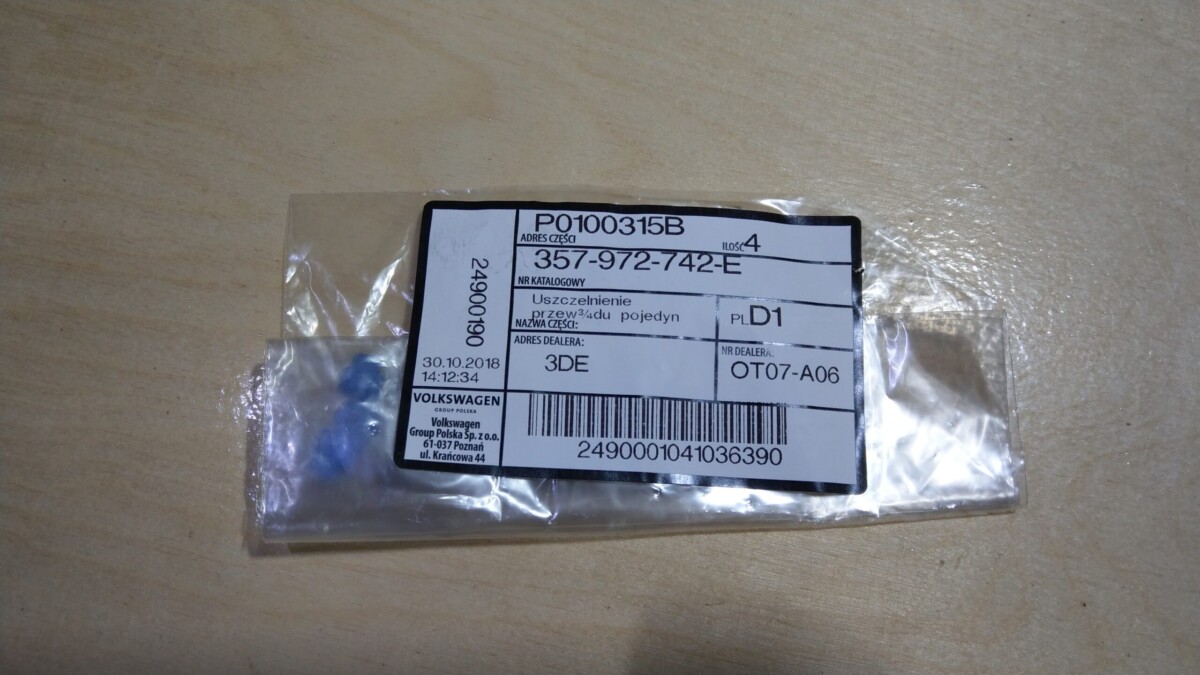

4. 357 972 742 E (357972742E) — single wiring seal

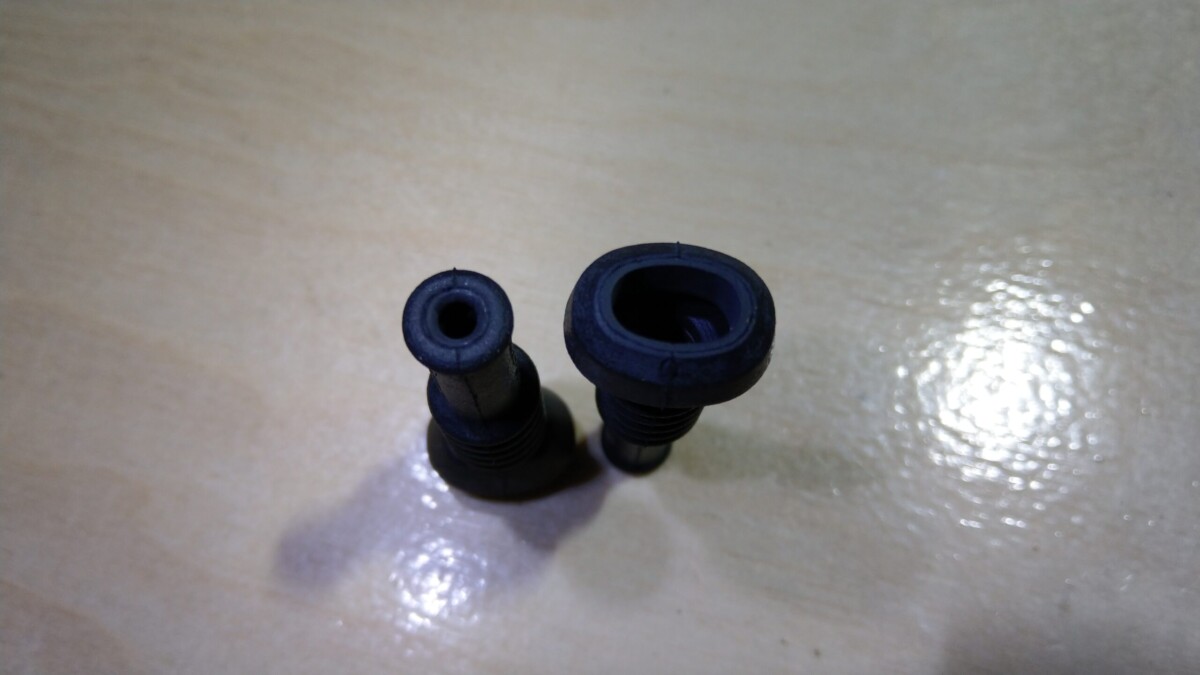

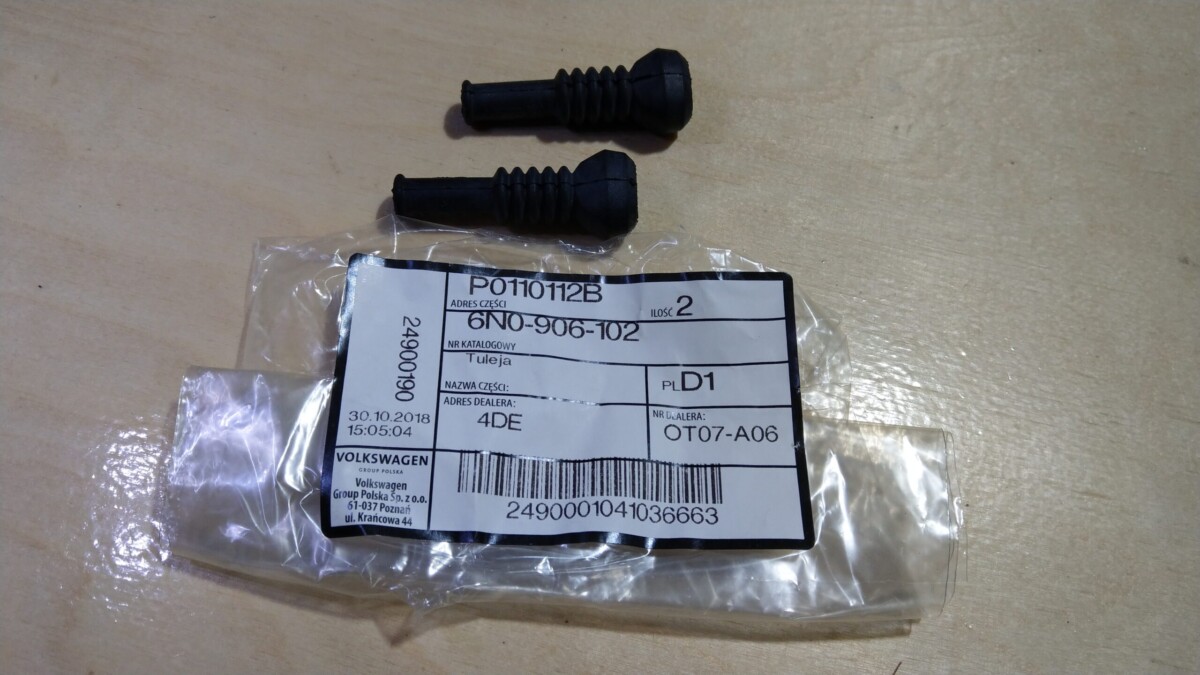

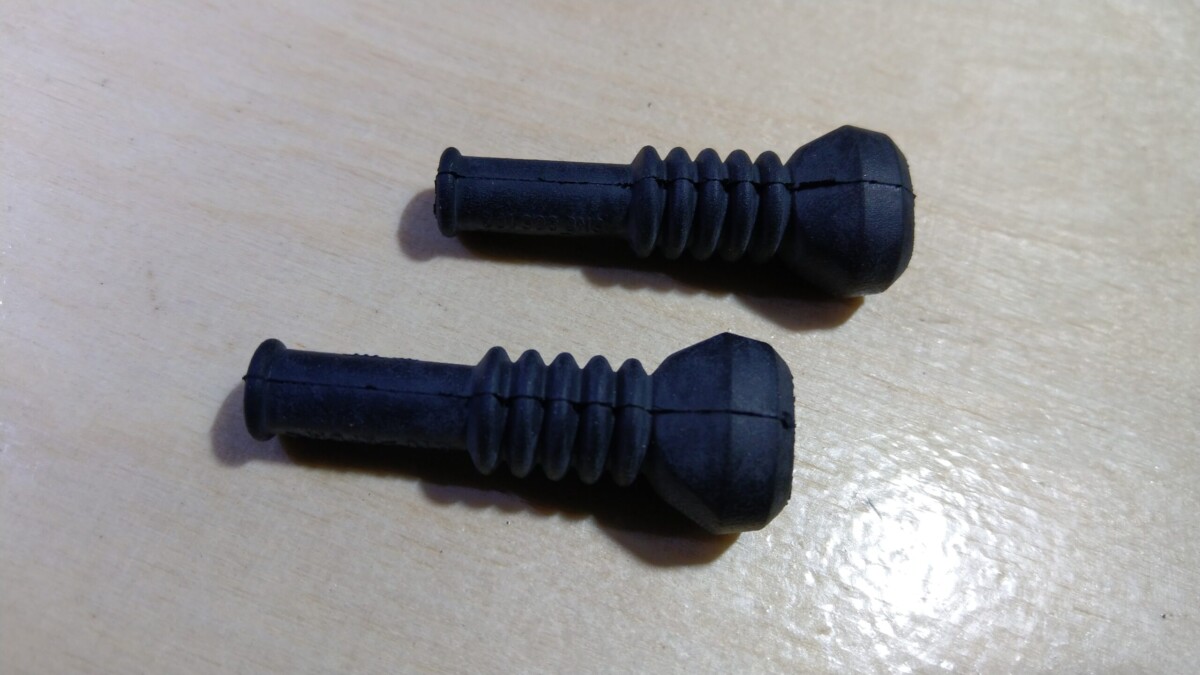

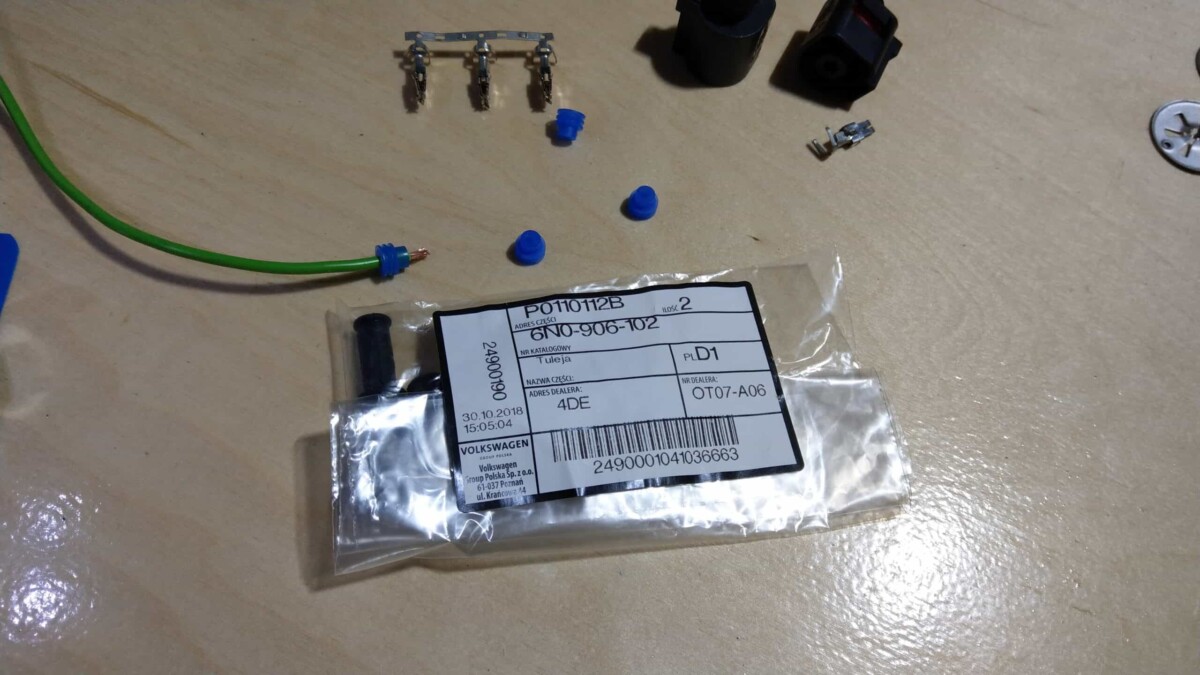

5. 6N0 906 102 (6N0906102) — Grommet (additional waterproof cover to 071973751 connector, like in Audi)
6. 6RU 959 622 A (6RU959622A) — Pushbutton for heated windscreen

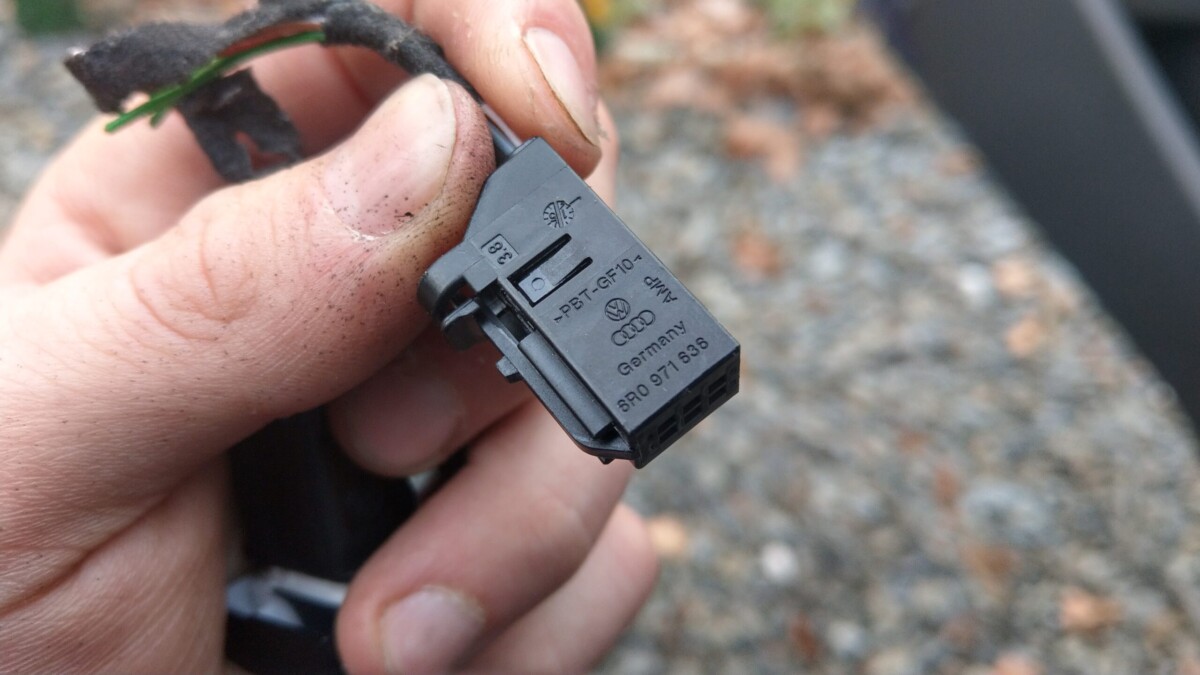

7. 6R0 971 636 (6R0971636) — Flat contact housing

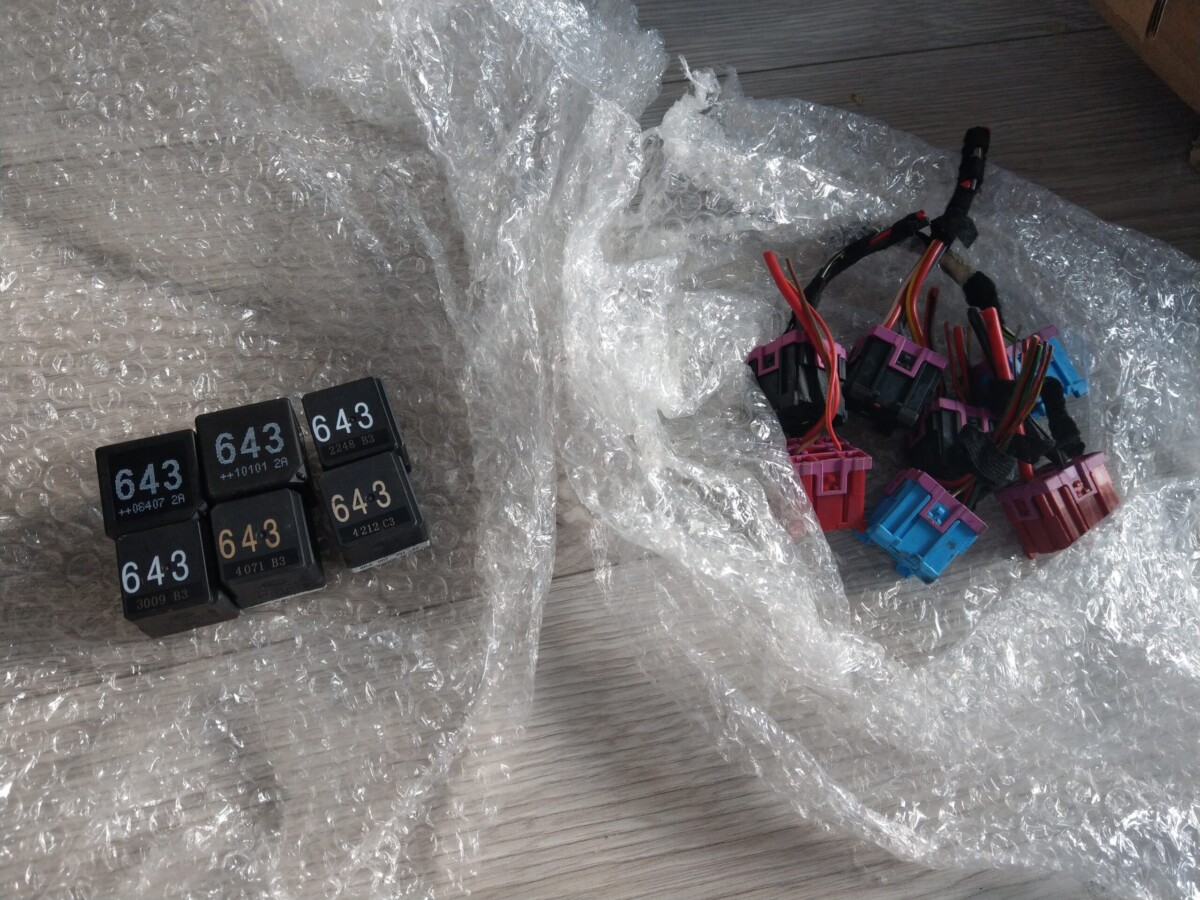

8. 8K0 951 253 (8K0951253) — relay 643
9. 443 937 527 (443937527) — relay plate
10. HY202B — pliers (I used them to terminals with seal)

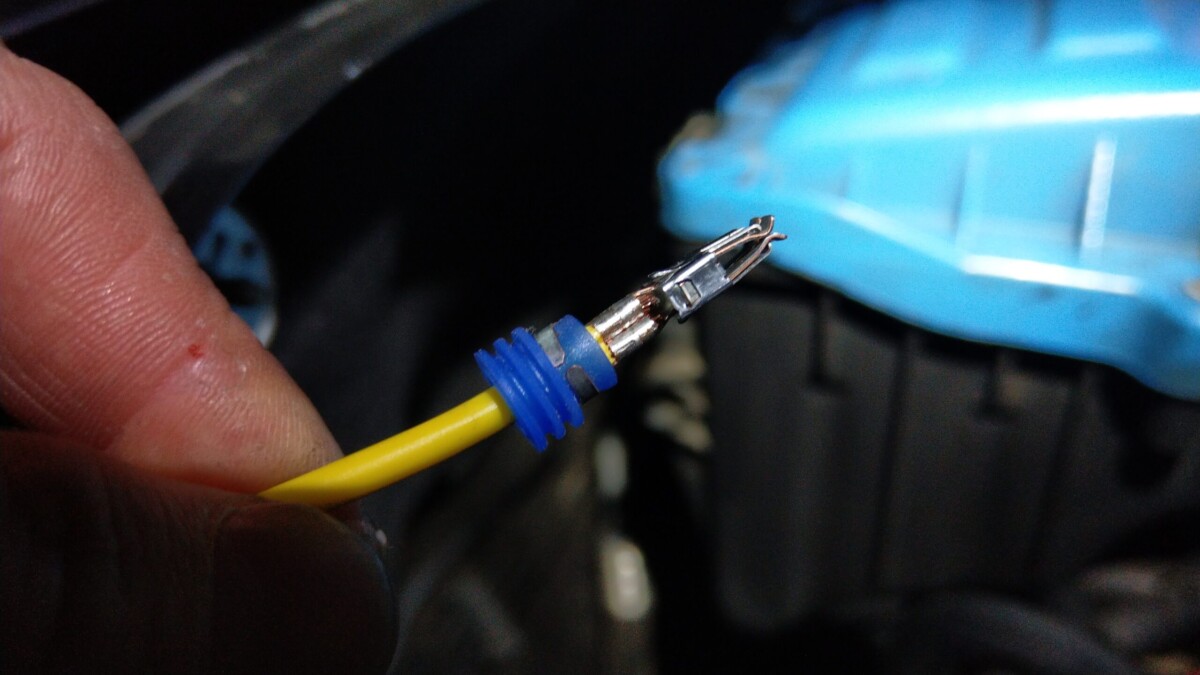

11. IWS-1424B — pliers to terminal on seal
12. terminals
13. thick wires

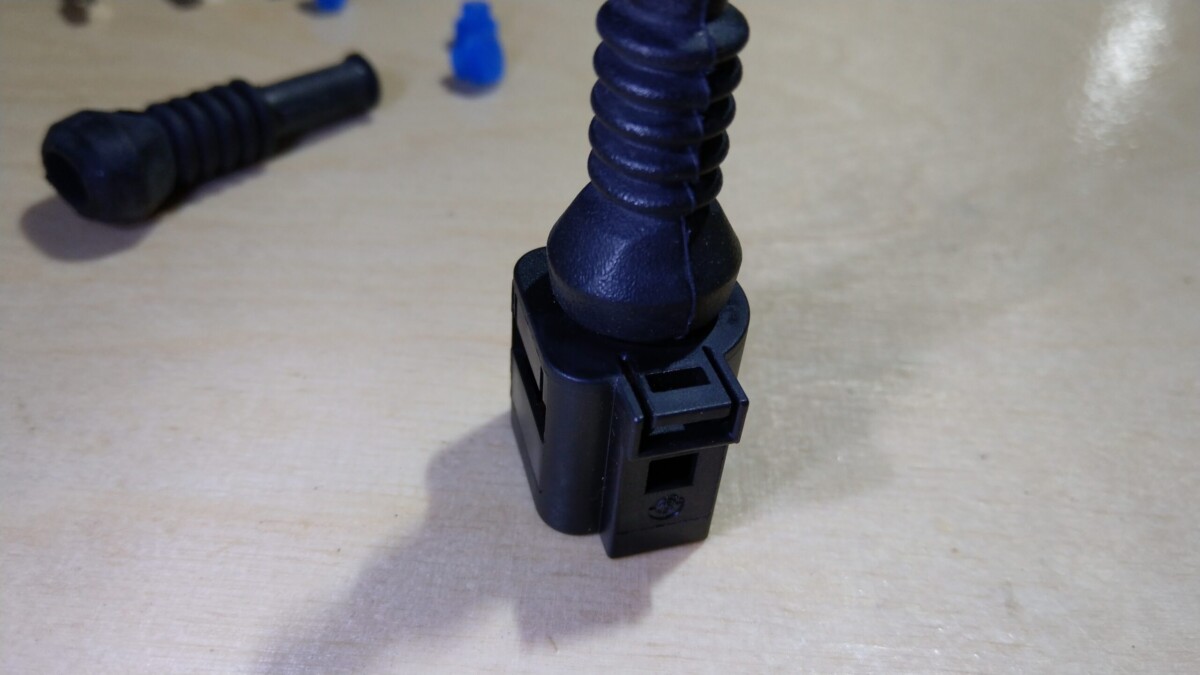

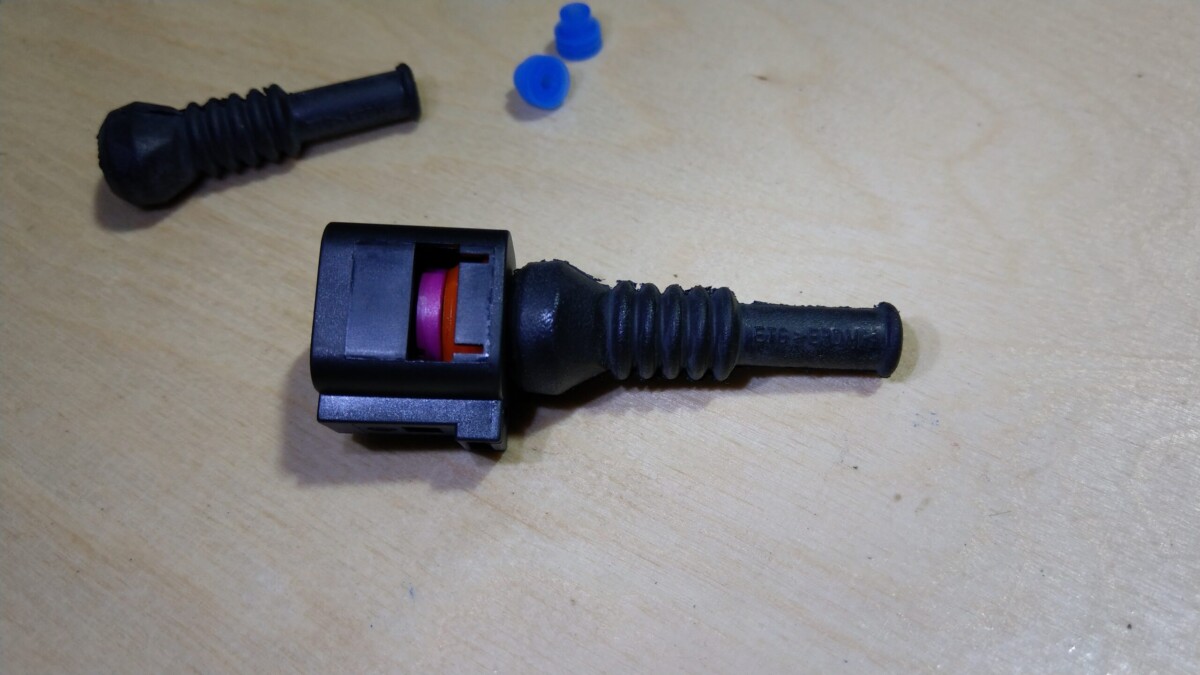

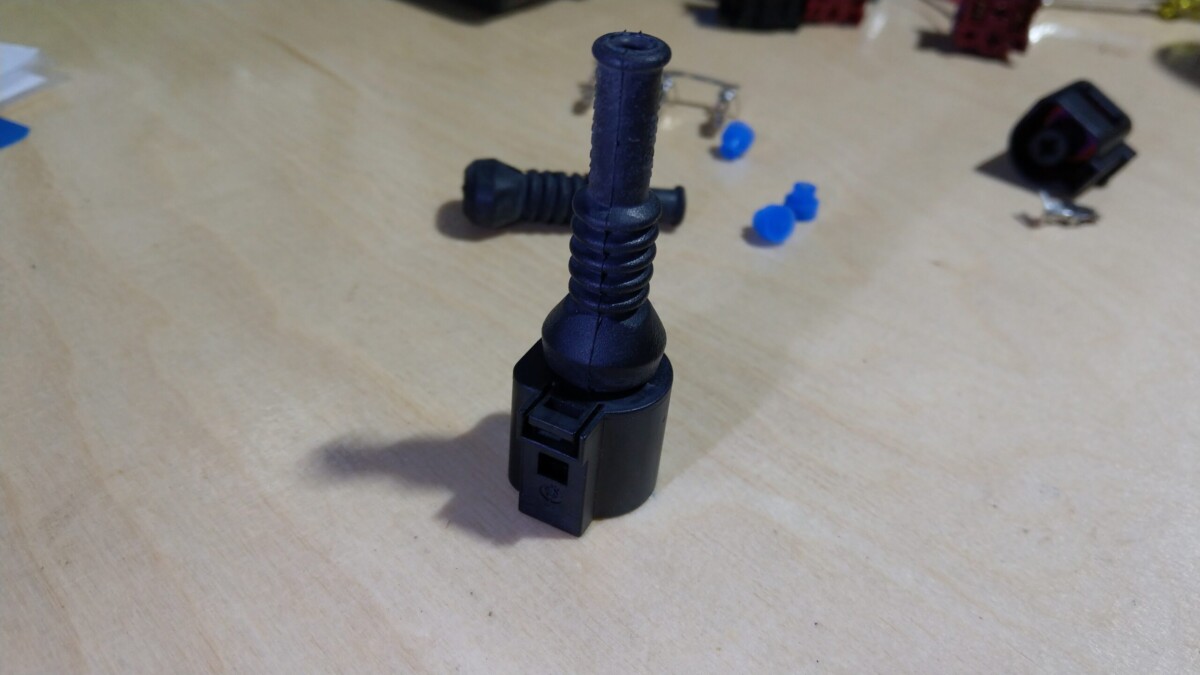

Grommet 6N0906102 is optional, but I saw, in Audi models is always connected with 071973751, so I bought this as aditional protection 😊

Note

6RU 845 011J NVB (6RU845011JNVB) — for RLS mirror
6RU 845 011F NVB (6RU845011FNVB) — for normal mirror

Photos
