The battery to boot conversion

In sporty Polo versions, the battery is installed in the luggage compartment, because of the larger air filter at the front.

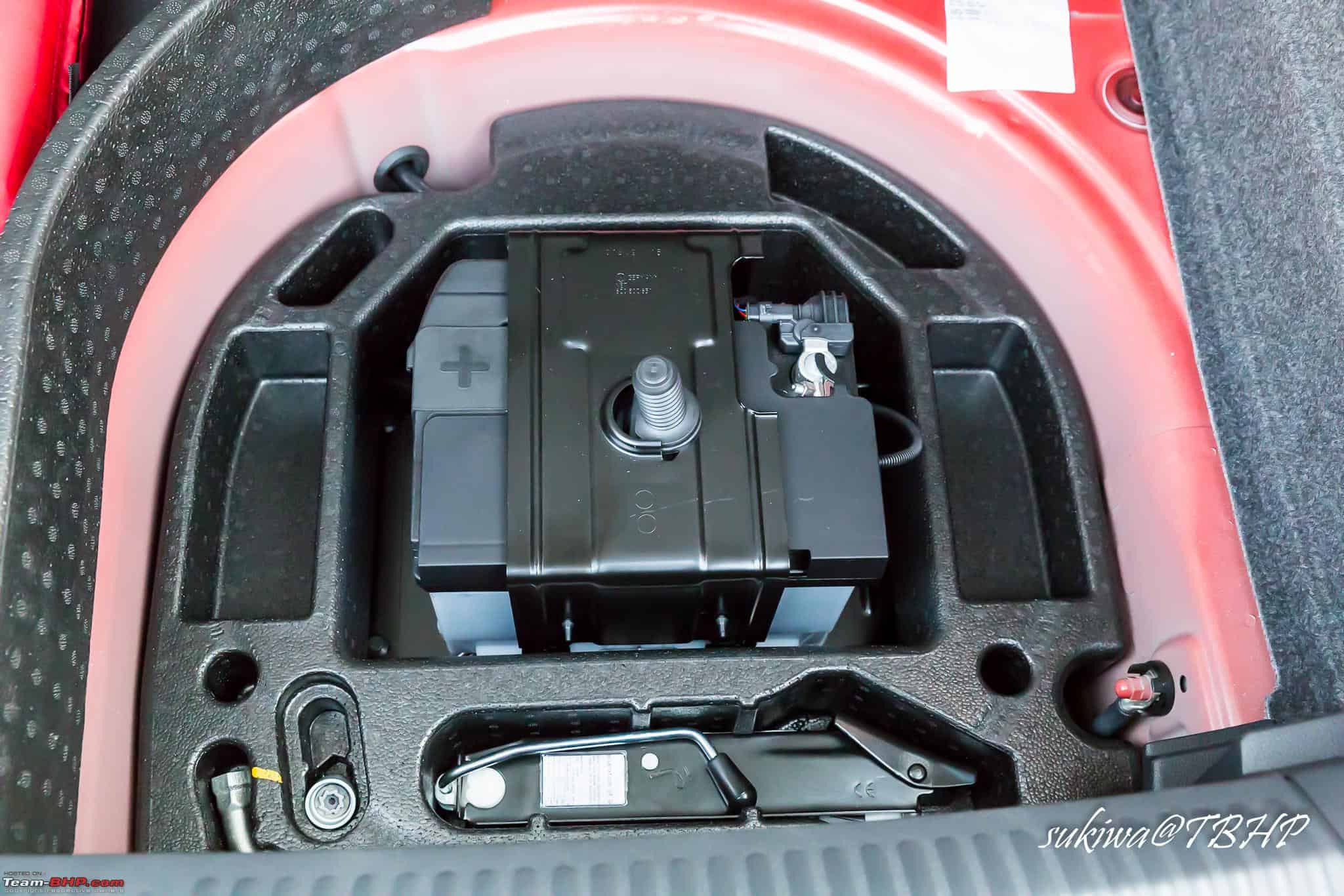

In the VW Polo 6R GTI, Polo 6R WRC Street and Polo 6C it looked like this:

  1. 1 – Battery
  2. 2 – Battery isolation igniter -N253-
  3. 3 – Securing bolt for battery isolation igniter -N253-
    • 20 Nm
  4. 4 – Mount for battery isolation igniter -N253- and positive distributor
  5. 5 – B+ cable
  6. 6 – Battery positive terminal cover
  7. 7 – Battery negative terminal cover
  8. 8 – Battery cover with mount for space-saving spare wheel
  9. 9 – Bolts for battery cover with mount for space-saving spare wheel
    • 20 Nm
  10. 10 – Battery positive terminal
    • 6 Nm
  11. 11 – Battery negative terminal
    • 6 Nm
    • A battery monitoring control unit -J367- (battery sensor) is also fitted in vehicles with a start/stop system
  12. 12 – Earth point on body for battery negative terminal
    • 20 Nm
  13. 13 – Clamping plate securing nut
    • M8x35
    • 20 Nm
  14. 14 – Clamping plate

List of parts required to relocating battery to boot

Part numberPart name / info / photoPricePicture

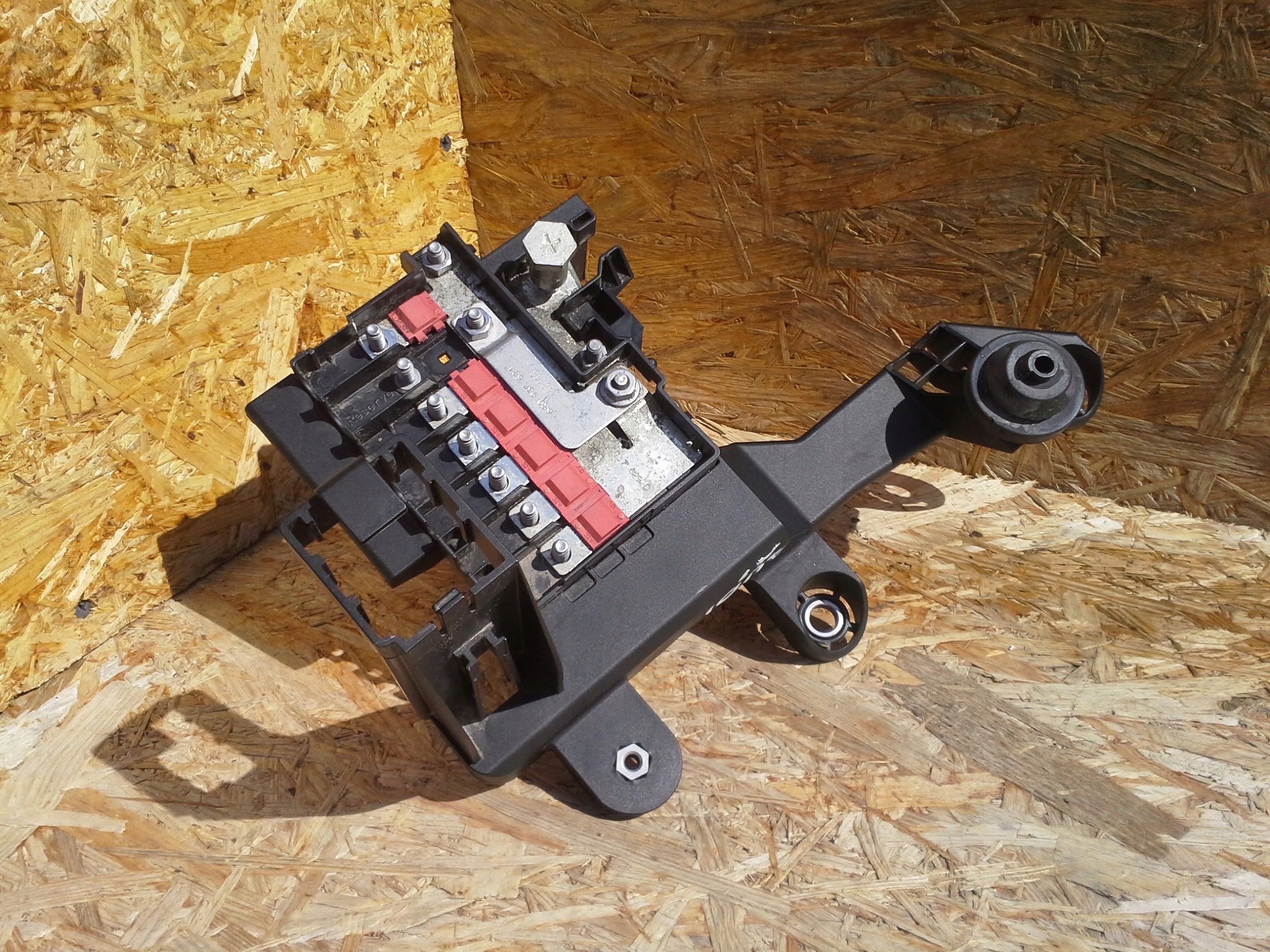

6R0915343C
6R0 915 343 C		Retainer for fuse socket

460 PLN

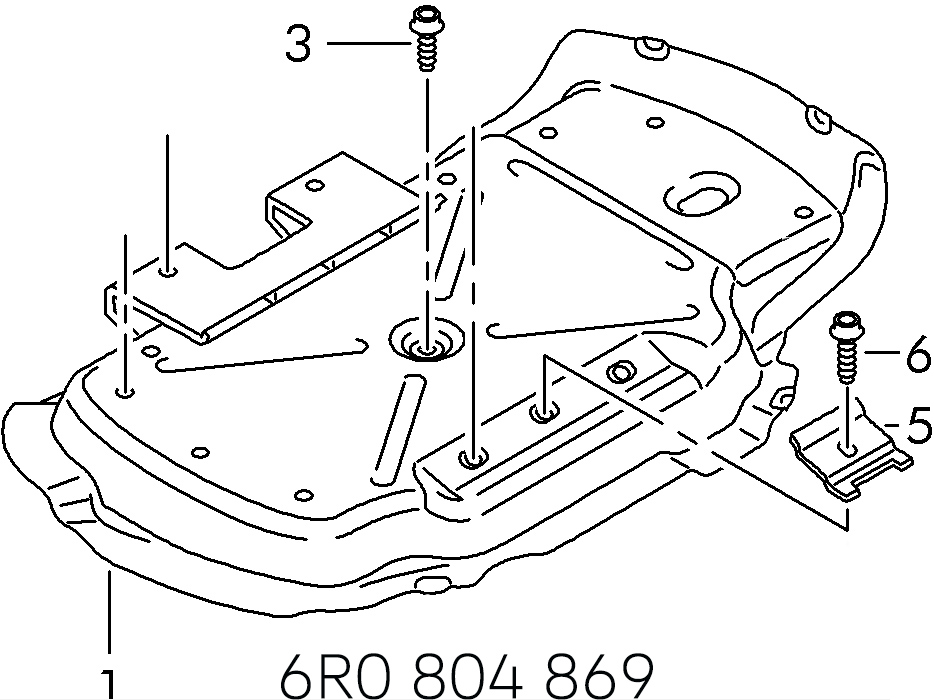

6R0804869
6R0 804 869

6R0804869B
6R0804869C
6R0804869D
Battery console

→ Seat Ibiza/ST 2014, PR-TF0,TP4
→ Audi A1 PR-FM0,8FC
→ Audi A1 PR-FN0,8FC

400 PLN

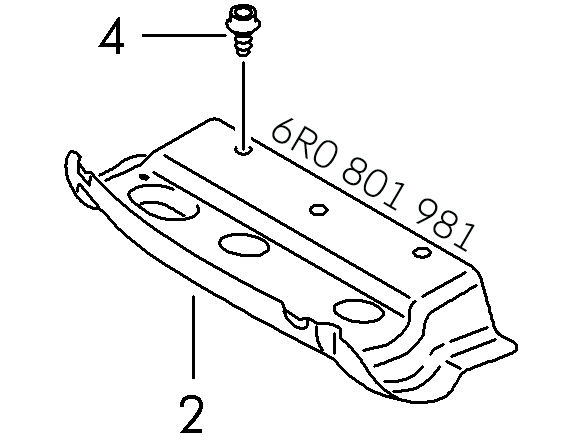

6R0801981
6R0 801 981
Additional reinforcement
110 PLN
6R0802717A
6R0 802 717 A

6C0802717A
6C0 802 717 A

6C0802631
6C0 802 631
Retainer for battery


Polo 6C 1.8 GTI


Polo 6C 1.8 GTI
116 PLN


130 PLN


130 PLN
6J0803899
6J0 803 899

8K0803899
8K0 803 899
nut for spare wheel mounting
Seat Ibiza ST 09-11

Polo WRC Street 2014, Polo 6C GTI (2015-2017)		17 PLN


39 PLN
8K0804899
8K0 804 899		bolt for spare weel mouting,
Polo WRC Street, 6C 1.8 GTI (2015-2017)		40 PLN

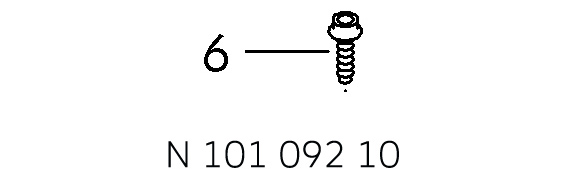

N10109210
N 101 092 10		Hex collared bolt,
M8X30
→ 4 pcs.		3,50 PLN

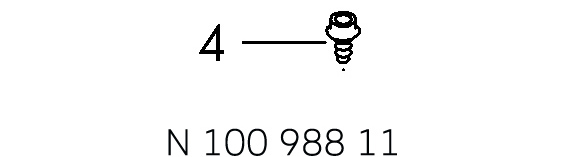

N10098811
N 100 988 11		bolt, hex. hd (combi.) self-locking,
M6X16
→ 3 pcs.		2,40 PLN

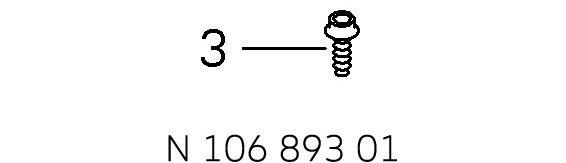

N10689301
N 106 893 01
Socket head bolt with inner multipoint head,
M8X25		3,80 PLN
6X0959502A
6X0 959 502 A

1J0803219
1J0 803 219

clamping strip for battery


Polo 6C GTI (2015-2017)


57 PLN

25 PLN
DH009100A2
DH 009 100 A2

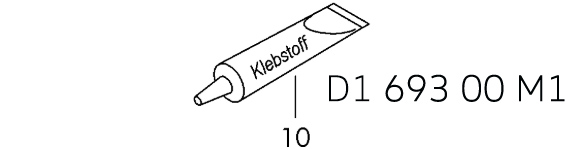

D169300M1
D1 693 00 M1
1K window adhesive
180 ml		61 PLN
starter battery in luggage compartment

Equipment

Part numberPart namePricePicture

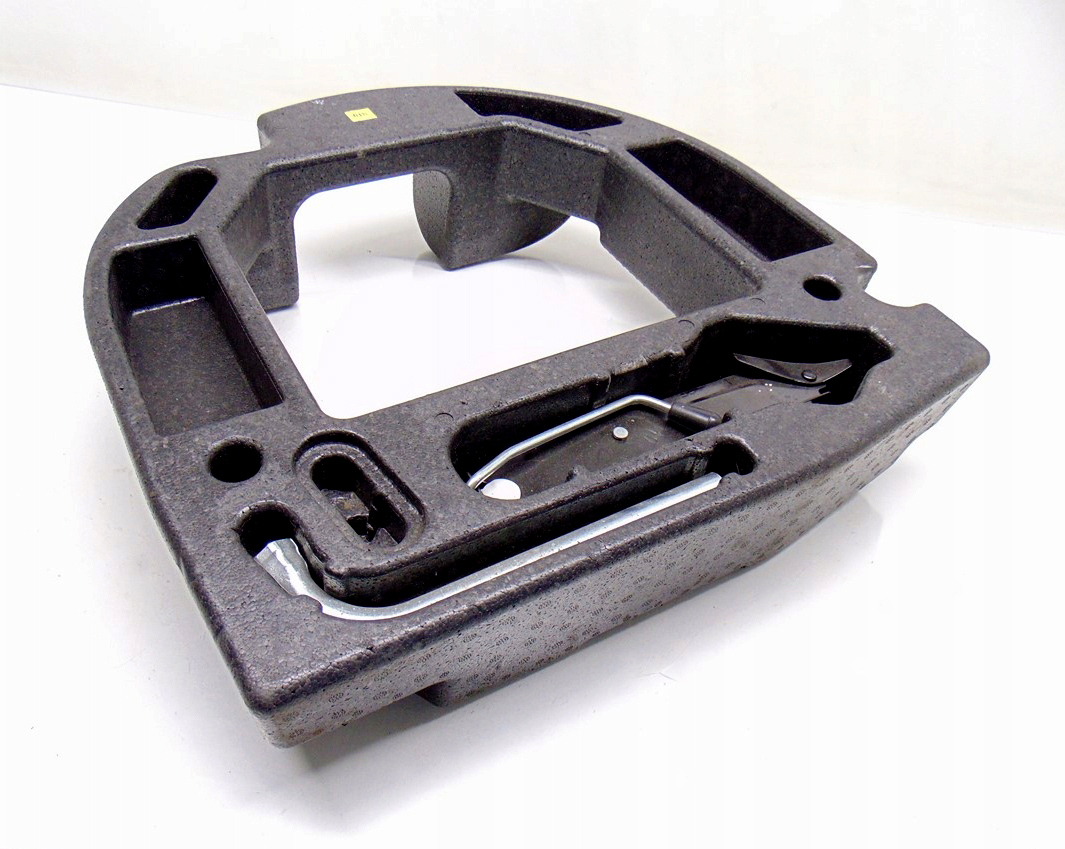

6R0012115
6R0 012 115		Trunk foam / Toolbox, PR-1G6,3F6
167 PLN

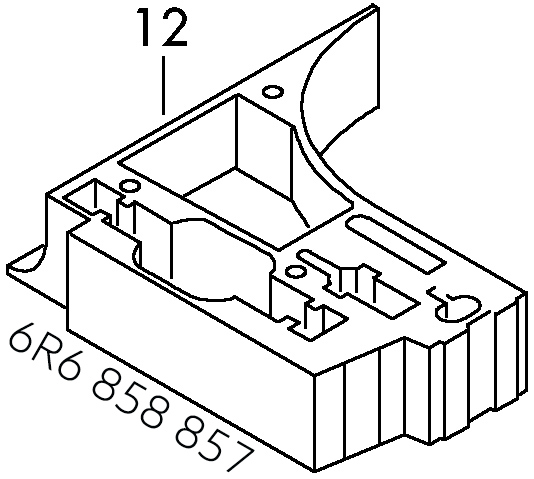

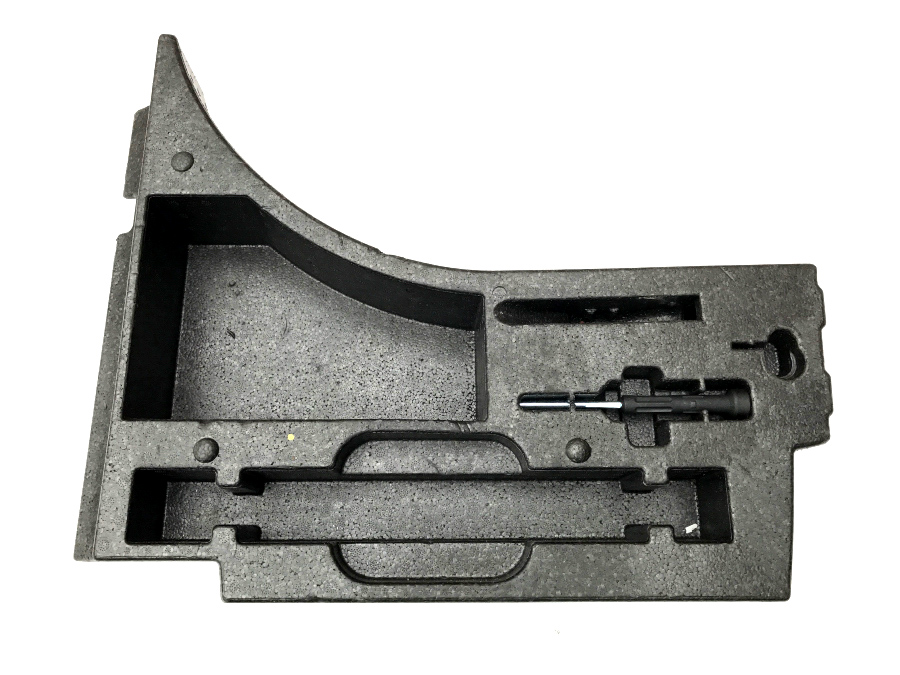

6R6858857
6R6 858 857		Trunk foam / Toolbox
190 PLN

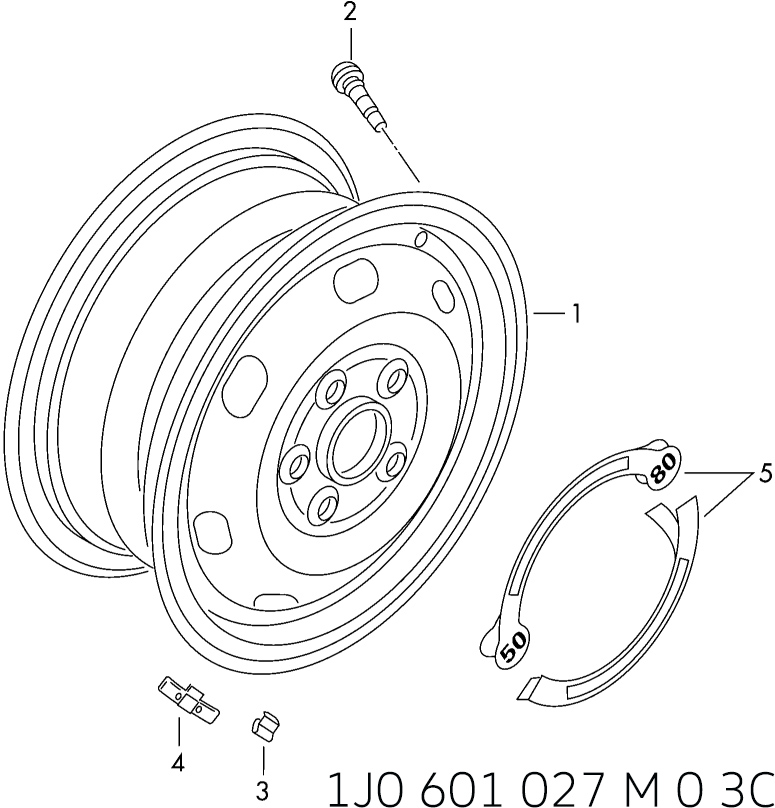

1J0601027M03C
1J0 601 027 M 0 3C		Steel rim for space-saving emergency wheel,
rally-black,
3,5JX18H2 ET38 5/100
PR-3F6+C1B		930 PLN

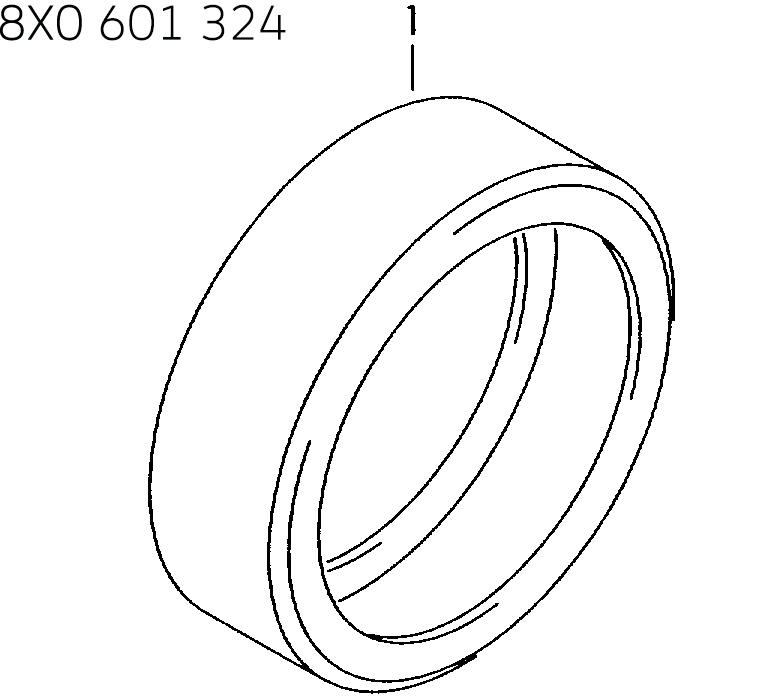

8X0601324
8X0 601 324
Radial tyre
T 125/60 R18 94M
850 PLN

Wires

Part numberPart namePricePicture

6R0971227C
6R0 971 227 C		Wiring set for battery +
3640MM 85QMM
/ CDLJ (Polo WRC Street)		690 PLN
6R0971227*
6R0 971 227		Wiring set for battery +
3640MM 85QMM
Polo 6R GTI CAVE,
Seat Ibiza 2.0 TDI CR140 CFHD,
Audi A1 CBZA+PR-7L6+
8Z6,8Z9,
Audi A1 CAXA,CAYC,
CAYB,CAVG, CNVA,CTHG,
CFHD,CFHB,CPTA


Audi A1		760 PLN
8X0971227*
8X0 971 227		Wiring set for battery +
3598MM
/ CDLH (Audi A1)		590 PLN

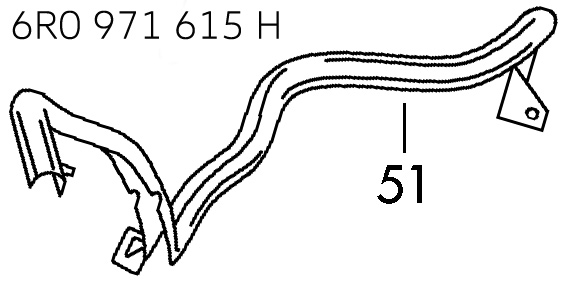

6R0971615H
6R0 971 61 H		cable guide
connecting lead f. batt. pos. terminal and central electrics
for models with rear battery, bottom plate 6R0971227
to use for: 6R0971227C		51 PLN

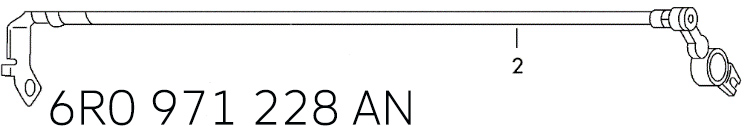

6R0971228AN
6R0 971 228 AN		wiring set for battery +
425MM / 20QMM
CDLJ, CPTA+PR-G0K		341 PLN

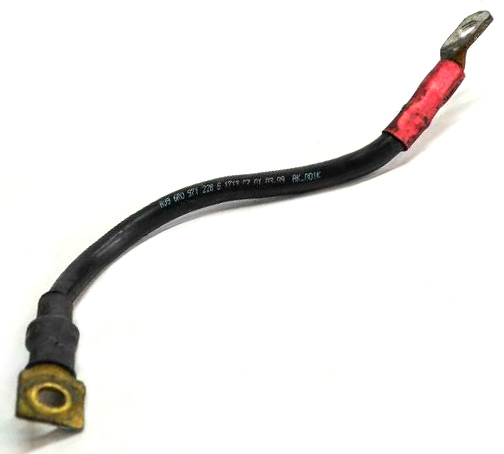

6R0971228S
6R0 971 228 S		wiring set for battery +
CTHE
180MM / 25QMM		341 PLN

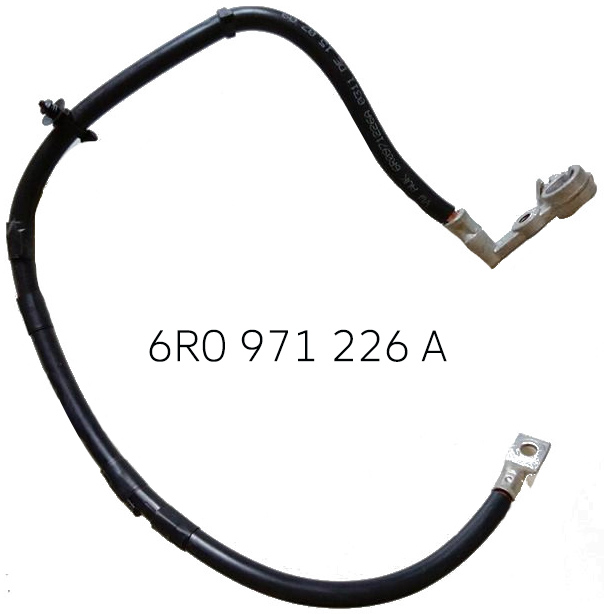

6R0971226A
6R0 971 226 A		wiring set for battery –
for models with rear battery,
with cable crosssection: 35QMM
6R GTI, WRC Street, Ibiza CFHD		181 PLN
6R0971226B*
6R0 971 226 B		wiring set for battery –
for models with rear battery,
with cable crosssection: 35QMM
Audi A1 PR-7L3, without start-stop		206 PLN
6R0971349GL
6R0 971 349 GL		wiring set for three-phase alternator
for vehicles with air condit.
manual gearbox+ CDLJ		699 PLN6R0971349GL

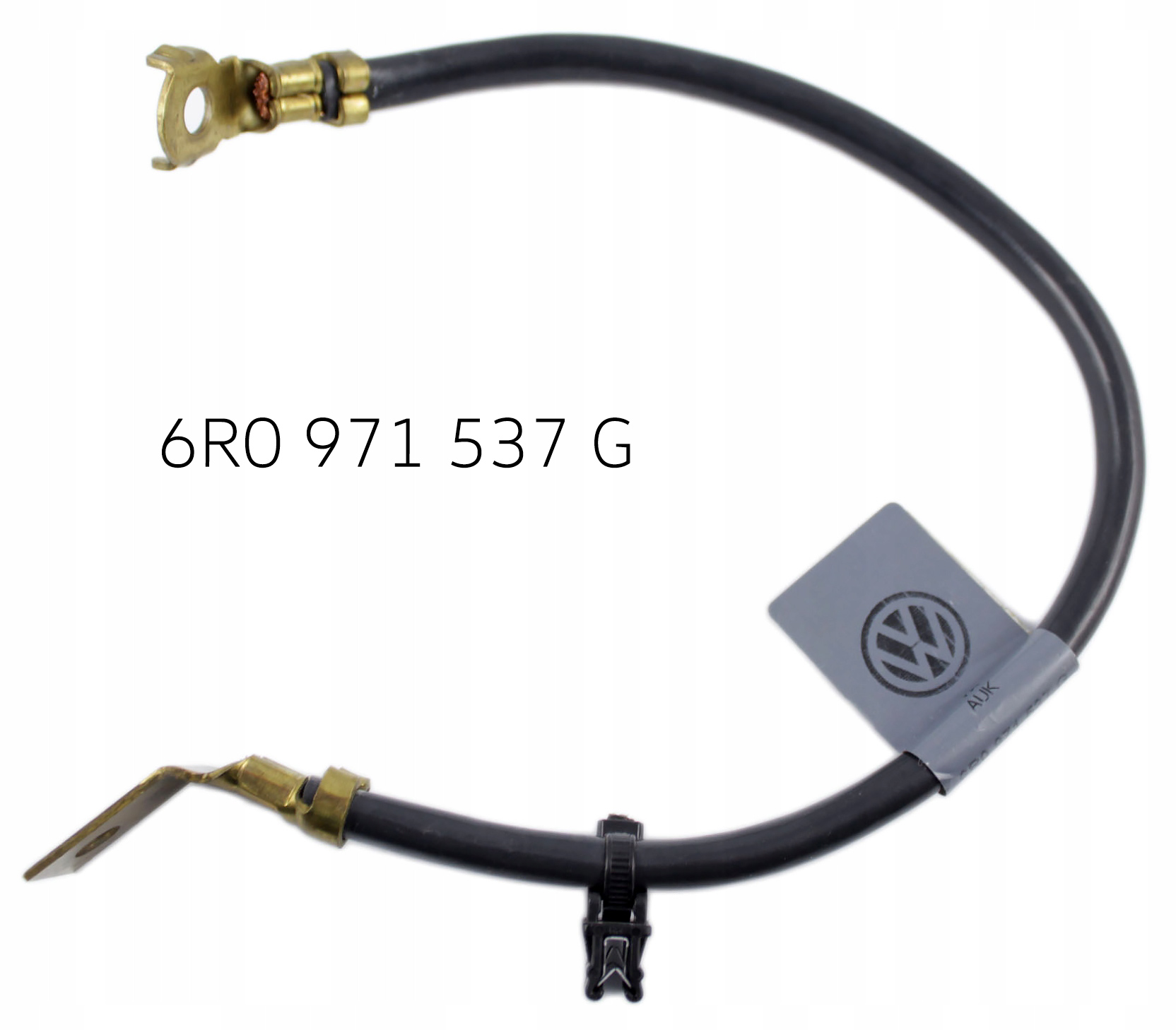

6R0971537G
6R0 971 537 G		earth line alternator,
Seat Ibiza, Audi A1 CAYB, CAYC, CFHD, CFHB, CLNA, CDLJ,
PR-TF3, T1S,
360MM / 25QMM		167 PLN
