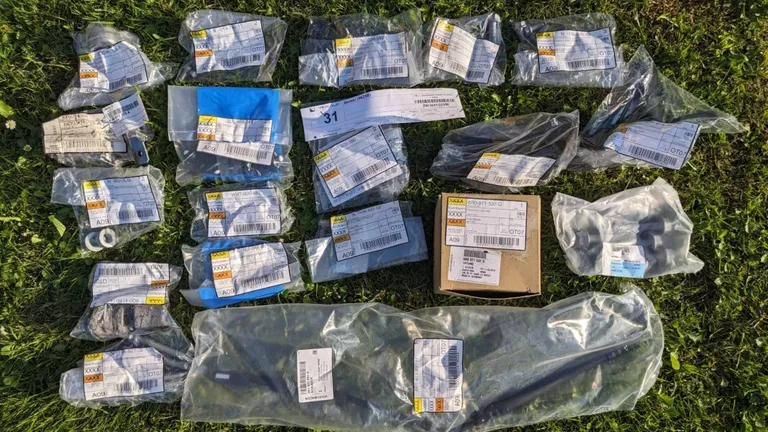

Another order has arrived – the rest of the bolts and nuts mainly for the assembly carrier.
Photos of unscrewing the assembly carrier, supports, etc. can be found in my previous posts::
Removal of rusted parts from the front axle
N10528602 – hex collared bolt M12X1,50X75
wrench: 18 mm
tightening torque: 70 Nm and turn 90° further
2 * N10528602 – bolt for assembly carrier (No. 6 on the diagram)
+
2 * N10528602 – bolt for small support (No. 5 on the diagram)
N10653102 – hexagon bolt M8X20 / M8X22
wrench: 13 mm
tightening torque: 20 Nm and turn 90° further
4 * N10653102 – bolt for left and right support
N10492102 hex collared bolt M10X84
wrench: 16 mm
tightening torque: 70 Nm and turn 90° further
4 * N10492102 – bolt from assembly carrier to steering gear
