N10204808 – exagon head bolt (combi) M10X35

wrench: 16 mm
tightening torque: 30 Nm and turn 90° further

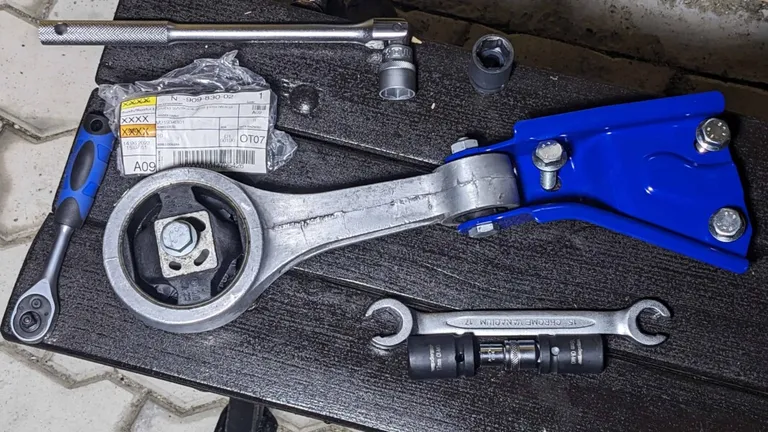

2 * N10204808 – bolt for pendulum support – for gearbox/assembly carrier connection.
Depending on the support, 2 or 3 screws are available::

  • PR-TK8 – 3 bolts
  • PR-TL1 – 2 bolts
N10204808
N10204808
N10204808
N10204808
N10204808
N10204808
N10204808
N10204808
N10204808

N90983002 – fitted bolt, hexagon head M10X61

wrench: 16 mm
tightening torque: 40 Nm and turn 90° further

N90983002 – bolt for connect pendulum support with assembly carrier

N90983002
N90983002
N90983002
N90983002
N90983002
N90983002
N90983002
