The automobile control arm is one of the most important suspension components in a car. It’s worthwhile sometimes to make sure it’s operating at full capacity.
Over the winter when I had to quickly swap knuckles to get my 9n3 working as it should, I noticed that the control arm bushings in my Polo 6R were still factory – despite the workshop’s assurances that they would be thrown in full ones from R32/TT 8N when the suspension was changed…. I guess I’m unlucky about mechanics, so I decided to go for it myself 😀 By the way, I decided to replace all other rusty bolts, nuts, etc.

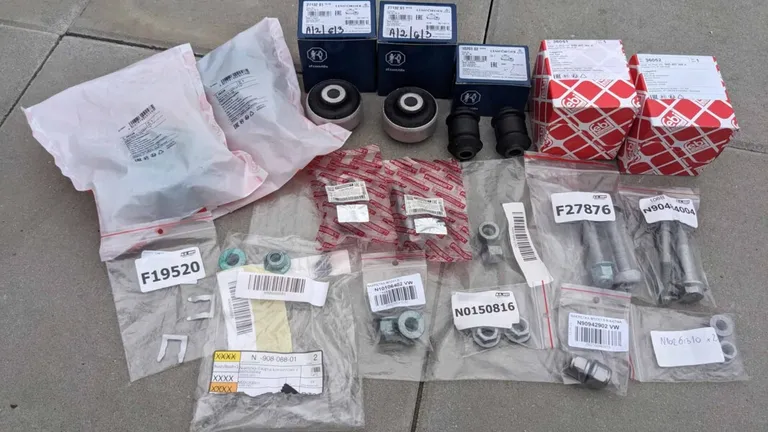

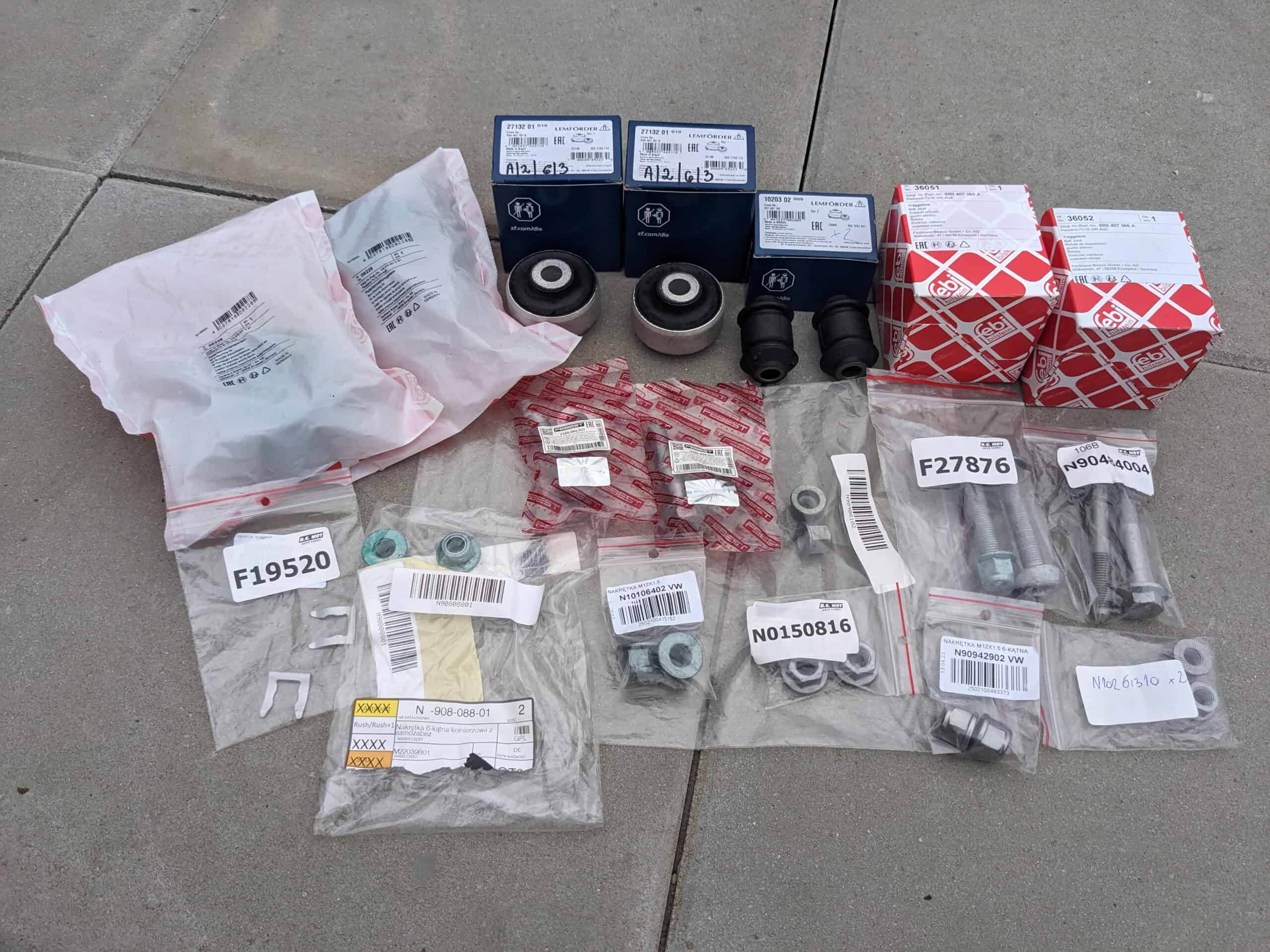

To begin with, a list of parts that need to be replaced:
| Part number | Name | Qty | Price |
|---|---|---|---|
| guide joint / trailing-arm suspension ball pin, left | 1 | 85,00 zł (FEBI F36051) |
| guide joint / trailing-arm suspension ball pin, right | 1 | 85,00 zł (FEBI F36052) |
| hex collared bolt M12X1, 5X70 | 2 | 19,00 zł (FEBEST 2398-004-KIT) |
| 2 | 33,00 zł (Lemfoerder LEM 2111301) | |
| bonded rubber bush/ bushing for trailing-arm suspension Audi TT / Audi A1 | 2 | 38,21 (Lemforder LEM 2713201) |
| bonded rubber bush (front) | 2 | 15,50 zł (Lemfoerder) |
| hexagon collar nut M12X1,50 | 2 | 8,00 zł |
| hexagon bolt | 2 | 22,00 zł |
| hexagon nut, self-locking | 2 | 9,90 zł |
| hexagon collar nut self-locking M12X1,5 | 2 | 8,60 zł |
| hexagon collar nut M10 | 6 | 10,00 zł |
| hexagon collar nut self-locking M12X1,5 | 2 | 7,80 zł |
| oval hexagon socket head bolt M12X1,5X80 | 2 | 19,99 zł (Febi Bilstein F27876) |
| hose bracket | 2 | 3,50 zł (Febi Bilstein F19520) |
| suspension strut storage | 2 | 44,00 zł (FEBI F09228) |
Normally if you replace something you should also replace the nuts and bolts, I don’t know why most mechanics I come across don’t do this ;x

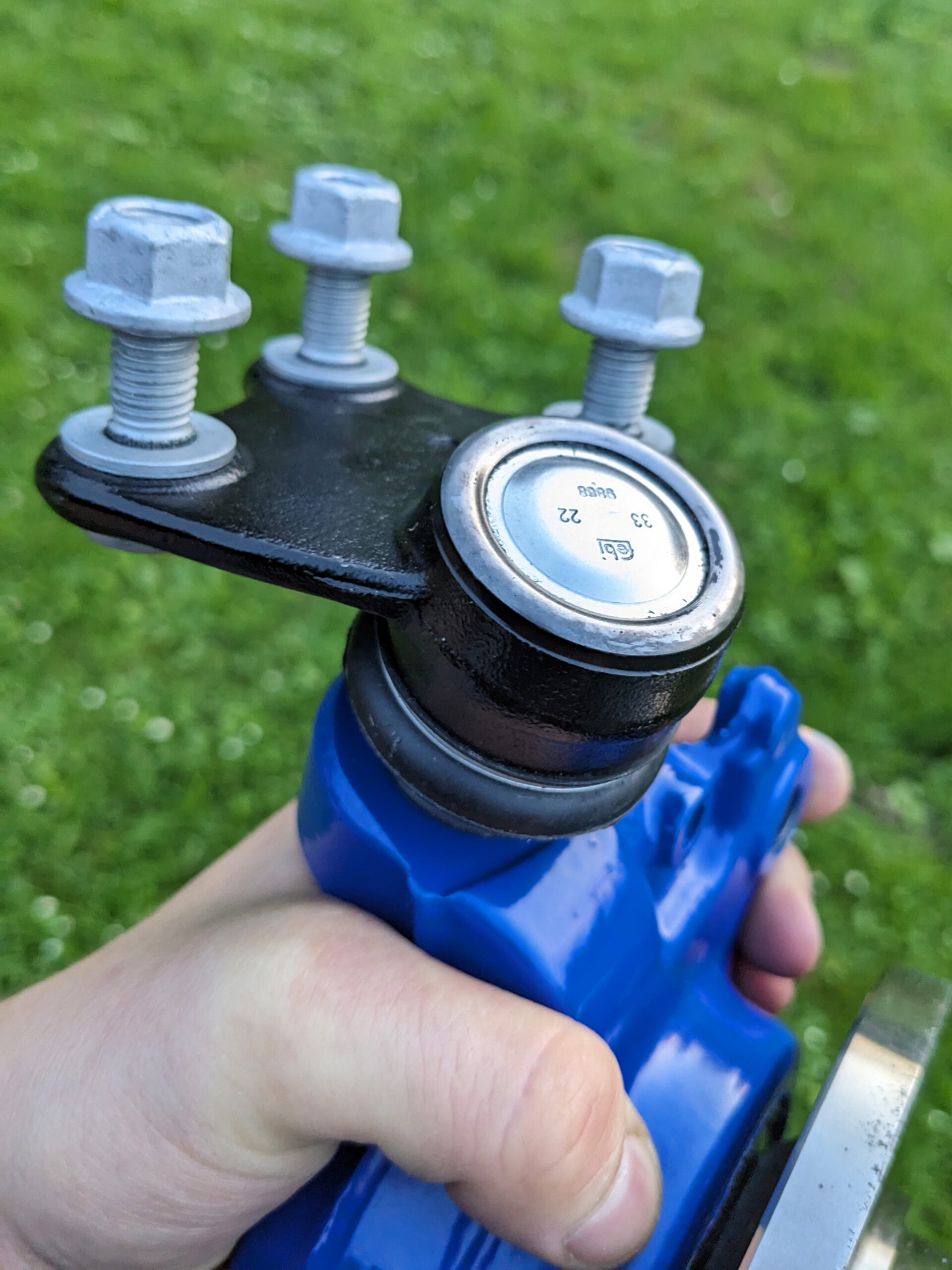

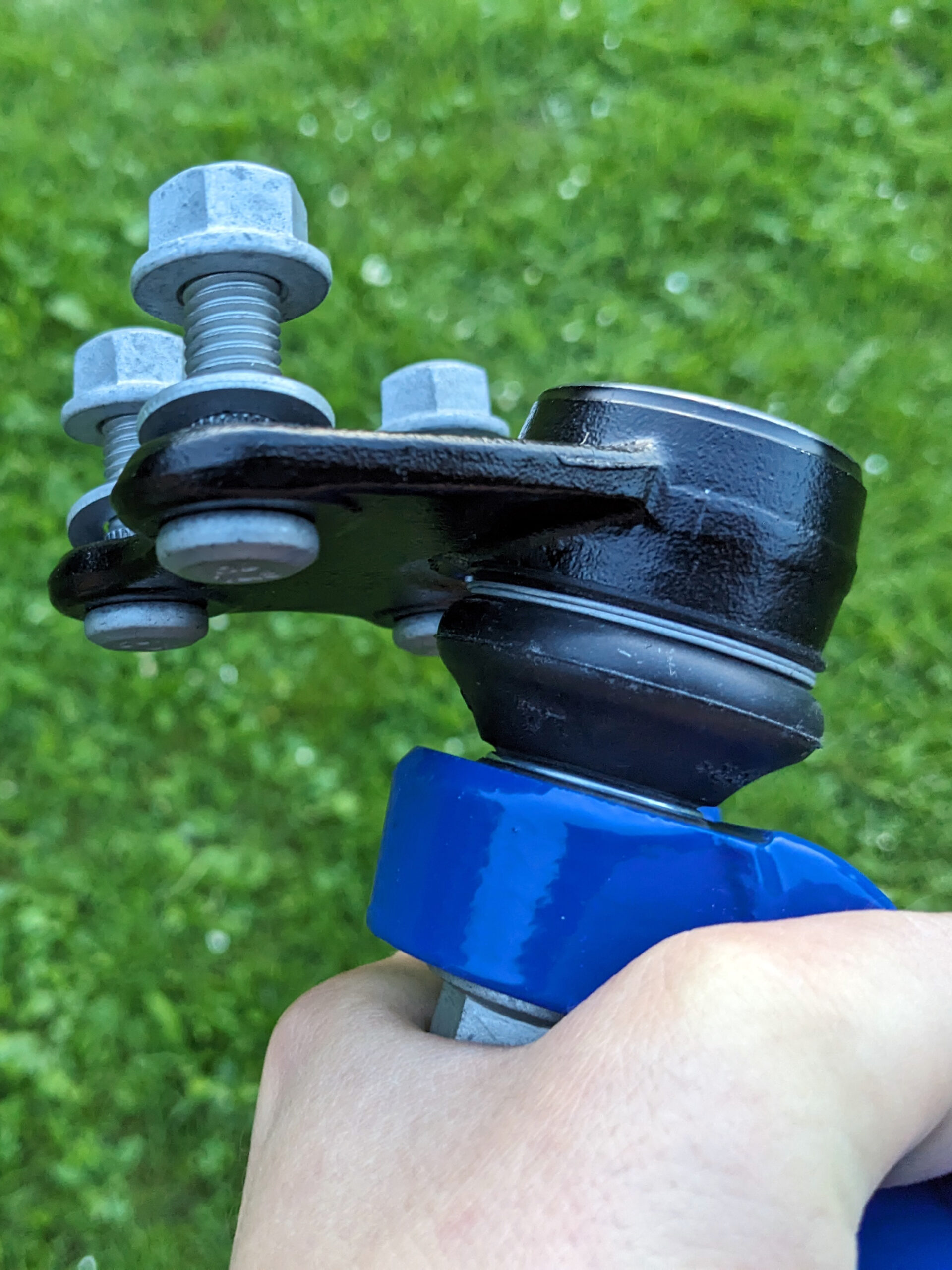

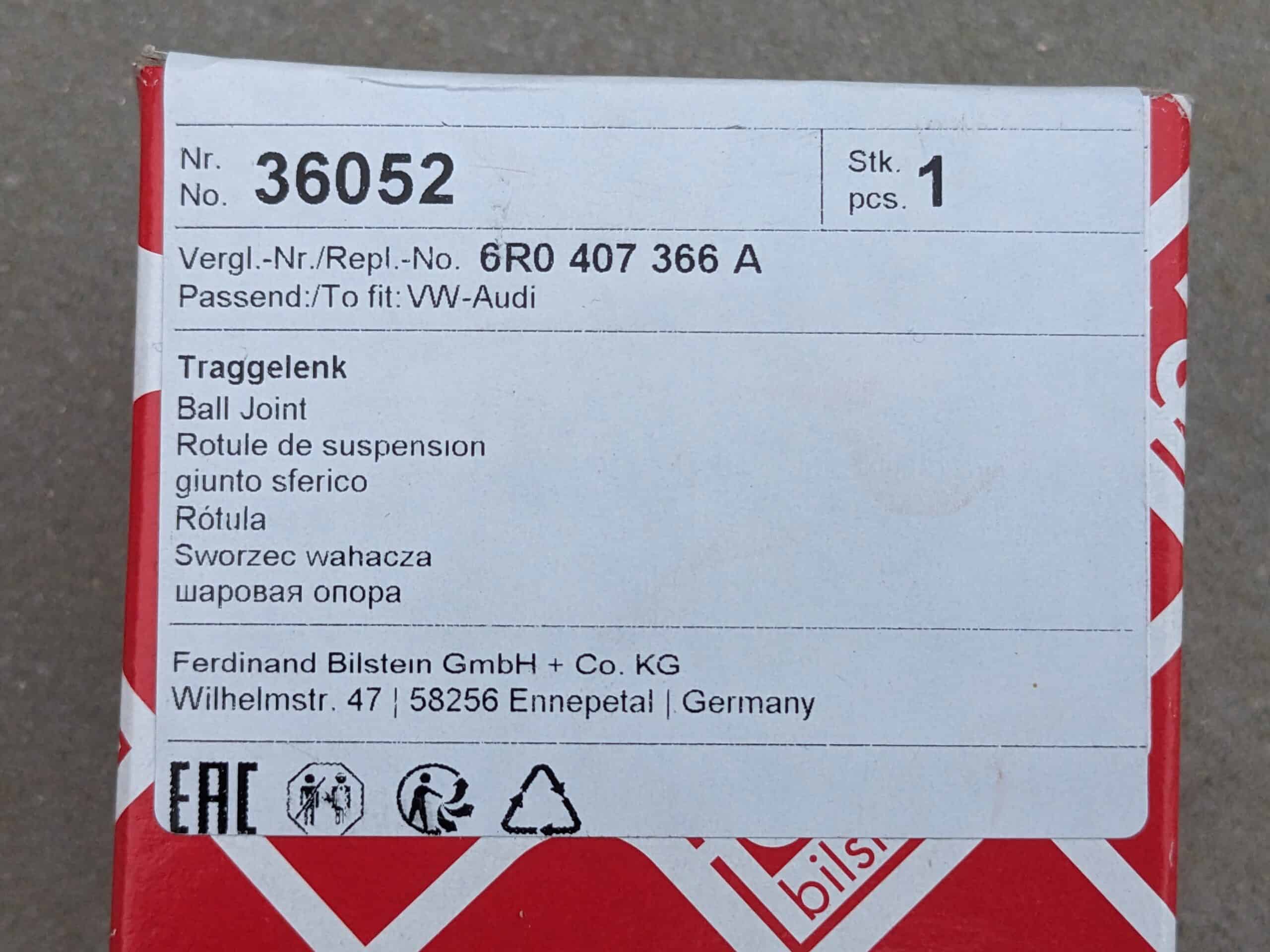

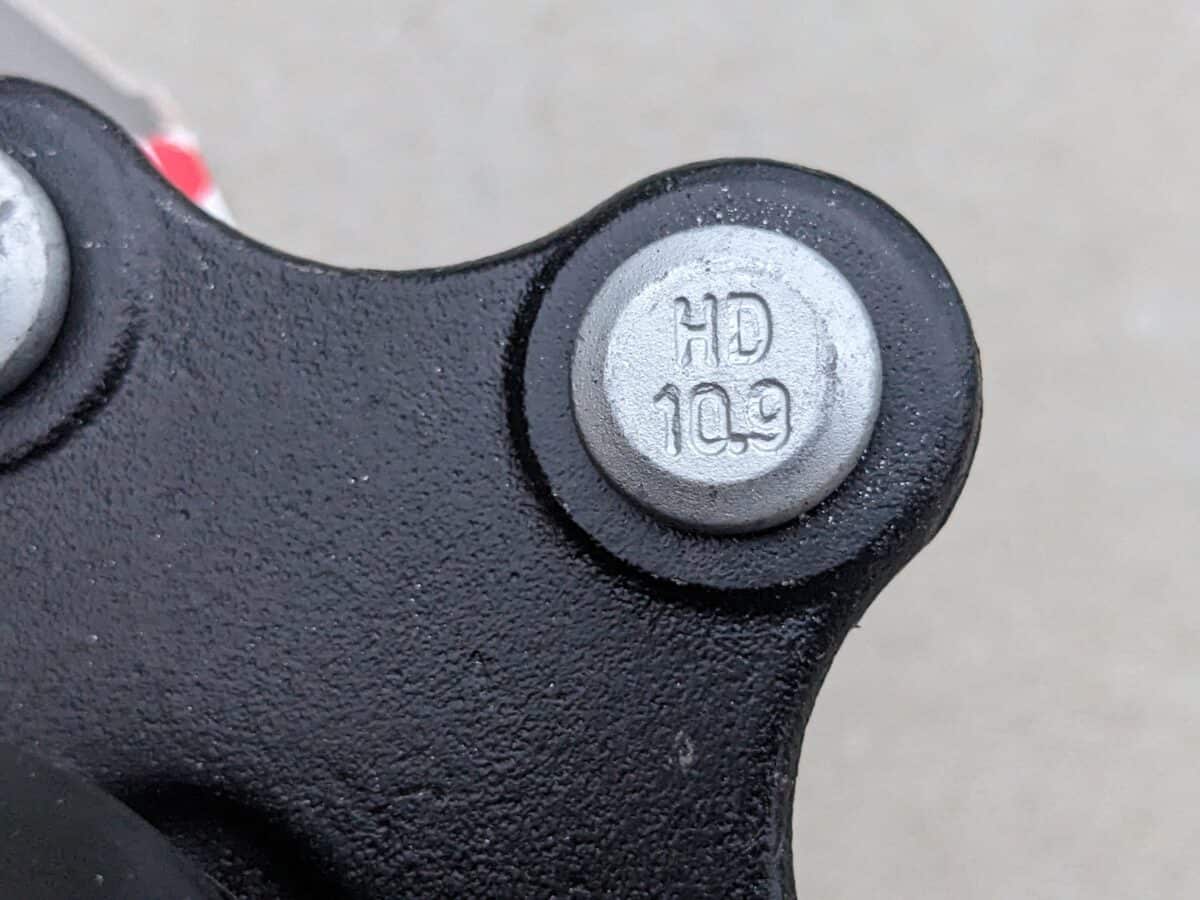

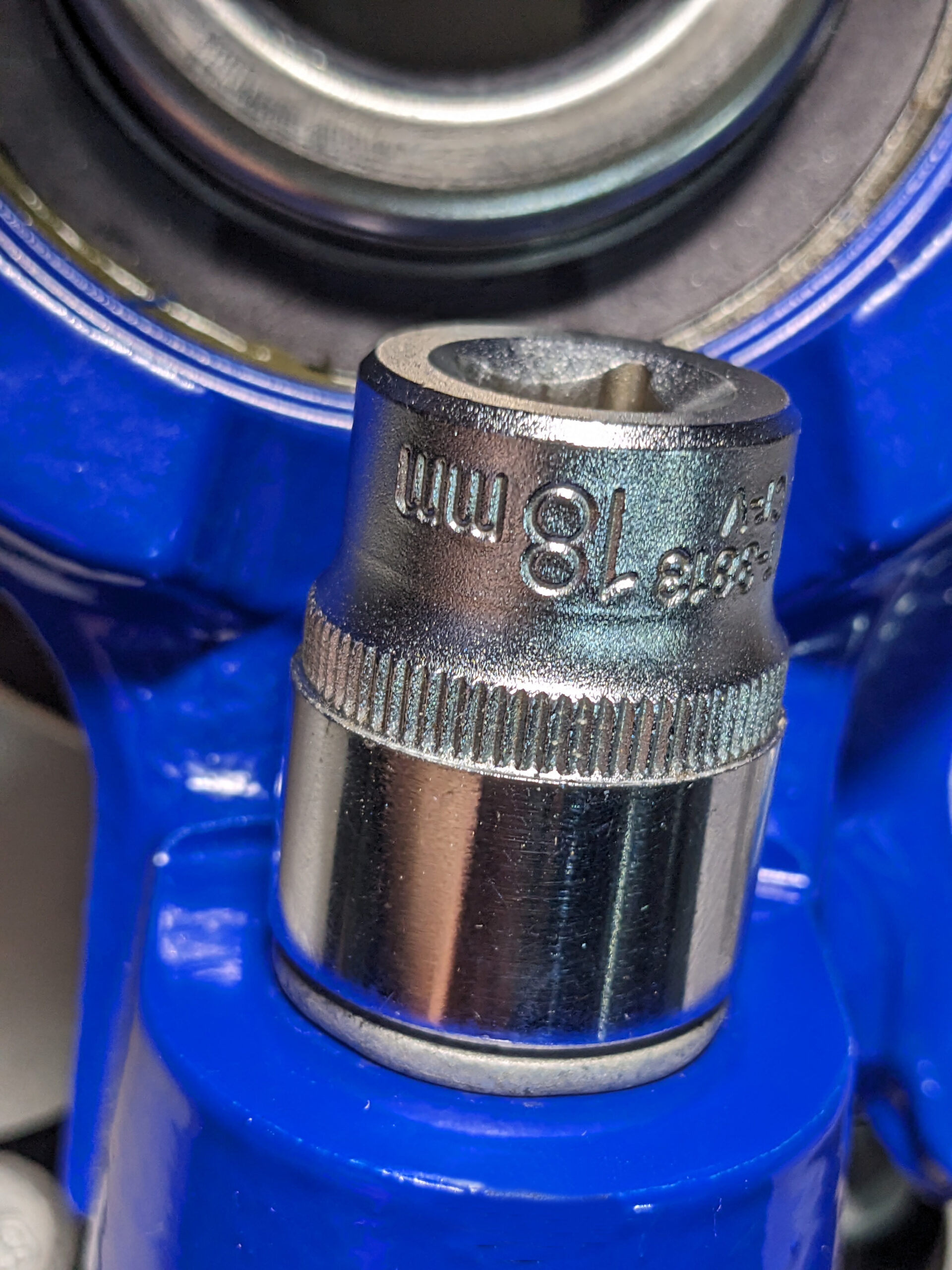

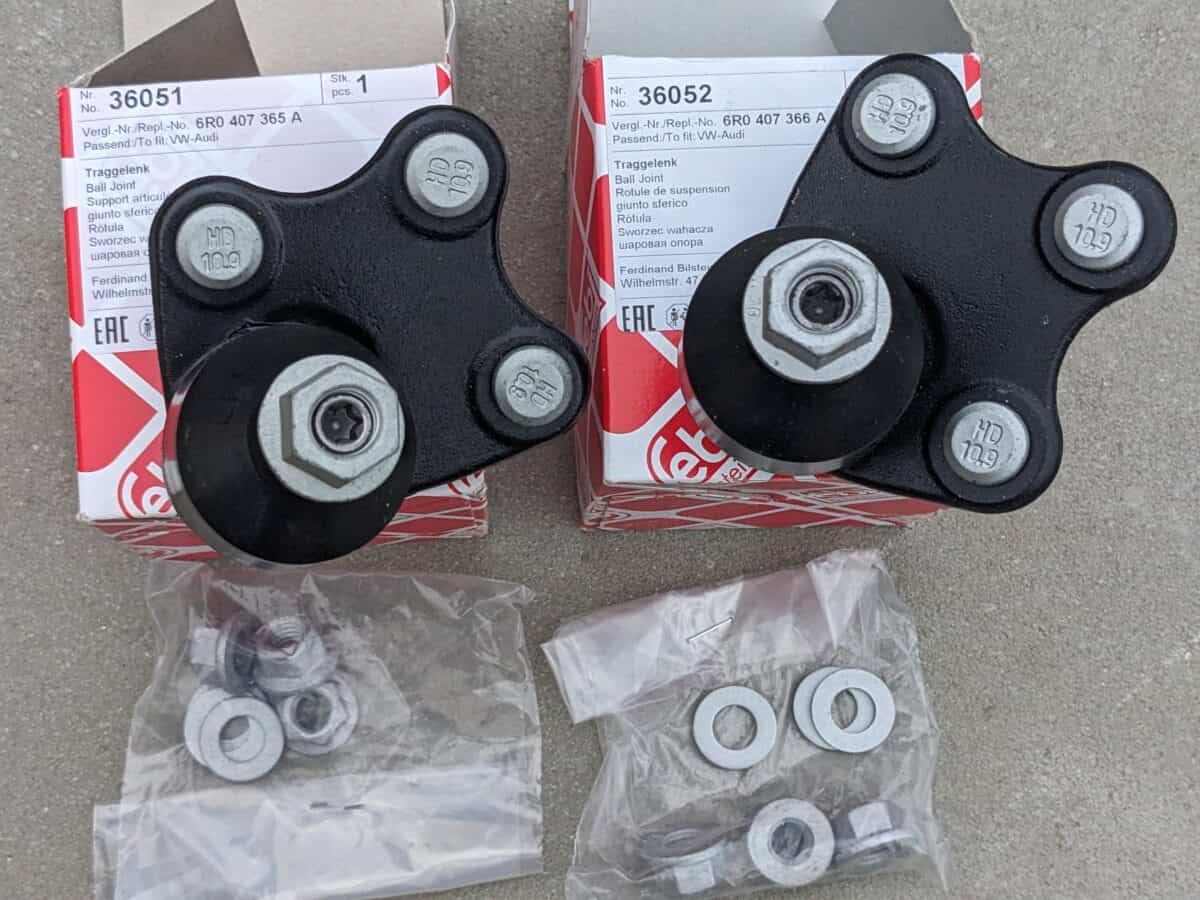

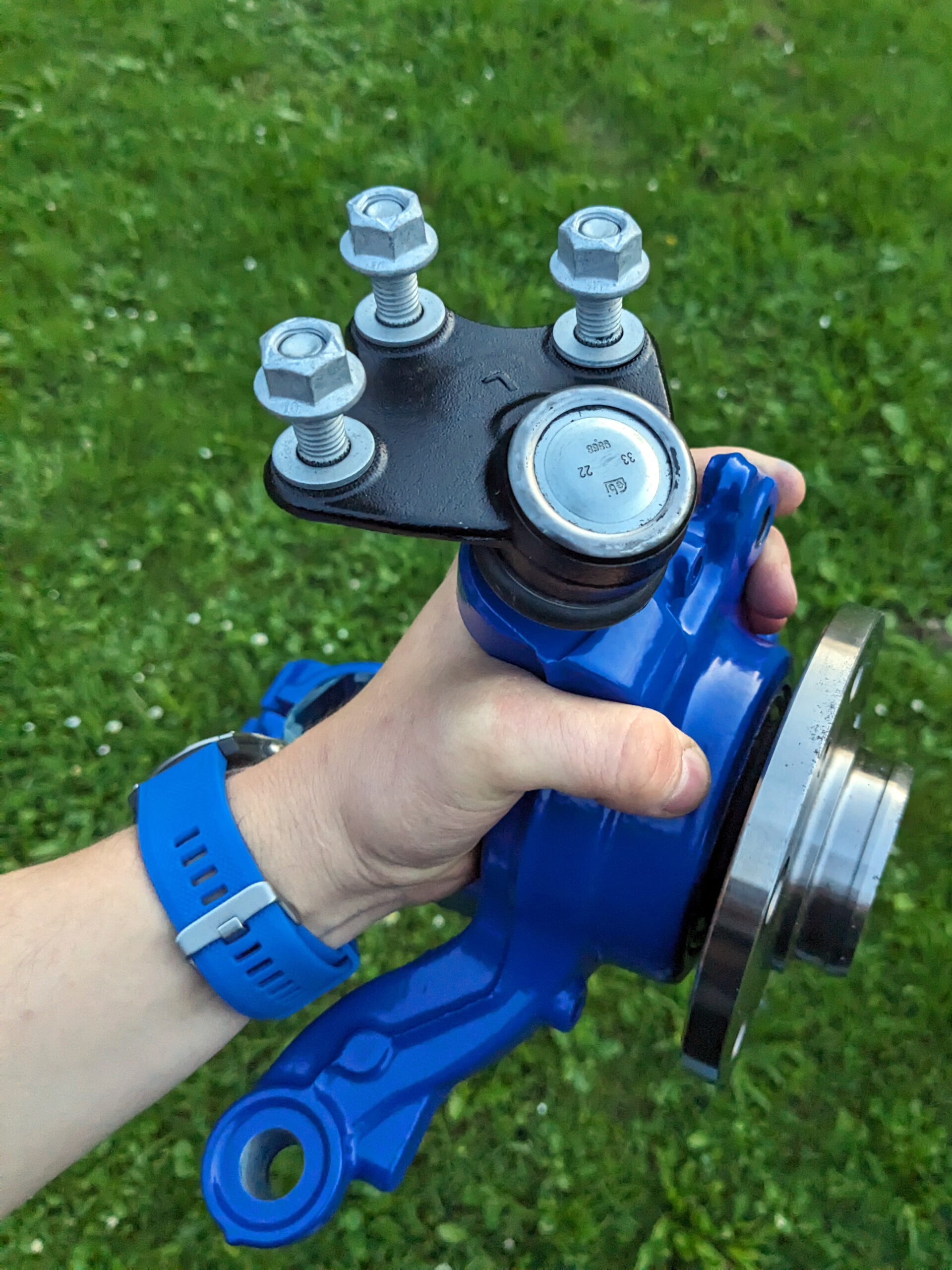

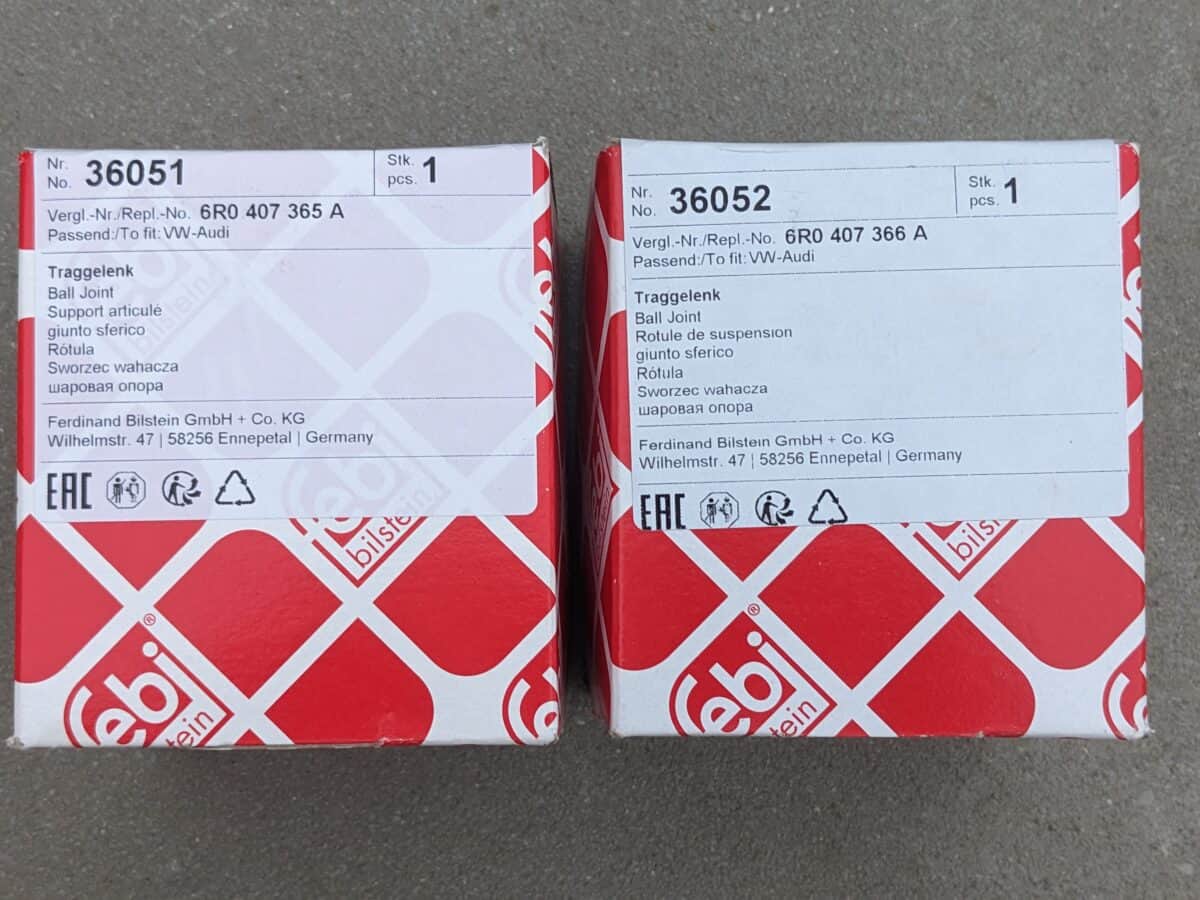

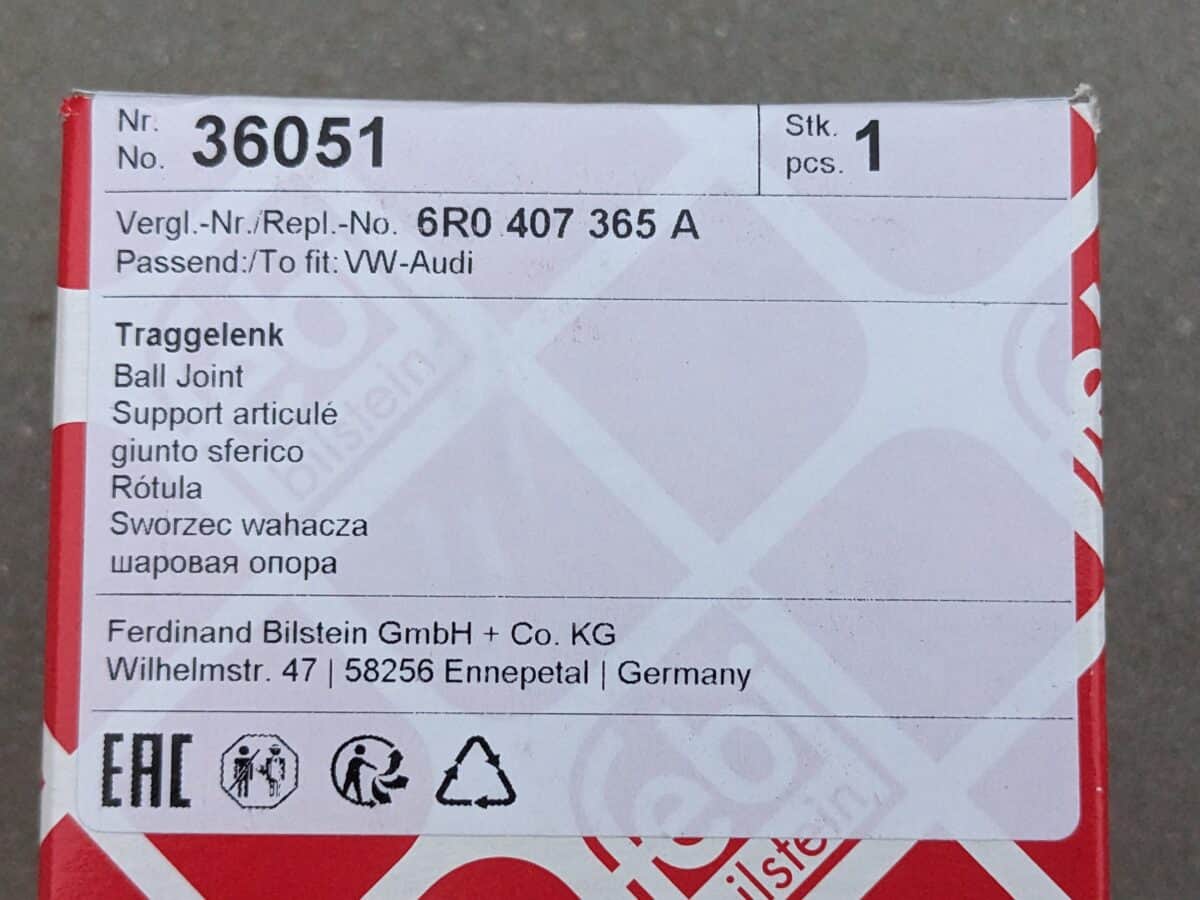

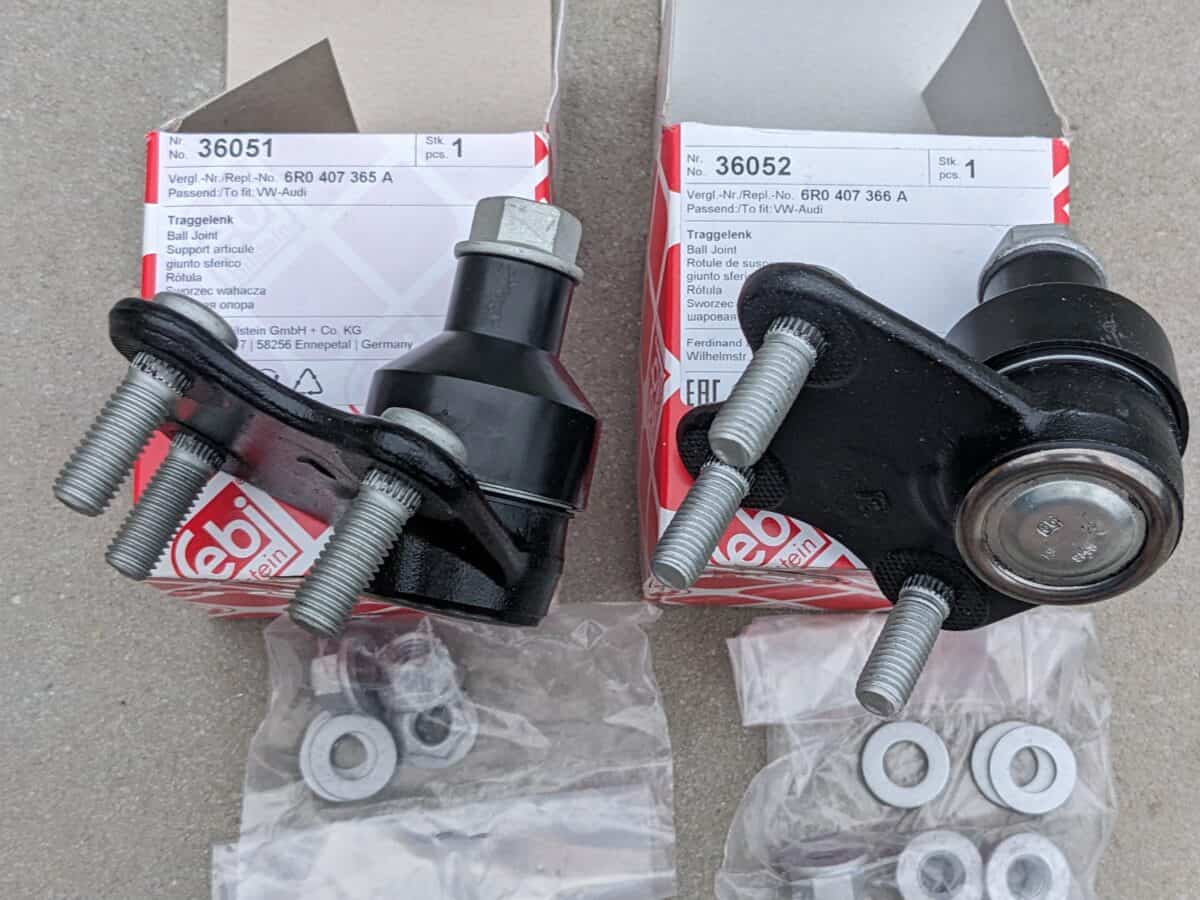

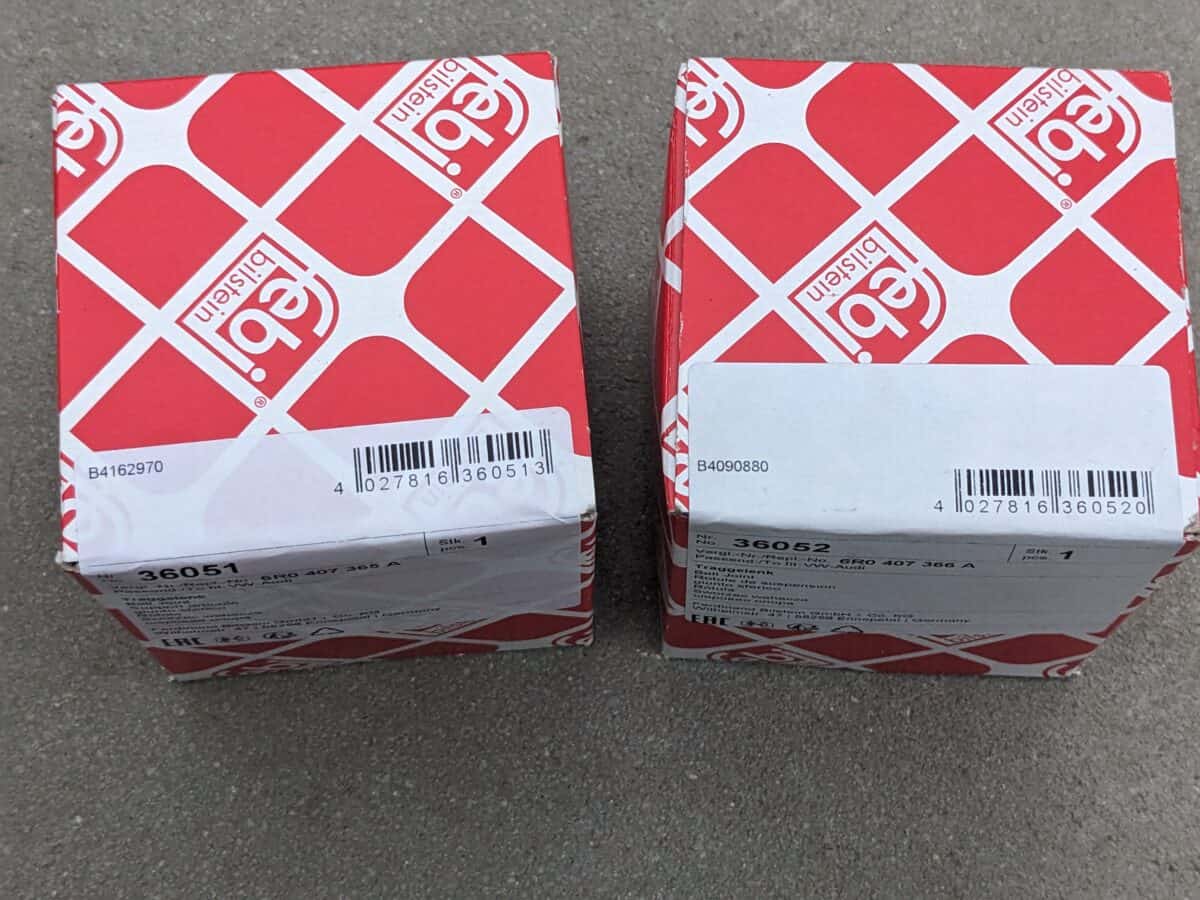

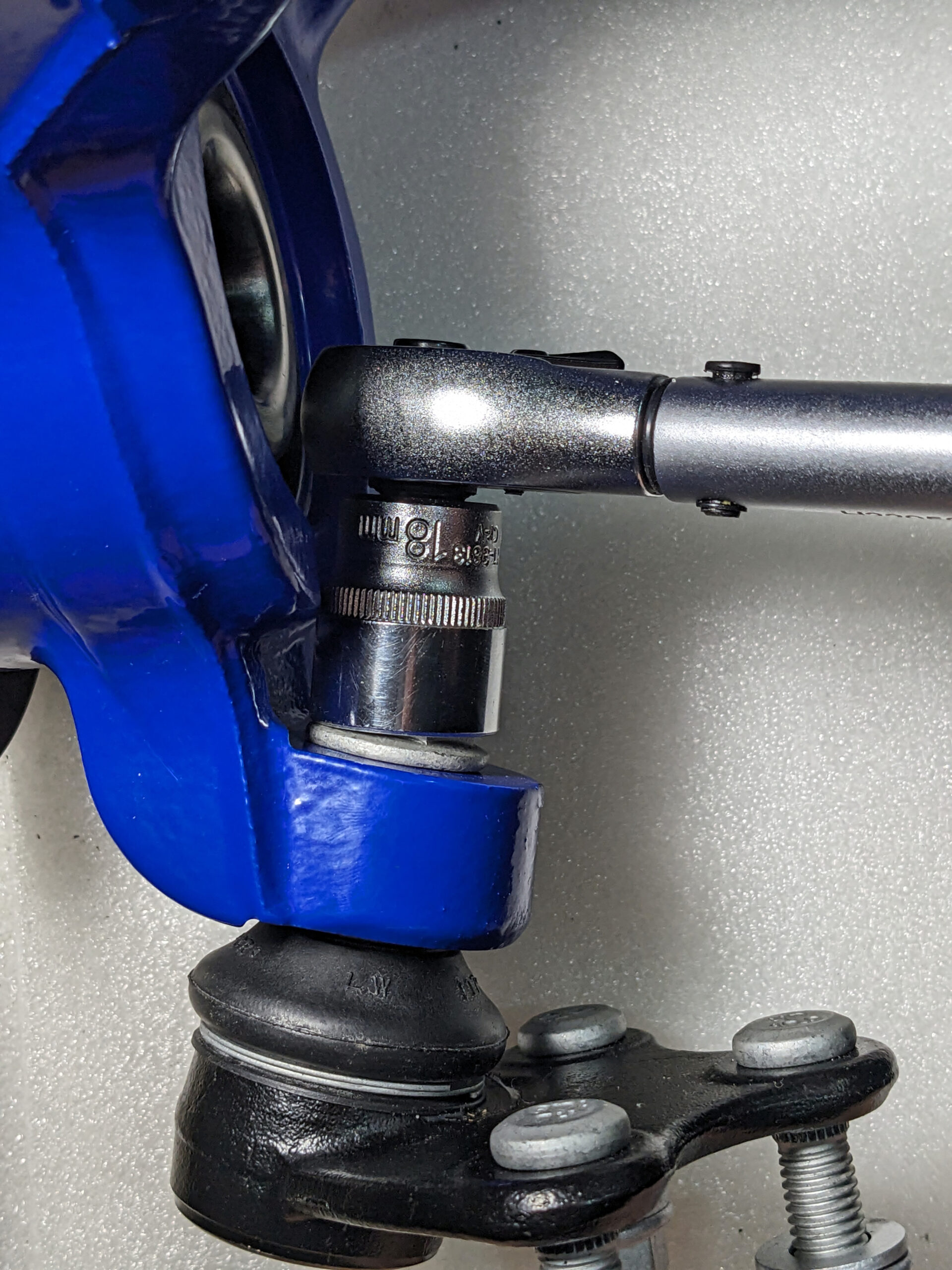

1. Trailing-arm suspension ball pins (6R0407365B + 6R0407366B)
6R0407365B – left6R0407366B – right

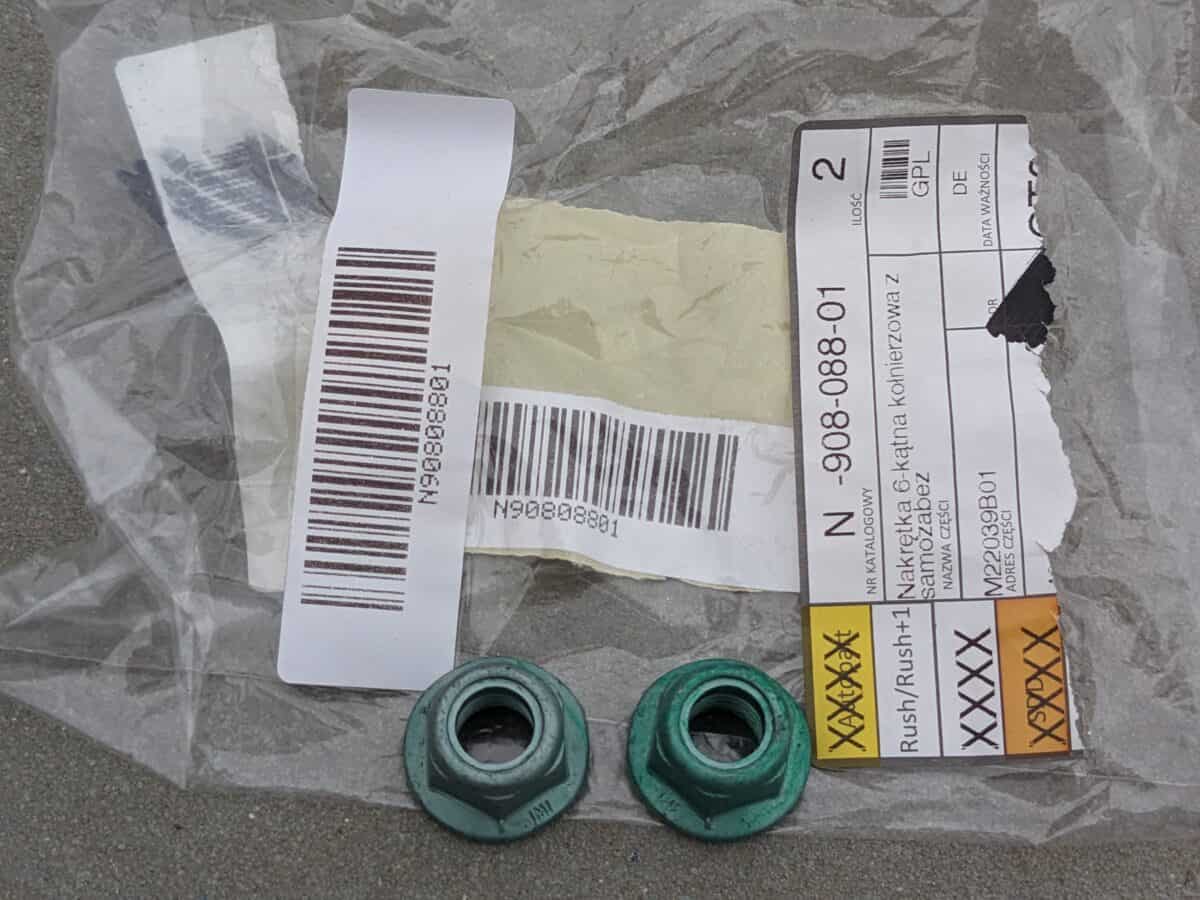

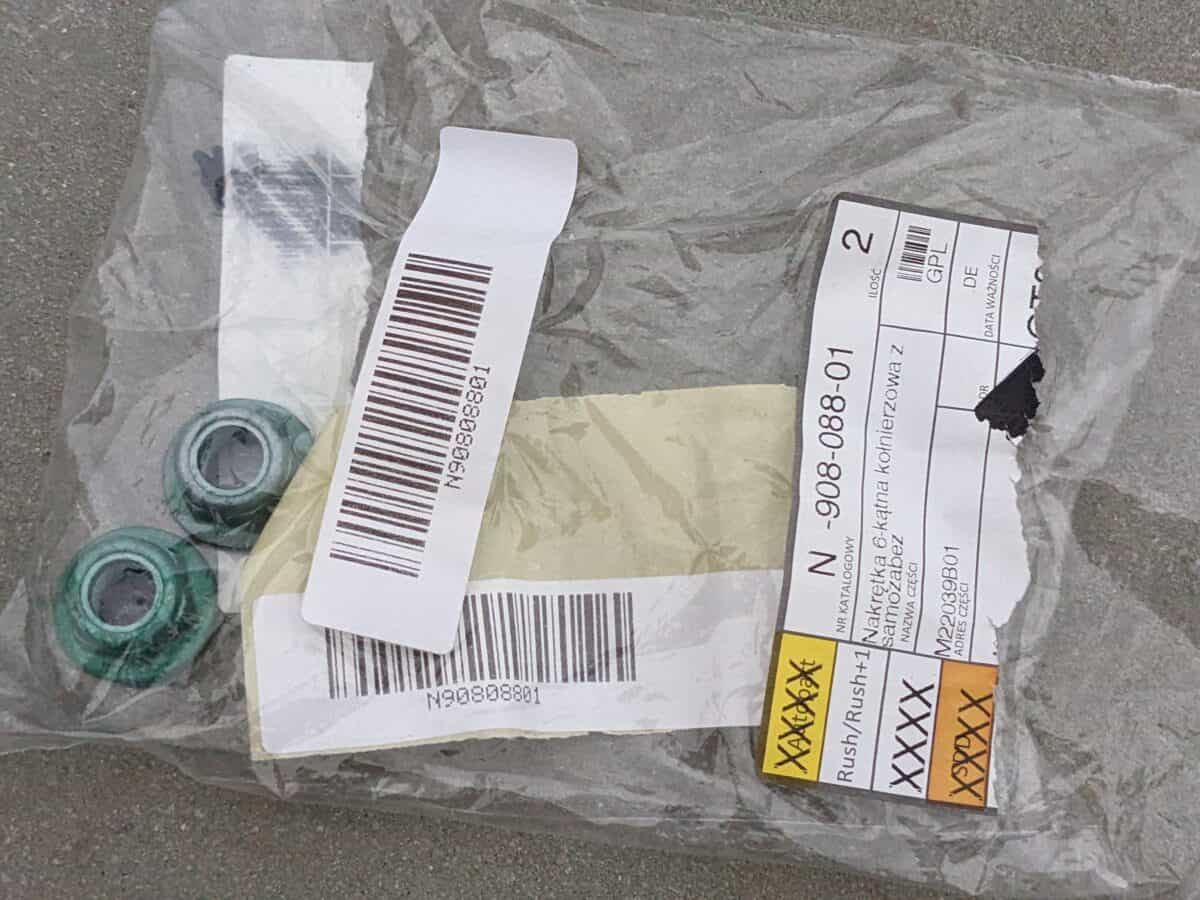

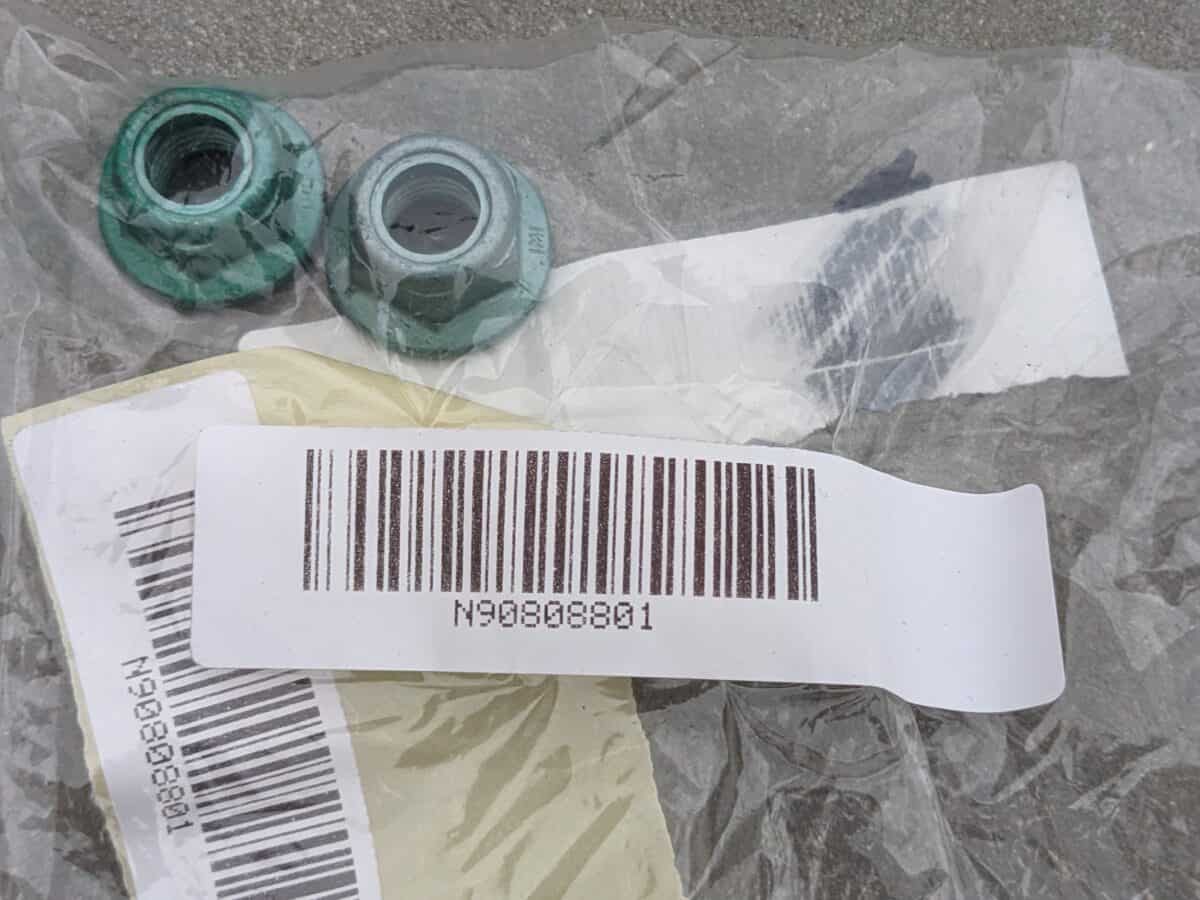

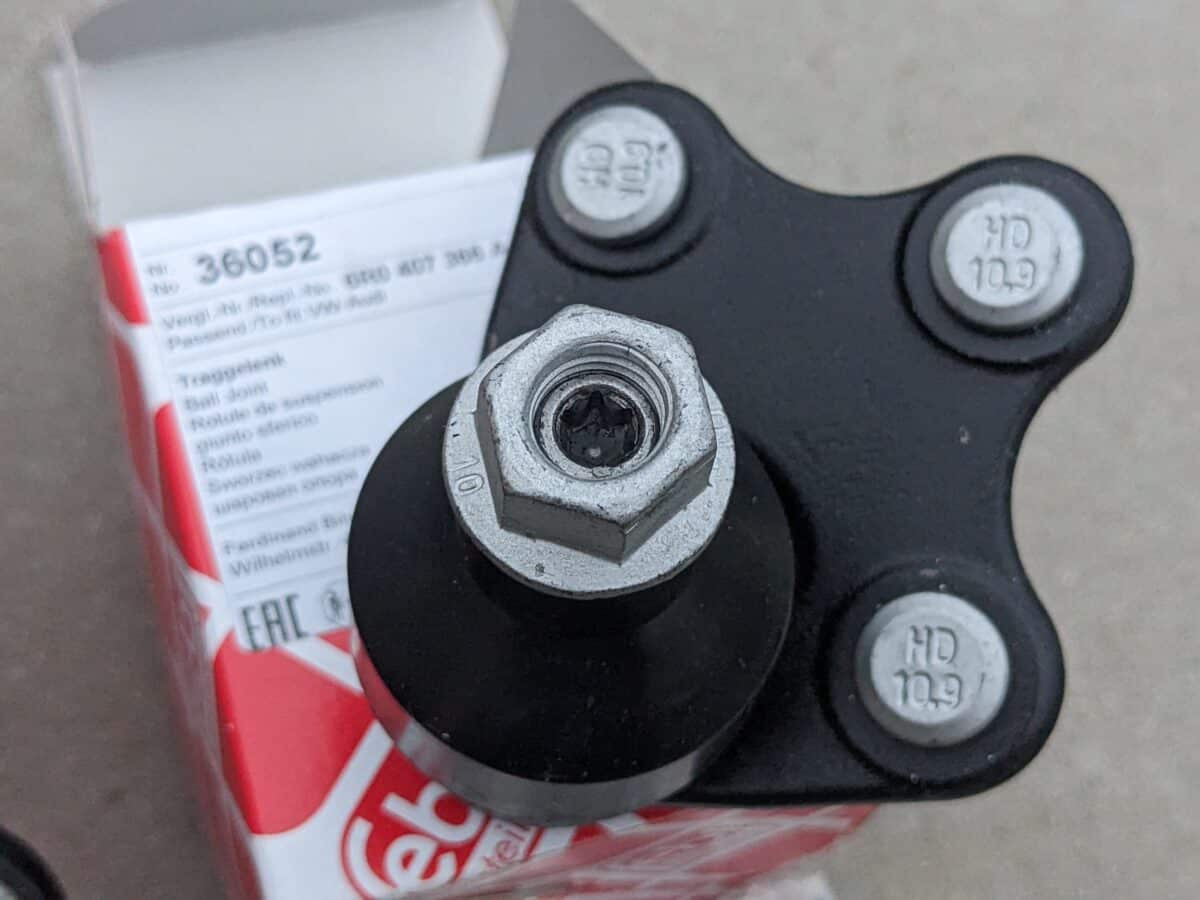

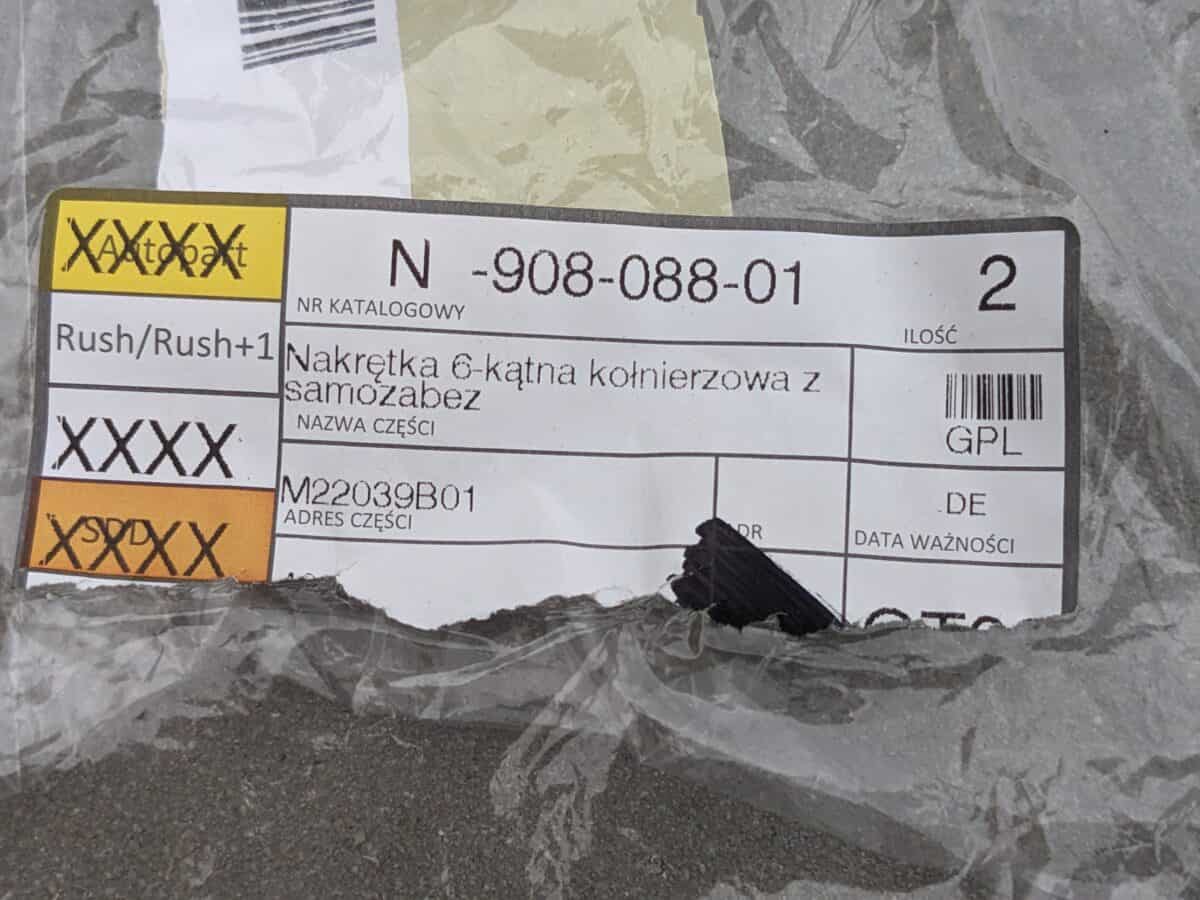

2. Ball pin nut M12X1,5 N90808801
Tightening torque: 20 Nm and turn 90° further
The nut was already included with the FEBI ball pin – it will stay for the future 🙂

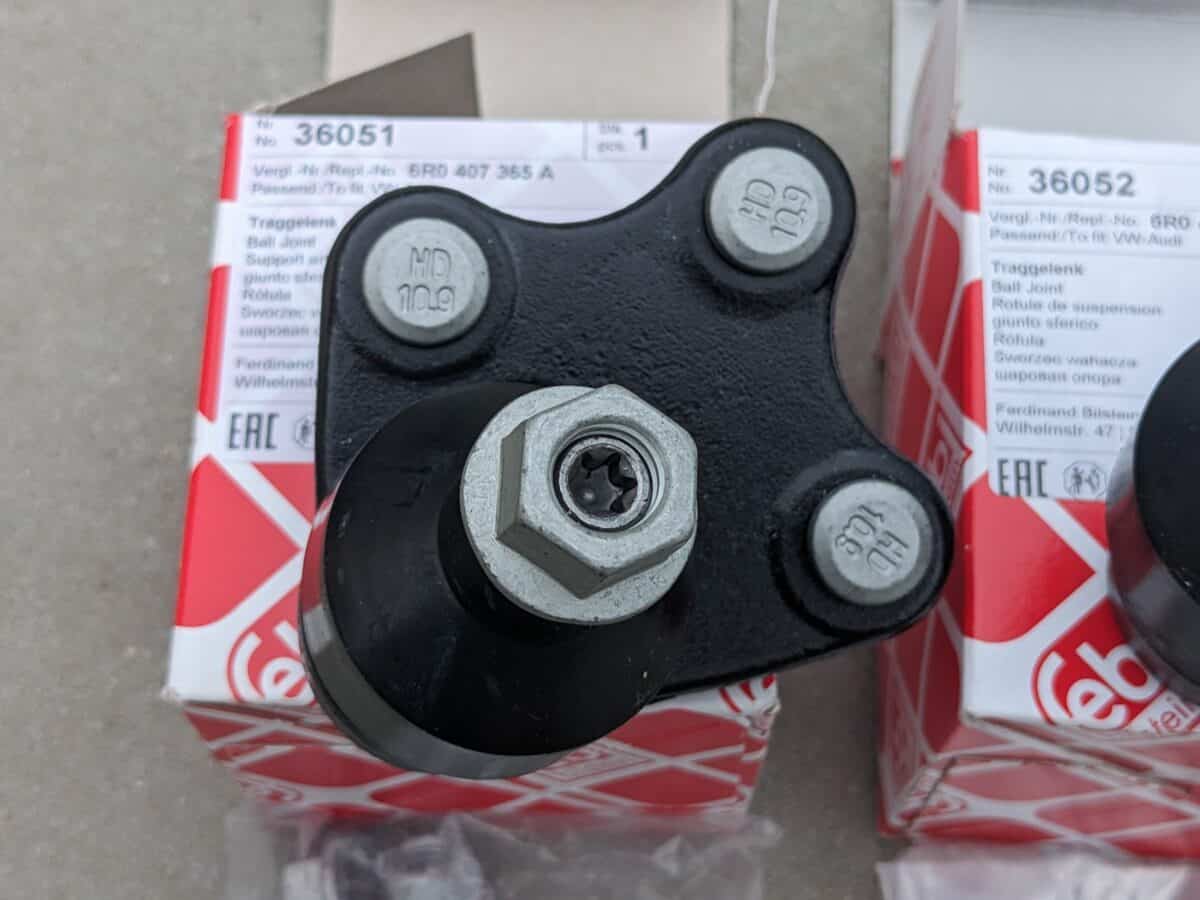

3. Hexagon collar nut M10 N10332002
Tightening torque: 100 Nm
The nuts can be seen in the photos of the control arm pins (above)

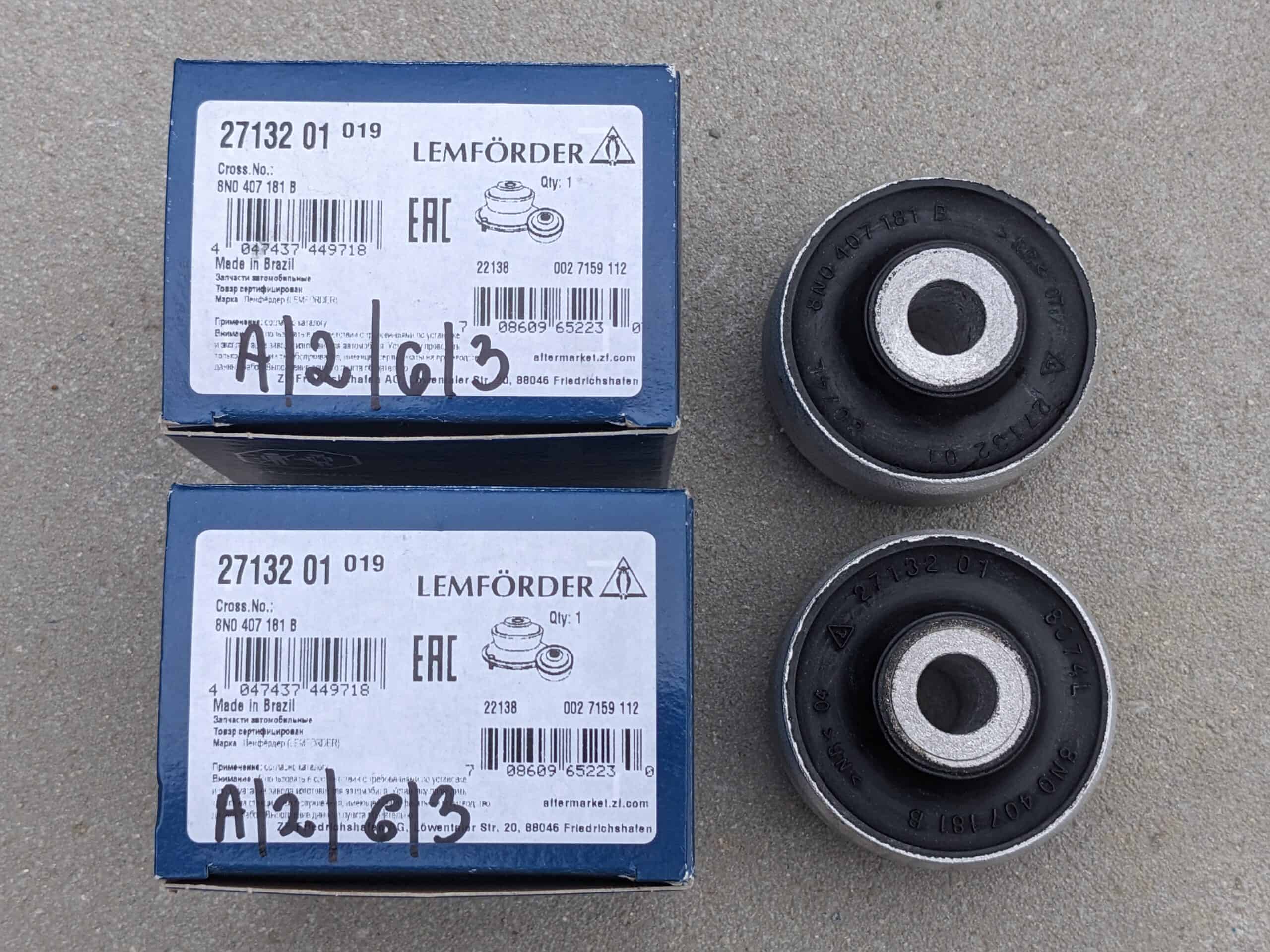

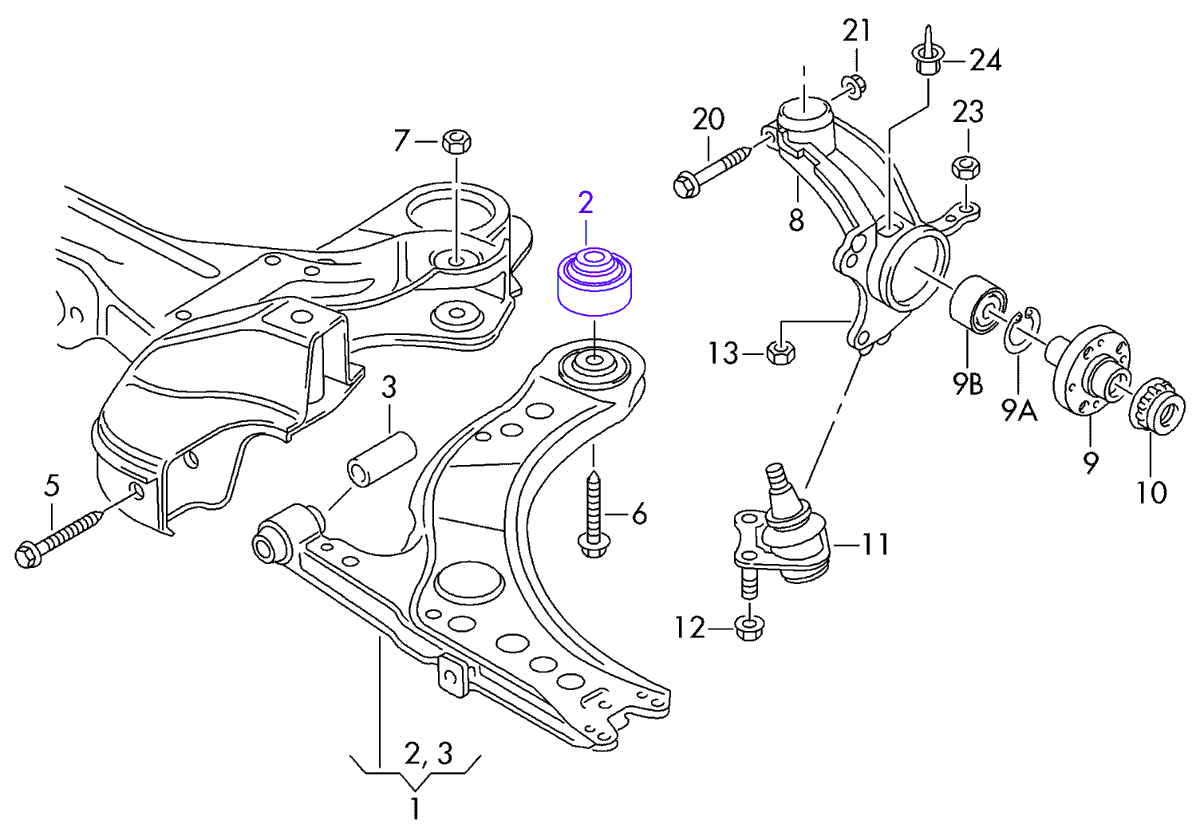

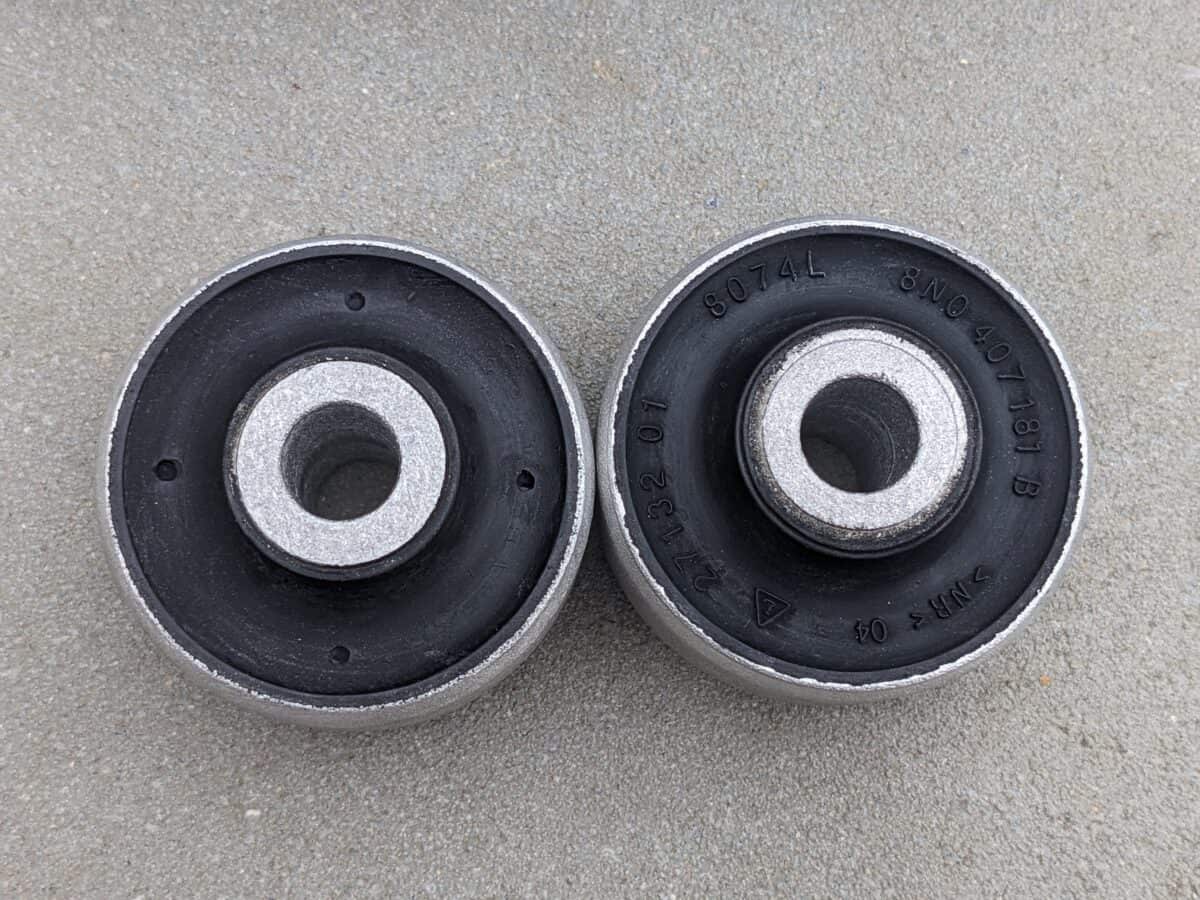

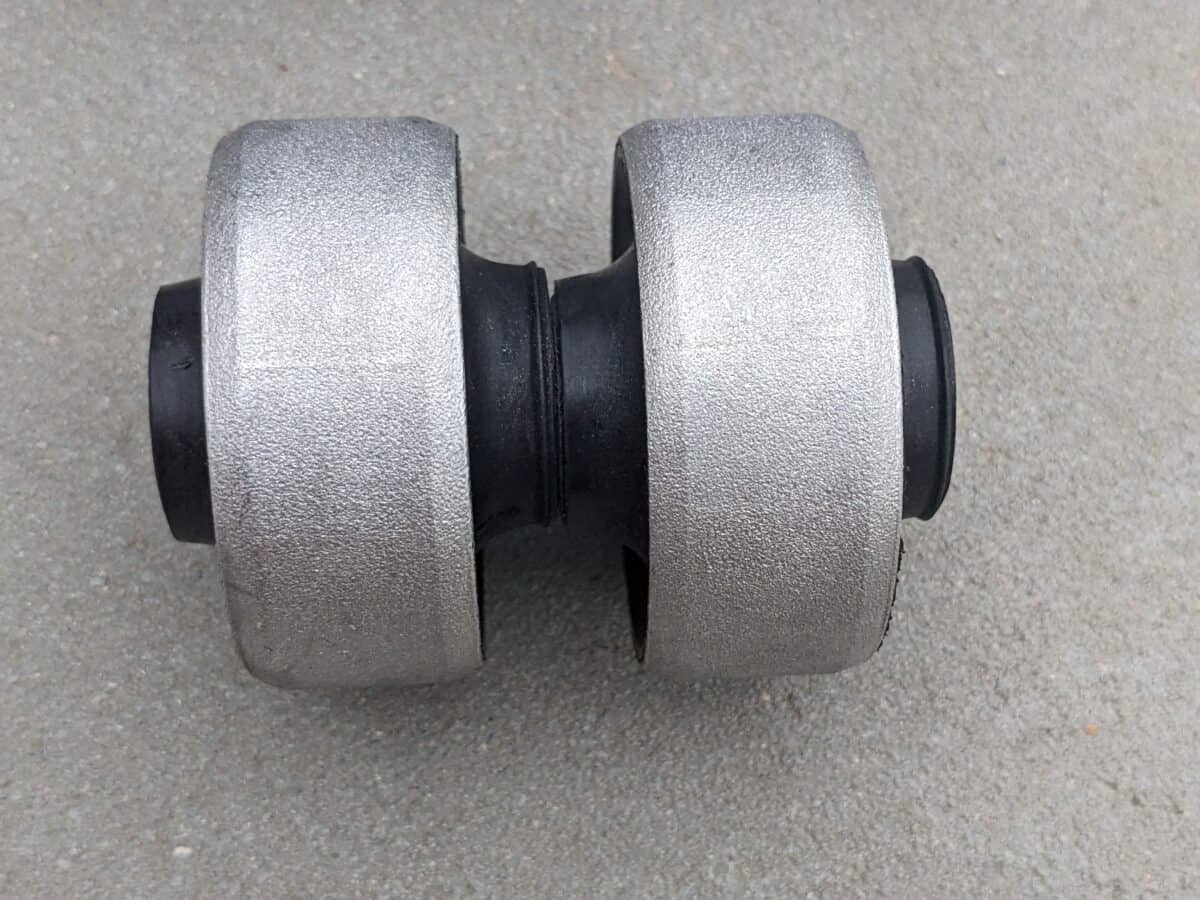

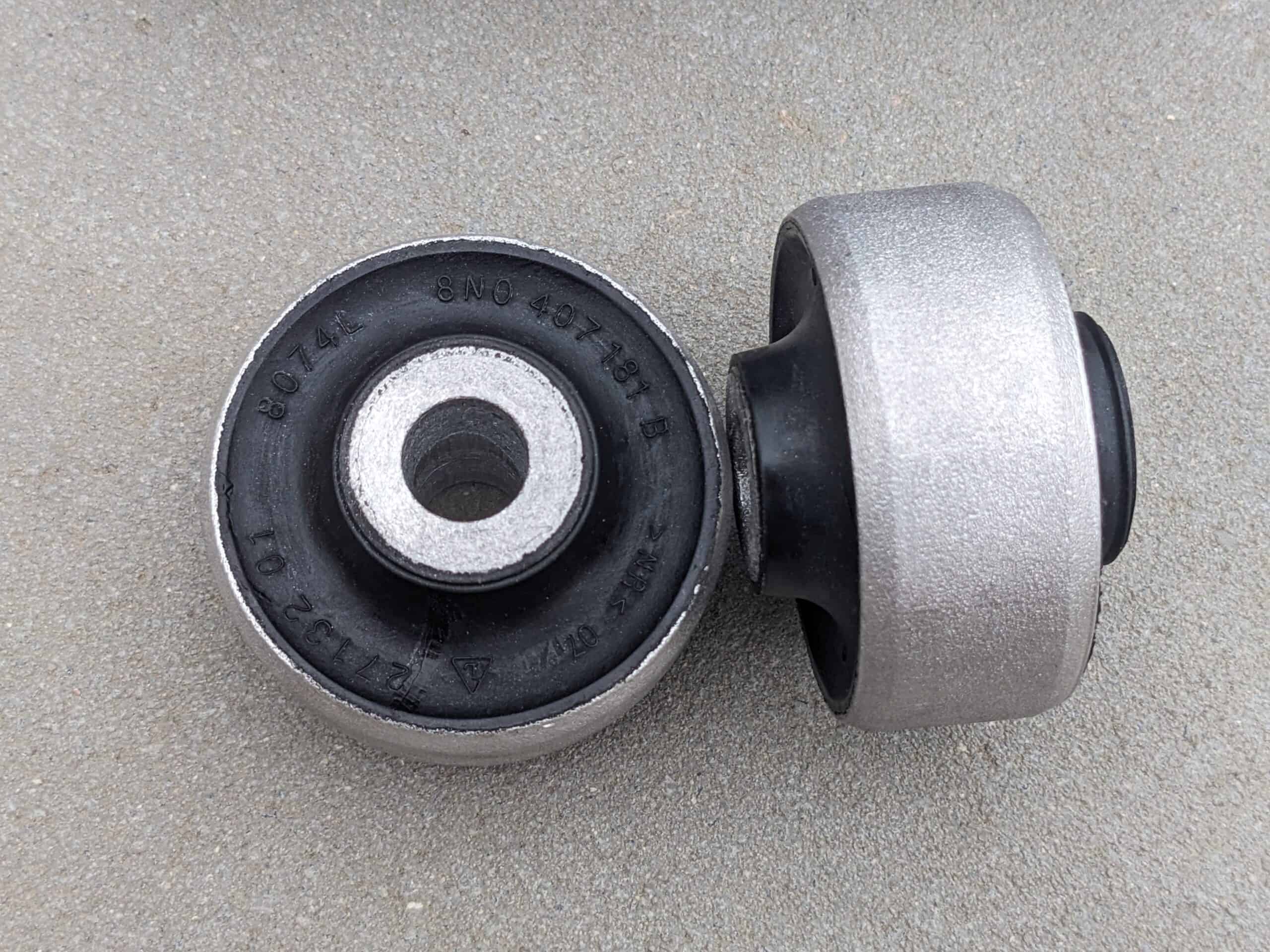

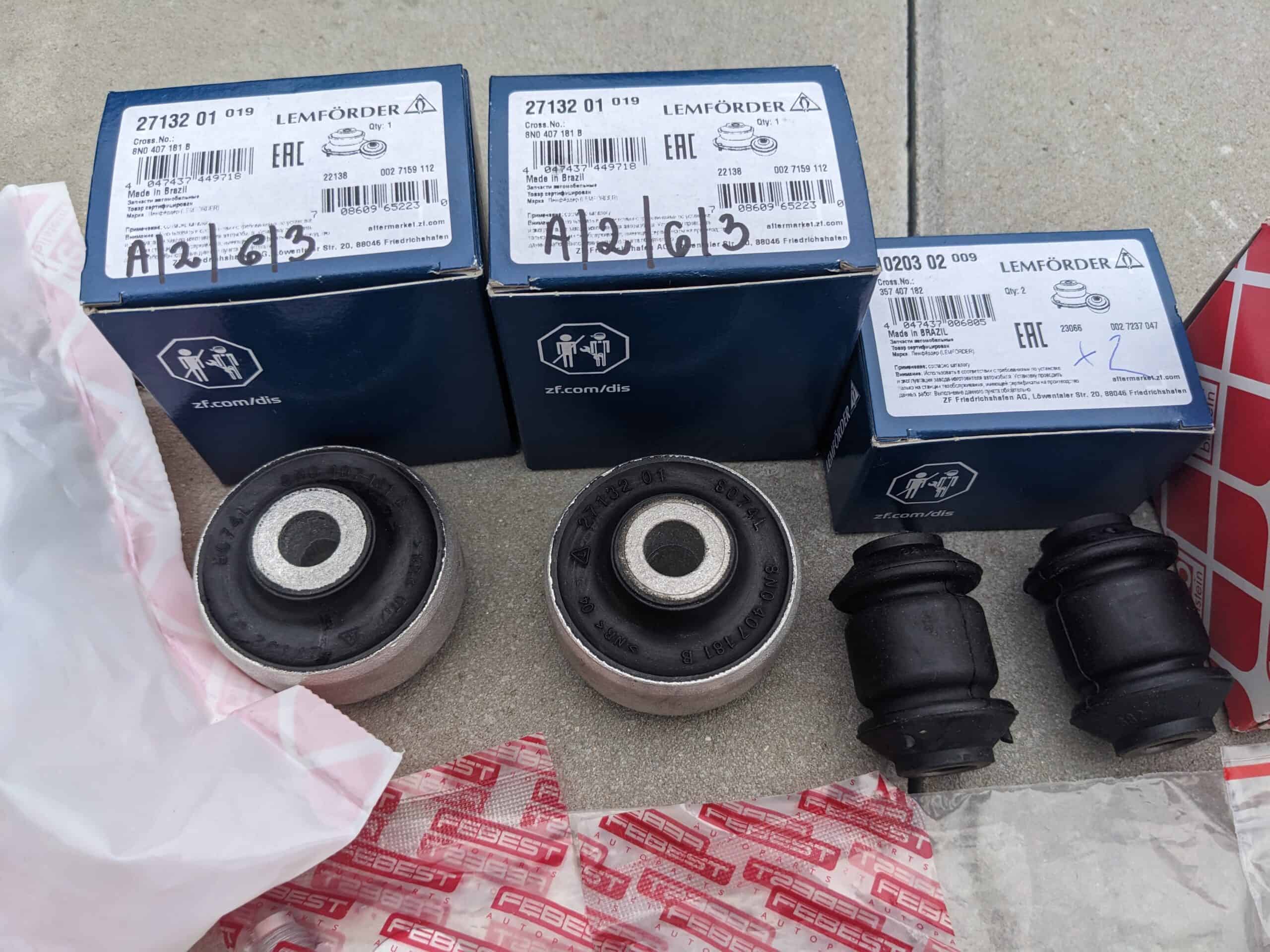

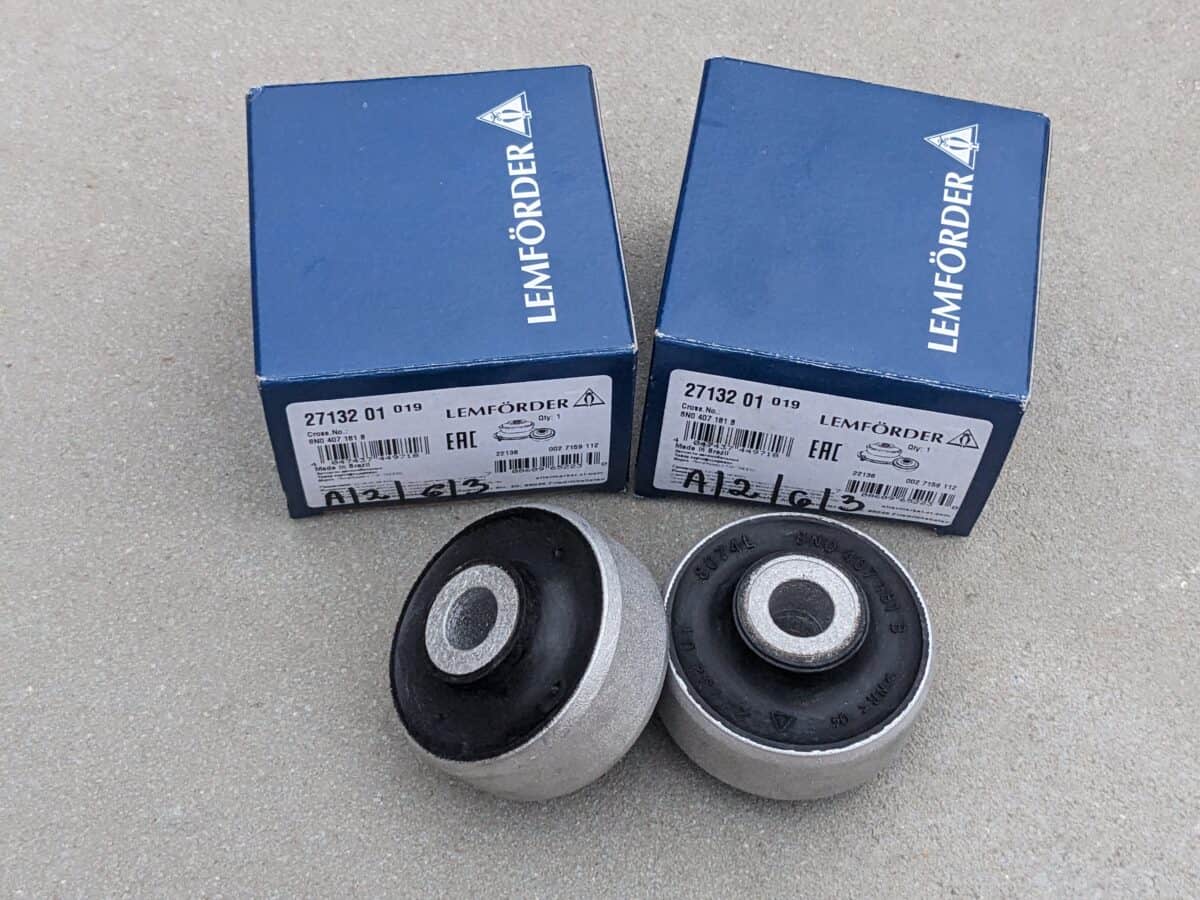

4. Bushing for trailing-arm suspension (rear) 6R0407181B/ 8N0407181B
Like all owners of more “sport” Polos, I opted for full control arm bushings from the Audi TT/Audi A1. According to many people, this is the perfect option between the standard bushings (with a hole) and the red polyurethane.
8N0407181B – Audi TT6R0407181B – Audi A1

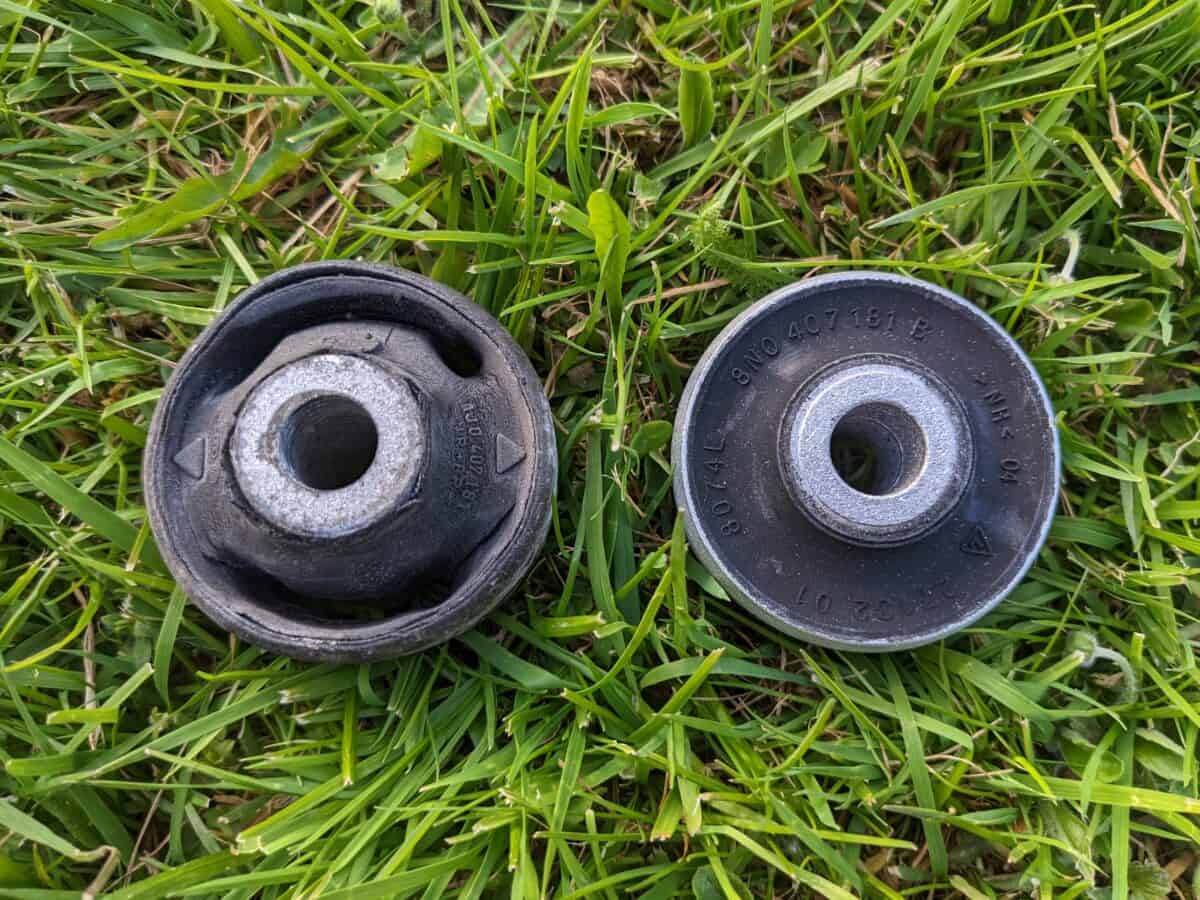

1J0407181) vs new (8N0407181B):

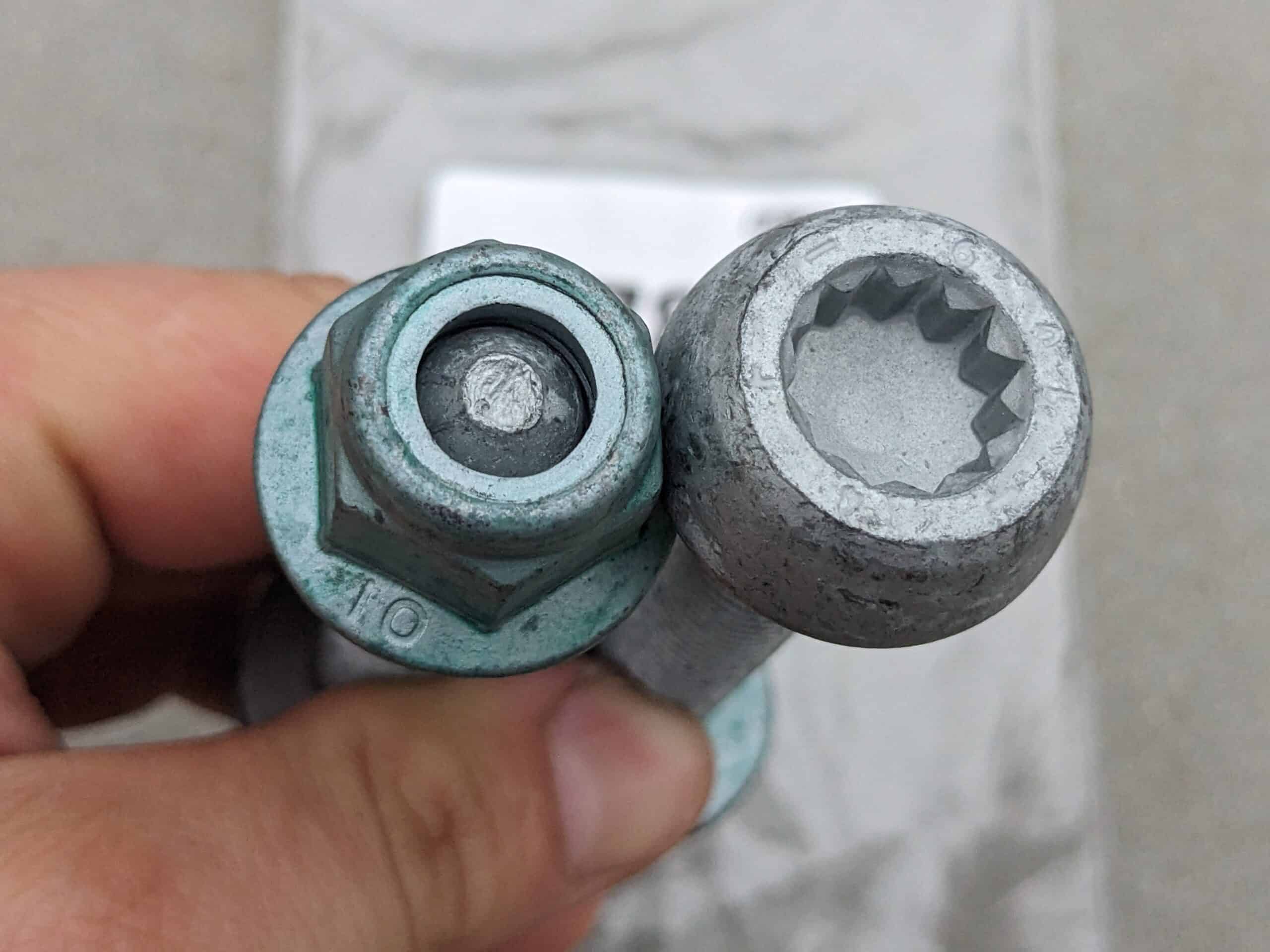

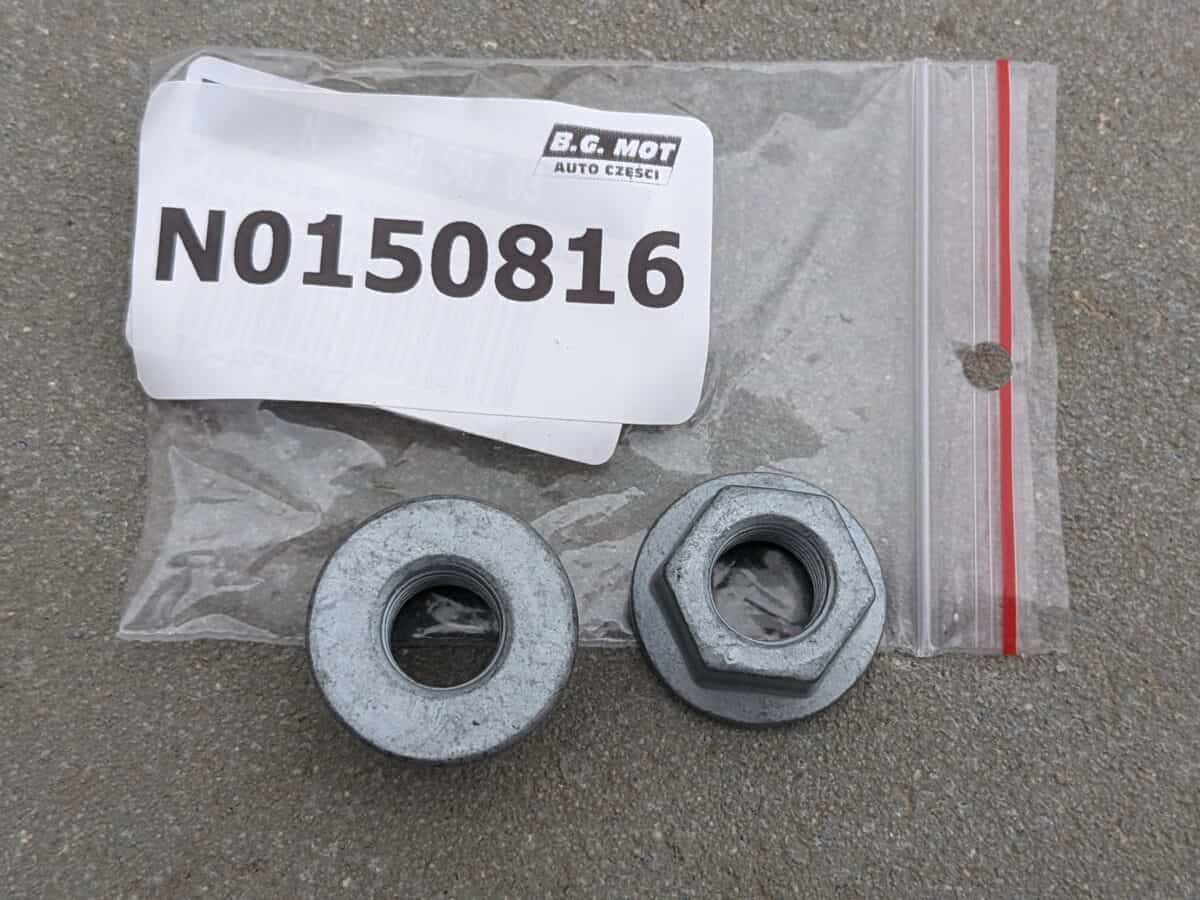

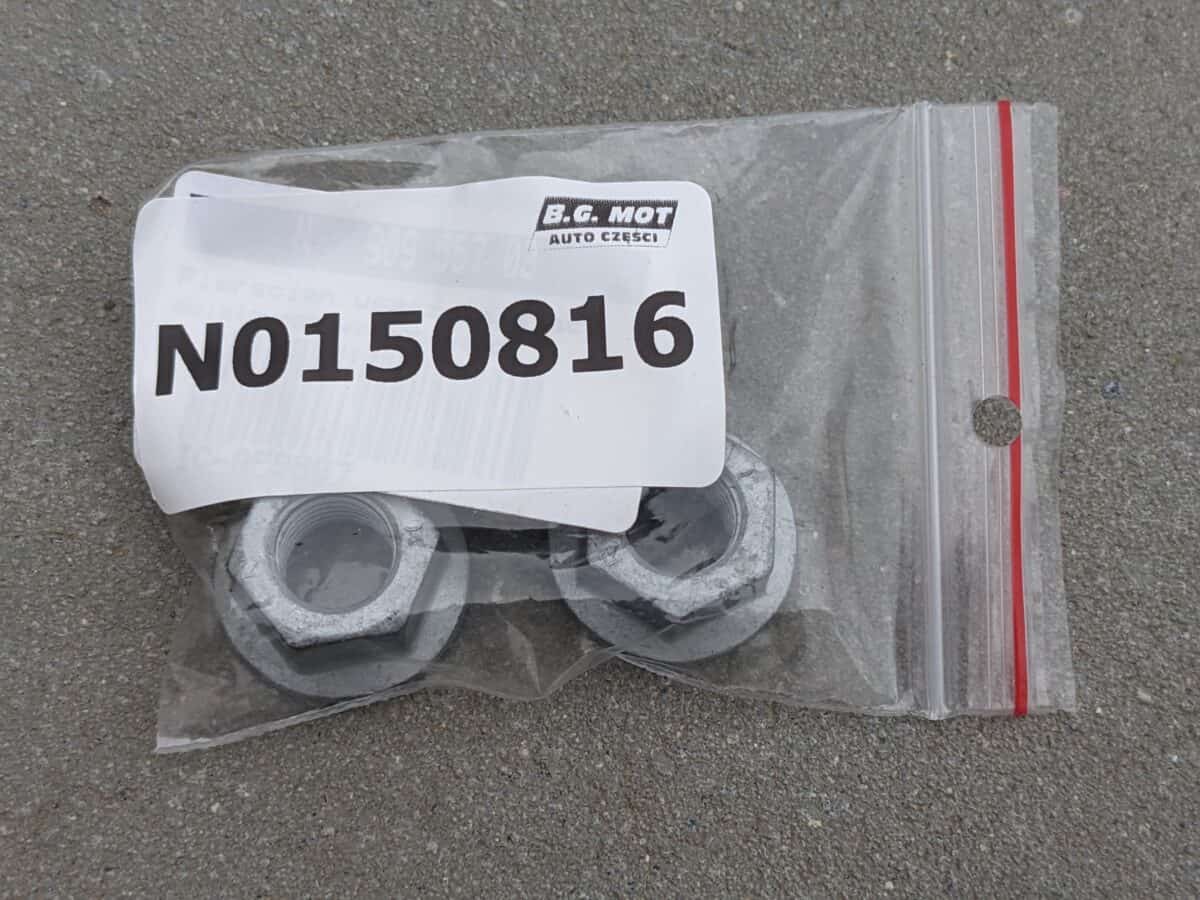

5. Hexagon collar nut M12X1,50 N0150816

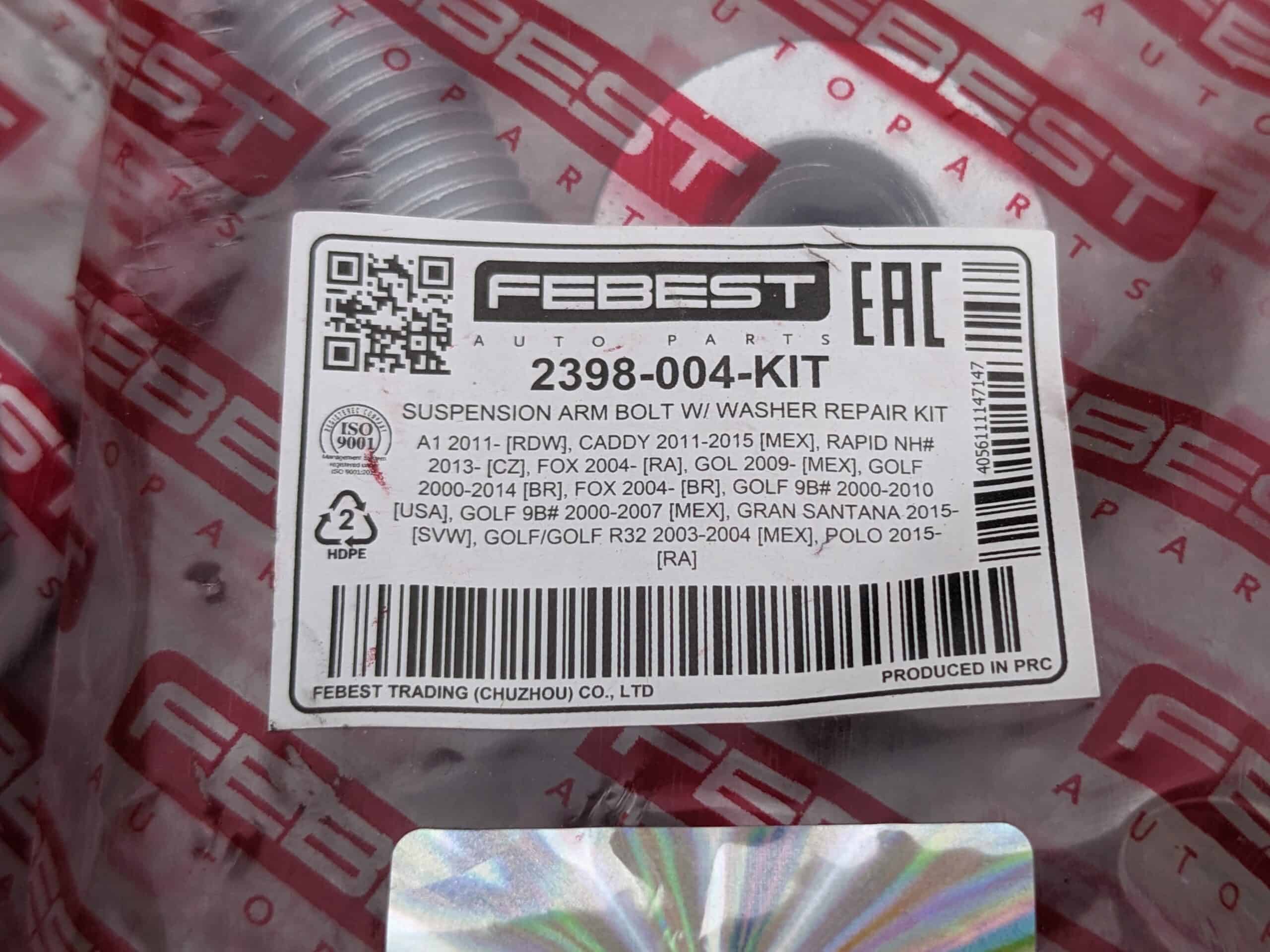

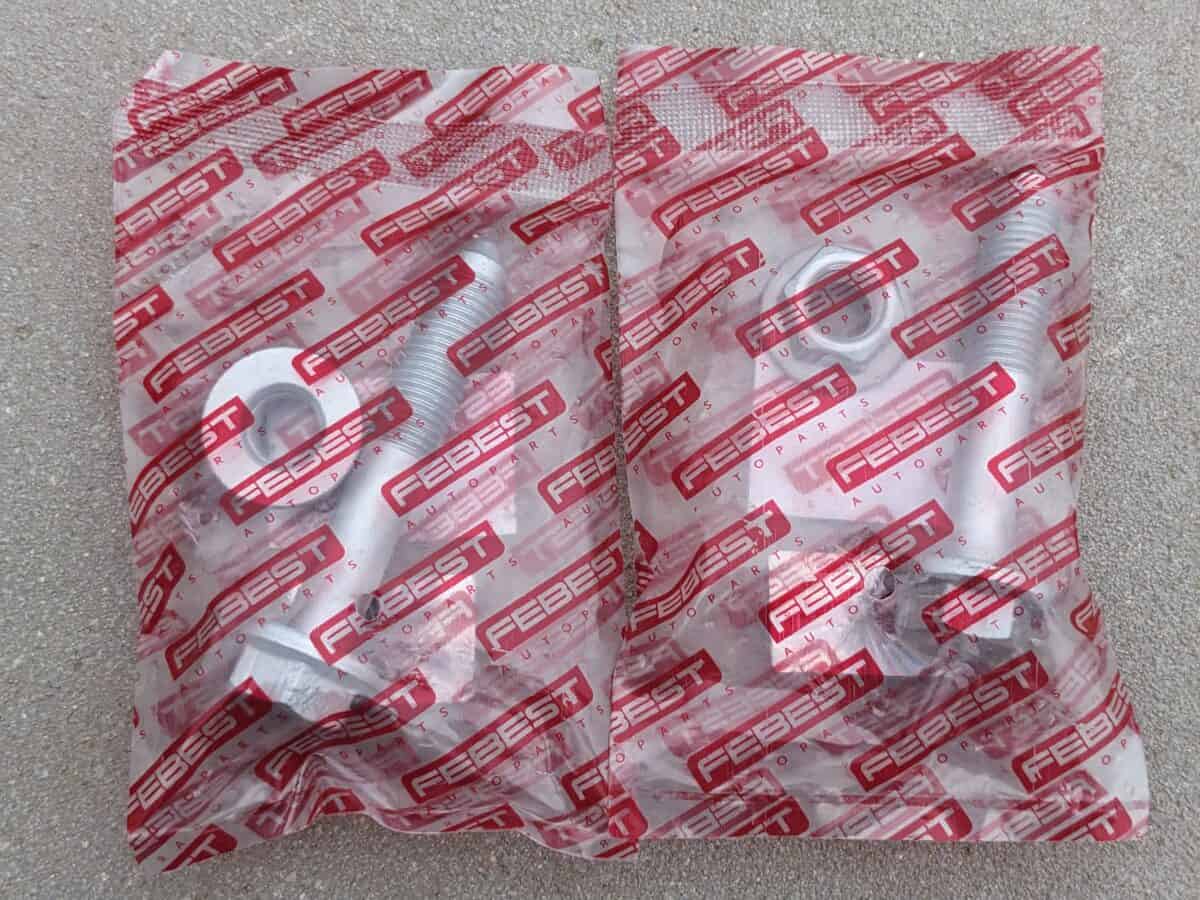

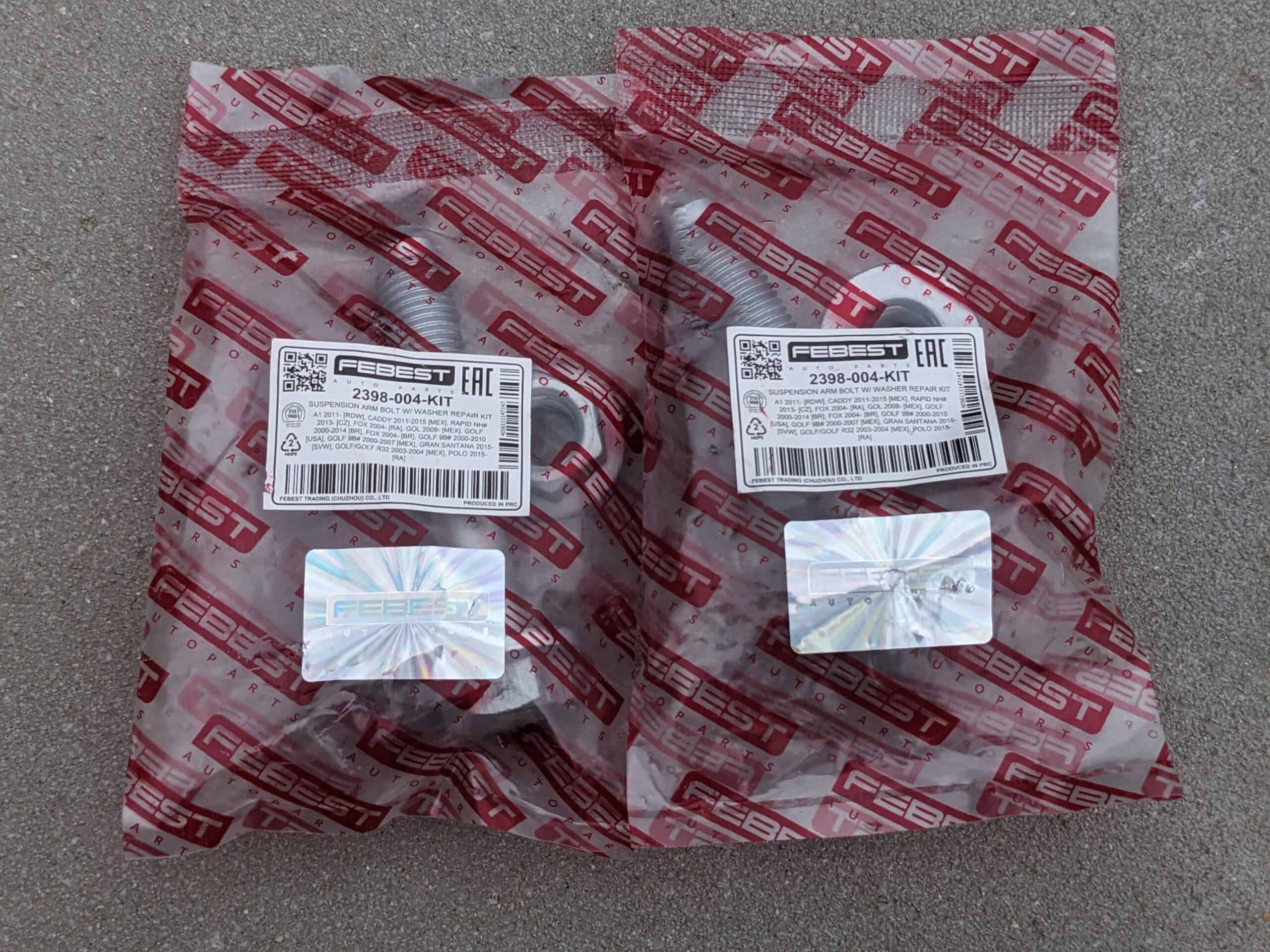

6. Hex collared bolt M12X1, 5X70 N10262202
Tightening torque: 70 Nm and turn 90° further.

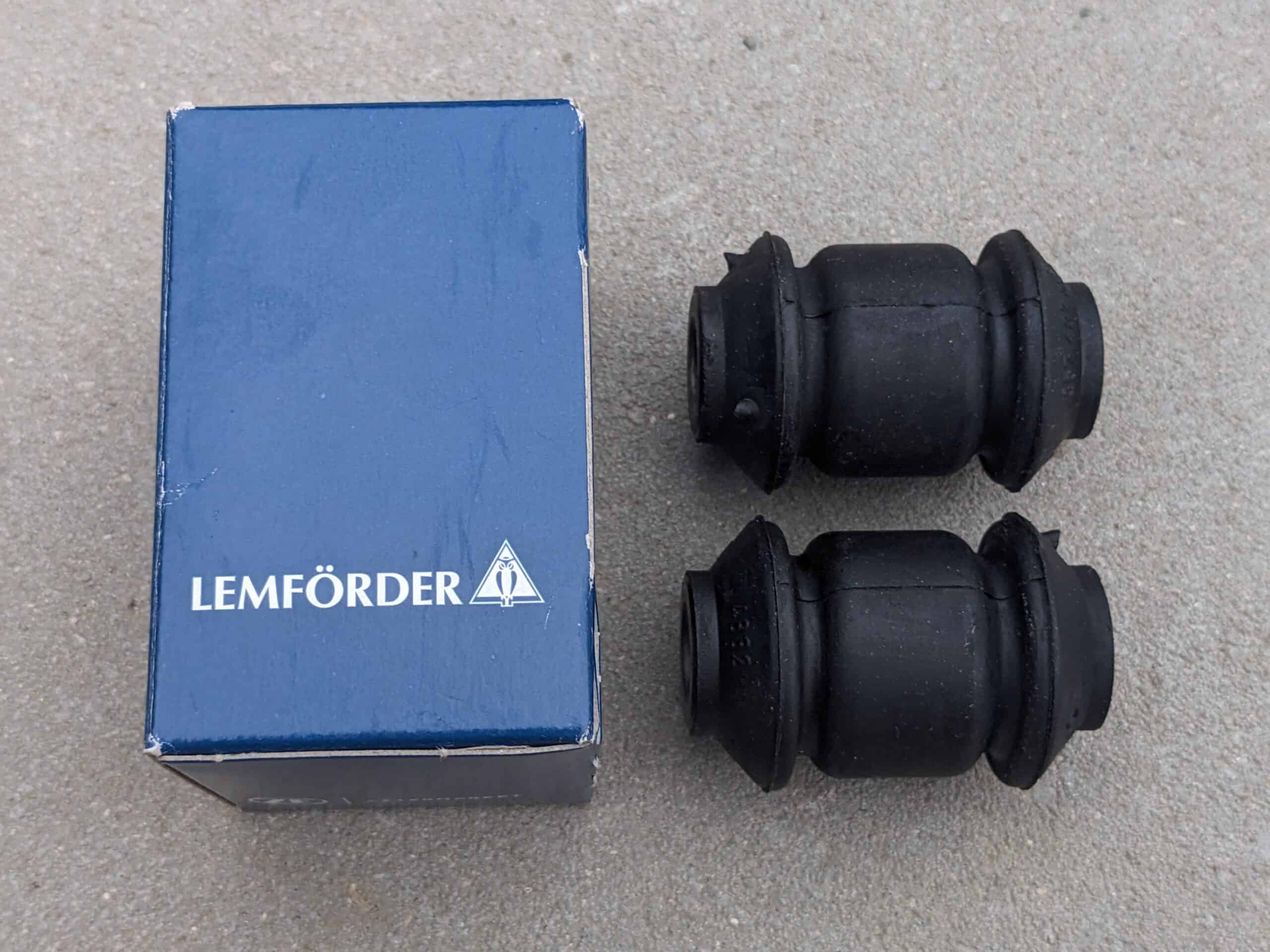

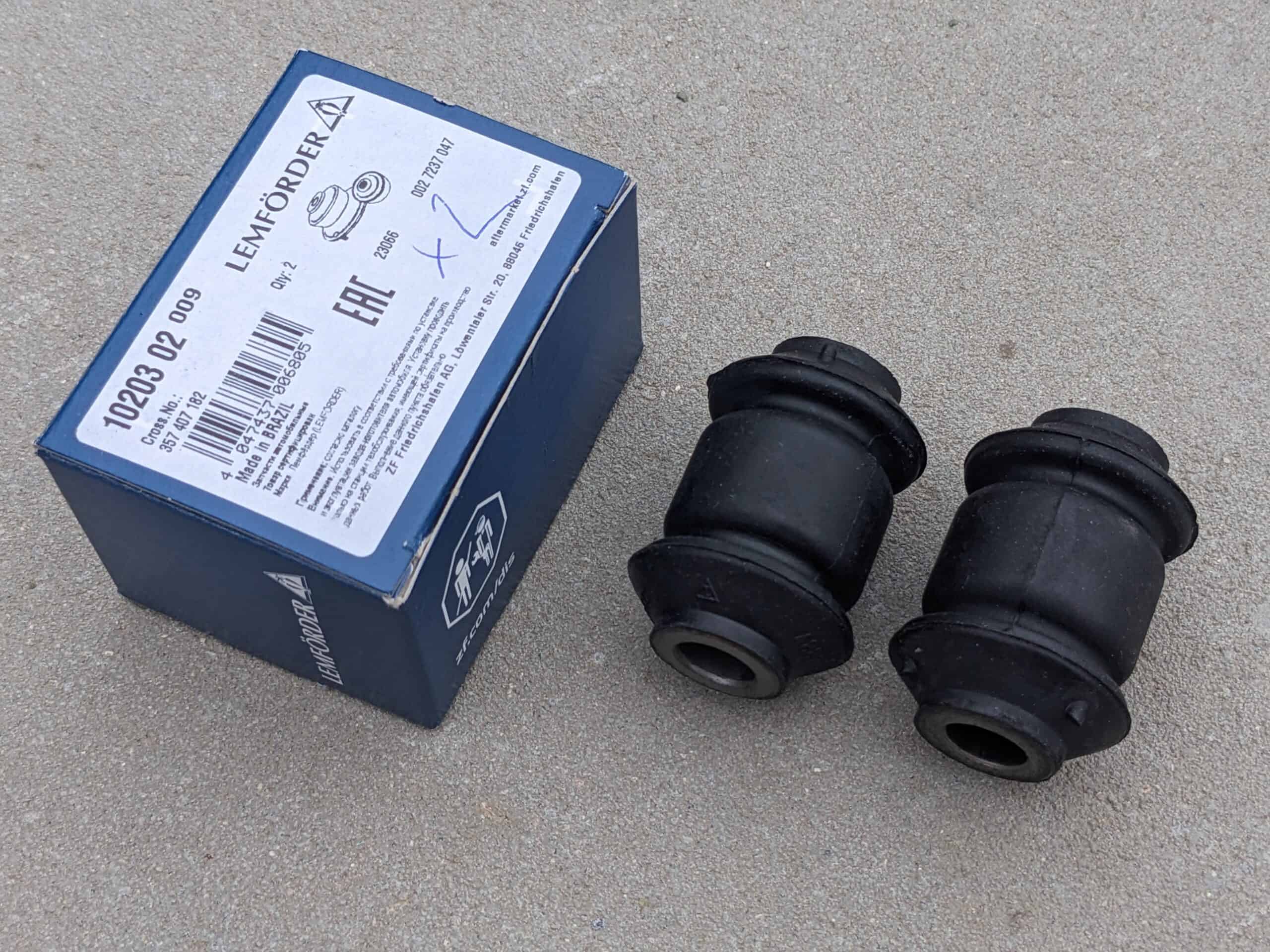

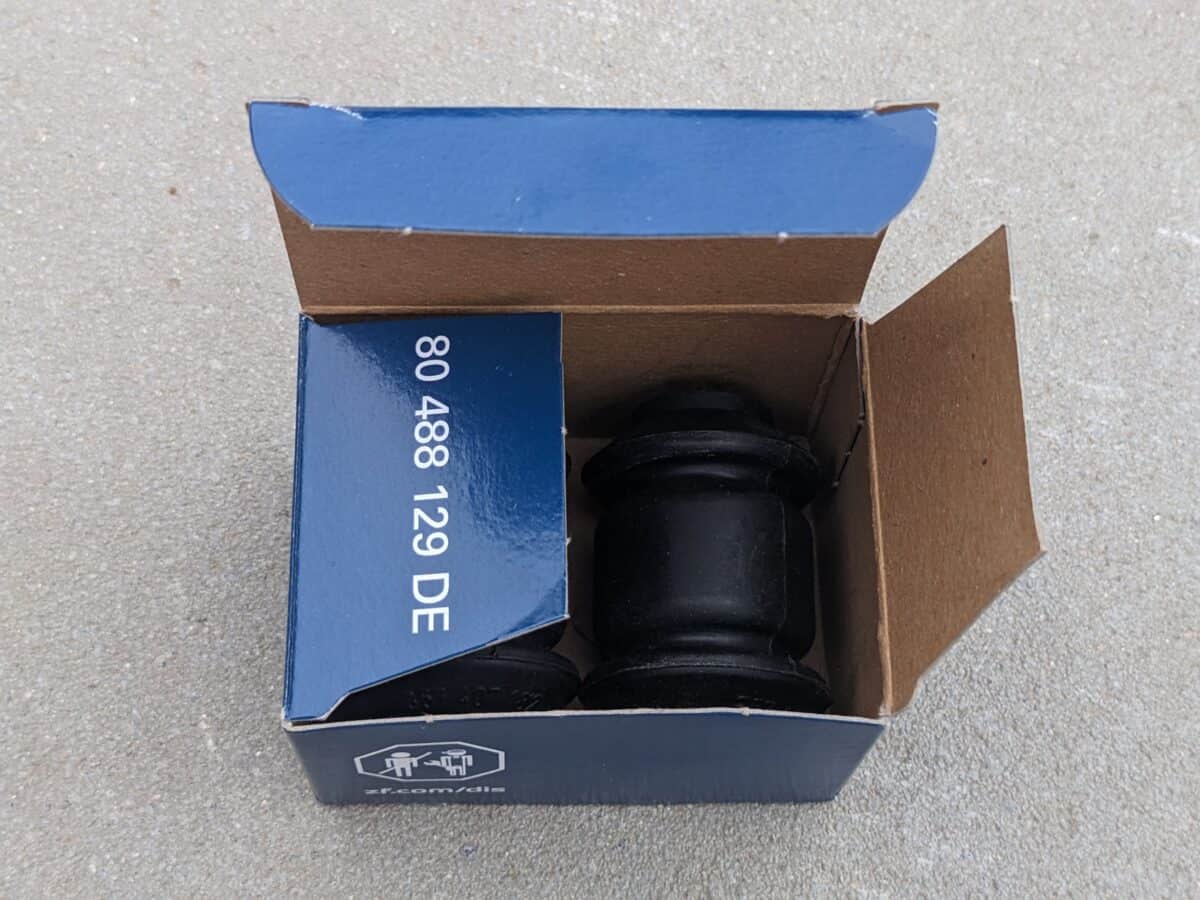

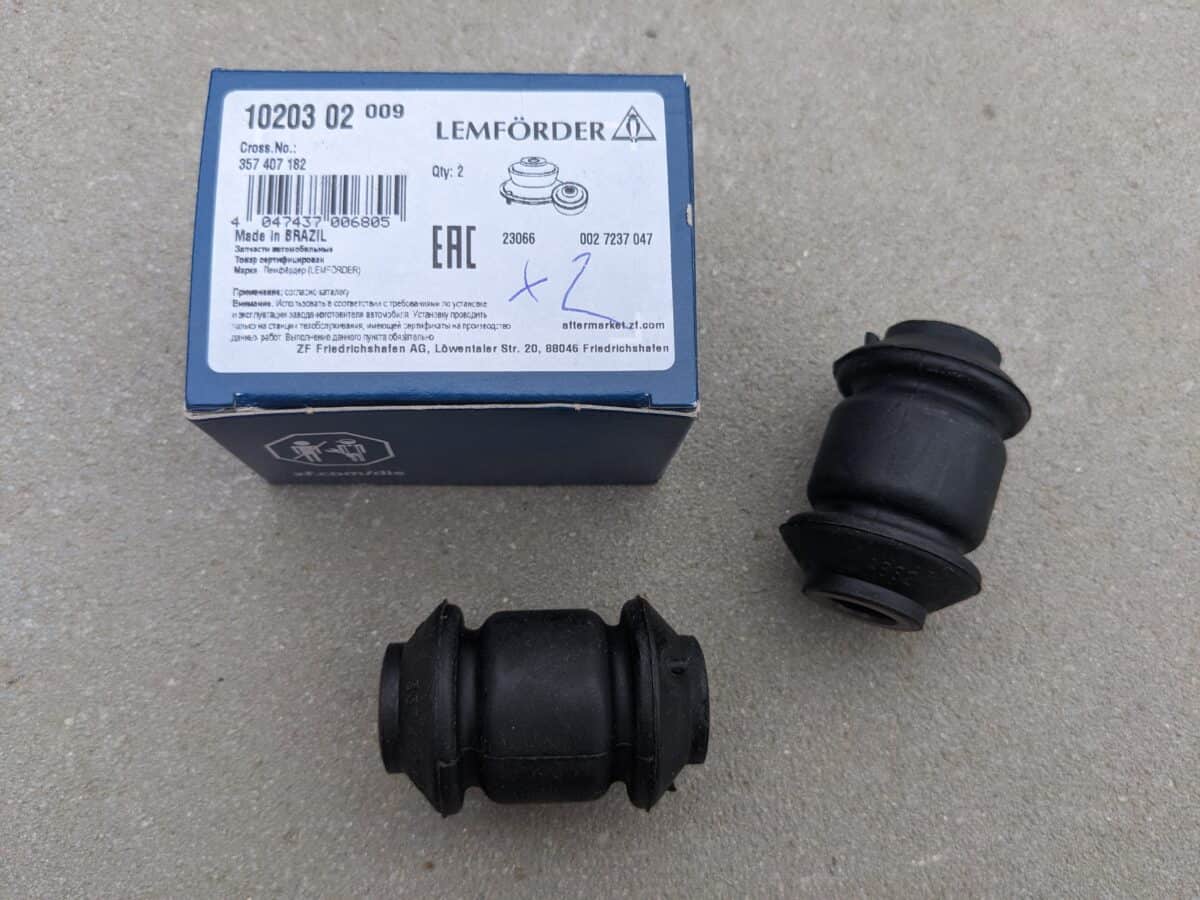

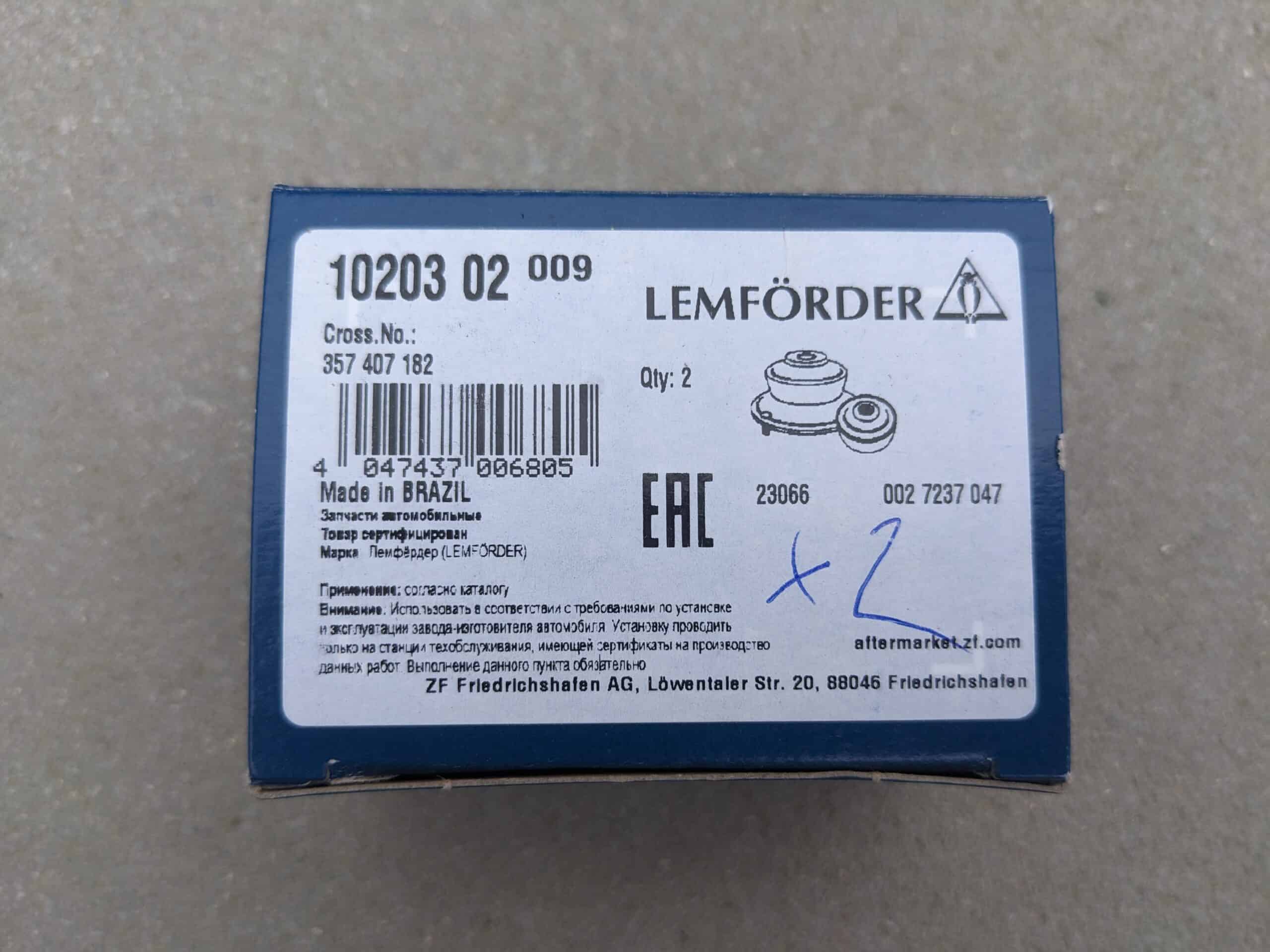

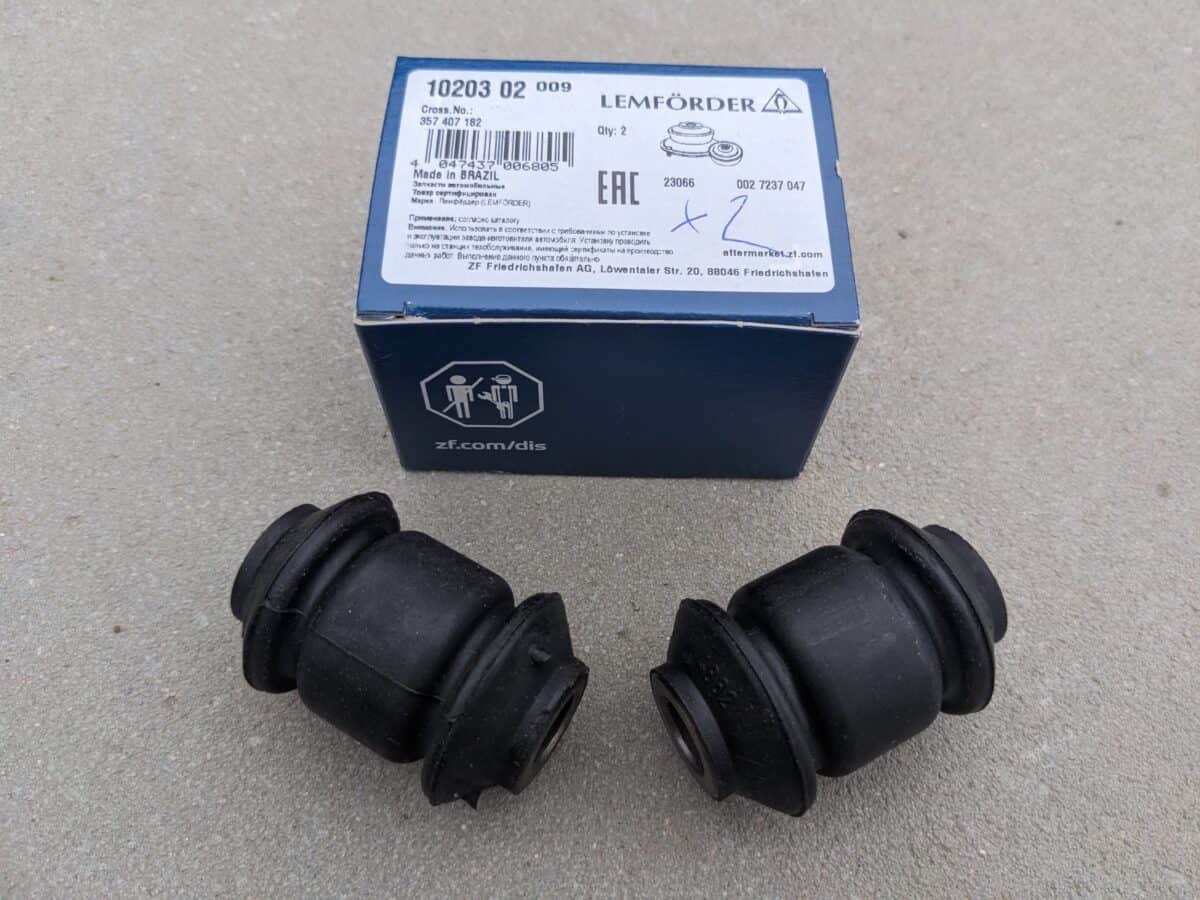

7. Bonded rubber bush (front) 357407182

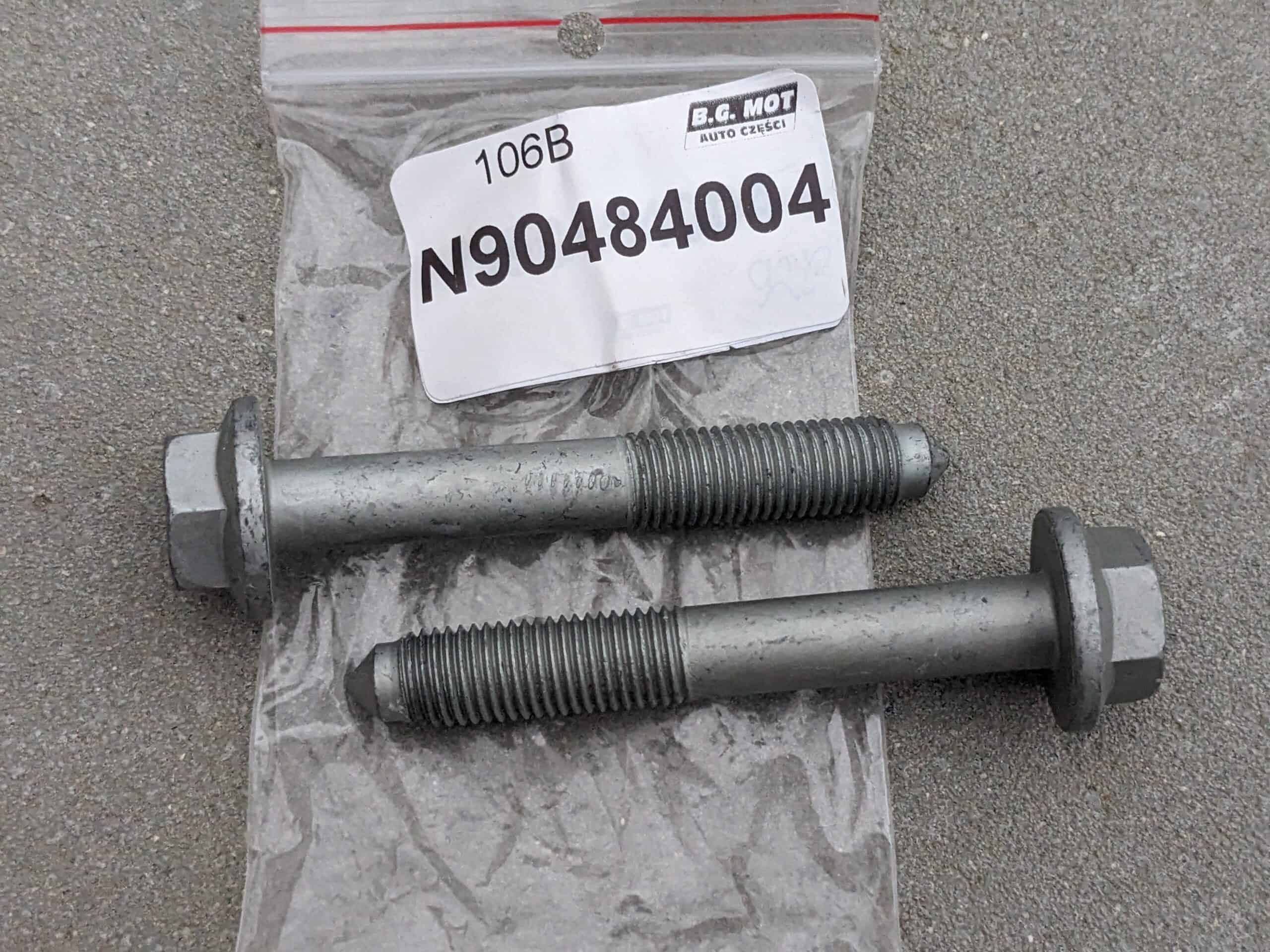

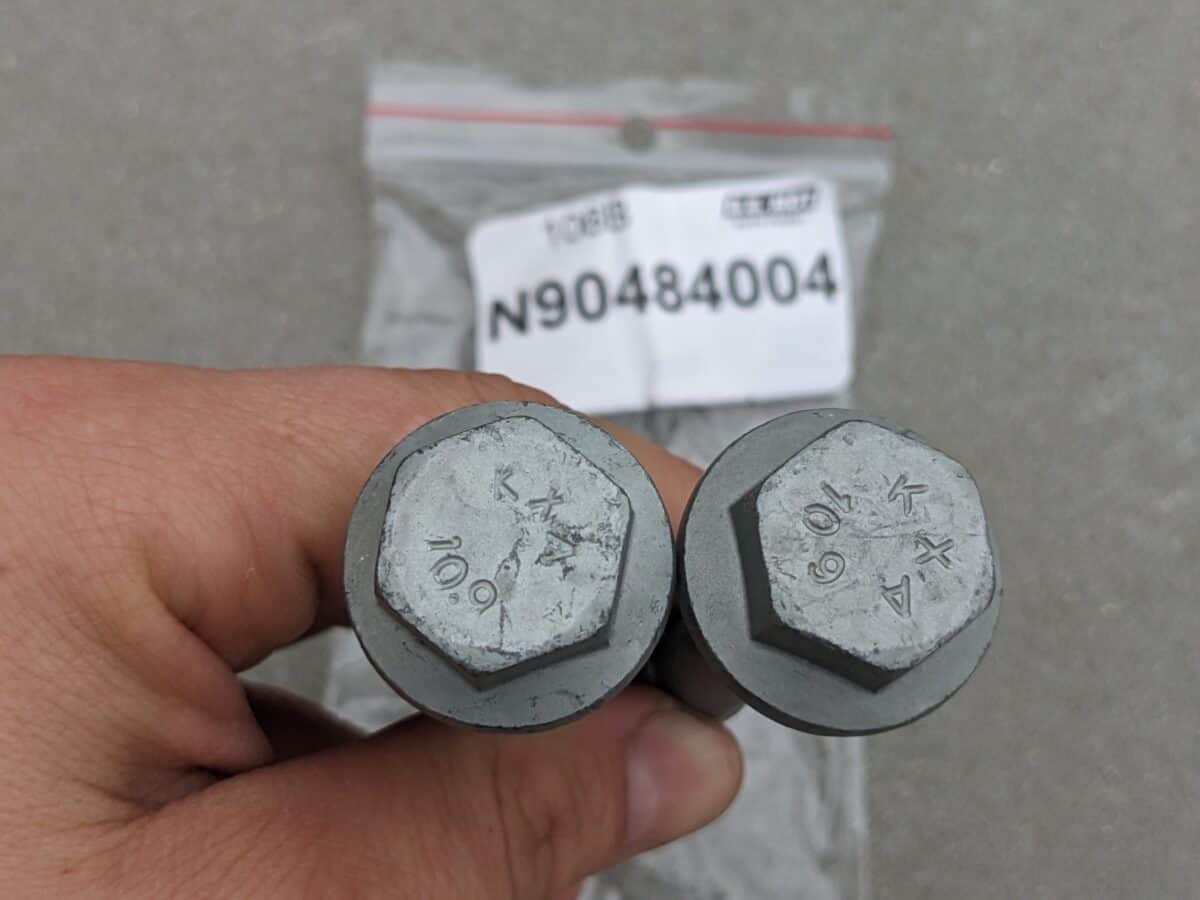

8. Hexagon bolt M12X1,5X82 N90484004
Tightening torque: 70 Nm and turn 90° further.

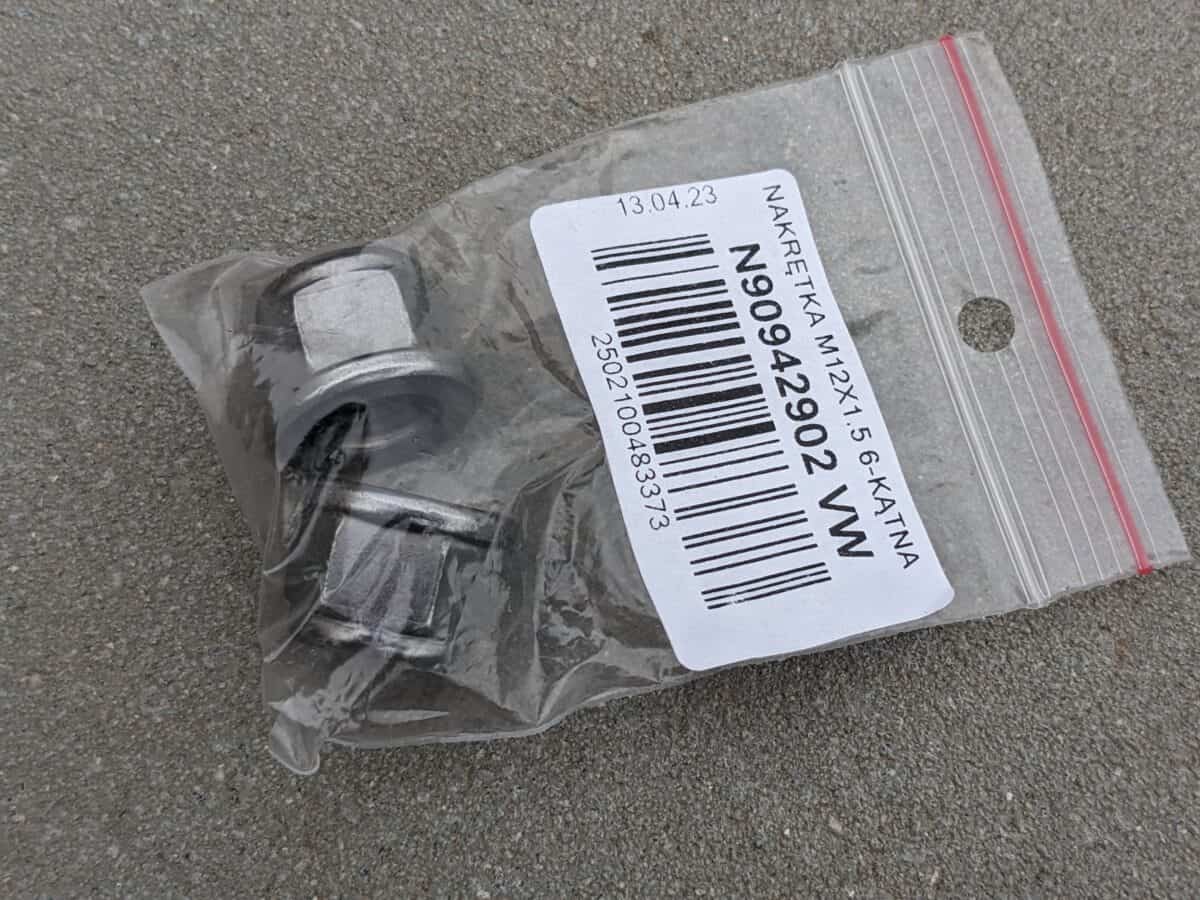

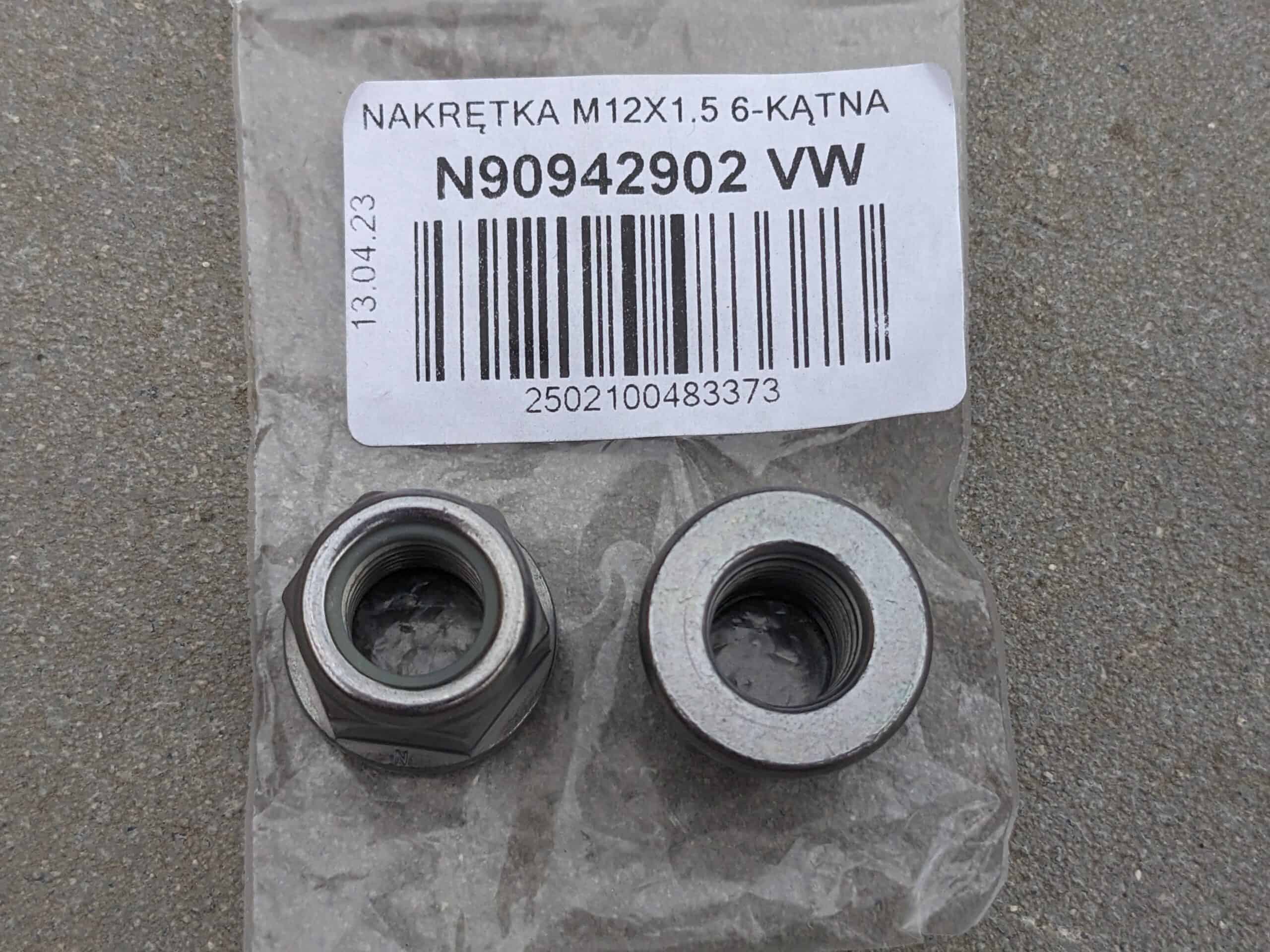

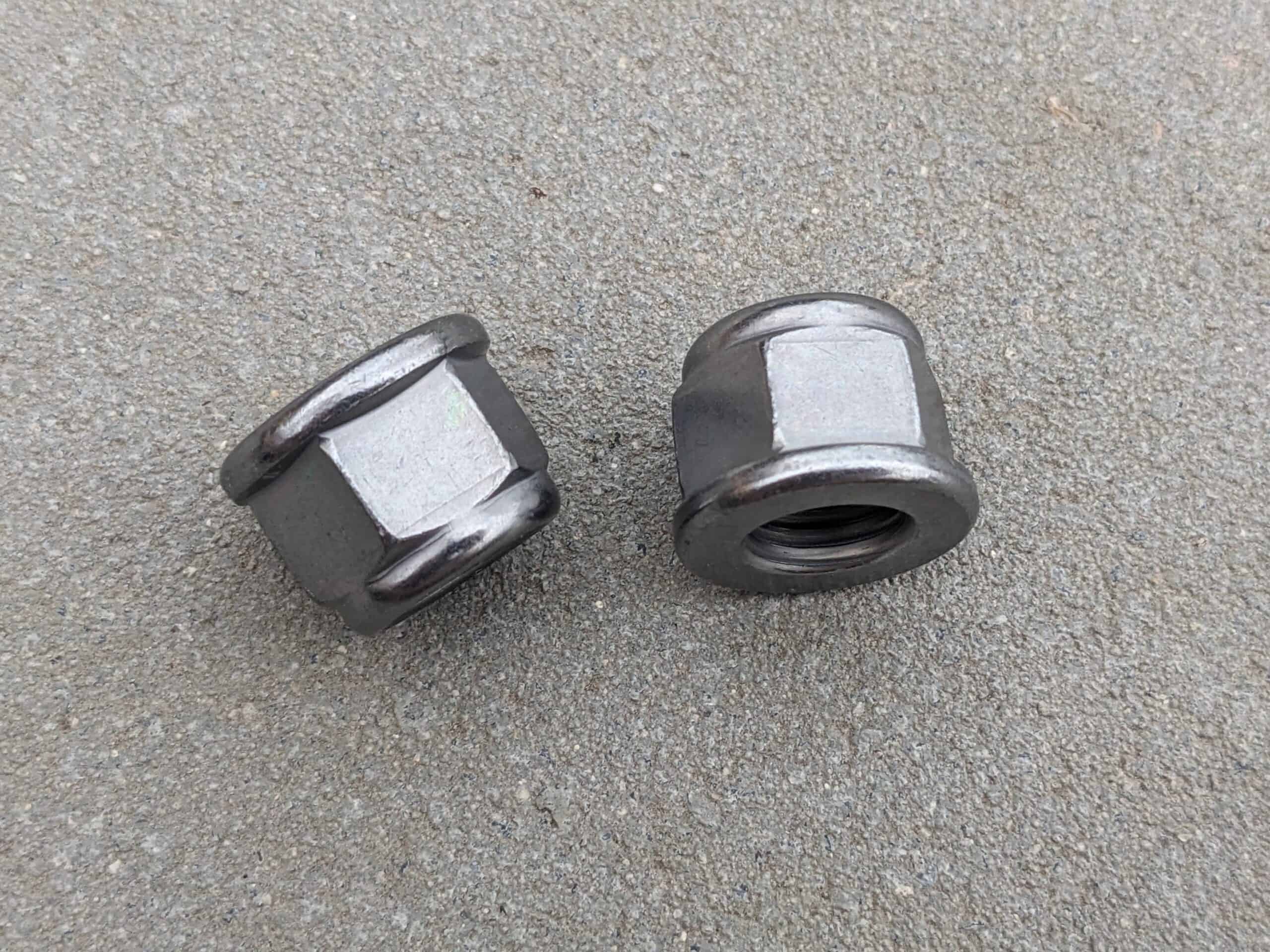

9. Hexagon nut, self-locking M12x1.5 N90942902
Older number: N90635001
Tightening torque: 20 Nm and turn 90° further.

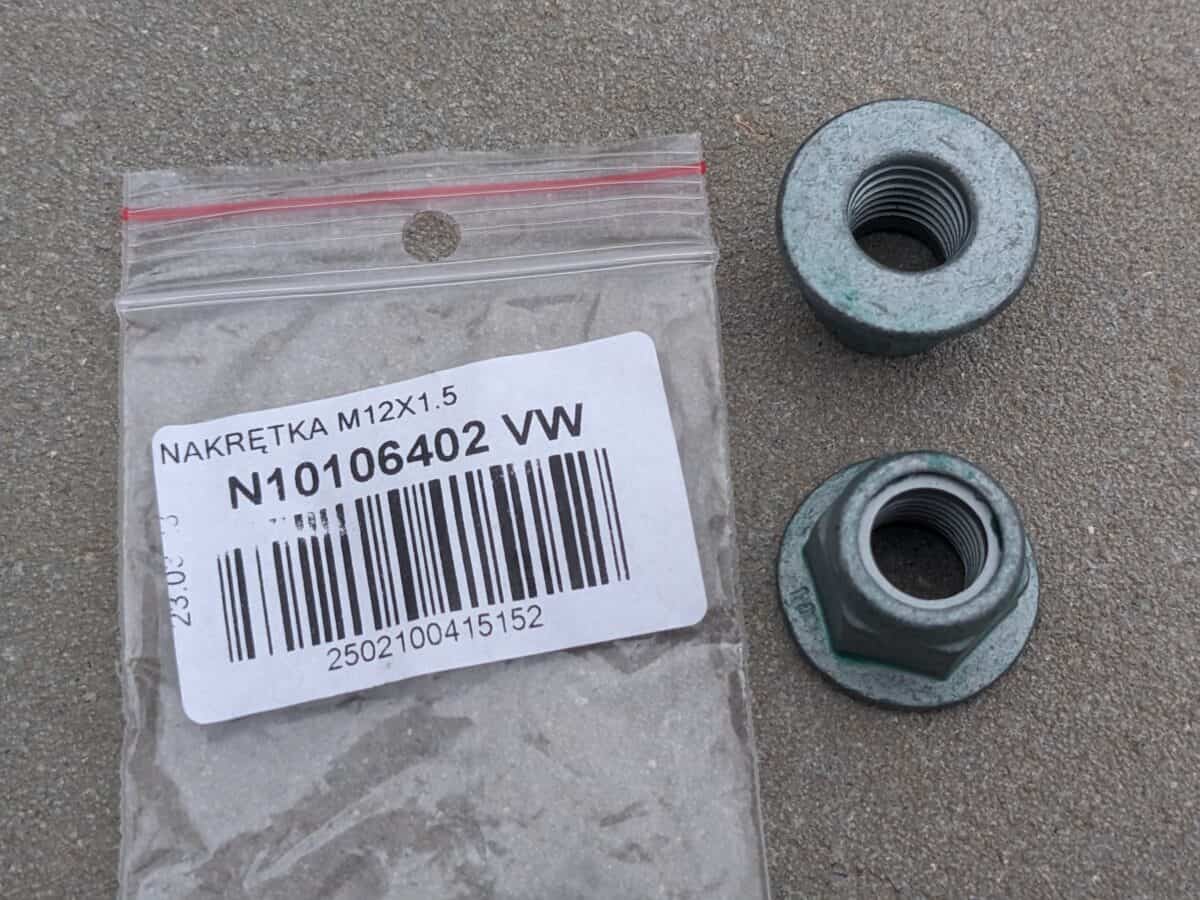

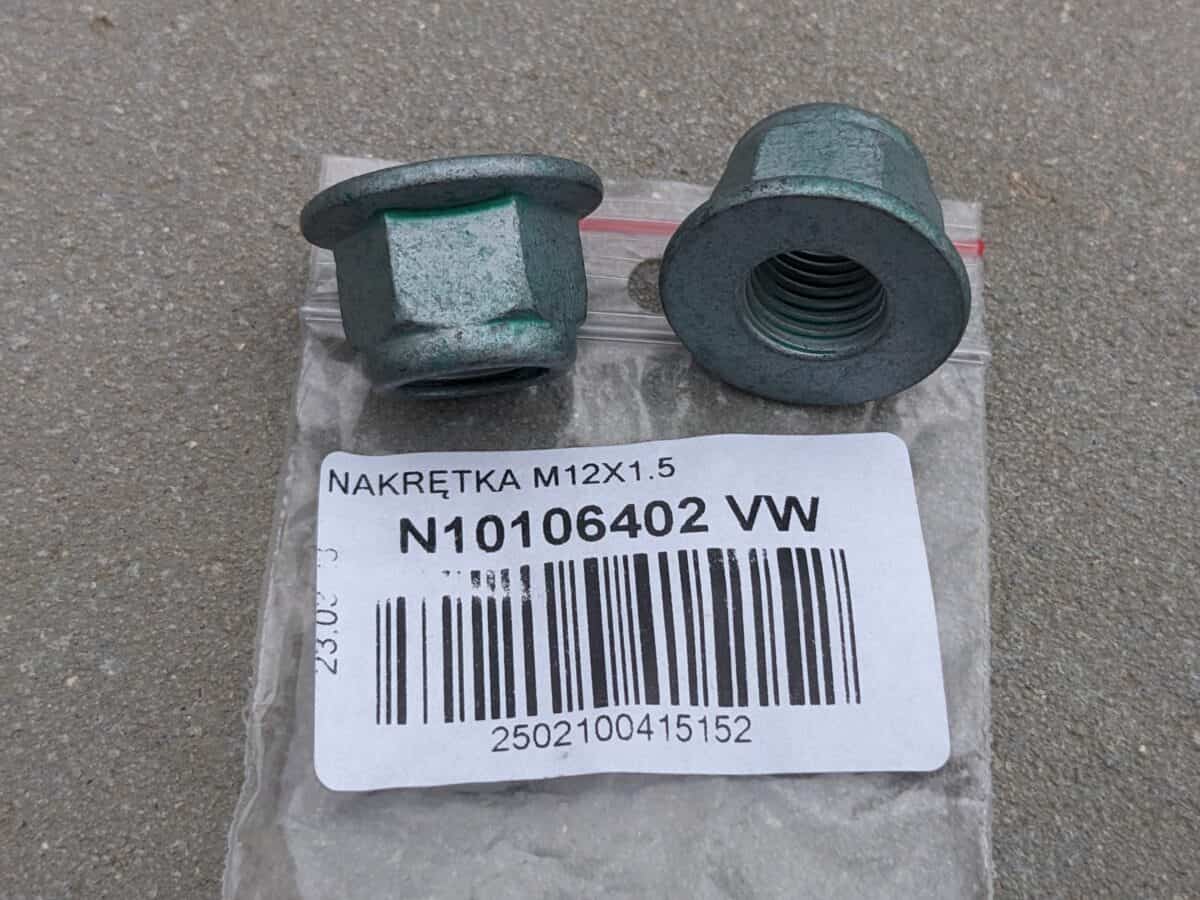

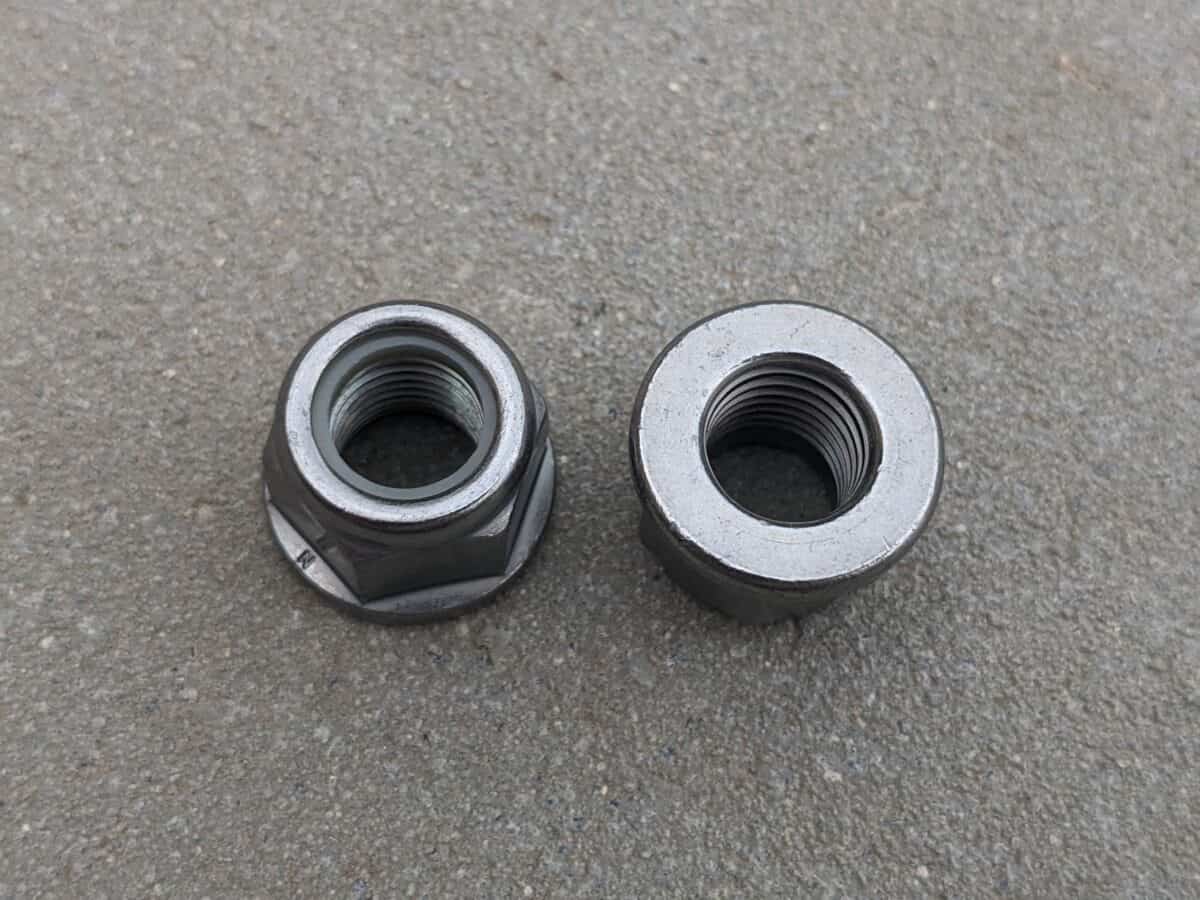

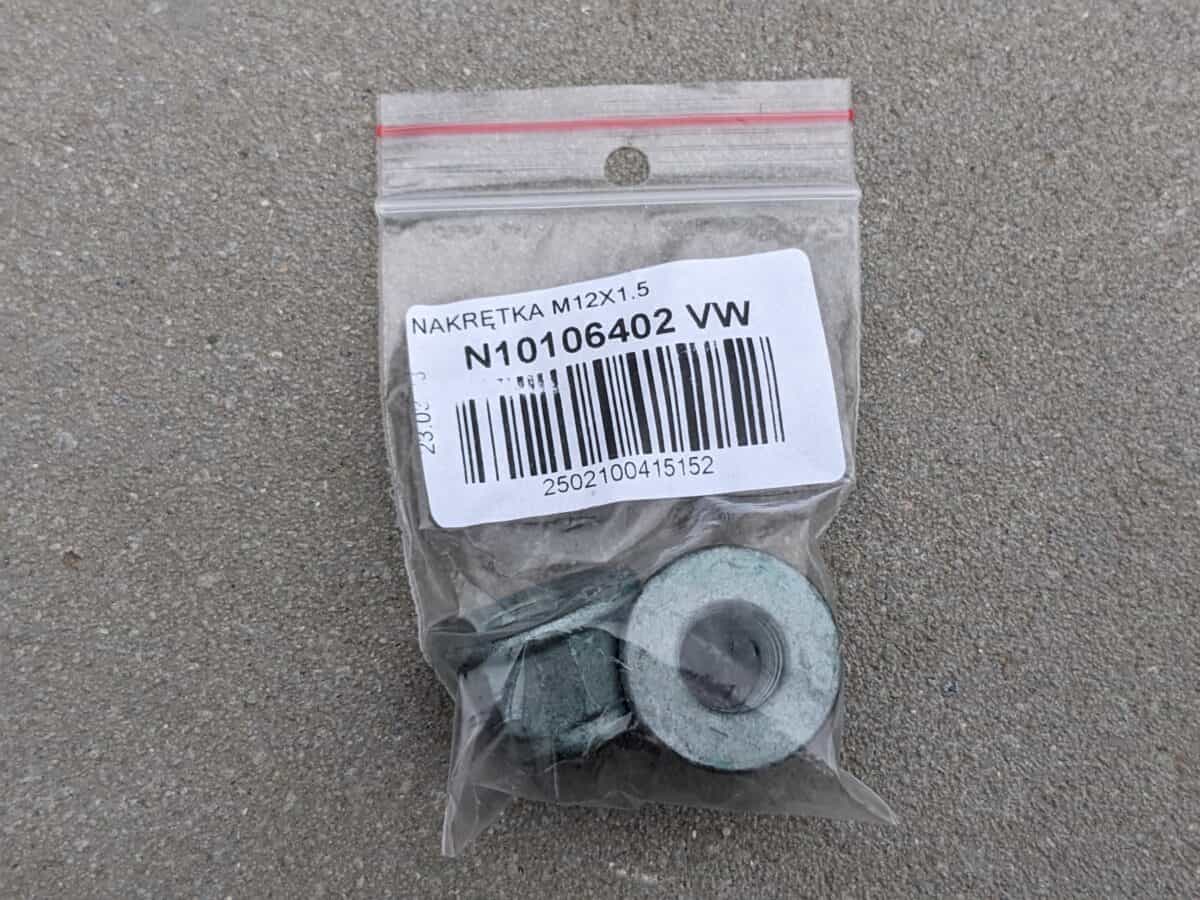

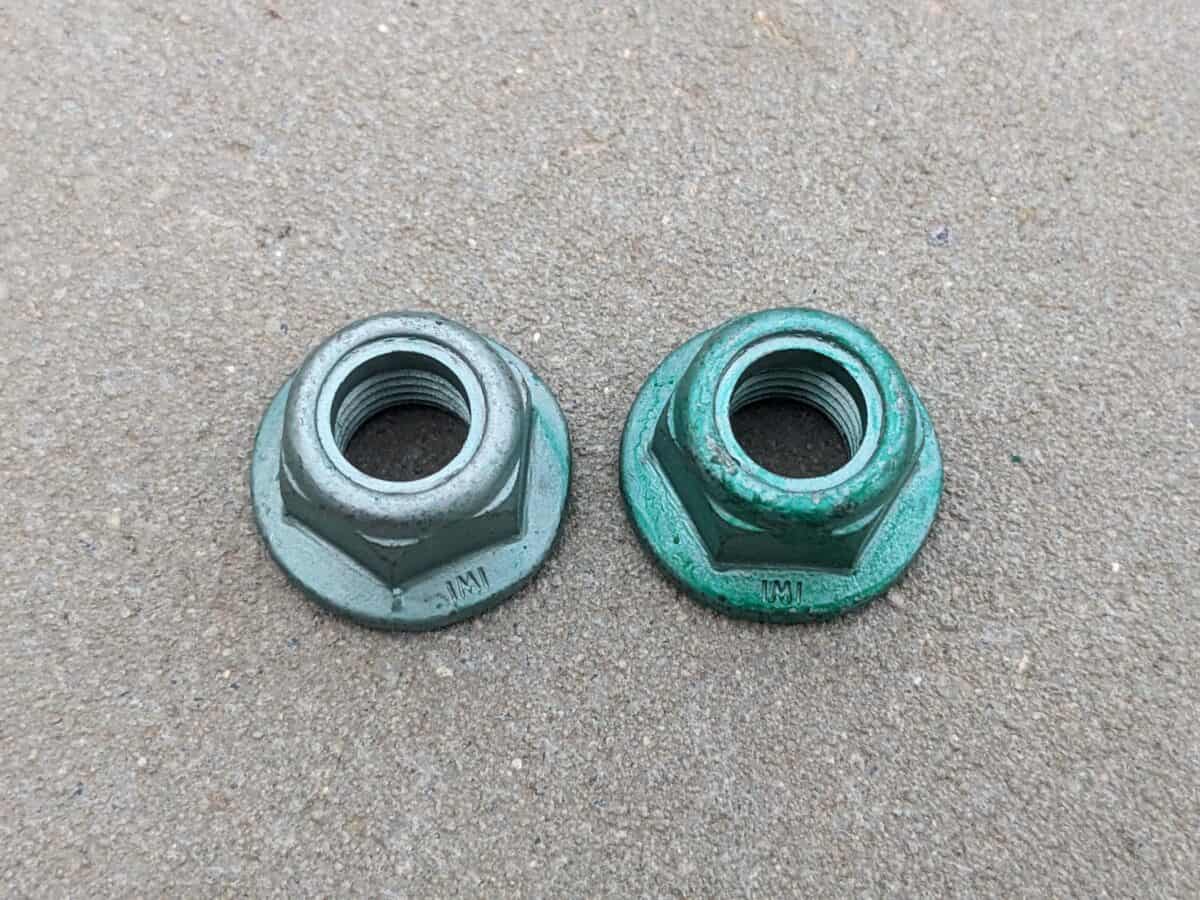

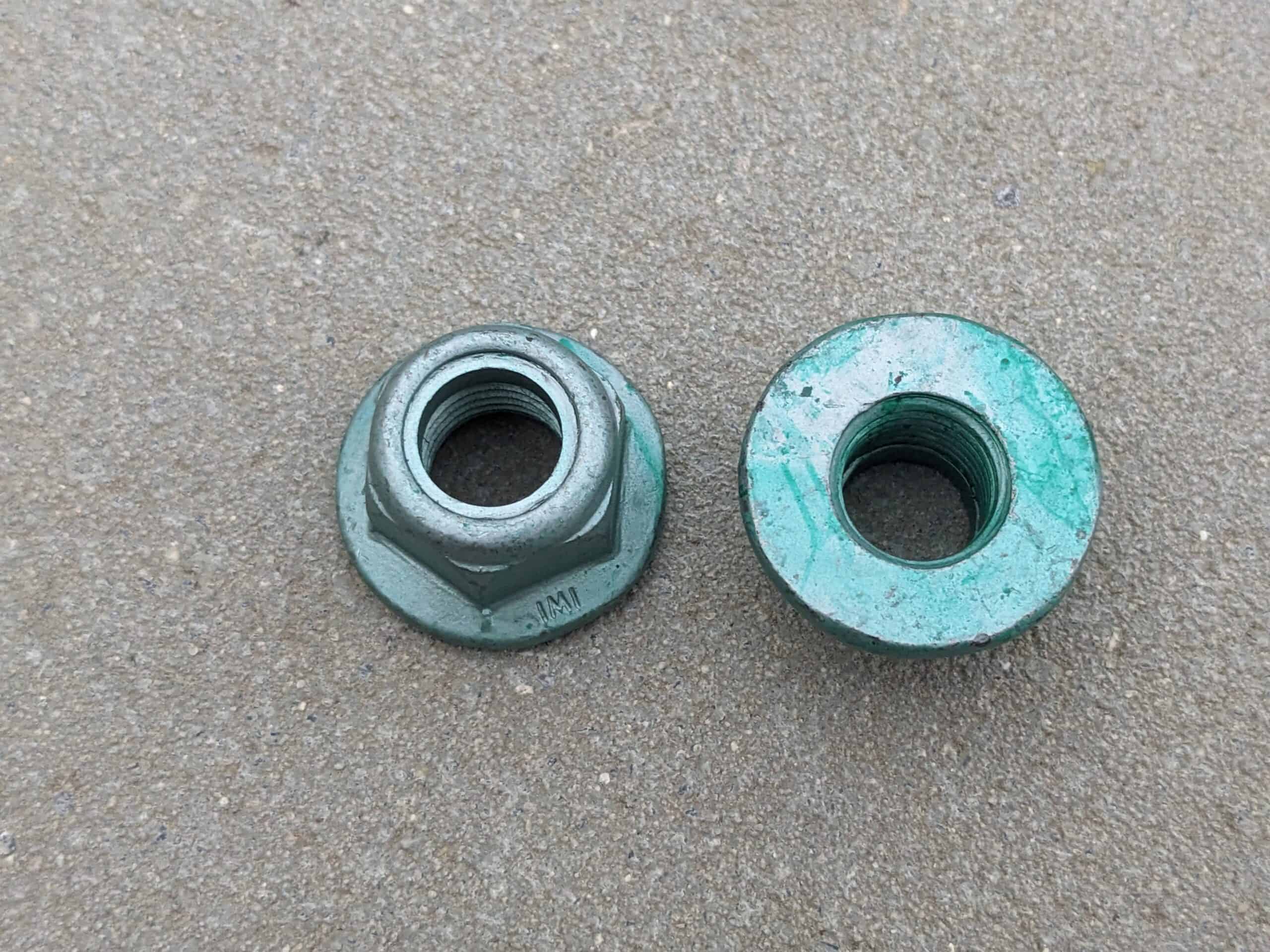

12. Hexagon collar nut self-locking M12X1.5 N10106402
Tightening torque: 60 Nm and turn 90° further.

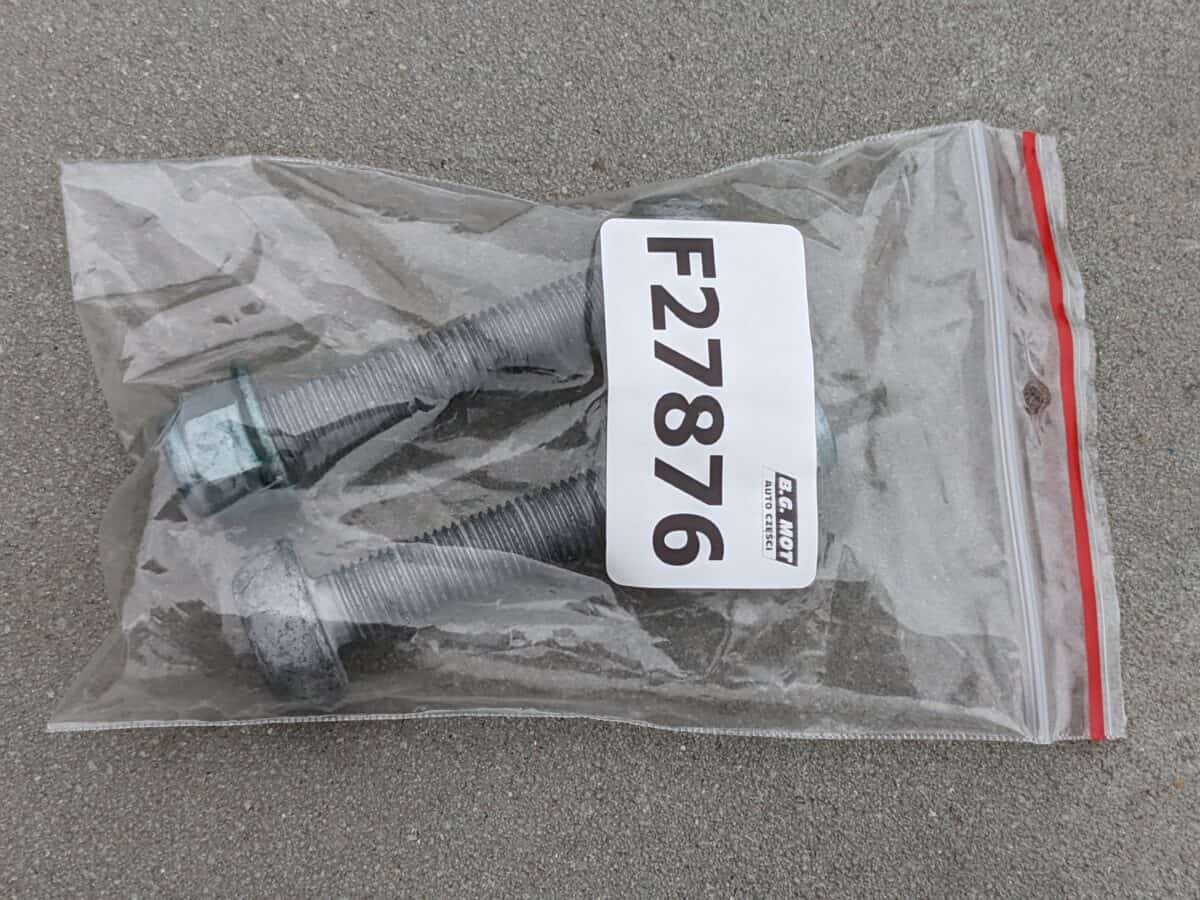

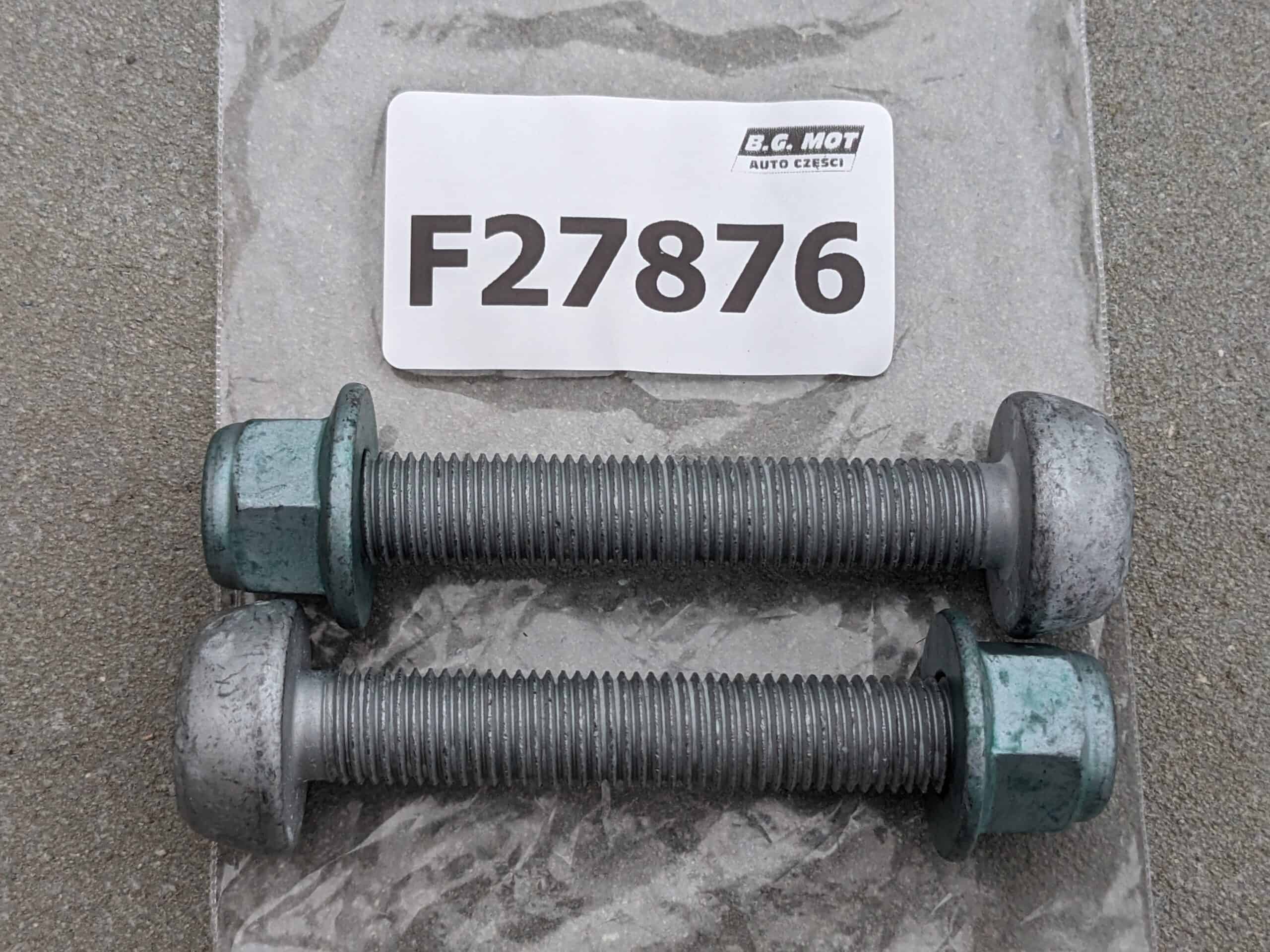

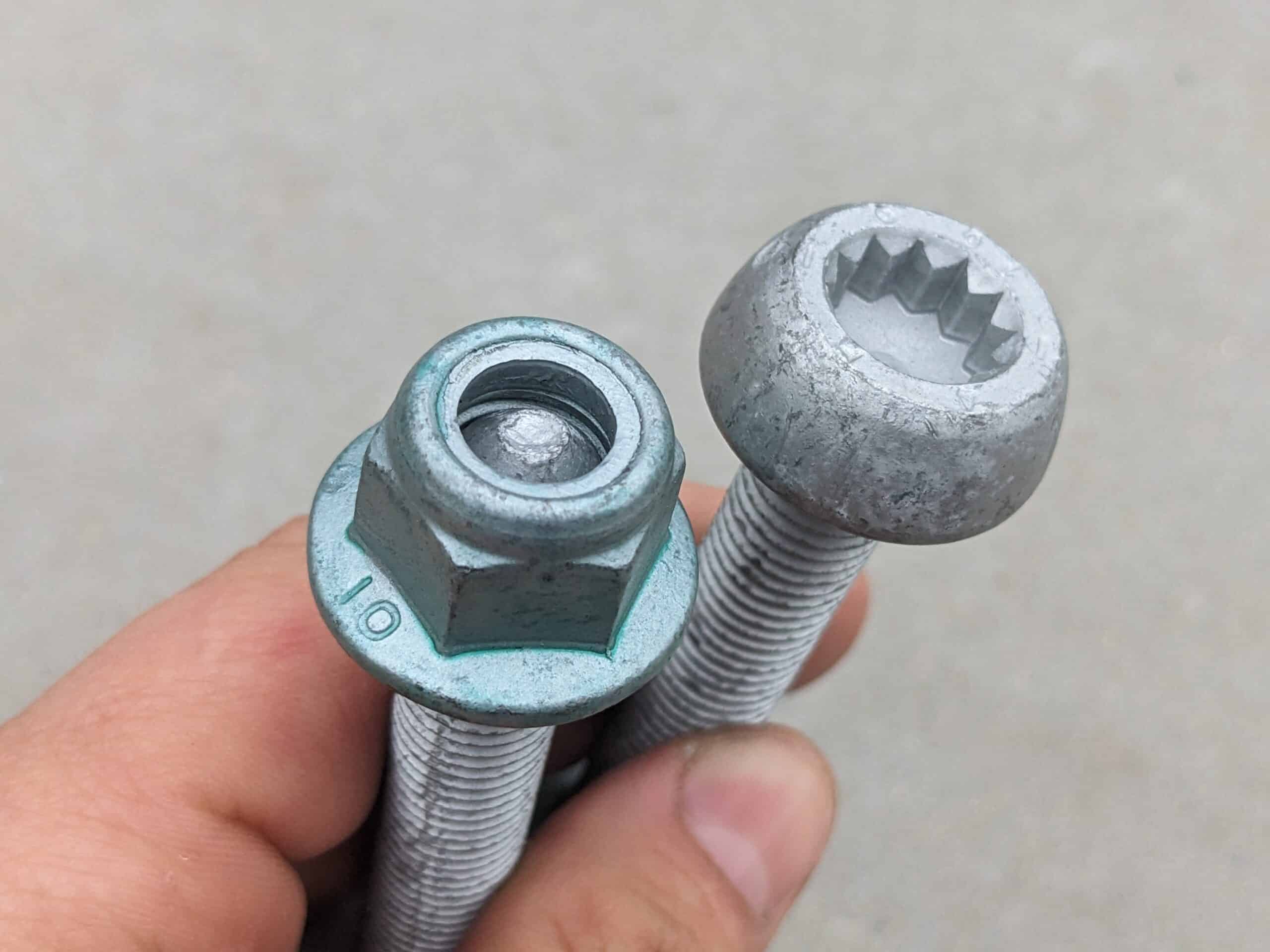

13. Oval hexagon socket head bolt M12X1, 5X80 N90954802
The bolt from Febi F27876 comes immediately with a nut (#21) – will be for later 😉

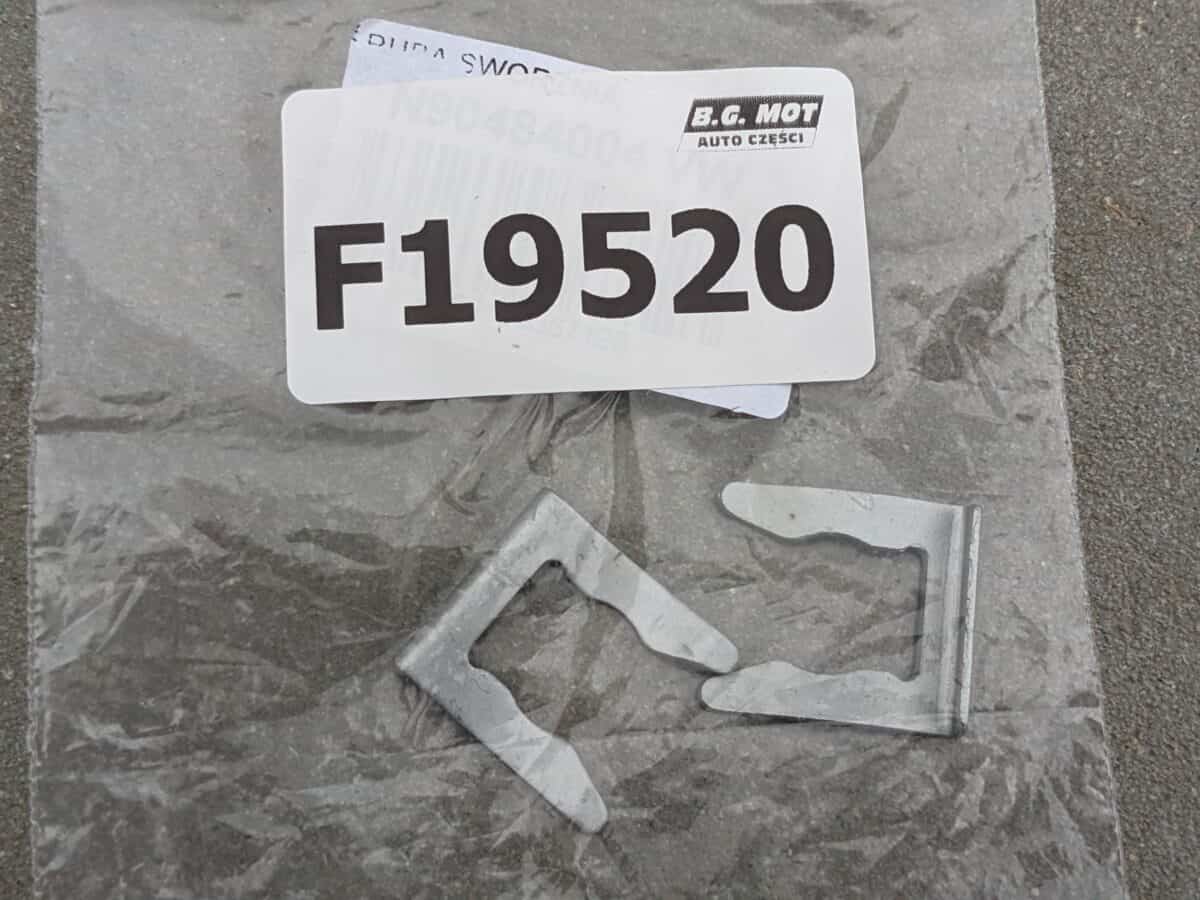

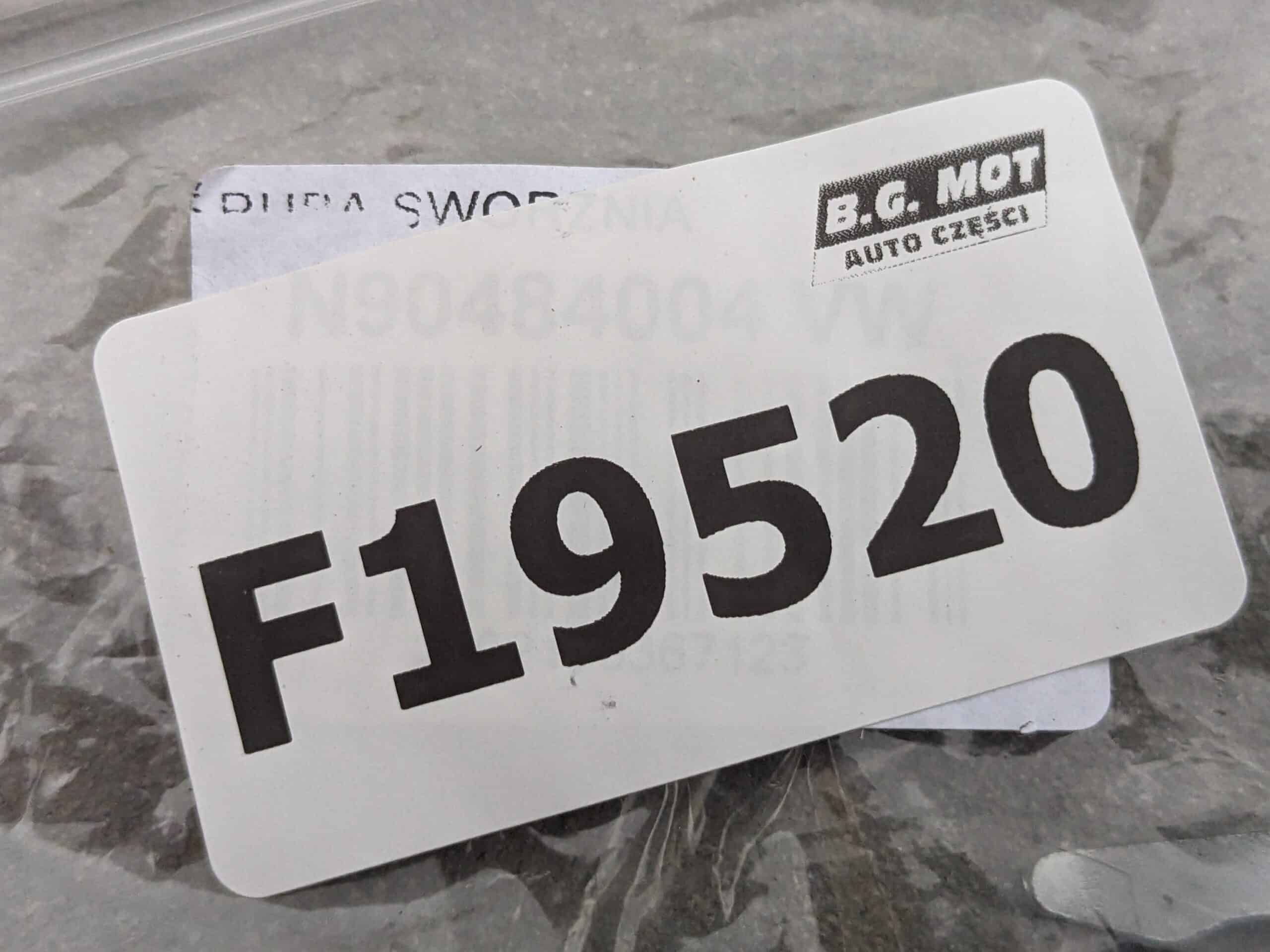

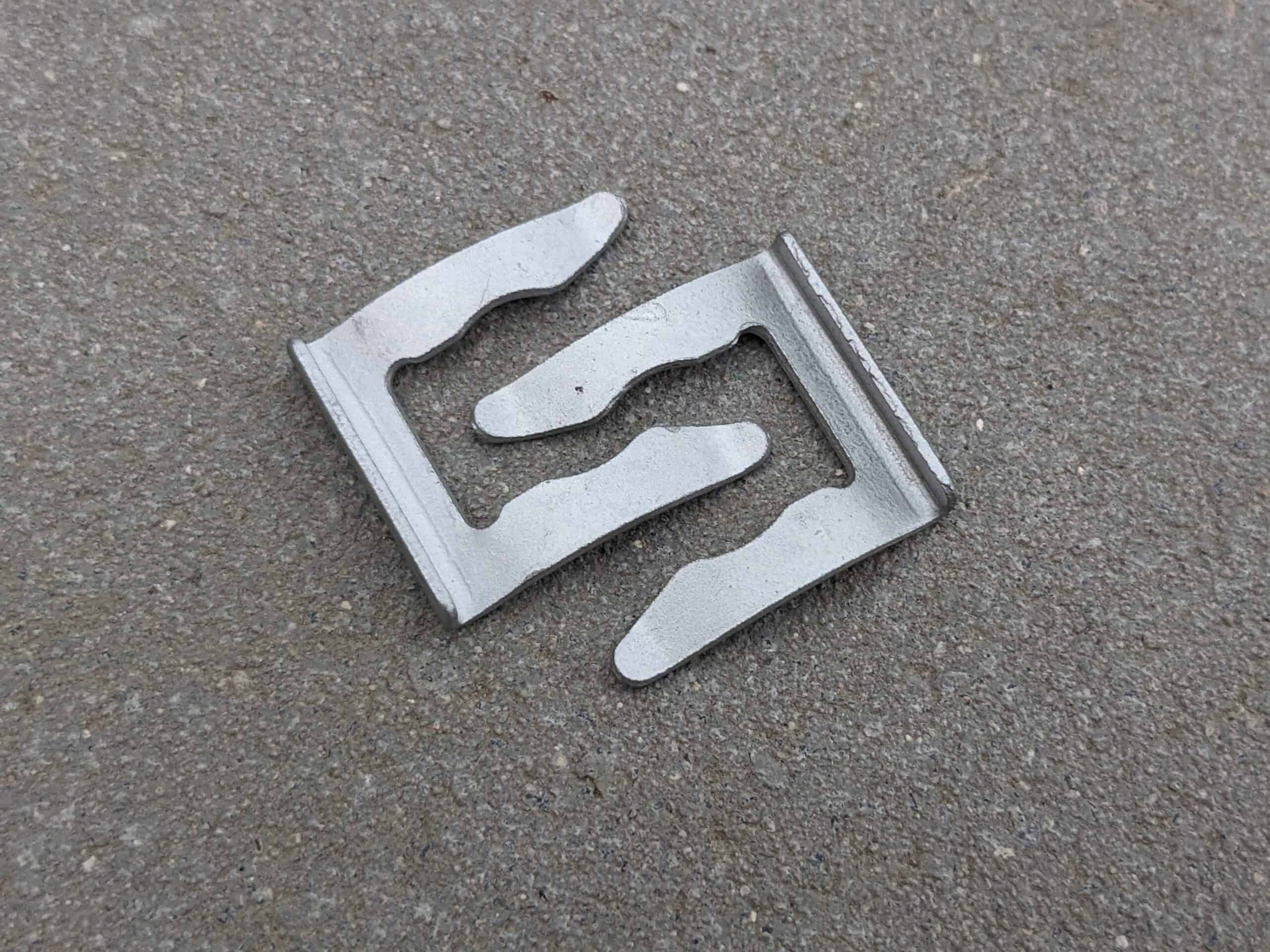

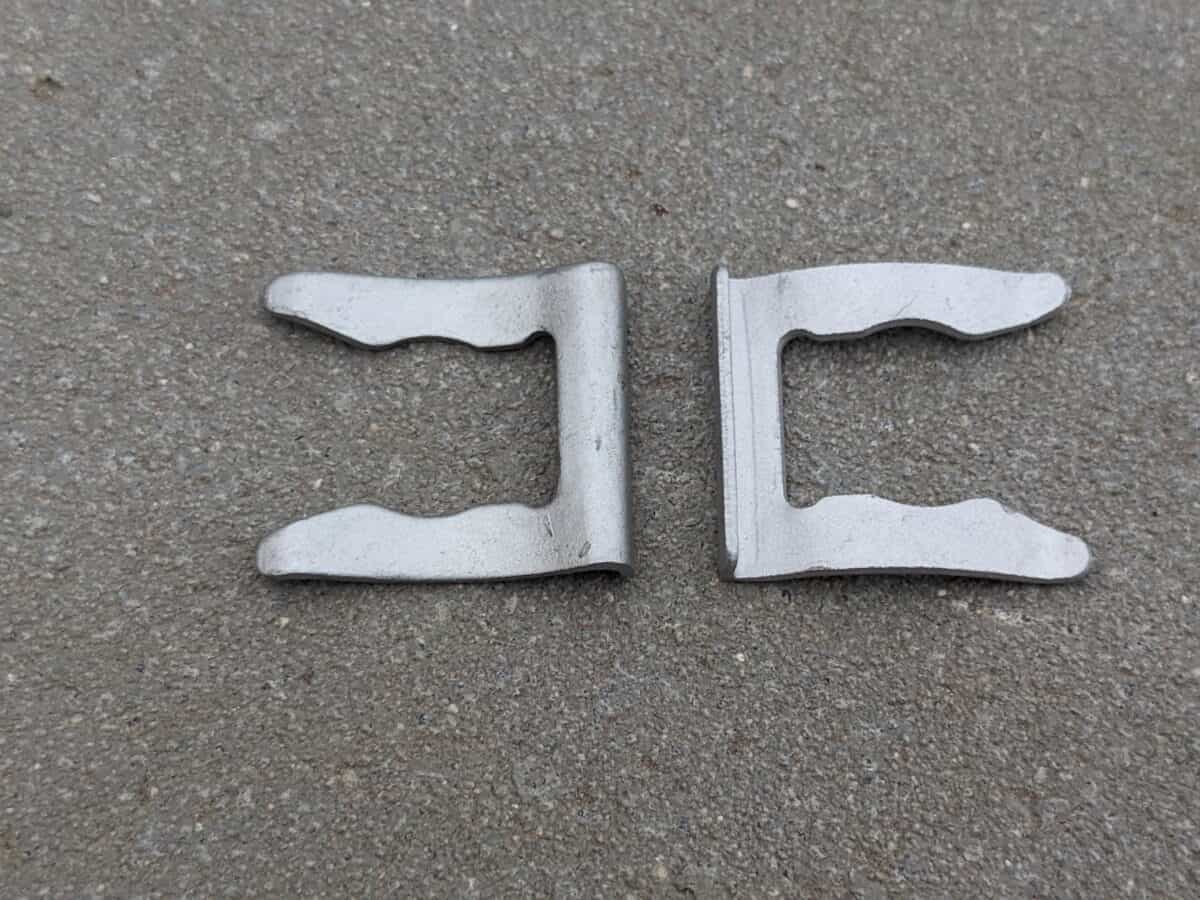

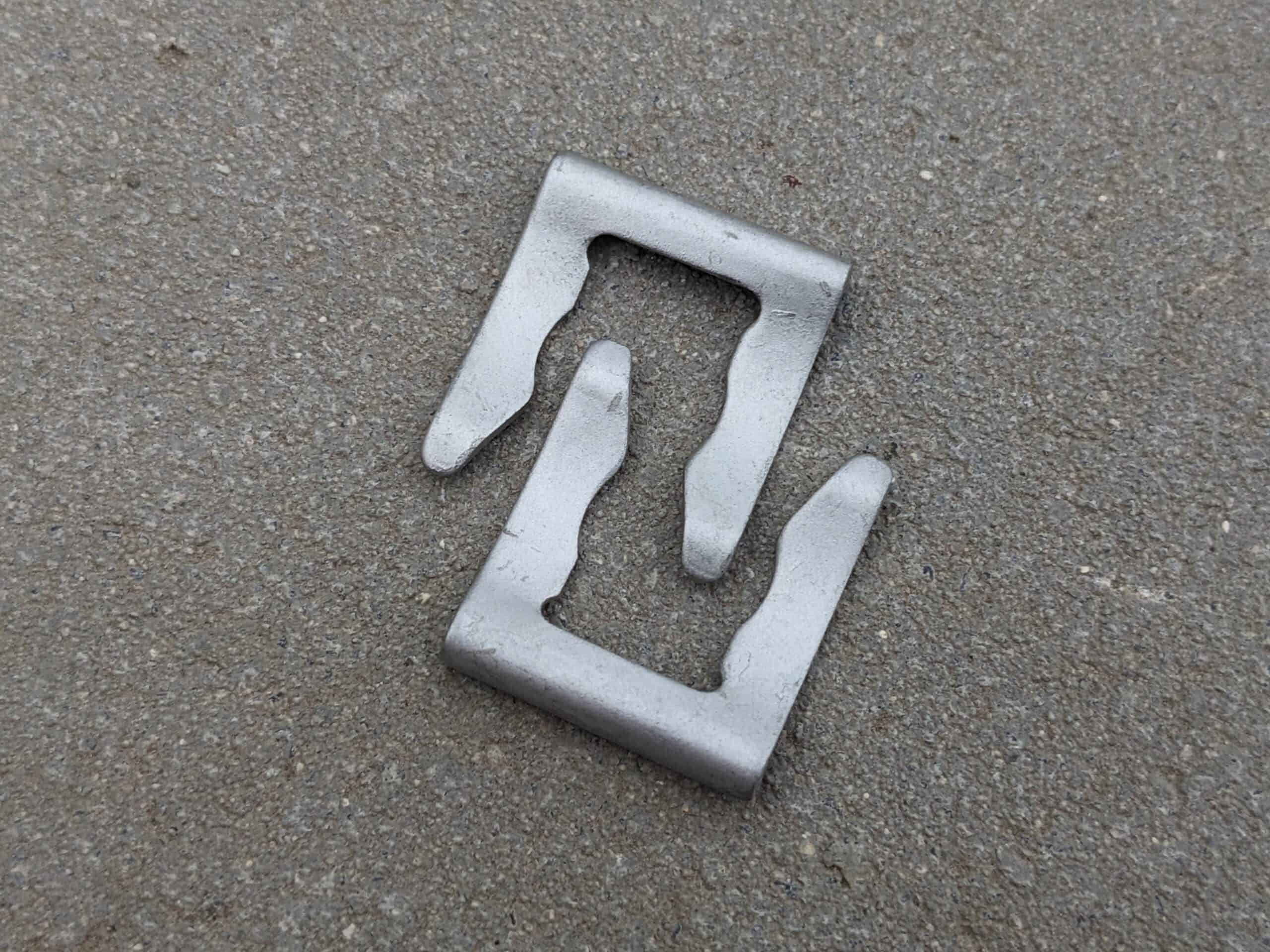

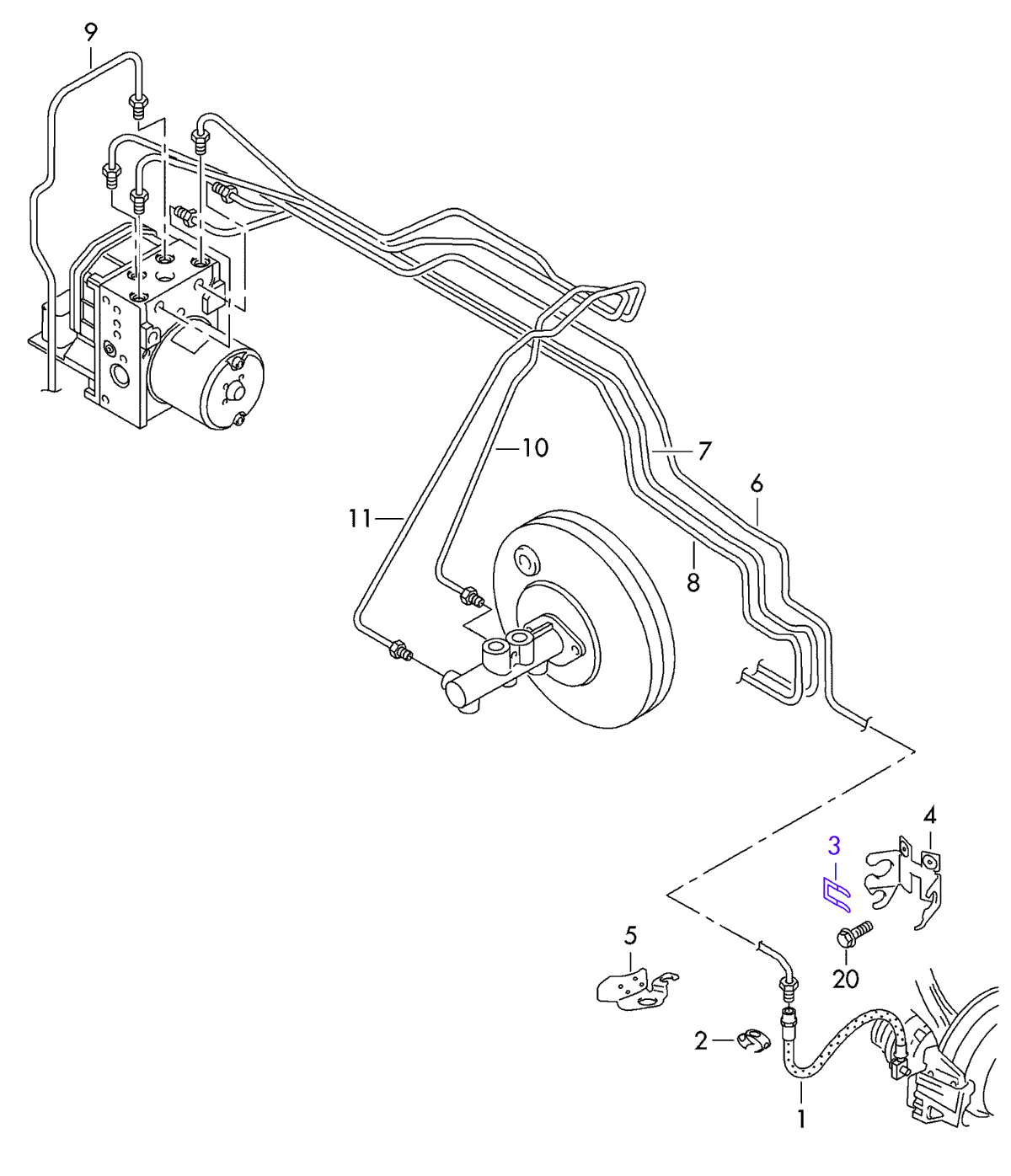

14. Hose bracket 191611715
Febi Bilstein F19520 – it is worth replacing on occasion, because the rusty one looks ugly on the inox shock absorber 🙂

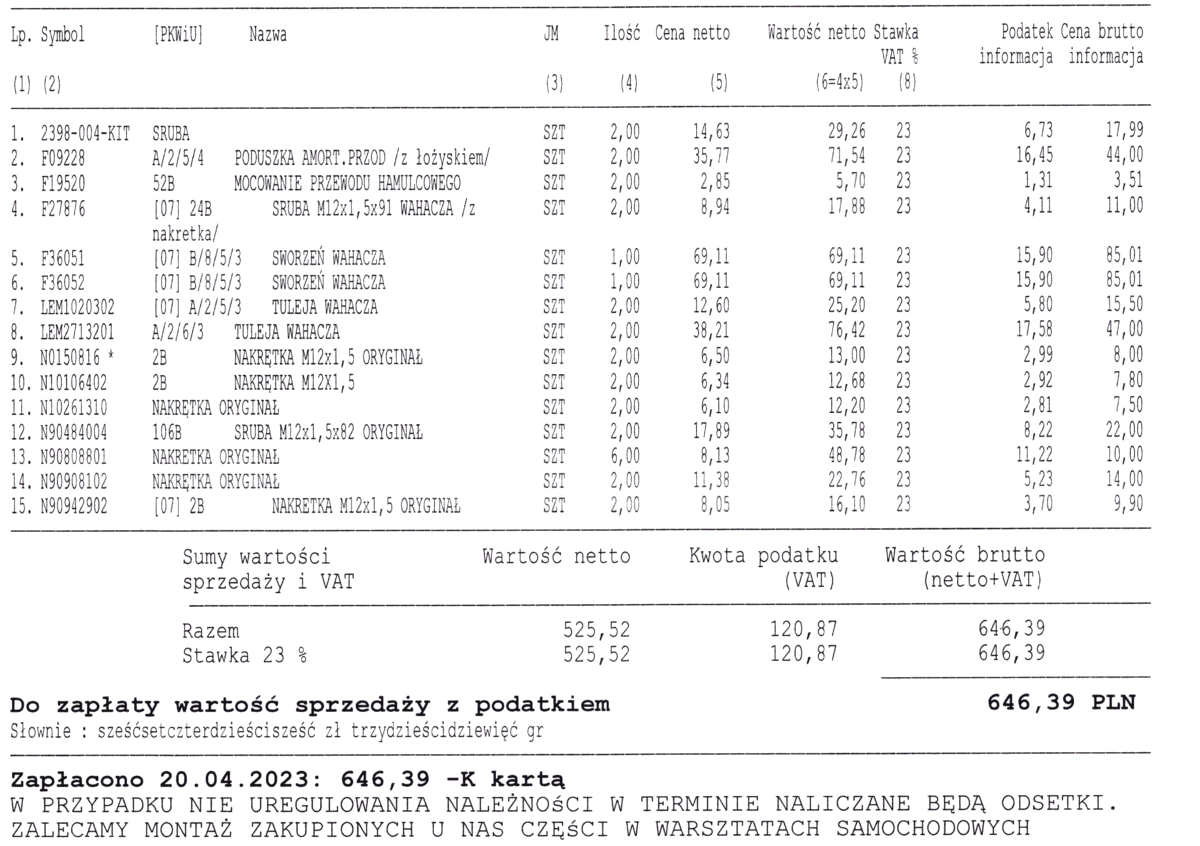

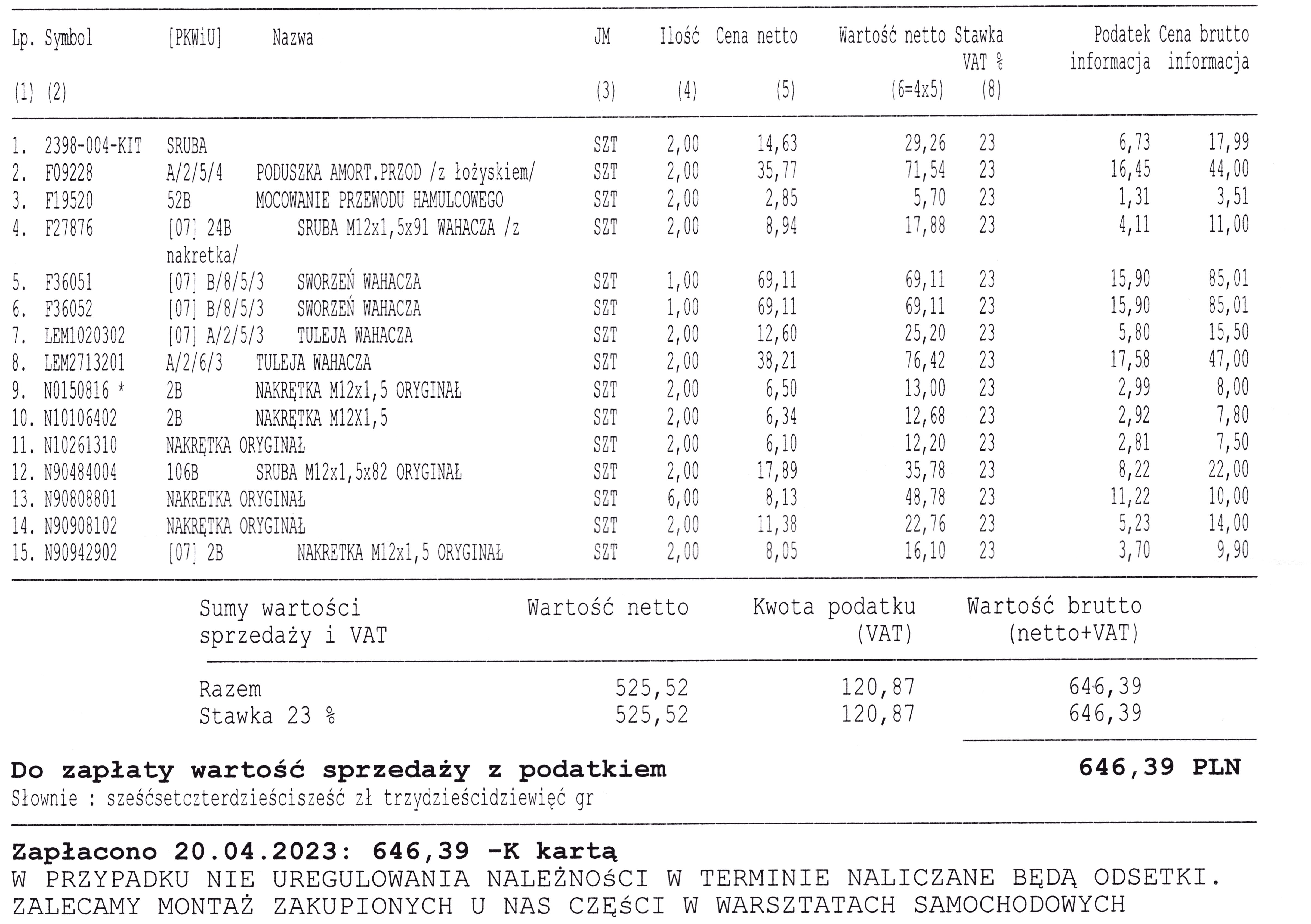

Prices from the local BG Mot store:
