How to remove light switch -E1-, headlight range control regulator -E102- and switch and instrument illumination regulator -E20- from a Polo 6R
Removing light switch -E1-

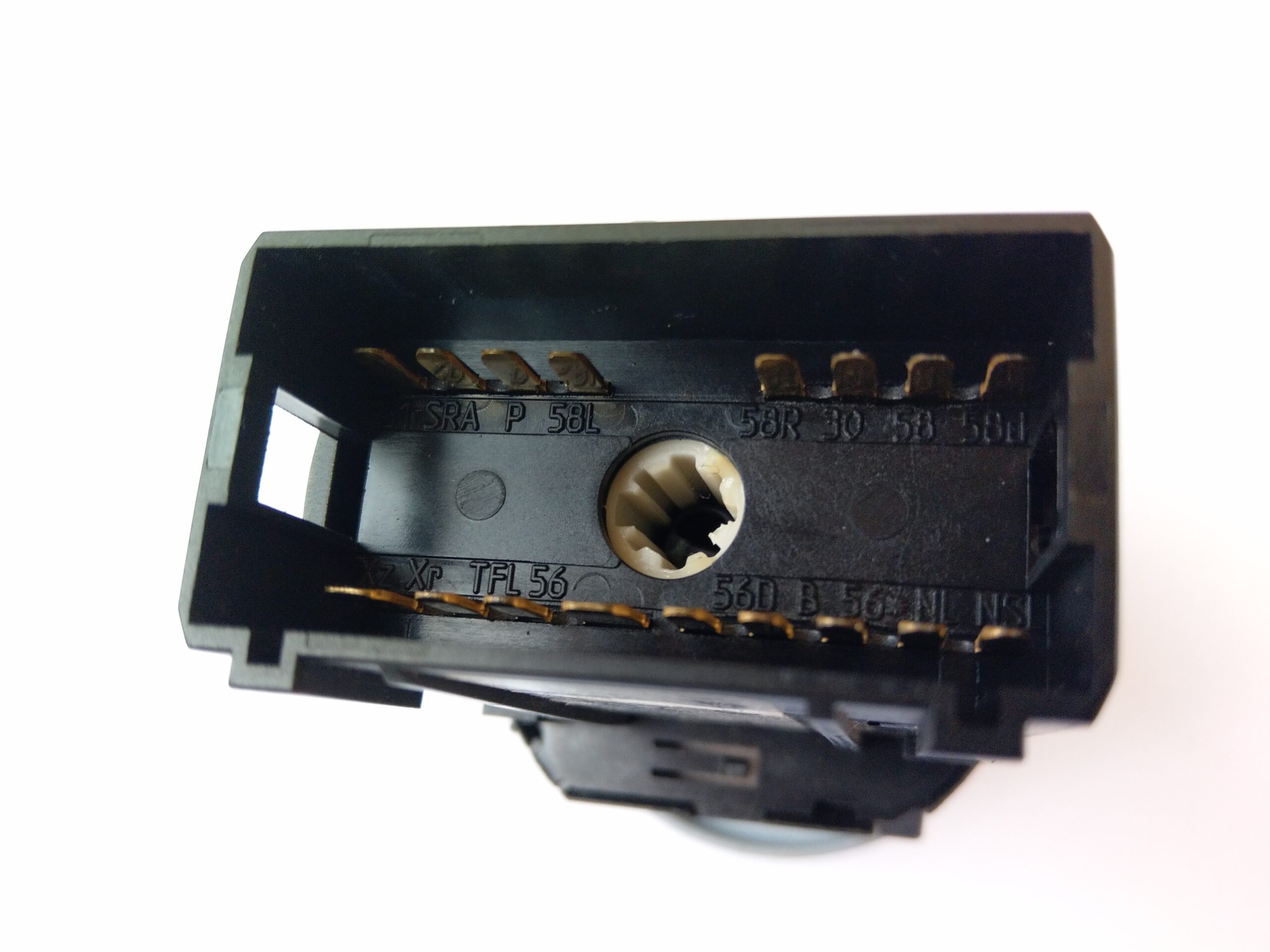

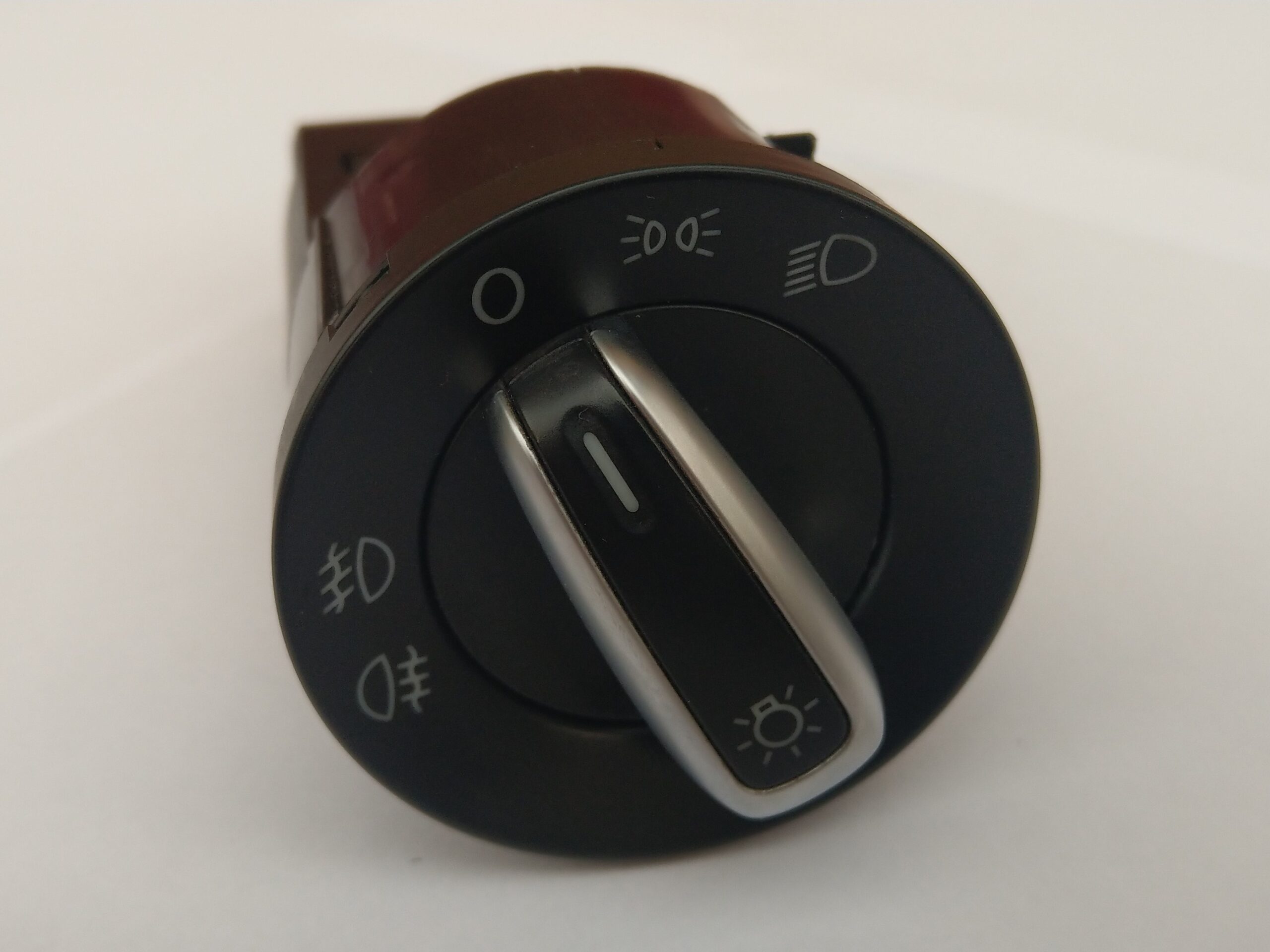

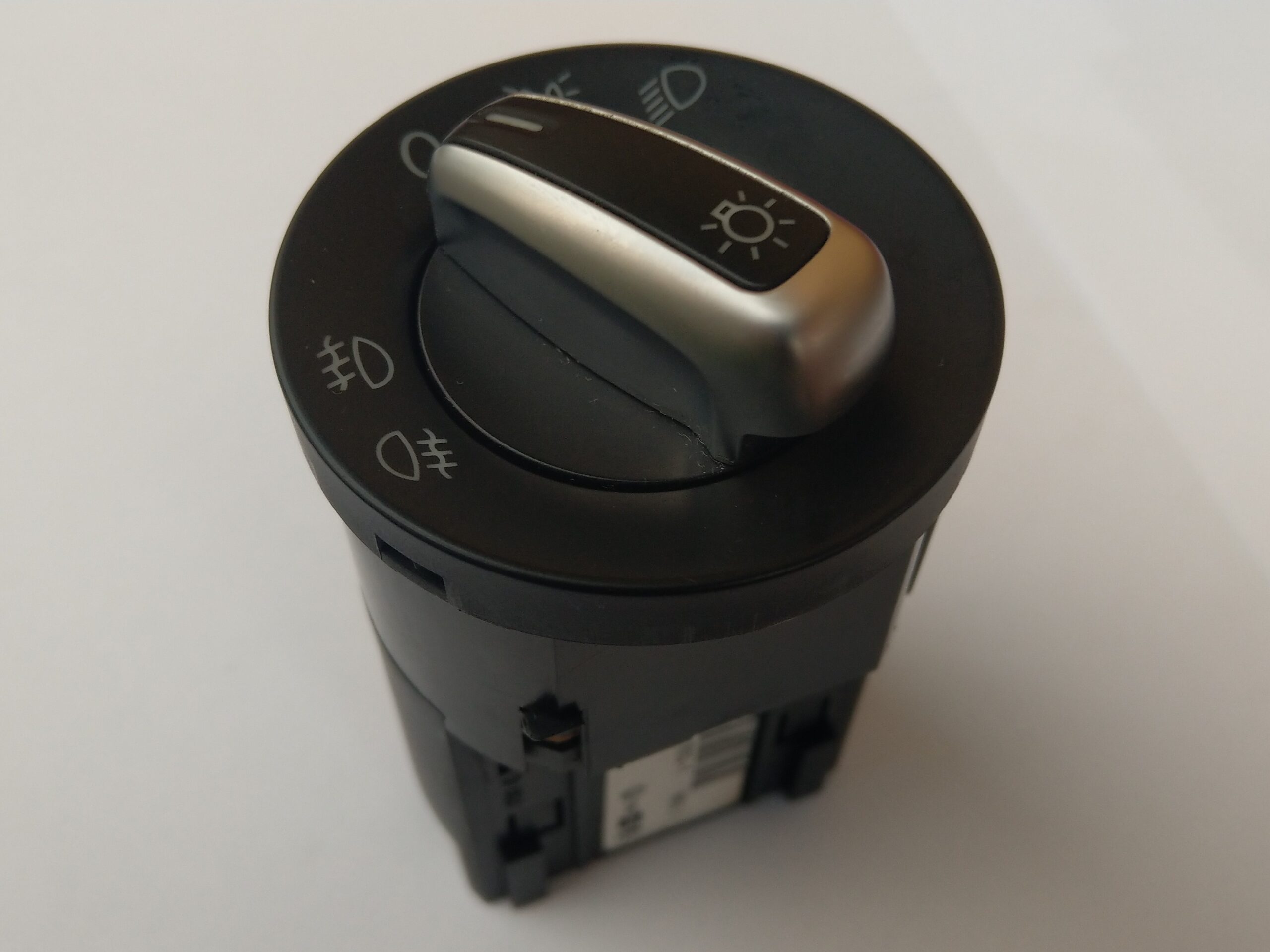

The following components are integrated into the light switch -E1-:
- Fog light switch -E7-
- Rear fog light switch -E18-
- Bulb for illumination of light switch -L9-
- Automatic headlight control
Removing
- Switch off ignition and all electrical consumers.
- Turn rotary grip of light switch to position „0“.
- Push in rotary grip of light switch -1- and turn it slightly to the right -2-.

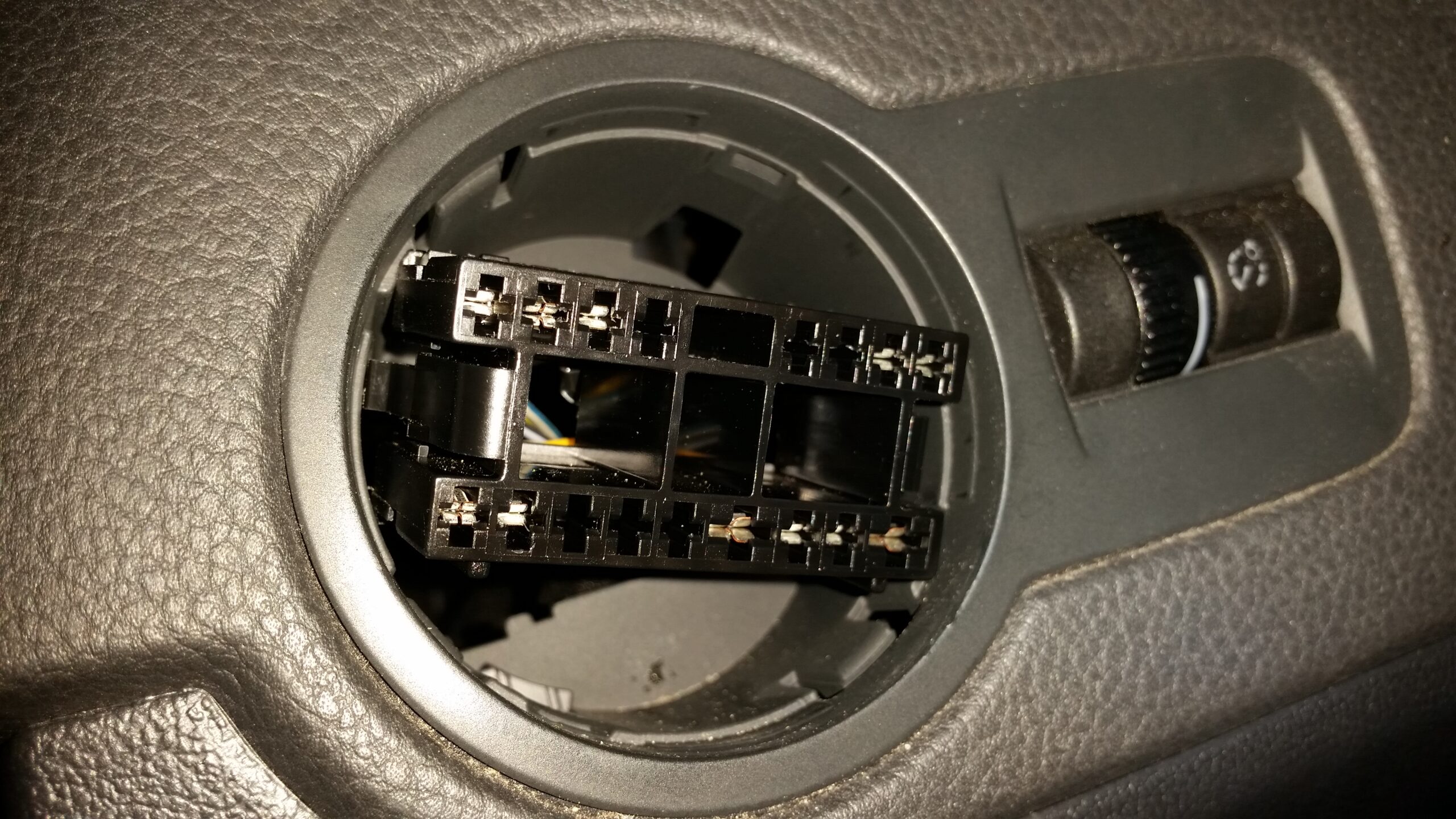

- Hold rotary grip in this position and pull light switch out of dash panel using rotary grip -3-.

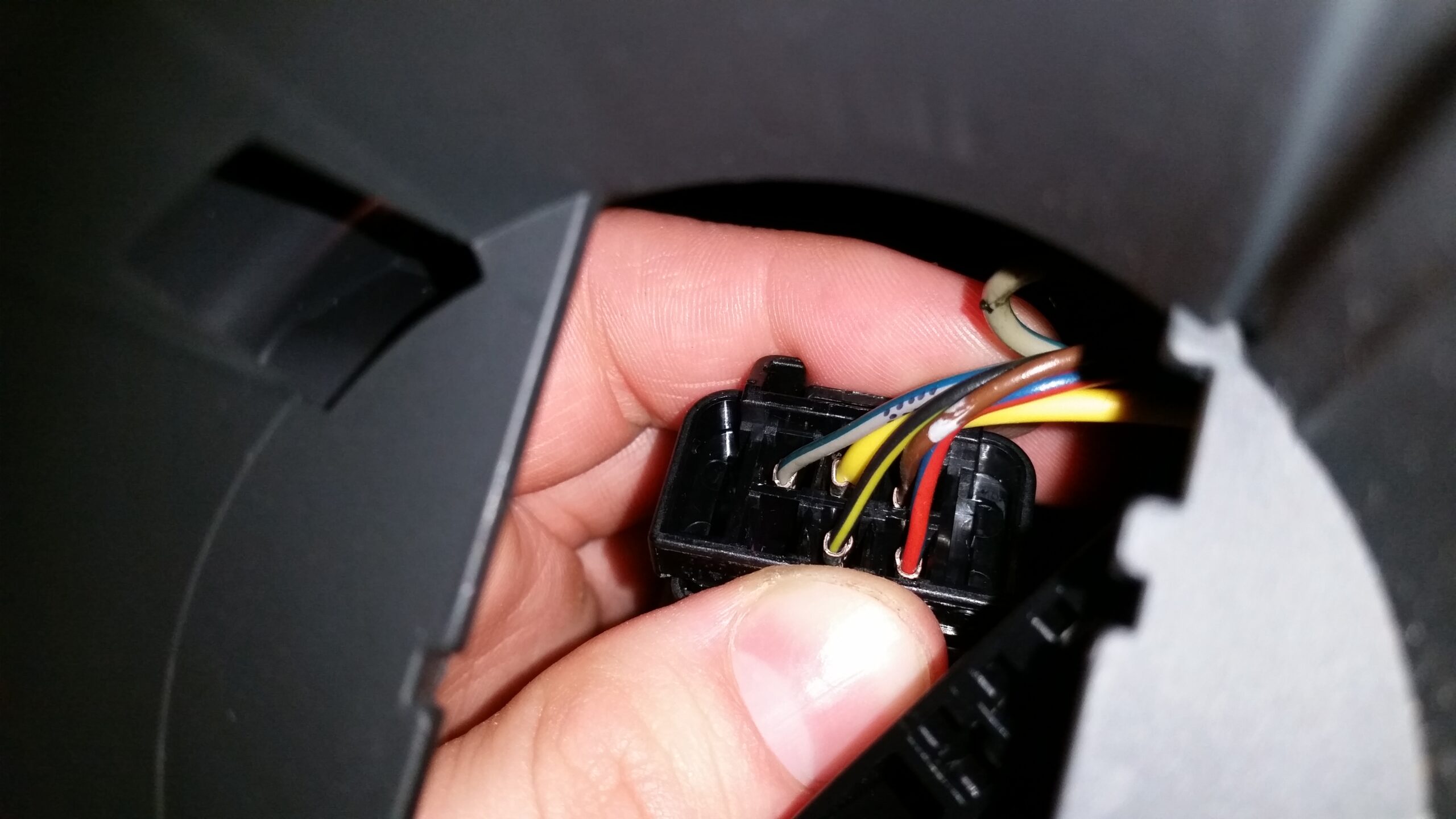

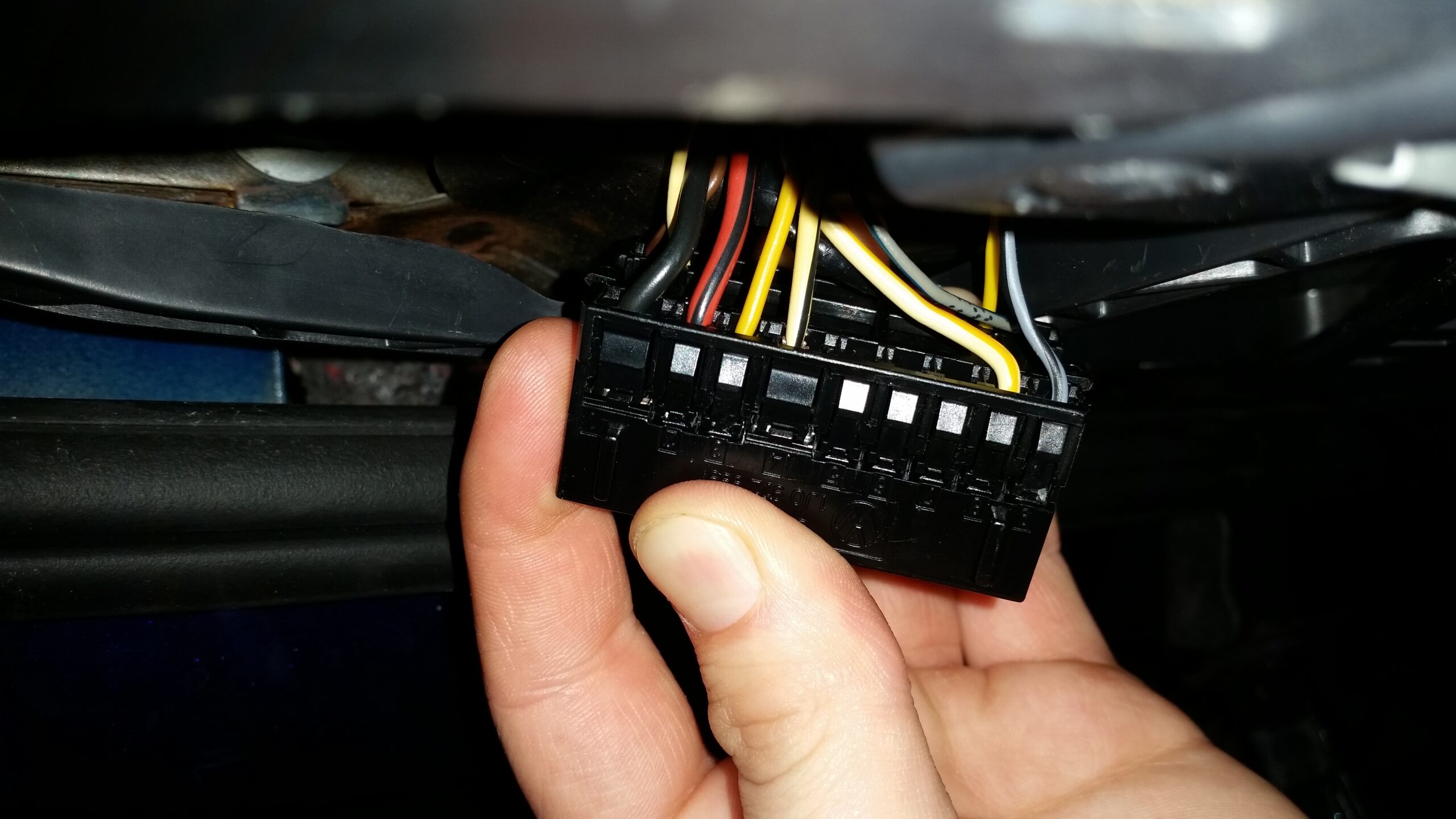

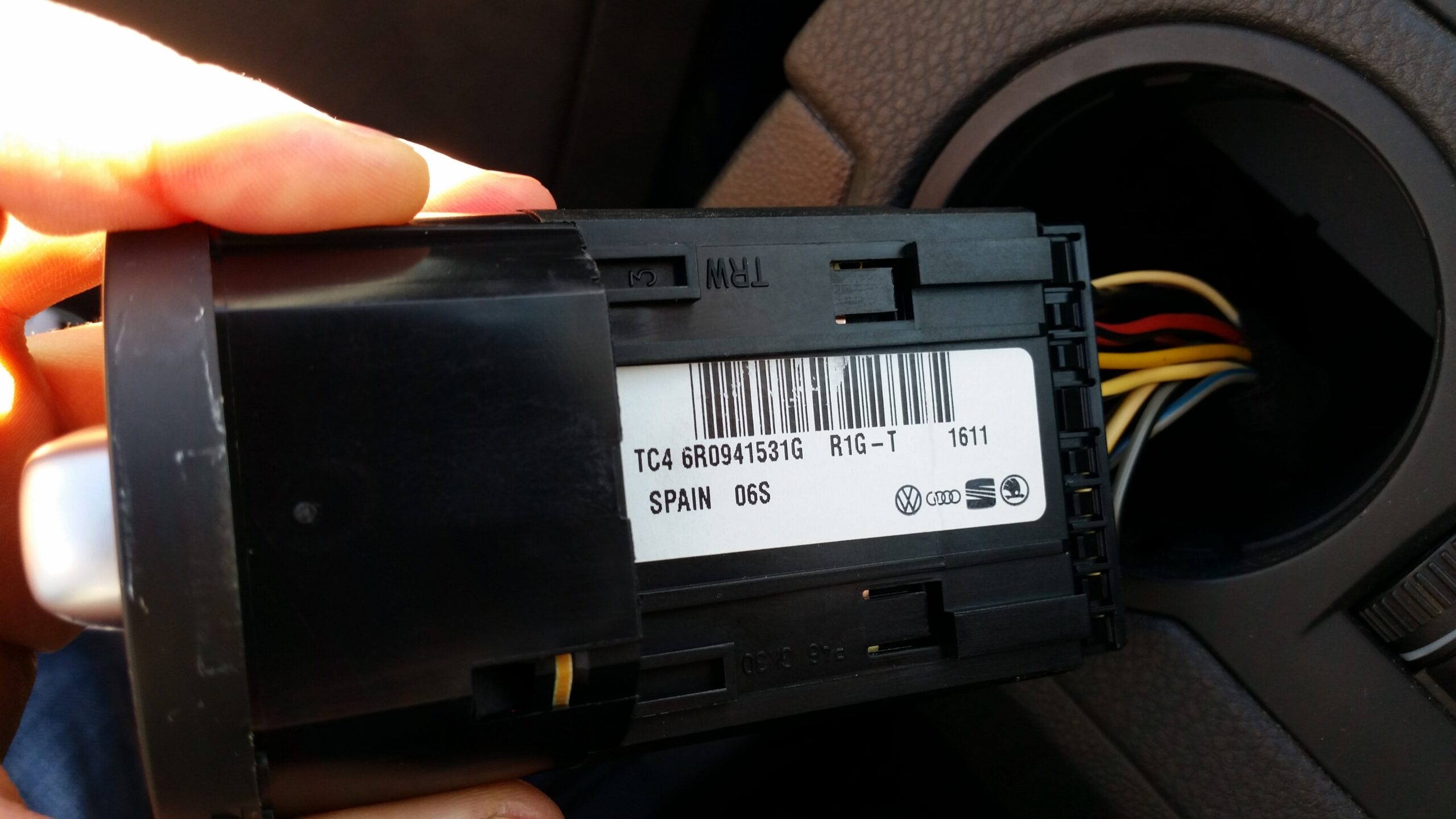

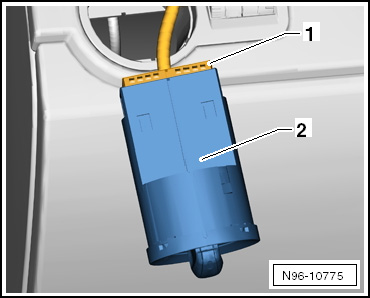

- Disconnect connector -1-.
Photos
Video
Removing headlight range control regulator -E102- and switch and instrument illumination regulator -E20-

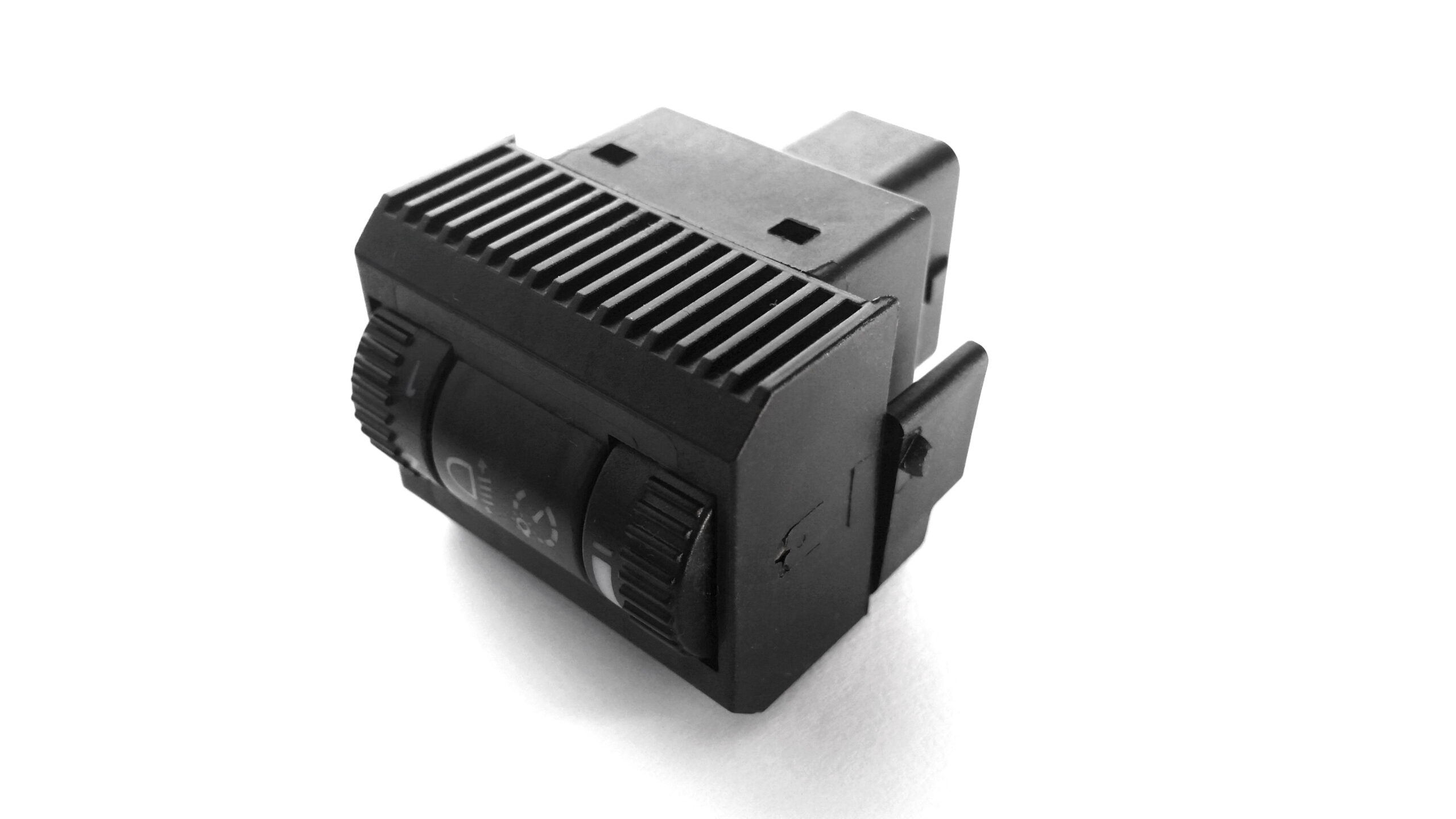

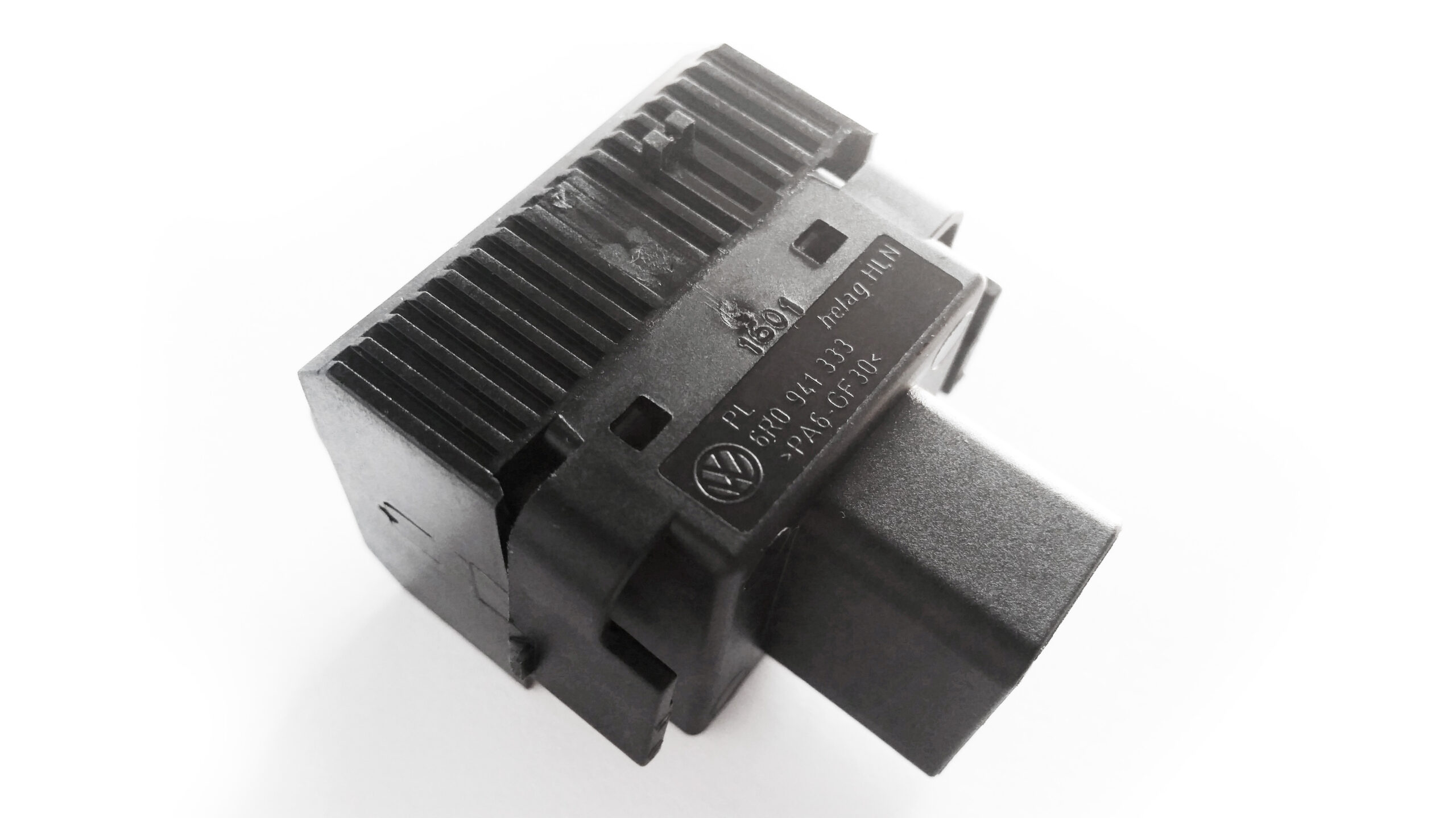

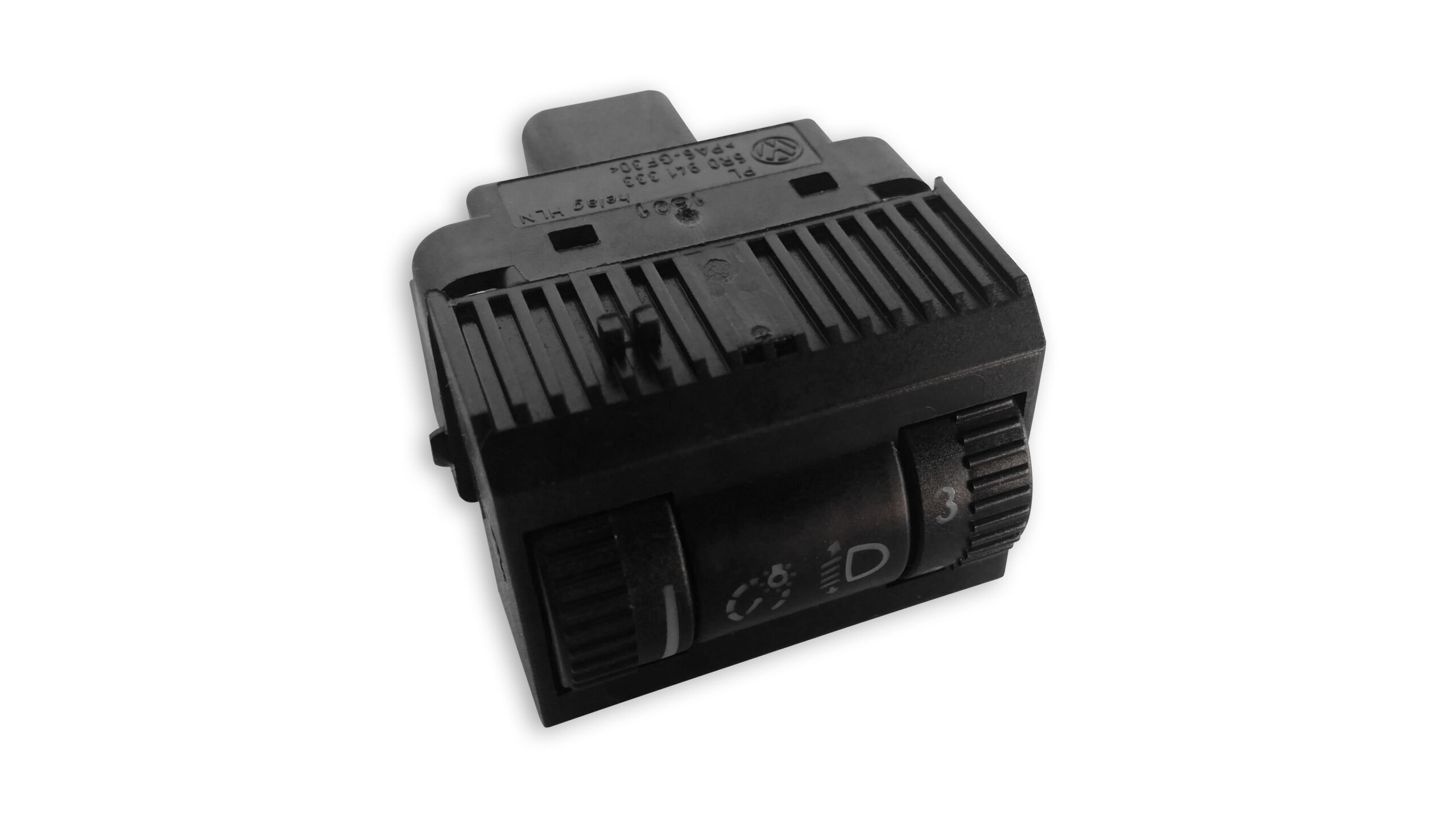

The headlight range control regulator -E102- and the switch and instrument illumination regulator -E20- form one component.
Removing
- Switch off ignition and all electrical consumers.
- Remove dash panel end cover on driver side
- Press locking lugs -arrows- together and remove headlight range control regulator -E102- and switch and instrument illumination regulator -E20- out of trim in direction of travel.

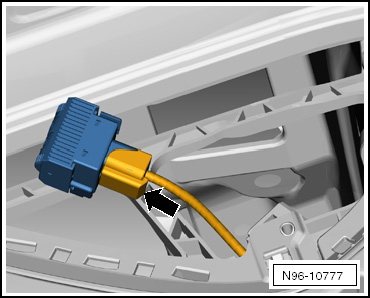

- Disconnect connector -arrow-.
