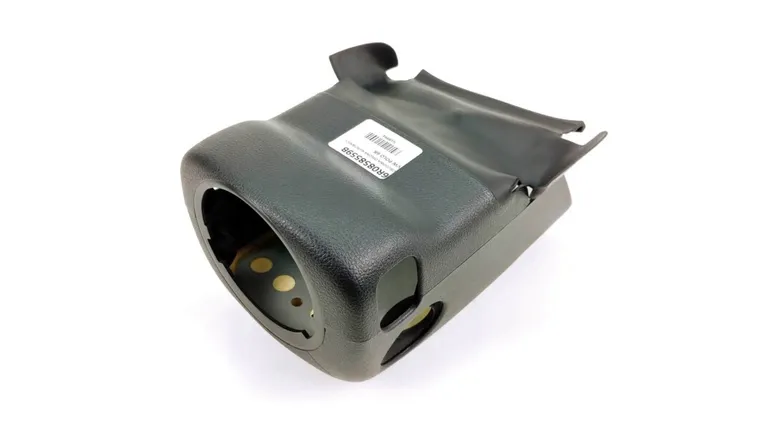

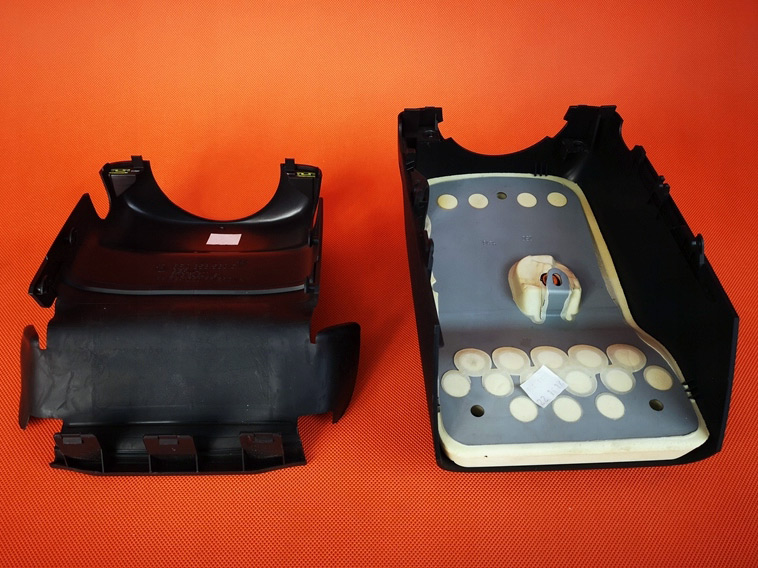

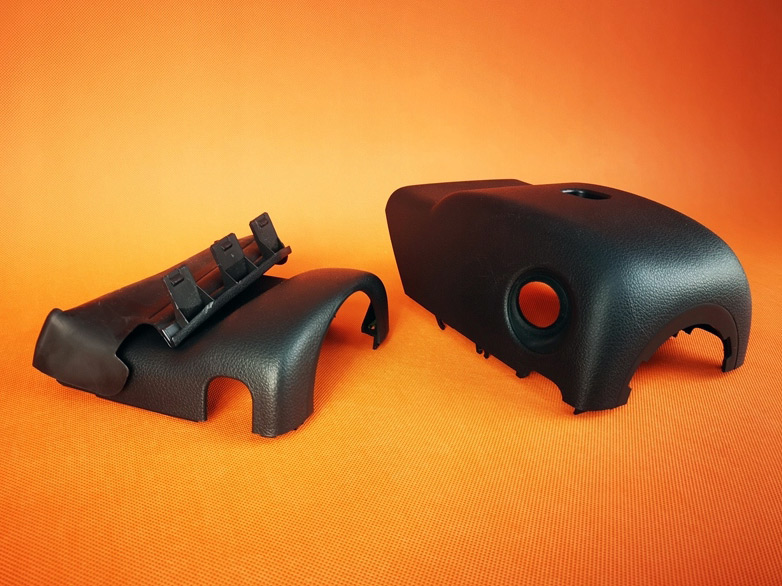

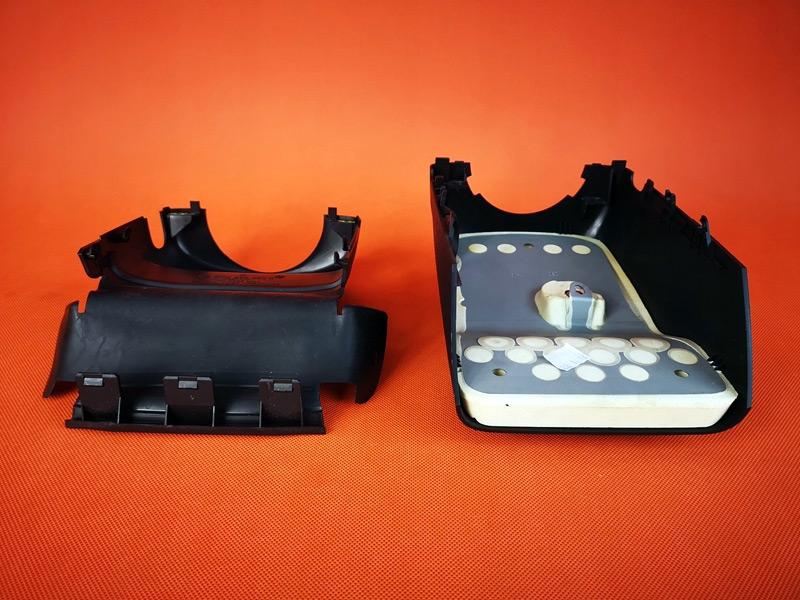

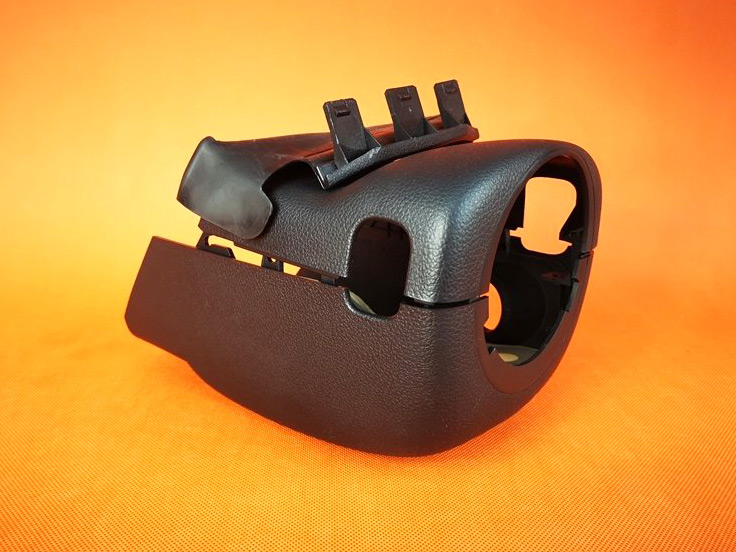

Removing steering column trim

• Remove driver airbag unit
• Remove steering wheel
• Release locking l ever of steering wheel adjustment.
• Pull steering column out and press downwards.
• Release gap cover -1- from mountings.

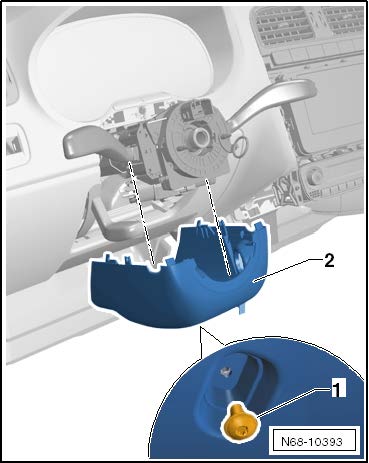

• Release upper part of steering column trim -2- from mountings

Remove upper part of steering column trim -1-.

Unscrew 2 bolts -1- (1.5 Nm).

• Remove bolt -1- (3 Nm).
• Release l ower part of steering column trim -2- from mountings

Removal and installation of the coil connector with slip ring must be carried out with the wheels in the straight-ahead position.
Coil connector with slip ring is secured as a new part in the centre position with a cable tie.

Vehicles with ESP
Vehicles with ESP are additionally equipped with a steering angle sensor -G85-. It is fitted in a housing together with the slip ring and coil connector.
After installation work on steering column switch, basic settings for steering angle sender -G85- must be carried out.

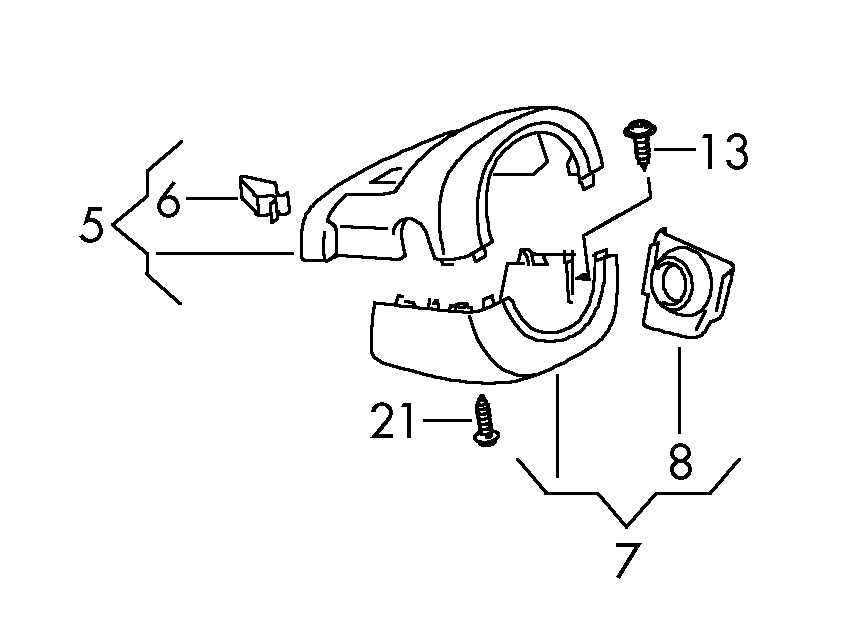

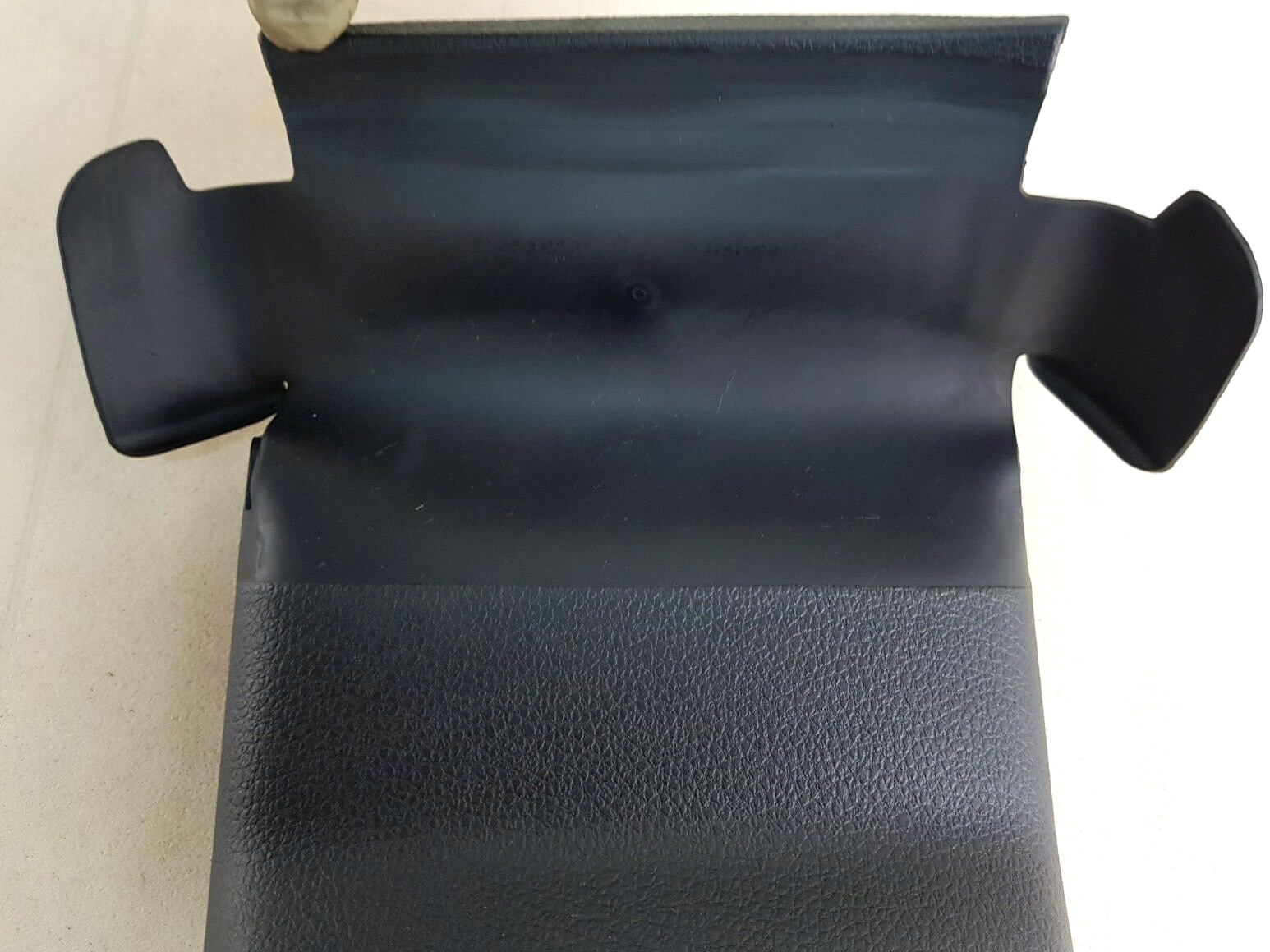

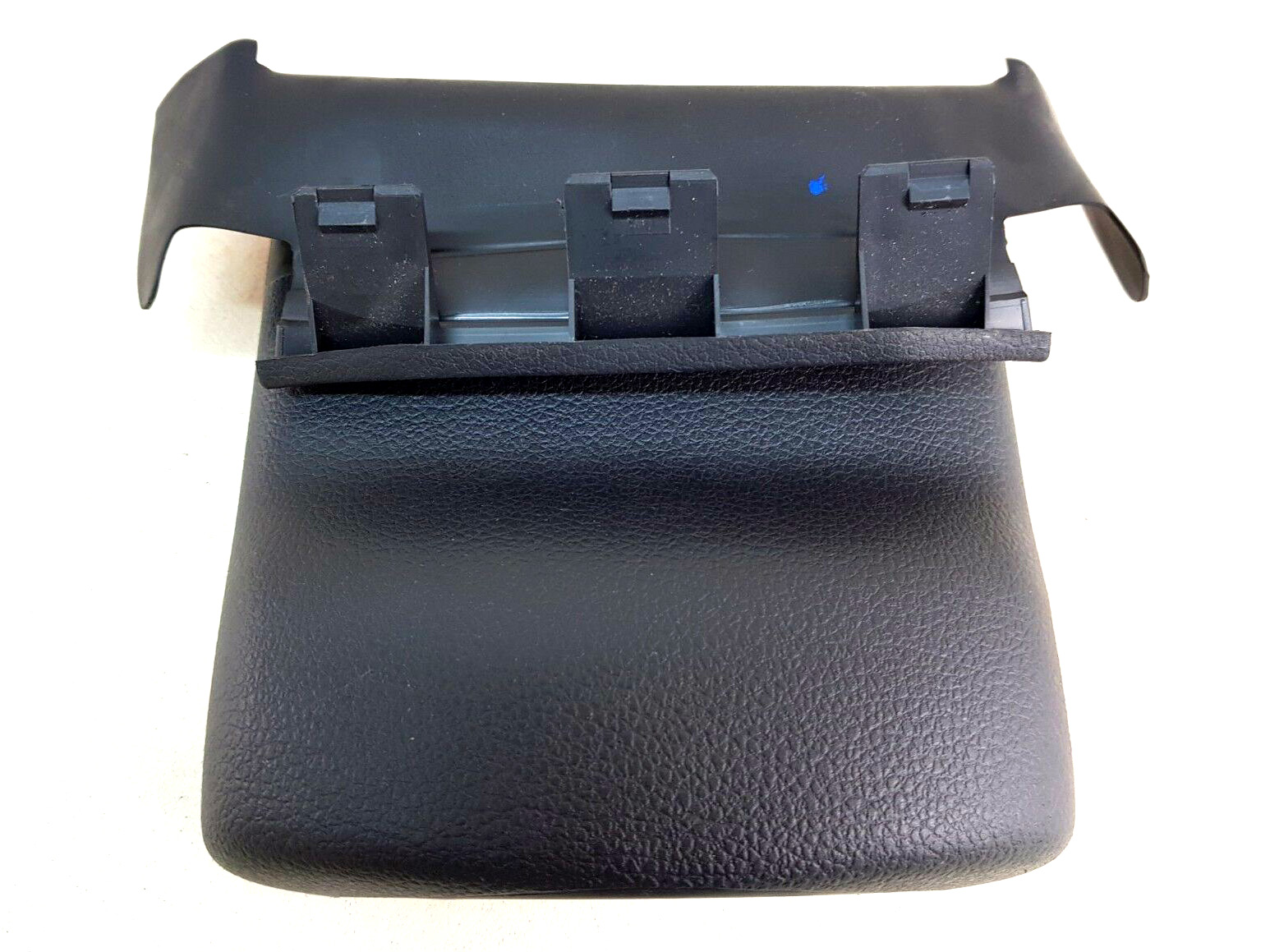

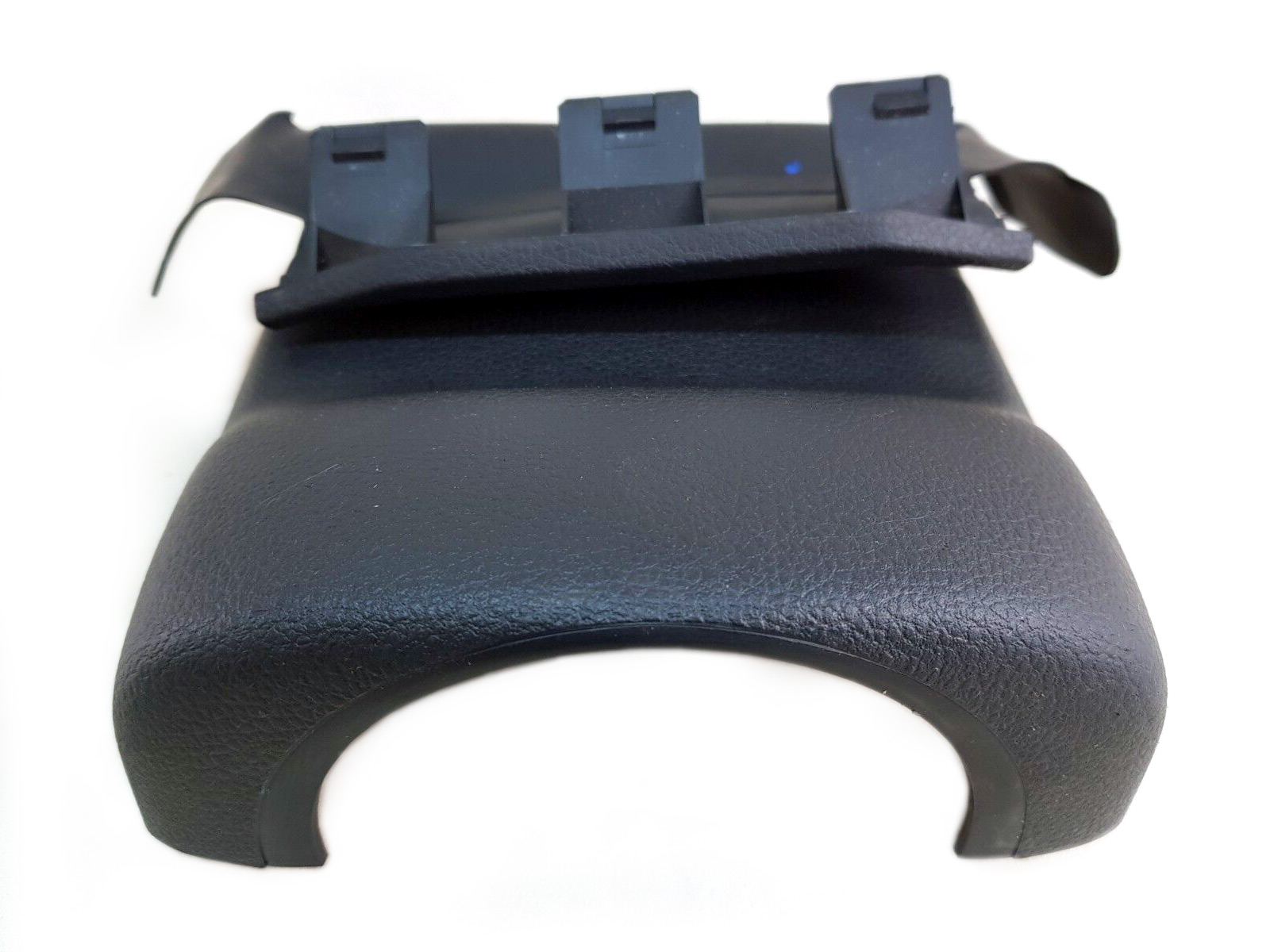

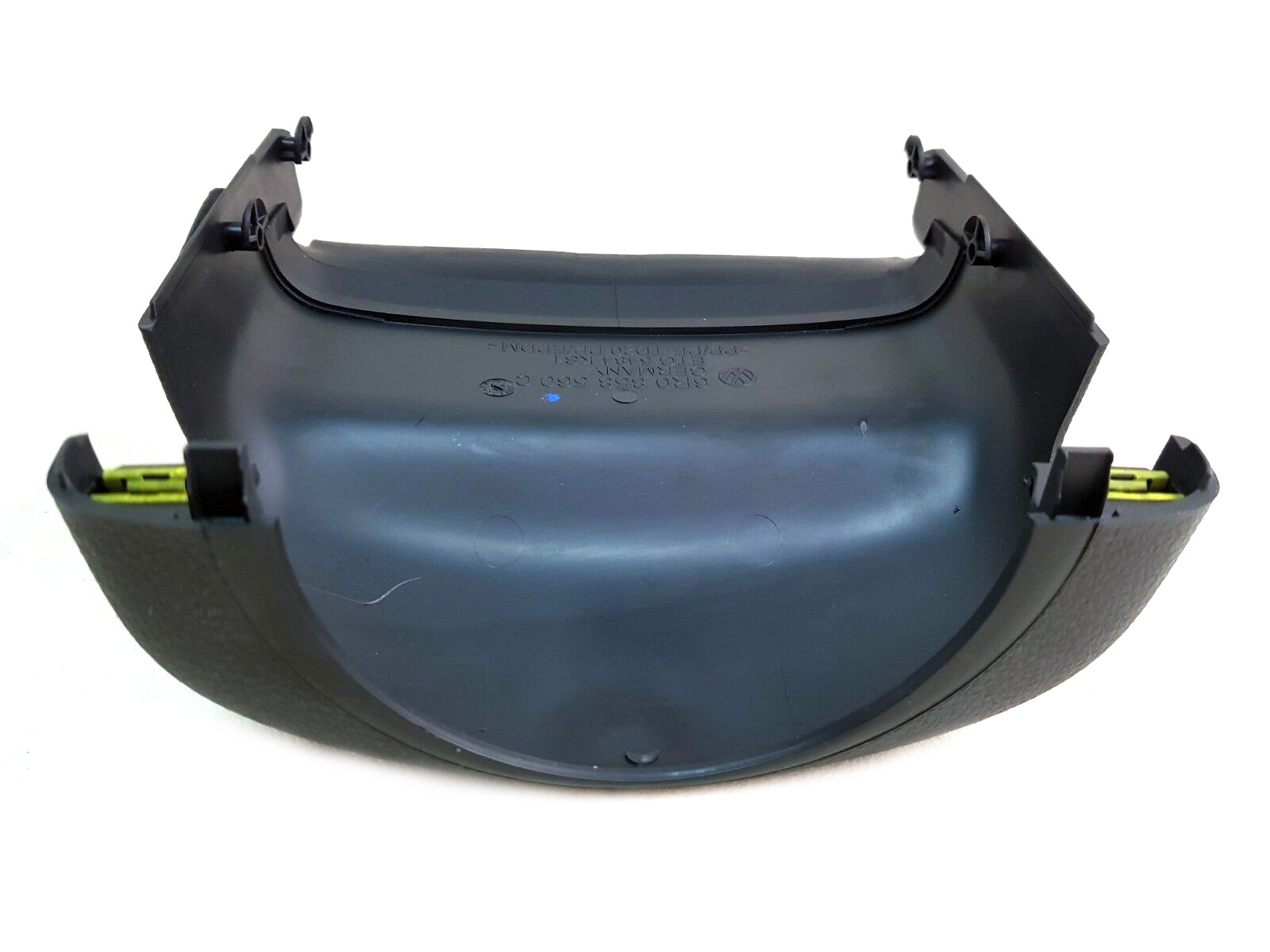

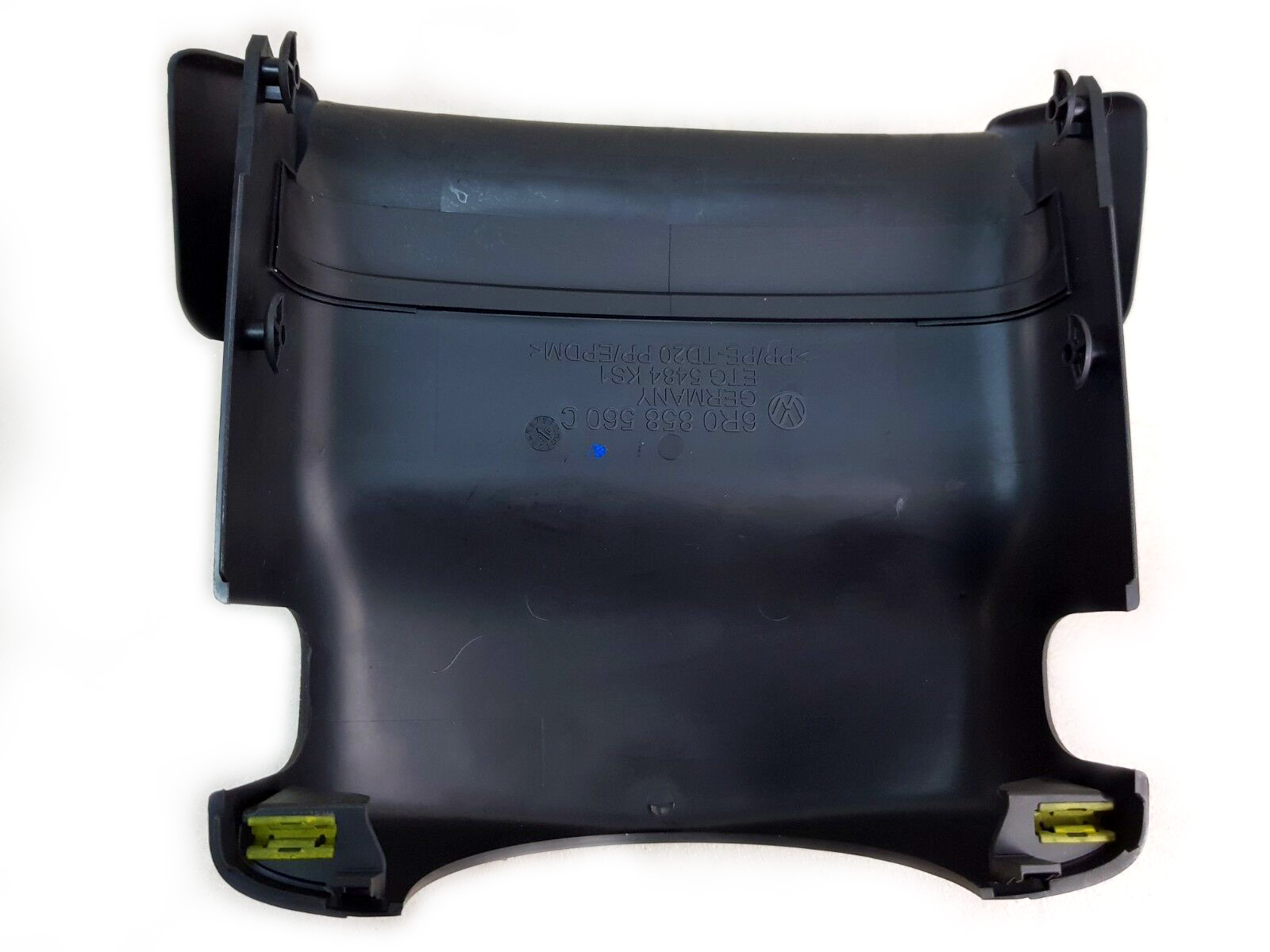

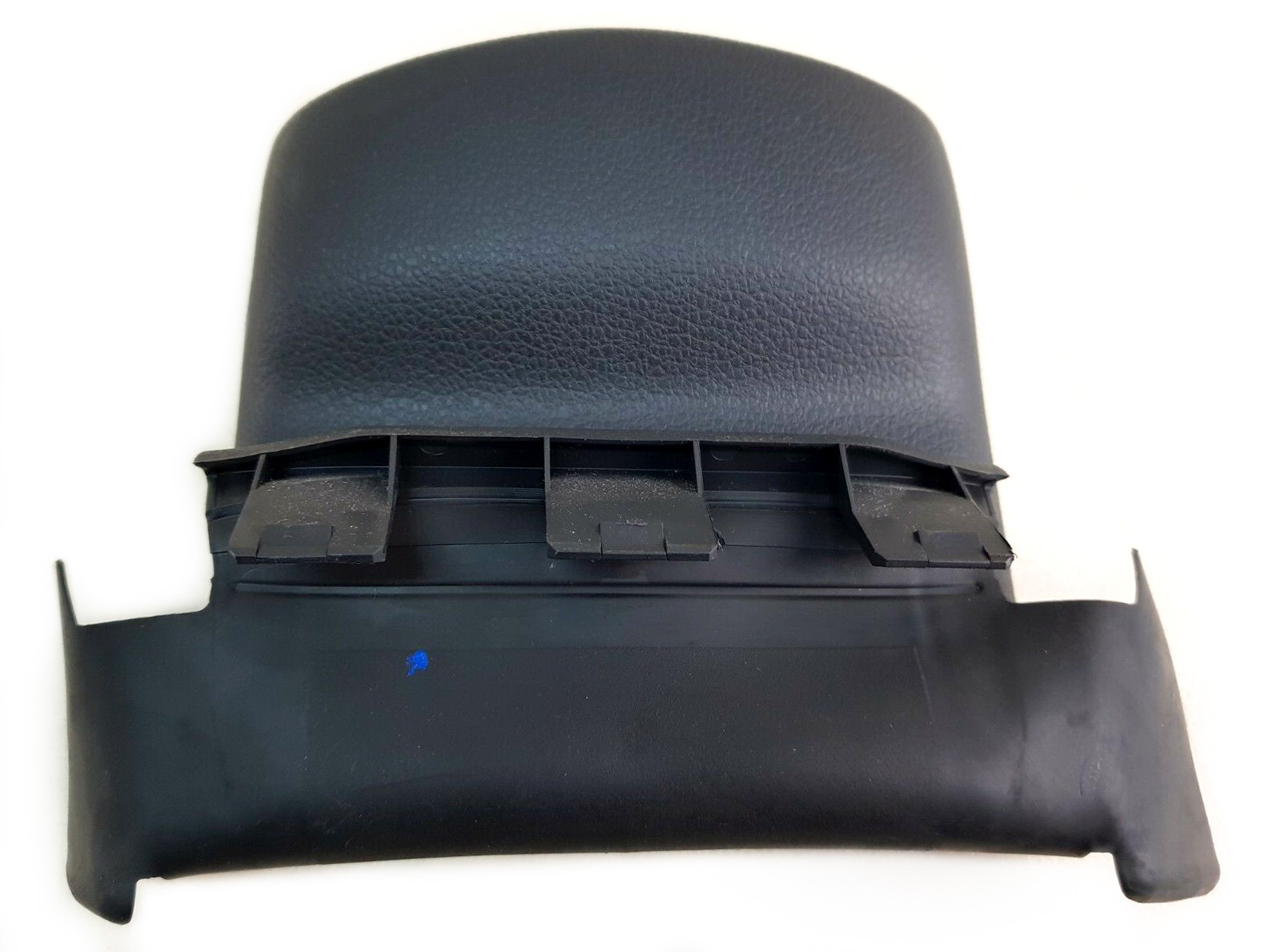

5 – cover for steering column

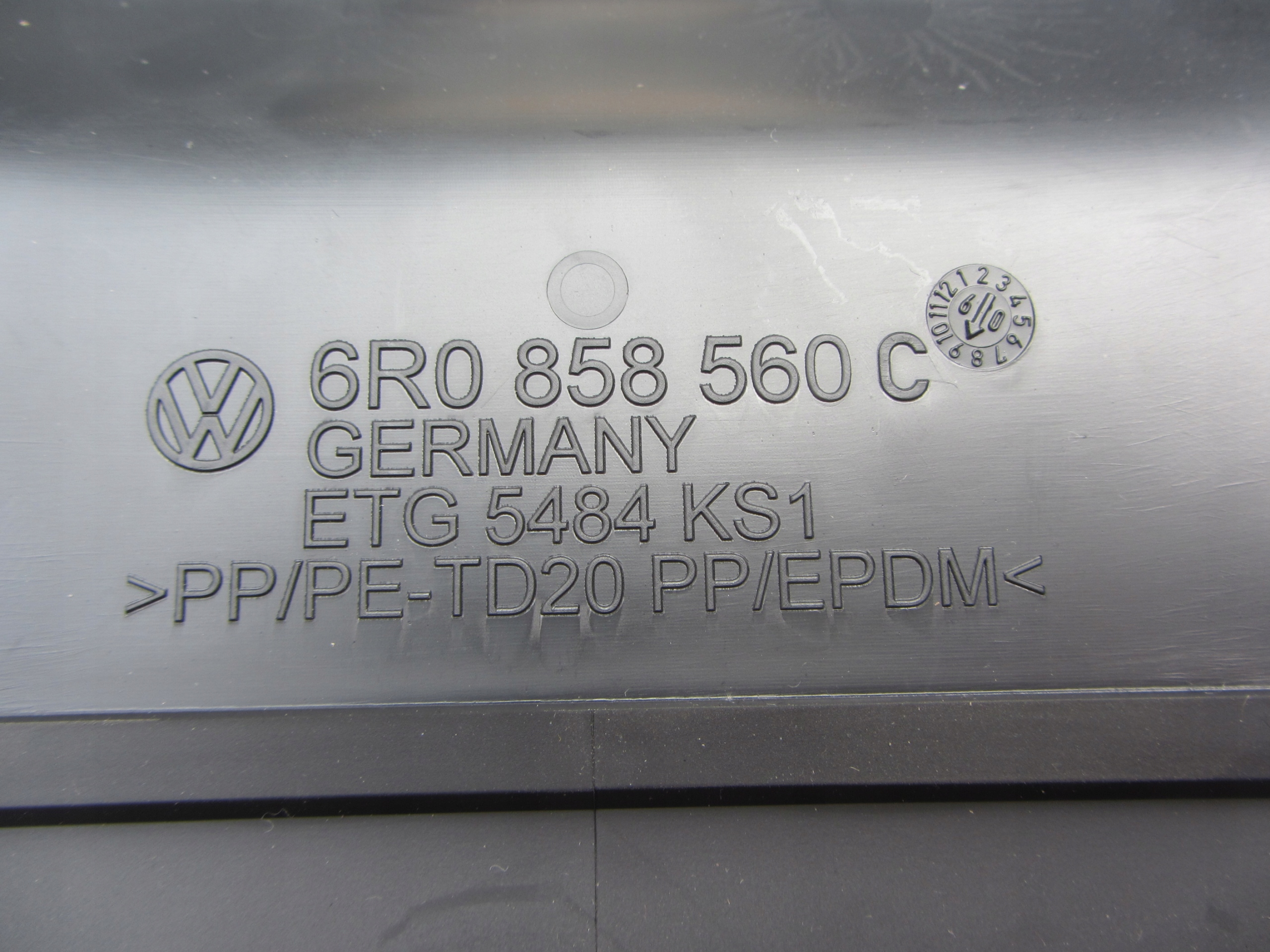

• 6R0858560C (6R0 858 560 C)

6 – spring clip

• 3B0867190 (3B0 867 190)

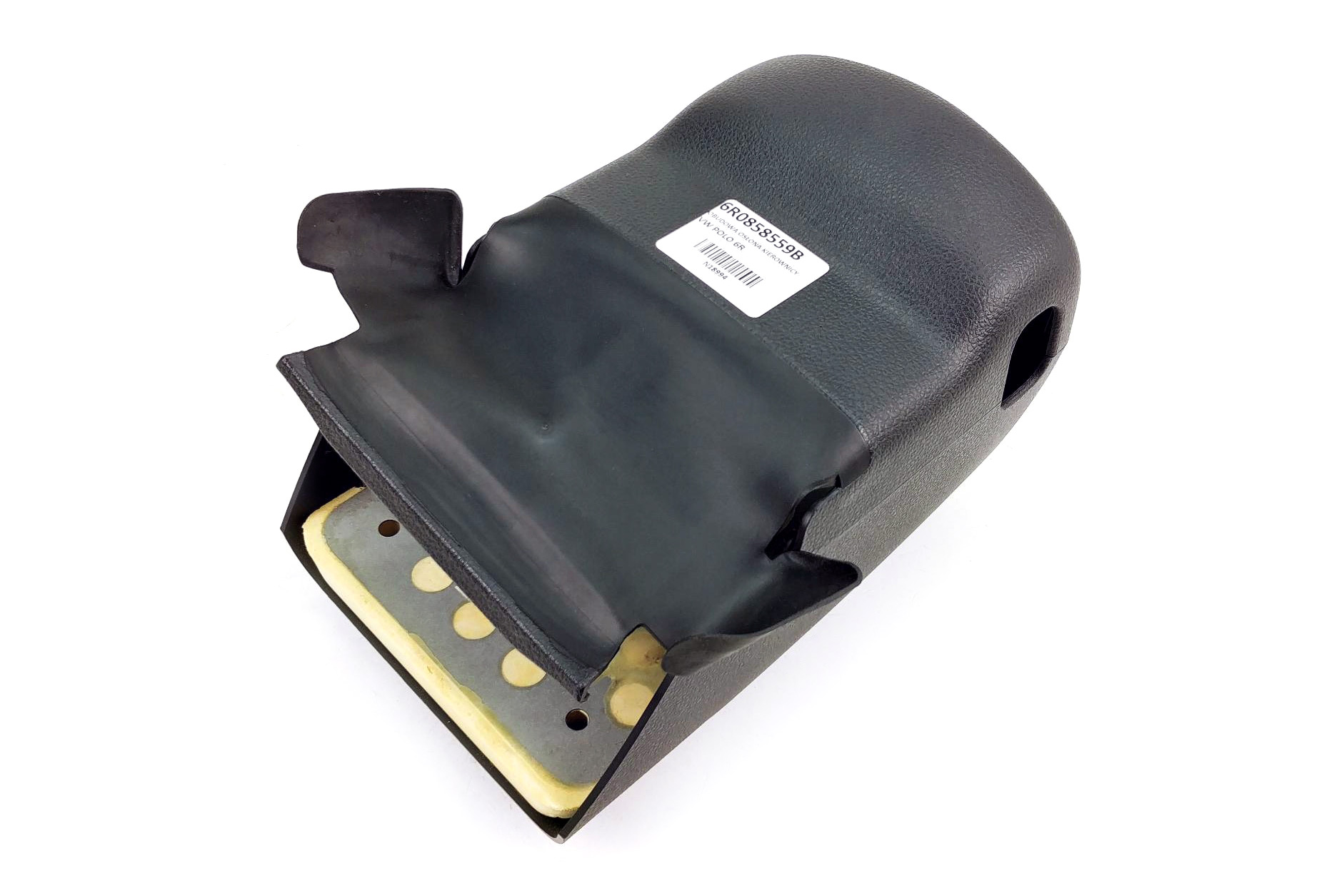

7 – cover for steering column (lower)

• 6R0858559B 82V (6R0 858 559 B 82V) – lhd, titanium black
• 6R0858559C 5BW (6R0 858 559 C 5BW) – lhd, walnut
• 6RF858559C 5BW (6RF 858 559 C 5BW) – rhd, walnut, IND
• 6RF858559C 82V (6RF 858 559 C 82V) – rhd, titanium black, IND

8 – grommet

• 6R0858196A 9B9 (6R0 8581 96A 9B9) – satin black
• 6RU858196 (6RU 858 196)

13 – hexagon socket head panel bolt, 4,2X16

• N 90698606 (N 906 986 06)

21 – round-head screw with inner hexagon socket head, M5X16

• N 10569501 (N 105 695 01)
